Panduit CT-460 Manuale utente
CT-460: PA24481A01_04 Page: 1 of 4 6-2018
CT-460
PA24481A01
Rev. 046-2018
© Panduit Corp. 2018
NEW TOOLS – BEFORE PLACING INTO SERVICE
1. VISUALLY INSPECT TOOL
FOR DAMAGE.
All Panduit crimping tools are calibrated and inspected before they are shipped from
the factory. There is, however, a possibility of damage in shipment. All new tools
should therefore be inspected before being used.
2. CHECK DIE CLOSURE
3. CLEAN EXCESS OIL FROM
CRIMP DIES AND USE.
New tools are shipped factory lubricated. They do not require extensive cleaning.
After inspection, simply clean any excess oil from the crimping dies and place into
service.
CAUTION: Verify power is “OFF” before
working on wiring with this tool. The plastic grips
are for the user’s comfort—and are not intended
to insulate against shock while working on live
electrical circuits.
WARNING: Controlled cycle device prevents tool from opening before cycle is
completed. Keep hands and other objects clear of pinch areas before closing.
ATTENTION: TO DISENGAGE CONTROLLED CYCLE DEVICE:
Turn the ratchet release screw counterclockwise and open handles.
The controlled cycle device will automatically reset after screw is released.
Email:
techsupport@panduit.com
EU Website:
www.panduit.com/emea
EU Email:
Emeatoolservicecenter
@panduit.com
www.panduit.com
Technical Support:
1-800-777-3300
Panduit Europe • EMEA Headquarters
Tel: +31 (0) 546 580 452 • Fax: +31 (0) 546 580 441
CRIMP DIES for
Pan-Term
insulated
terminals, splices
and wire joints.
Lock Screw
Notch
Ratchet Release
Screw
Locator Retention
Screw
BACK
VIEW
(FIG. 1)
FRONT
VIEW
(FIG. 2)
Adjustment
Pin
Terminal Locator
© Panduit Corp. 2018 OPERATION INSTRUCTIONS CT-460
CT-460: PA24481A01_04 Page: 2 of 4 6-2018

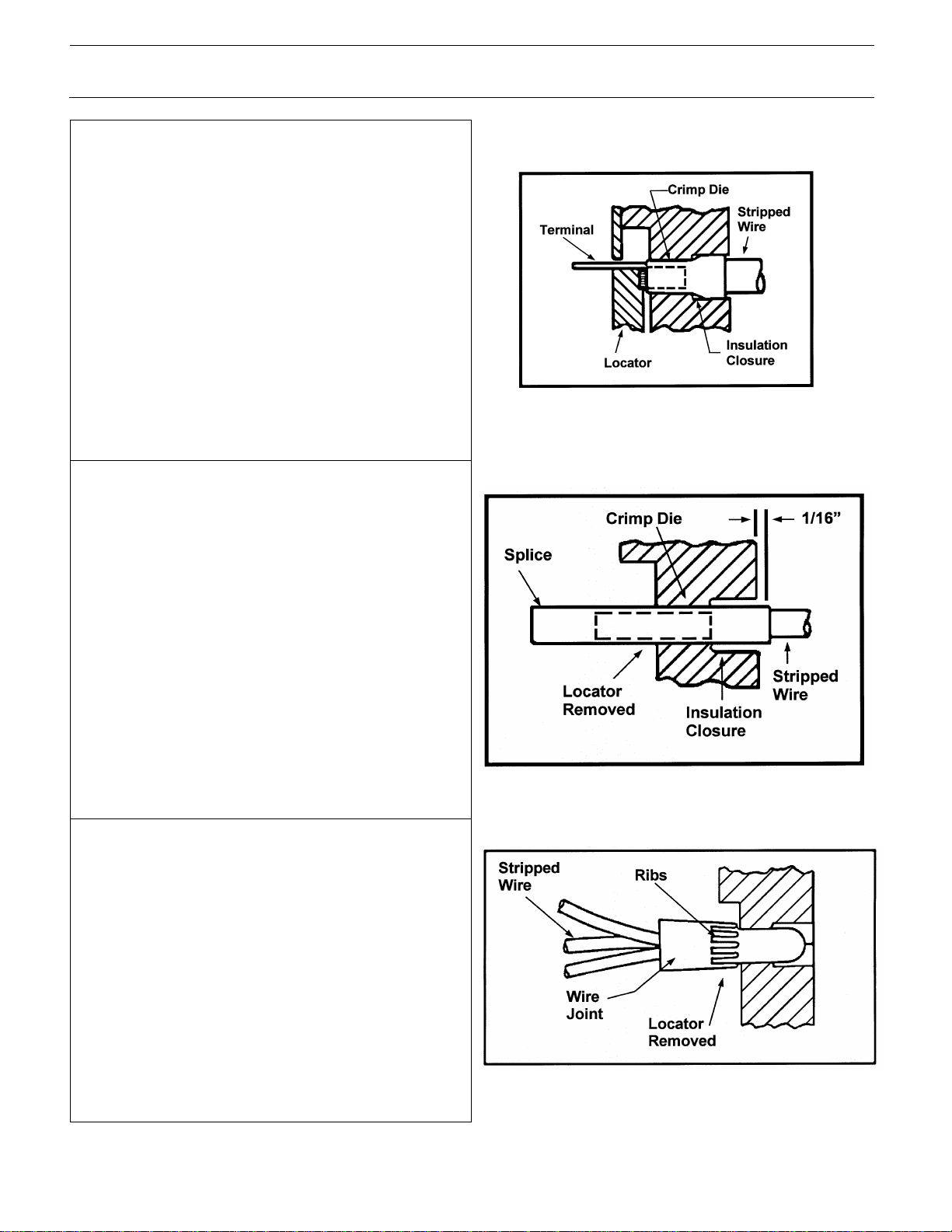

INSULATED TERMINAL INSTRUCTIONS
1. With handles in open position, insert terminal in
proper size die so that tongue slides into locator
slot. See product packaging for proper crimping
pockets.
2. Position terminal against locator and close handles
until barrel is held snugly in place -- do not deform
barrel.
3.
Insert stripped wire into terminal until conductor
extends beyond barrel. See product packaging for
wire strip length.
4.
Crimp by closing handles until controlled cycle
device releases. Handles will open automatically,
and crimped terminal may be removed.
FIG. 3
INSULATED SPLICE INSTRUCTIONS
1. Remove locator using a 2.5mm Allen wrench on the
locator retention screws [see FIG. 1]. (The 2.5mm
wrench may be used simultaneously to secure
screws on opposite side.)
2.
With locator removed and handles opened, insert
splice in proper size die so that barrel extends
1/16" beyond insulation closures.
3. Close handles until barrel is held snugly in position
-- do not deform barrel.
4. Insert stripped wire into splice and crimp by closing
handles until controlled cycle device releases.
5.
Remove splice and repeat operation for crimping
other half of barrel.
FIG. 4
INSULATED WIRE JOINT INSTRUCTIONS
1. Remove locator using a 2.5mm Allen wrench on the
locator retention screws [see FIG. 1]. (The 2.5mm
wrench may be used simultaneously to secure
screws on opposite side.)
2.
With terminal locator removed, insert wire joint in
proper size die so that ribs of molded insulator are
positioned against face of tool.
3. Twist ends of stripped wire together, trim and insert
into wire joint.
4. Crimp by closing handles until controlled cycle
device releases. Handles will open automatically,
and crimped joint may be removed.
FIG. 5
© Panduit Corp. 2018 OPERATION INSTRUCTIONS CT-460
CT-460: PA24481A01_04 Page: 3 of 4 6-2018
IN-SERVICE TOOLS – AFTER TOOLS HAVE BEEN IN SERVICE
1. CLEAN AND VISUALLY
INSPECT FOR DAMAGE
ONCE A MONTH.
In-service tools should be cleaned and inspected at least ONCE A MONTH. To
clean---immerse in a commercial degreasing compound and wipe clean with a
lint free cloth. If a degreasing compound is not available, wipe with a clean cloth.
2. CHECK DIE CLOSURE
After cleaning, inspect the crimping dies for proper die closure. See FIG. 6
for plug gaging instructions.
3. LUBRICATE TOOL ONCE
A WEEK.
4. CLEAN EXCESS OIL
FROM CRIMP DIES AND
USE.
In-service tools should be lubricated ONCE A WEEK, and after every cleaning.
Lubricate all pins, pivots and bearing surfaces with a good grade S.A.E. 20 or
equivalent motor oil. Be sure to clean any excess oil from crimping dies before
using.
VISUAL INSPECTION
1. Visually inspect tool for missing or loose pins; then close the tool and note the return action of the handles.
2. Remove the terminal locator and visually inspect the crimping dies for worn, chipped or broken surfaces.
Damaged crimping dies are objectionable and may go undetected when gaging the die closure.
3. If parts are missing, defective or damaged; contact your local Panduit Sales Office for information on repair or
replacement of tools; or contact Technical Support at 1-800-777-3300.
DIE CLOSURE INSPECTION: CT-460
Die Closure inspection is made by using the GO/NO-GO gaging dimensions listed in FIG. 6.
TO PERFORM DIE CLOSURE INSPECTION
1. Clean die and plug gage surfaces.
2. Close tool handles until crimping jaws are bottomed and handles are fully closed.
3. Using the proper gage member, insert the GO side into the die – it must pass completely through the
closure.
4. Reverse the gage and try to insert the NO-GO side into the die closure (Do Not use excessive force). The
NO-GO side may partially enter the die closure but must not pass completely through.
5. Perform the above procedure for both the crimp die closure and the insulation die closure, as listed in FIG. 6
© Panduit Corp. 2018 OPERATION INSTRUCTIONS CT-460
CT-460: PA24481A01_04 Page: 4 of 4 6-2018
6. If both the GO and NO-GO conditions are met; the tool is dimensionally correct – if either condition fails,
adjust the DIE CLOSURE as follows:
a. Remove lock screw with small wrench [see FIG. 2].
b. With adjustment wrench provided, turn adjustment pin one notch – each notch produces
approximately .002” of adjustment. A clockwise turn increases the die closure and a counter-
clockwise turn decreases the die closure.
c. Close the tool and plug gage the die closure as instructed above. If the GO/NO-GO conditions are
not met, repeat Step (2) in one-notch increments until the tool is gages to be dimensionally correct.
Replace and tighten both lock screws after final adjustment.
7. If the above procedure fails to satisfy all GO and NO-GO conditions, contact your local Panduit Sales
Office; or contact Technical Support at 1-800-777-3300.
FIG. 6
POCKET
SIZE
CRIMP DIE CLOSURE
GAGING GAGE ELEMENT
DIAMETERS
GO NO-GO GO NO-GO
16-14 BLUE 0.114 0.124 0.1140 - 0.1143 0.1237 - 0.1240
12-10 YELLOW 0.153 0.163 0.1530 - 0.1533 0.1627 - 0.1630
POCKET
SIZE
INSULATION DIE CLOSURE
GAGING GAGE ELEMENT
DIAMETERS
GO NO-GO GO NO-GO
16-14 BLUE 0.142 0.158 0.1420 - 0.1423 0.1577 - 0.1580
12-10 YELLOW 0.195 0.211 0.195 - 0.1953 0.2107 - 0.2110
