Paradox K32LCD+ Manuale utente

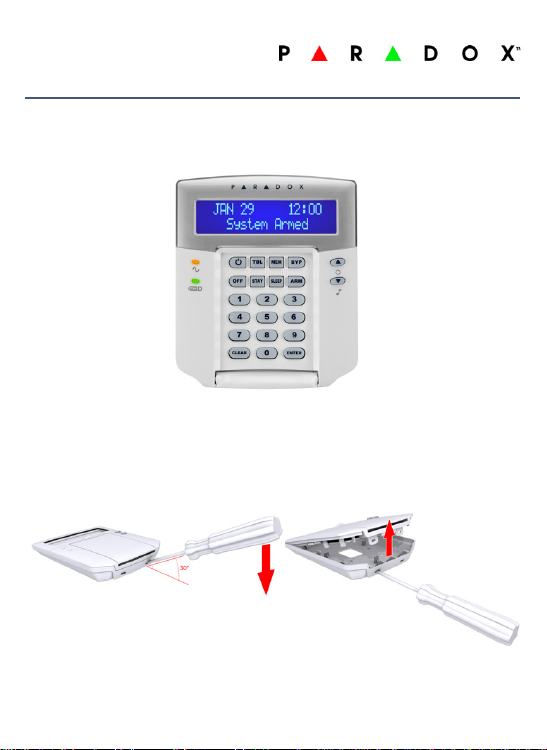

Printed in Canada | 06/2014 K32LCD+ Quick Install Guide

Technical Specifications

Warranty

Warranty: For complete warranty information on this product, please refer to the

Limited Warranty Statement found on the Web site www.paradox.com/terms. Your

use of the Paradox product signifies your acceptance of all warranty terms and

conditions.

notice. www.paradox.com

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference

that may cause undesired operation.

K32LCD+ Keypad

Quick Install Guide

The K32LCD+ keypad allows you to configure your Paradox

system through its interface.

Installation

1. Using a flathead screwdriver, pry the front housing assembly

from the backplate.

Figure 1: Opening the K32LCD+

Operating Voltage 9 to 16Vdc

Operating Temp. -10 to 55°C (14 to 131°F)

Power Consumption Maximum current - 150mA

Dimensions 15 x 12.6 x 2.7 cm (6 x 4.9 x 1.06 in.)

Weight 230g (8.1 oz)

Humidity 5-93%

Compatibility

Compatible with MG5000, MG5050, and Spectra

SP series V2.31 or higher and SP4000, SP65 V4.90

or higher.

Compliance EN50131-3 Grade 2; Environmental Class II

K32LCD+-EI00

K32LCD+ Quick Install Guide Printed in Canada | 06/2014

2. Mount the backplate to the wall by securing a M3.5 (#6)

screw in each of the dedicated mounting holes and tamper

hole. Ensure that the top is up, as shown in figure 2.

Figure 2: Backplate

3. Connect the 4-wire combus wires to the connector bus, as

shown in figure 3.

Figure 3: Wiring

4. Assemble both items by joining the hooks on the backplate

to their respected slots on the front housing assembly.

5. Secure the front housing to the backplate by snapping it

into place.

The installation process is now complete.

Configuration

To configure the modules through a keypad start by:

1. Press and hold the 0 (number zero) key.

NOTE:The area must be disarmed to configure it.

2. Initially you will see User Access Code but within 2 seconds

it will change to Installer Code.

3. When the Installer code appears, input the Installer code

number, the default number is [000000].

4. Input the 4 digit section code for Module Programming

[4003].

NOTE:You need module serial numbers for programming.

5. Input the Module serial number.

6. Input module sec [001].

7. Now you can start module programming.

Compatibility

The K32LCD+ is compatible with Magellan and Spectra series

control panels only. Please refer to the Technical Specifications

section for more details.

Wiring Slot

Wall Tamper

Top with hooks for

mounting keypad

panel

Mounting screw

holes

ZX1 is a:

Programmable

input

PGM is a:

Programmable

output

AllDisarmed

2014/19/0516:00

UserAccessCode

[*_]

InstallersCode

[_]

K32LCD+ Quick Install Guide Printed in Canada | 06/2014

2. Mount the backplate to the wall by securing a M3.5 (#6)

screw in each of the dedicated mounting holes and tamper

hole. Ensure that the top is up, as shown in figure 2.

Figure 2: Backplate

3. Connect the 4-wire combus wires to the connector bus, as

shown in figure 3.

Figure 3: Wiring

4. Assemble both items by joining the hooks on the backplate

to their respected slots on the front housing assembly.

5. Secure the front housing to the backplate by snapping it

into place.

The installation process is now complete.

Configuration

To configure the modules through a keypad start by:

1. Press and hold the 0 (number zero) key.

NOTE:The area must be disarmed to configure it.

2. Initially you will see User Access Code but within 2 seconds

it will change to Installer Code.

3. When the Installer code appears, input the Installer code

number, the default number is [000000].

4. Input the 4 digit section code for Module Programming

[4003].

NOTE:You need module serial numbers for programming.

5. Input the Module serial number.

6. Input module sec [001].

7. Now you can start module programming.

Compatibility

The K32LCD+ is compatible with Magellan and Spectra series

control panels only. Please refer to the Technical Specifications

section for more details.

Wiring Slot

Wall Tamper

Top with hooks for

mounting keypad

panel

Mounting screw

holes

ZX1 is a:

Programmable

input

PGM is a:

Programmable

output

AllDisarmed

2014/19/0516:00

UserAccessCode

[*_]

InstallersCode

[_]

Printed in Canada | 06/2014 K32LCD+ Quick Install Guide

Technical Specifications

Warranty

Warranty: For complete warranty information on this product, please refer to the

Limited Warranty Statement found on the Web site www.paradox.com/terms. Your

use of the Paradox product signifies your acceptance of all warranty terms and

conditions.

notice. www.paradox.com

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference

that may cause undesired operation.

K32LCD+ Keypad

Quick Install Guide

The K32LCD+ keypad allows you to configure your Paradox

system through its interface.

Installation

1. Using a flathead screwdriver, pry the front housing assembly

from the backplate.

Figure 1: Opening the K32LCD+

Operating Voltage 9 to 16Vdc

Operating Temp. -10 to 55°C (14 to 131°F)

Power Consumption Maximum current - 150mA

Dimensions 15 x 12.6 x 2.7 cm (6 x 4.9 x 1.06 in.)

Weight 230g (8.1 oz)

Humidity 5-93%

Compatibility

Compatible with MG5000, MG5050, and Spectra

SP series V2.31 or higher and SP4000, SP65 V4.90

or higher.

Compliance EN50131-3 Grade 2; Environmental Class II

K32LCD+-EI00
