Paradyne COMSPHERE 3800 Series Manuale del proprietario

COMSPHERE

3800 SERIES MODEMS

MODELS 3810, 3811, AND 3820

JAPAN SUPPLEMENT

Document No. 3810-A2-GB93-20

ANovember 1996 3810-A2-GB93-20

COMSPHERE

3800 Series Modems

Models 3810, 3811, and 3820

User’s Guide

Japan Supplement

3810-A2-GB93-20

3rd Edition (November 1996)

Changes and enhancements to the product and to the information herein will be documented and issued as a new release to

this manual.

Warranty, Sales, and Service Information

Contact your sales or service representative directly for any help needed. For additional information concerning warranty,

sales, service, repair, installation, documentation or training, use one of the following methods:

•Via the Internet: Visit the Paradyne World Wide Web site at http://www.paradyne.com

•Via Telephone: Call our automated call system to receive current information via fax or to speak with a company

representative.

— Within the U.S.A., call 1-800-870-2221

— International, call 813-530-2340

Trademarks

All products and services mentioned herein are the trademarks, service marks, registered trademarks or registered service marks of their

respective owners.

This publication is protected byfederal copyright law. No part of this publication may be copied or distributed, transmitted, transcribed, stored in a retrievalsystem,

ortranslatedintoanyhumanorcomputerlanguageinanyformorbyanymeans,electronic,mechanical,magnetic,manualorotherwise,ordisclosedtothirdparties

without the express written permission of Paradyne Corporation, 8545 126th Avenue North, P.O. Box 2826, Largo, Florida 33779-2826.

ParadyneCorporationmakesnorepresentationorwarrantieswithrespecttothecontentshereofandspecificallydisclaimsanyimpliedwarrantiesofmerchantability

orfitness fora particularpurpose. Further,Paradyne Corporationreserves theright torevise thispublicationandtomake changesfrom timeto timein thecontents

hereof without obligation of Paradyne Corporation to notify any person of such revision or changes.

Printed on recycled paper

i3810-A2-GB93-20 November 1996

Table of Contents

1. Introduction

Overview 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Safety Warnings 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Technical Specifications 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Equipment List 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2. Installation

Overview 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3800 Series Modem Package 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Model 3810 or Model 3820 Modem Installation 2-1. . . . . . . . . . . . . . . .

Model 3810 or Model 3820 Dial-Line Connection 2-3. . . . . . . . . .

Model 3810 4-Wire/2-Wire Leased-Line Connection 2-3. . . . . . . .

Model 3810 2-Wire Leased-Line Connection 2-3. . . . . . . . . . . . . .

AC Power Transformer Connection 2-3. . . . . . . . . . . . . . . . . . . . .

Model 3811 Modem Installation 2-4. . . . . . . . . . . . . . . . . . . . . . . .

3. Restrictions and Configuration Options

Overview 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Restrictions 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Configuration Tables 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

COMSPHERE 3800 Series Modems

ii November 1996 3810-A2-GB93-20

List of Tables

Table Page

1-1 Technical Specifications for Japan 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-2 Equipment List for Japan 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-1 Configuration Options for Japan 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-13810-A2-GB93-20 November 1996

Introduction

Overview

This supplement highlights all safety warnings, installation procedures, features, and functions that

are unique to COMSPHERE 3800 Series modems installed in Japan. This document is intended to

be used in conjunction with the COMSPHERE 3800 Series Modems, Models 3810, 3811, and

3820, User’s Guide. Please consult this User’s Guide for overall operation of the 3800 Series

modem.

This document consists of three chapters. Chapter 1 contains safety warnings, technical

specifications, and an equipment list. Chapter 2 provides installation procedures for Model 3810,

3811, and 3820 modems installed in Japan. Chapter 3 lists configurations options that differ from

what is described in the COMSPHERE 3800 Series Modems, Models 3810, 3811, and 3820,

User’s Guide.

Safety Warnings

The following warning applies to 3800 Series modems installed in Japan.

THIS EQUIPMENT IS IN THE 1ST CLASS CATEGORY (INFORMATION

EQUIPMENT TO BE USED IN COMMERCIAL AND/OR INDUSTRIAL AREAS)

AND CONFORMS TO THE STANDARDS SET BY THE VOLUNTARY

CONTROL COUNCIL FOR INTERFERENCE BY DATA PROCESSING

EQUIPMENT AND ELECTRONIC OFFICE MACHINES AIMED AT

PREVENTING RADIO INTERFERENCE IN COMMERCIAL AND/OR

INDUSTRIAL AREAS.

CONSEQUENTLY, WHEN USED IN A RESIDENTIAL AREA OR IN AN

ADJACENT AREA THERETO, RADIO INTERFERENCE MAY BE CAUSED

TO RADIOS AND TV RECEIVERS, ETC.

READ THE INSTRUCTIONS FOR CORRECT HANDLING.

COMSPHERE 3800 Series Modems

1-2 November 1996 3810-A2-GB93-20

Technical Specifications

Table 1-1 shows technical specifications that are unique to 3800 Series modems installed in Japan.

Table 1-1

Technical Specifications for Japan

Specification Description

AC POWER

REQUIREMENTS 100 Vac 10%, 50/60 Hz

DIAL AND LEASED

TRANSMIT LEVEL Adjustable transmit level from 0 dBm to -15 dBm

TELEPHONE INTERFACE

Dial-Line Connectivity

Leased-Line Connectivity

RJ11C (Model 3810 and Model 3820)

RJ21X 50-pin connector (Model 3811)

RJ11C Service Line (Model 3811)

JM8 (Model 3810—requires 8-position to 6-position

crossover cable)

6-pin center pair leased jack (Model 3820)

50-pin mass termination (Model 3811)

Equipment List

Table 1-2 shows a list of modems and telephone cords available for use in Japan.

Table 1-2

Equipment List for Japan

Equipment Model/

Part Number

Model 3810 (90—110V) 4-wire/2-wire standalone

Model 3811 4-wire/2-wire carrier card

Model 3820 (90—110V) 2-wire standalone

6-position, 4-wire modular cord, 7-foot length

8-position to 6-position crossover modular cord

3810-A1-603

3811-B1-003

3820-A1-603

125-0067-0031

125-0054-1531

2-13810-A2-GB93-20 November 1996

Installation

Overview

This chapter provides installation procedures for the Model 3810, 3820, and 3811 modems

installed in Japan.

3800 Series Modem Package

After opening the modem’s package, check for damage and verify that the following items are

present:

For the standalone models

•Manual and reference card

•Model 3810 or Model 3820 modem

•Power transformer

•One 6-position, 4-wire modular cord (Model 3810 and Model 3820)

•One 8-position to 6-position crossover modular cord (Model 3810 only)

For the carrier-mounted model

•Manual and reference card

•Model 3811 modem

•Rear connector plate with two DB-25-P edge card connectors

If any hardware components are damaged, notify your sales representative.

Model 3810 or Model 3820 Modem Installation

The following procedures describe how to connect the standalone modem to the dial line, leased

line, and ac power transformer.

Before installing your modem, make sure your installation site is clean and well-ventilated. Allow

space around the modem for installing cables and telephone cords, and make sure the modem is

located within reach of the ac power outlet. The distance between your modem and DTE should be

minimized if DTE data rates exceed 19,200 bps. Also, low capacitance cables may be necessary

for speeds greater than 19,200 bps or distances greater than 50 feet.

Figure 2-1 and Figure 2-2 show how Model 3810 and Model 3820 modems are connected to

certain TELCO jack types using the supplied cables.

COMSPHERE 3800 Series Modems

2-2 November 1996 3810-A2-GB93-20

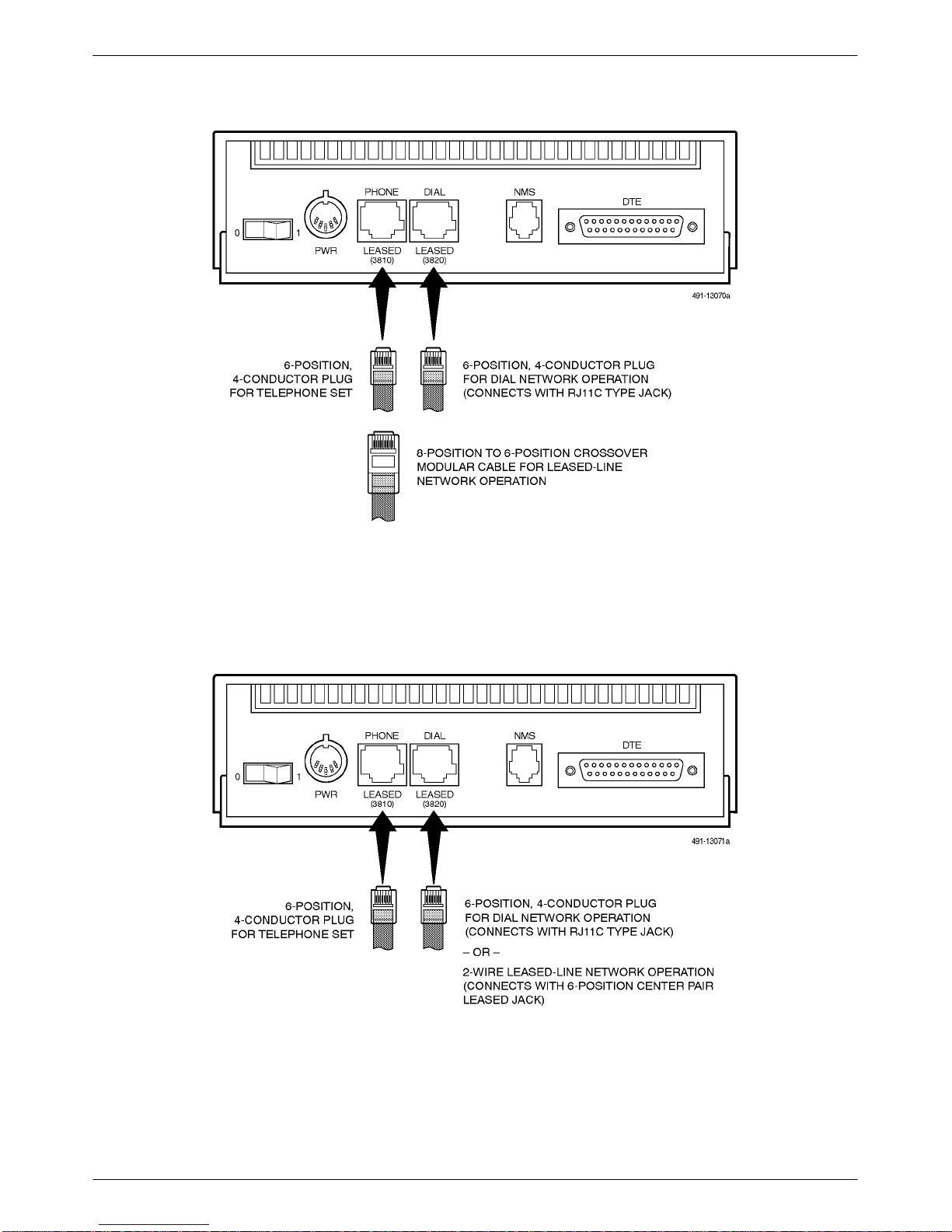

Figure 2-1. Model 3810 Rear Panel

Figure 2-2. Model 3820 Rear Panel

Installation

2-33810-A2-GB93-20 November 1996

Model 3810 and Model 3820 Dial-Line Connection

Use the following procedure to connect the modem to the dial network interface:

1. Insert the 6-position, 4-conductor modular plug into the jack labeled DIAL/LEASED

(3820), Figure 2-1.

2. Insert the other end of the modular cord into the dial network interface.

Model 3810 4-Wire/2-Wire Leased-Line Connection

Use the following procedure to connect a Model 3810 to the leased-line network interface:

1. Insert the 8-position modular plug into the jack labeled PHONE/LEASED (3810),

Figure 2-1.

2. Insert the 6-position modular plug into the leased-line network interface.

3. If the Model 3810 has a dial backup line, follow the steps listed in the Model 3810 and

Model 3820 Dial-Line Connection section.

Model 3820 2-Wire Leased-Line Connection

Use the following procedure to connect a Model 3820 modem to the 6-pin, center pair, leased-line

network interface:

1. Insert the 6-position, 4-conductor modular plug into the jack labeled DIAL/LEASED

(3820), Figure 2-2.

2. Insert the other end of the modular cord into the leased-line network interface.

AC Power Transformer Connection

The 90–110 volt power transformer is equipped with a 5-pin DIN connector for modem

connection, and a grounded line cord for AC power outlet connection.

Use the following procedure to connect the standalone modem to an ac power outlet:

1. Make sure the modem’s power switch is in the Off position.

2. Insert the power transformer’s 5-pin DIN male connector into the modem’s rear panel ac

power receptacle (Figures 2-1 and 2-2).

3. Insert the line cord’s wall plug into the appropriate grounded ac outlet.

4. Refer to the Modem Power-Up section in Chapter 2 for modem start-up procedures.

COMSPHERE 3800 Series Modems

2-4 November 1996 3810-A2-GB93-20

Model 3811 Modem Installation

To install the Model 3811 modem (carrier card) into the COMSPHERE 3000 Series Carrier, follow

the same installation procedures described in the Model 3811 Modem Installation section in

Chapter 2. For correct power, DTE, dial, and leased-line cabling procedures, refer to the

COMSPHERE 3000 Series Carrier, Installation Manual.

Note that the Model 3811 supports the following features:

•Carrier assembly

— 3000-B1-601 – COMSPHERE 3000 Series Carrier with 100 volt power supply

•Network Interface Modules (NIMs)

— 3000-F1-003 – RJ21X NIM without the Make Busy and Service Line feature

— 3000-F1-010 – RJ21X NIM with the Make Busy feature

— 3000-F1-016 – RJ21X NIM with the Service Line feature

— 3000-F1-018 – RJ21X NIM with the Make Busy and Service Line features

•Cables

— 3600-F2-503 – 50-pin to eight 8-position keyed modular plugs used for leased-line

networks

— 3600-F2-505 – 50-pin to eight 8-position keyed modular RJ45S plugs used with NIMs

for dial-line networks
