Paradyne 3151 Manuale tecnico

3100-A2-GK40-40 July 2000 1

ACCULINK®3151 CSU and 3161 DSU/CSU

General Information Guide

Document Number 3100-A2-GK40-40

July 2000

Introduction

This guide contains general information about the ACCULINK®3151 Channel

Service Unit (CSU) and the 3161 Data Service Unit/Channel Service Unit

(DSU/CSU). It is designed to be used in conjunction with the

COMSPHERE 3000

Series Carrier Installation Manual

and the

ACCULINK CSU, Models 3150-A4 and

3151, Operator's Guide

or the

ACCULINK DSU/CSU, Models 3160-A4, 3161,

3164-A2, and 3165-A4, Operator's Guide.

The Model 3151 CSU and the Model 3161 DSU/CSU are designed to fit into the

COMSPHERE 3000 Series Carrier.

Product Documentation Online

Complete documentation for this product is available at www.paradyne.com.

Select

Library

→

Technical Manuals

→

T1/E1 Digital Access Devices.

Select the following documents:

Document No. 3000-A2-GA31

COMSPHERE 3000 Series Carrier Installation Manual

Document No. 3150-A2-GB24

ACCULINK CSU, Models 3150-A4 and 3151, Operator's Guide

Document No. 3160-A2-GB24

ACCULINK DSU/CSU, Models 3160-A4, 3161, 3164-A2, and 3165-A4,

Operator's Guide

To request a paper copy of a Paradyne document:



Within the U.S.A., call 1-800-PARADYNE (1-800-727-2396)



Outside the U.S.A., call 1-727-53-8623

2July 2000 3100-A2-GK40-40

CSU or DSU/CSU Circuit Card

The front panel of the CSU or DSU/CSU contains twelve light-emitting diodes

(LEDs) and six test jacks.

00-14949-01

MODEL

3151 CSU

MODEL

3161

DSU/CSU

Fail

Test

Sig

OOF

Alrm

EER

Sig

OOF

Alrm

PDB

BPV

Select

Net

DTR

TXD

RXD

CTS

RTS

DSU/CSU

3161

Fail

Test

Sig

OOF

Alrm

EER

Sig

OOF

Alrm

PDB

BPV

Select

Net

DTE

CSU

3151

Net

Out

Eqp

Net

Out

Eqp

3100-A2-GK40-40 July 2000 3

For information about the CSU or DSU/CSU front panel LEDs, refer to Chapter 3 in

the associated operator’s guide

For information about the CSU or DSU/CSU front panel test jacks, refer to

Chapter 8 in the associated operator’s guide

Auxiliary Backplane

Verify that the Auxiliary Backplane package includes the following parts:



One Auxiliary Backplane



Two custom hexagonal standoffs



Two No. 6 nylon insulating washers



Two No. 5 nuts



Four No. 4-40 x 1" screws



Two No. 4-40 x 3/4"screws



One No. 4-40 x 3/8"screw



One T1 network cable retainer

The Auxiliary Backplane is an 8-slot

backplane that fits over half the open

section of the 3000 Series Carrier. It

is a passive assembly that provides

interconnect capability for the CSUs

or DSU/CSUs.

For more information about the

Auxiliary Backplane and the 3000

Series Carrier, refer to the

COMSPHERE 3000 Series Carrier

Installation Manual

493-14387

4July 2000 3100-A2-GK40-40

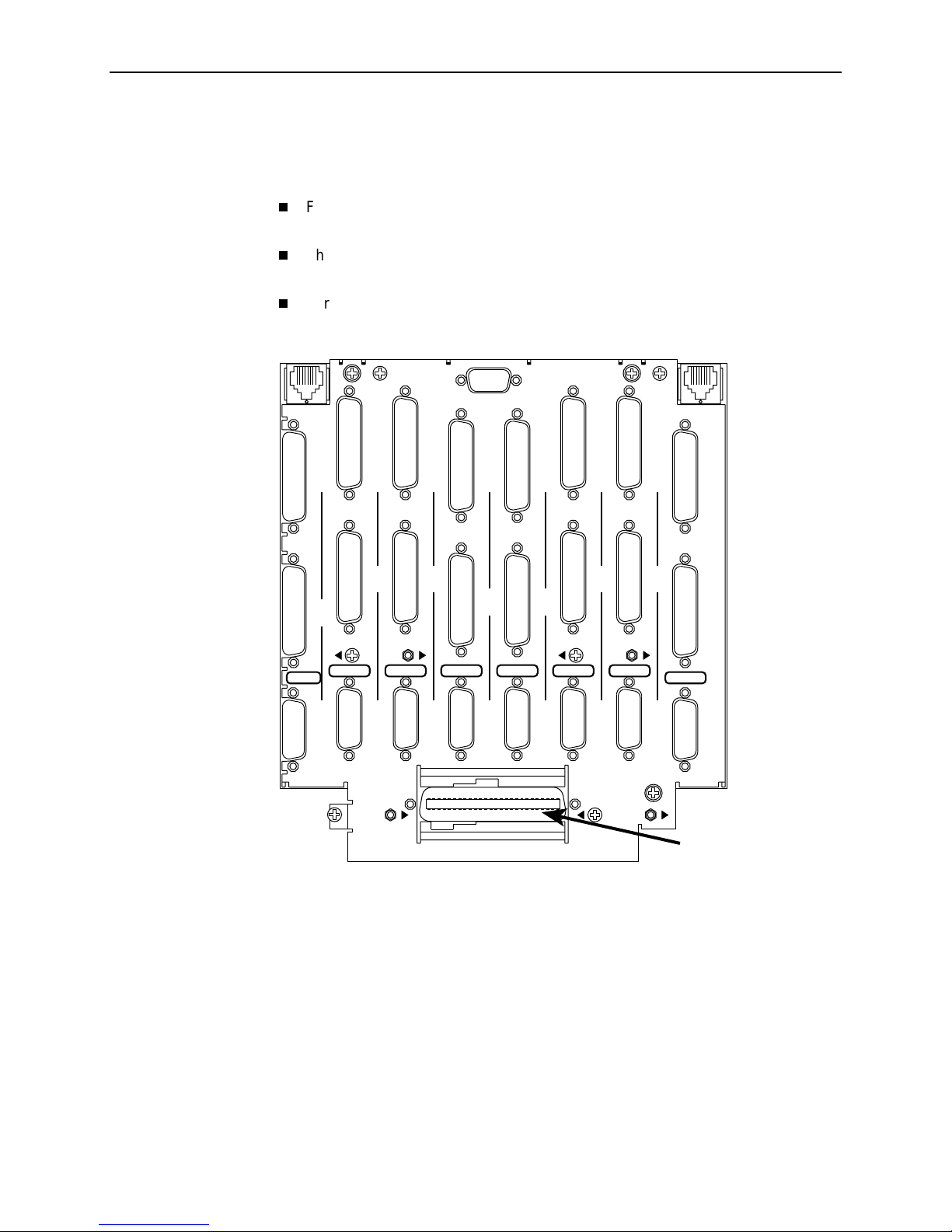

Interface Connections

The Auxiliary Backplane provides the connectors for interface cables.



For information about Auxiliary Backplane connectors, refer to the

COMSPHERE 3000 Series Carrier Installation Manual



The ACCULINK Model 3151 CSU and Model 3161 DSU/CSU are shipped

without cables.



For information about cables, refer to the

COMSPHERE 3000 Series Carrier

Installation Manual

PORT

1PORT

PORT

1PORT

PORT

1PORT

PORT

CLOCK IN

DIAGNOSTIC

CHAN

PORT

2PORT

PORT

2PORT

PORT

2PORT

PORT

DTE DTE DTE DTE DTE DTE DTE DTE

SLT 8 (16) SLOT 6 (14)

SLOT 7 (15) SLOT 5 (13) SLOT 4 (12) SLOT 3 (11) SLOT 2 (10) SLOT 1 (9)

T1 NETWORK

INTERFACE

DIAGNOSTIC

CHAN

CAUTION:DISCONNECT ALLTELEPHONE LINES ATTHE NETWORK

INTERFACE BEFORETOUCHING OR SERVICING

496-14364-01

T1 Network

Interface

Connector

Top Row of

Screw Holes

Center Row of

Screw Holes

Bottom Row of

Screw Holes

3100-A2-GK40-40 July 2000 5

Installing the Circuit Card in a Carrier

Read and follow all warning notices and instructions marked on the device or

included in this guide. See the

Important Safety Instructions

on page 12.

HANDLING PRECAUTIONS FOR

STATIC-SENSITIVE DEVICES

This product is designed to protect sensitive components from damage

due to electrostatic discharge (ESD) during normal operation. When

performing installation procedures, however, take proper static control

precautions to prevent damage to equipment. If you are not sure of the

proper static control precautions, contact your nearest sales or service

representative.

To install a CSU or DSU/CSU circuit card in the 3000 Series Carrier, you must

first install an Auxiliary Backplane. For information about installing the

Auxiliary Backplane, refer to the

COMSPHERE 3000 Series Carrier

Installation Manual

Procedure

To install the circuit card:

1. Use a Phillips screwdriver to loosen the screw holding the circuit pack lock and

rotate the lock to the open position. Open the latch.

CIRCUIT

CARD

GUIDE

CIRCUIT

PACK

LOCK CIRCUIT

CARD

GUIDE

LATCH

OPEN

CLOSED

491-11985a-02

6July 2000 3100-A2-GK40-40

2. Hold the circuit card vertically at the front of the carrier, with the faceplate latch

in the open position.

3. Insert the card into the top and bottom card guides of one of the slots

numbered 1–16.

4. Slide the card into the slot. The ejector latch lifts up as it engages the metal

flange.

5. Press the latch up until it clicks into the locked position to secure the circuit

card in the carrier.

6. Rotate the circuit pack lock back into the closed position and tighten the screw.

COMSPHERE 3000

COMSPHERE®

3000 SERIES

CARRIER

CIRCUIT

CARDS

LATCH

CIRCUIT CARD

GUIDES

496-14389-01

3100-A2-GK40-40 July 2000 7

Power-On Self-Test

After you install the CSU or DSU/CSU in the carrier and connect the carrier to a

power outlet, the CSU or DSU/CSU performs a power-on self-test to ensure that

the unit is in good working order. For information about the power-on self-test,

refer to the associated operator’s guide

To display the pass/fail status of the power-on test, use the procedure described in

Selecting a CSU or DSU/CSU

, and use the Self-Test Health command described

in the associated operator’s guide.

If the LEDs on the circuit card do not light during the self-test, there may be a

failure in the circuit card or in the carrier’s power supply. Install the circuit card in

another working carrier. If it works, or if a second circuit card in another slot in the

same carrier also does not light, check that the power cable is properly attached

and that the outlet is active. Refer to the

COMSPHERE 3000 Series Carrier

Installation Manual

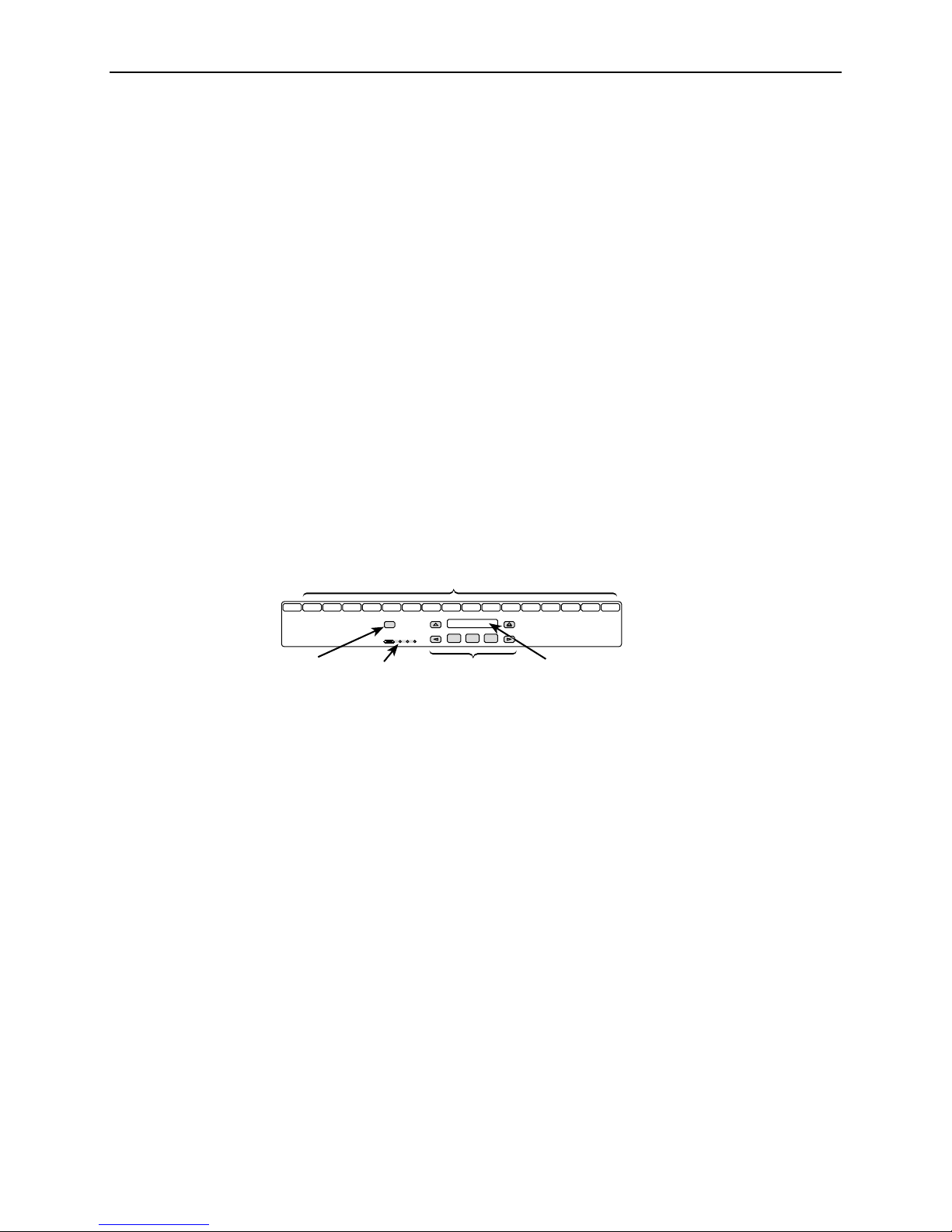

Shared Diagnostic Control Panel

Use the LCD and keypad on the carrier’s Shared Diagnostic Control Panel (SDCP)

to select and access individual CSUs or DSU/CSUs within a carrier.

The SDCP includes one LCD, five LEDs, and eight function keys.

The LCD shows messages and menu tree choices. Messages include alarms,

command/test completion, and action in progress.

The OK, Alrm, and Test LEDs reflect the state of the selected CSU or DSU/CSU.

The Bckup and EC LEDs are not used for the 3100 Series products.

The 7-button keypad surrounding the LCD enables you to navigate through the

menu tree and select choices presented on the second line of the LCD. The eighth

key (Select) selects a unit, by slot address, to access through the SDCP. When

you select a particular CSU or DSU/CSU, the OK LED on that unit’s front panel

flashes on and off repetitively.

For more information about the SDCP, refer to the

COMSPHERE 3000 Series

Carrier Installation Manual.

Select

SDU12345678910111213141516

COMSPHERE 3000

Select

Key Status

Indicators

Carrier Slots 1–16

F1 F2 F3

OK Alar

mBckUp Test EC

Keypad LCD

Display

496-12348a-03

8July 2000 3100-A2-GK40-40

Selecting a CSU or DSU/CSU

Procedure

To select a specific circuit card installed in the 3000 Series Carrier, perform the

following steps:

1. Press Select on the SDCP.

2. Enter a valid carrier and slot address. The green OK indicator on the selected

circuit card should flash. (It should be the only OK indicator flashing in the

cabinet.)

3. Press Select again. The display on the SDCP should show the last menu item

displayed, or in the case of a new installation, the top-level menu on the

selected circuit card.

Using the Communication Port on the Carrier

For specific information about enabling the COM port for carrier-mounted devices,

refer to Chapter 4 in the associated operator’s guide

NOTE:

If a Model 3161 DSU/CSU has the COM port enabled, Port 2 cannot be used

as a data port.

Technical Specifications

The technical specifications for the Auxiliary Backplane are listed in Table 1. The

technical specifications for the 3151 CSU are listed in Table 2. The technical

specifications for the 3161 DSU/CSU are listed in Table 3. The fan module cooling

requirements for the 3000 Series Carrier are provided in the

COMSPHERE 3000

Series Carrier Installation Manual

Table 1. Auxiliary Backplane Technical Specifications

Specifications Criteria

PHYSICAL DIMENSIONS

Height

Width

Depth

9.0 inches (22.9 cm)

8.0 inches (20.3 cm)

1.3 inches (3.3 cm)

WEIGHT 2.4 pounds (1.1 kg)

3100-A2-GK40-40 July 2000 9

Table 2. ACCULINK Model 3151 CSU Technical Specifications

Specifications Criteria

POWER REQUIREMENTS

Sixteen 3151 CSUs with SDU, SDCP,

and fan module:

115 Vac power supply

–48 Vdc power supply

90 to 132 Vac, 60 Hz ±3

(1.01 amps, 89.8 watts at 115 Vac)

–60 to –40 Vdc

(1.82 amps, 87.8 watts at –48Vdc)

POWER CONSUMPTION 3.1 watts per circuit card

DTE INTERFACE

Physical Interface

Framing Format

Coding Format

DTE Line Equalization

Send AIS

DB15S

D4, ESF

AMI, B8ZS

5 selectable ranges from 0 to 655 feet (0 to

196.5 meters

Selectable

NETWORK INTERFACE

Physical Interface

USA

Canada

Framing Format

Coding Format

Line Build-Out (LBO)

ANSI PRM

Bit Stuffing

Keep Alive to Network

Yellow Alarm Transcoding

RJ48H (T1), RJ48C with adapter cable

CA81A (T1 with adapter cable)

D4, ESF

AMI, B8ZS

0.0 dB, –7.5 dB,–15 dB, –22.5 dB

Selectable

AT&T TR 62411

AIS, Framed All Ones, Network Signal Looped

Selectable

LOOPBACKS

Standard

Additional AT&T TR 54016, AT&T TR 62411, ANSI

T1.403.1989

LLB (Line Loopback), PLB (Payload Loopback),

RLB (Repeater Loopback)

APPROVALS Refer to the product labeling

PHYSICAL DIMENSIONS

Height

Width

Depth

7.1 inches (18.0 cm)

1.0 inches (2.5 cm)

14.2 inches (36.1 cm)

WEIGHT 0.84 pounds (.38 kg)

ENVIRONMENT

Operating Temperature

Storage Temperature

Relative Humidity

Shock and Vibration

32°to 122°F (0°to 50°C)

–4°to 158°F (–20°to 70°C)

5%—95% (noncondensing)

Withstands normal shipping and handling

10 July 2000 3100-A2-GK40-40

Table 3. ACCULINK Model 3161 DSU/CSU Technical Specifications

Specifications Criteria

POWER REQUIREMENTS

Sixteen 3161 DSU/CSUs with SDU,

SDCP, and fan module:

115 Vac power supply

–48 Vdc power supply

90 to 132 Vac, 60 Hz ±3

(1.17 amp, 104 watts at 115 Vac)

–60 to –40 Vdc

(2.15 amps, 103 watts at –48 Vdc)

POWER CONSUMPTION 4.0 watts per circuit card

DTE (DSX-1) INTERFACE

Physical Interface

Framing Format

Coding Format

DTE Line Equalization

Send AIS

DB15S

D4, ESF

AMI, B8ZS

5 selectable ranges from 0 to 655 feet (0 to

196.5 meters)

Selectable

NETWORK T1 INTERFACE

Physical Interface (USA)

Physical Interface (Canada)

Framing Format

Coding Format

Line Build-Out (LBO)

ANSI PRM

Bit Stuffing

Yellow Alarm Generation

RJ48H, RJ48C with adapter cable

CA81A (T1 with adapter cable)

D4, ESF

AMI, B8ZS

0.0 dB, –7.5 dB, –15 dB, –22.5 dB

Selectable

AT&T TR 62411

Selectable

LOOPBACKS

Standard

Additional AT&T TR 54016, AT&T TR 62411, ANSI

T1.403.1989

RLB (Repeater Loopback), DLB (DTE

Loopback), V.54 Loop 2 and

Loop 3, ANSI T1.403 Annex B Fractional T1

Loopback

PORT INTERFACE

Standards

Rates EIA-530A, V.35, RS-449, V.11

Nx64 –64-1.536 Mb

Nx56 –56-1.344 Mb

CLOCKING SOURCES T1 network interface, Port 1, internal clock, DTE

Drop/Insert (DSX-1) interface, or external clock

APPROVALS Refer to the product labeling

PHYSICAL DIMENSIONS

Height

Width

Depth

7.1 inches (18.0 cm)

1.0 inches (2.5 cm)

14.2 inches (36.1 cm)

WEIGHT 0.86 pounds (.39 kg)

ENVIRONMENT

Operating Temperature

Storage Temperature

Relative Humidity Shock and

Vibration

32°F to 122°F (0°C to 50°C)

–4°F to 158°F (–20°C to 70°C)

5%—95% (noncondensing)

Withstands normal shipping and handling

Altri manuali per 3151

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Paradyne Hardware di rete

Paradyne

Paradyne M/HDSL Standalone Termination Unit HOTWIRE... Manuale utente

Paradyne

Paradyne iMarc SLV 9820-2M Manuale utente

Paradyne

Paradyne COMSPHERE 3610 Manuale operativo e di manutenzione

Paradyne

Paradyne JetFusion 2008 Manuale utente

Paradyne

Paradyne 7510 DSU Manuale di installazione

Paradyne

Paradyne JetFusion 2208 Manuale utente

Paradyne

Paradyne COMSPHERE 3610 Manuale utente

Paradyne

Paradyne COMSPHERE 3610 Manuale operativo e di manutenzione

Paradyne

Paradyne iMarc DSL 9720 CSU/DSU Manuale utente

Paradyne

Paradyne 8540 Manuale utente

Paradyne

Paradyne FrameSaver SLV 9124 Manuale per l'uso e la cura

Paradyne

Paradyne COMSPHERE 3800PLUS Manuale di istruzioni

Paradyne

Paradyne Compshere 3000 Series Manuale operativo e di manutenzione

Paradyne

Paradyne 4929 DSLAM Manuale utente

Paradyne

Paradyne FrameSaver NP 100 Manuale utente

Paradyne

Paradyne Hotwire 7996 Manuale utente

Paradyne

Paradyne 3163 Manuale utente

Paradyne

Paradyne 9126 Manuale utente

Paradyne

Paradyne 4300 Manuale utente

Paradyne

Paradyne COMSPHERE 3810 Manuale utente

Paradyne

Paradyne SMD2000-24E Manuale utente

Paradyne

Paradyne Jetstream CPX-1000 Manuale utente

Paradyne

Paradyne SLV Manuale utente

Paradyne

Paradyne COMSPHERE 6700 Series Manuale utente

Manuali Hardware di rete popolari di altre marche

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuale utente

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuale utente

Yudor

Yudor YDS-16 Manuale utente

D-Link

D-Link ShareCenter DNS-320L Manuale utente

Samsung

Samsung ES1642dc Istruzioni per l’uso

Honeywell Home

Honeywell Home LTEM-PV Istruzioni per il montaggio

evertz

evertz 7700 Series Manuale utente

D-Link

D-Link ShareCenter DNS-343 Manuale utente

Asante

Asante AsanteBridge 1012 Manuale utente

FireBrick

FireBrick FB2700 Manuale utente

Audiovox Electronics

Audiovox Electronics ARWH2T Manuale utente

ADC

ADC DSX-1 Manuale

NetComm

NetComm NF2 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale utente

Dell EMC

Dell EMC XC6420 Series Manuale utente

Lanner

Lanner NCA-1020A Manuale utente

Allied Telesis

Allied Telesis AT-TN121-A Manuale utente

Arista

Arista CCA-ETM-Q12 Manuale utente
