Peerless-AV DS-LEDUPS Series Manuale utente

12020-03-23 #:146-9048-5 (2020-11-09)

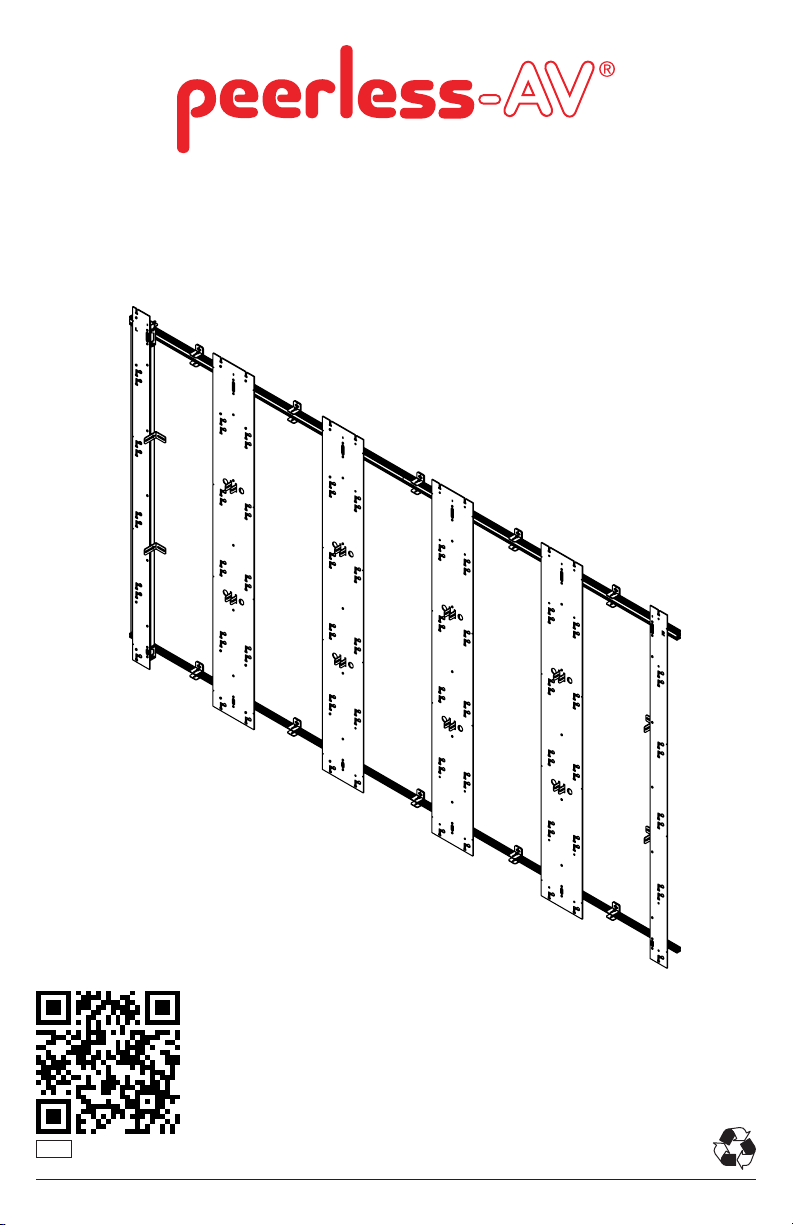

DS-LEDUPS Series

*Actual conguration may vary

ENG Installation video for reference only.

Read and follow instruction manual for full installation.

22020-03-23 #:146-9048-5 (2020-11-09)

Symbols

ENG

WARNING

ENG

Do not overtighten screws.

ENG

Tools Needed for Assembly.

ENG

5/32"

(4mm)

3/8"

(10mm)

2.5mm

Wear anti-static gloves.

ENG

ENG To properly tighten screws: Tighten until screw

head makes contact, then tighten another 1/2

turn. Do not overtighten screws.

+1/2

ENG - This product is designed to be installed on plywood walls. Hardware is included for plywood installation.



walls. Before installing make sure the supporting surface will support the combined load of the equipment and

hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail.

Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to safely lift

and position equipment. This product is intended for indoor use only. Use of this product outdoors could lead to



call customer care at 1-800-865-2112.

WARNING

32020-03-23 #:146-9048-5 (2020-11-09)

M5 x 5mm

set screw

#14 x 1.75"

wood screw

A B C

left column right column inside column

Parts List

Description

Aleft column

Bright column

Cinside column

Dtop horizontal asy

Ebottom horizontal asy

Ftop left horizontal asy

Gtop right horizontal asy

Hbottom left horizontal asy

Ibottom right horizontal asy

Jhorizontal spacer

Kvertical spacer

Lextrusion connector

Mwall plate shim

NM5 x 8mm

OM5 x 5mm set screw

P#14 x 1.75" wood screw

Q3mm allen wrench two-tip

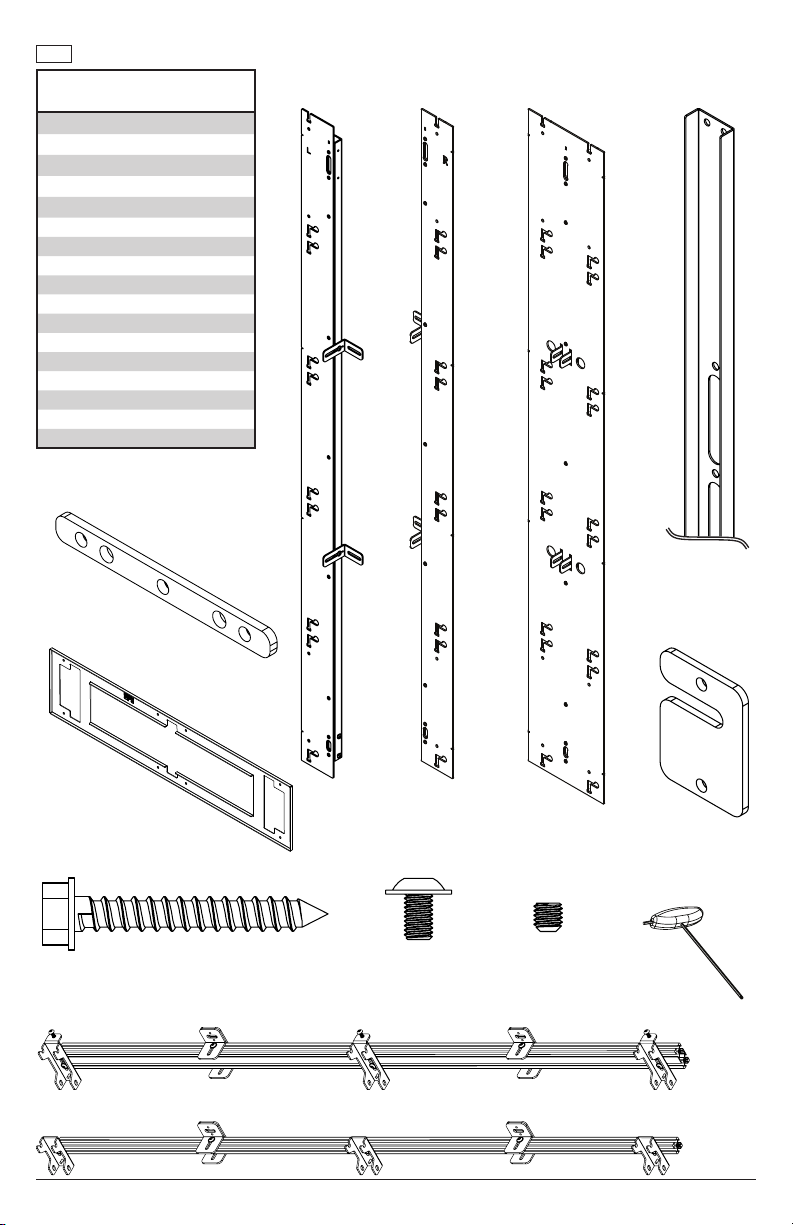

Parts (Before beginning, make sure you have all parts shown below).

ENG

top horizontal asy

bottom horizontal asy

M5 x 8mm

wall plate

shim

horizontal

spacer

extrusion

connector

vertical spacer

3mm allen wrench

two-tip

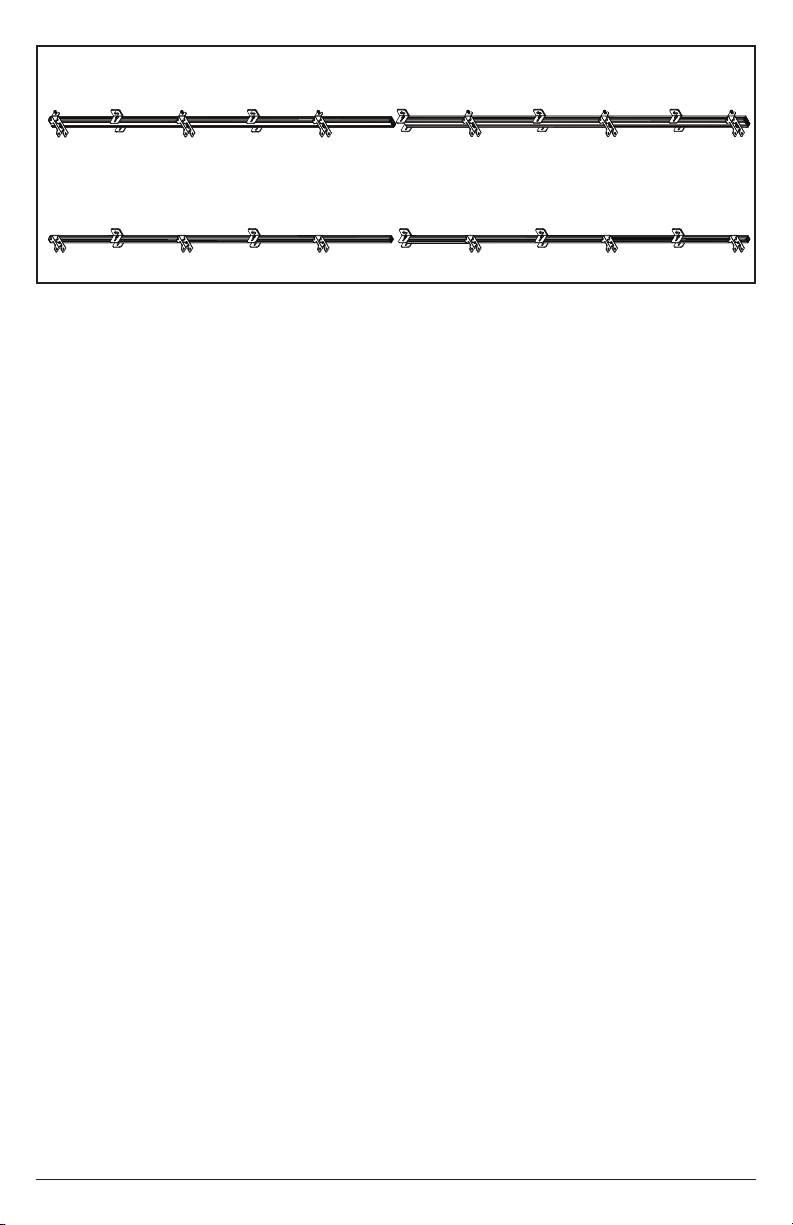

42020-03-23 #:146-9048-5 (2020-11-09)

F G

H I

top left

horizontal asy

top right

horizontal asy

bottom left

horizontal asy

bottom right

horizontal asy

52020-03-23 #:146-9048-5 (2020-11-09)

1-1

Optional: If connecting two top horizontal extrusions,



ENG

Remove and save hardware.

ENG

D,F

D,G

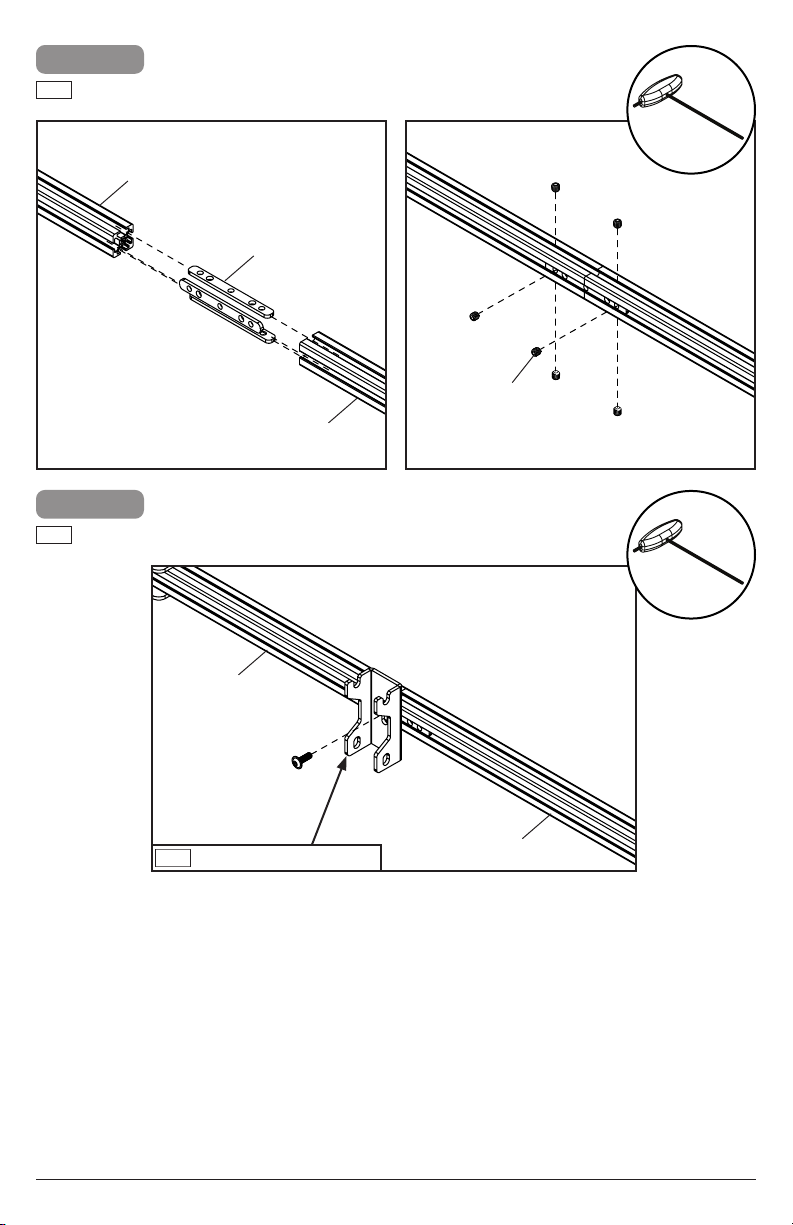

1-2

Use extrusion connectors to connect top horizontal

extrusions.

ENG

L (4) O (8)

2.5mm

D,G

D,F

62020-03-23 #:146-9048-5 (2020-11-09)

2-1

Optional: If connecting two bottom horizontal



ENG

Remove and save hardware.

ENG

E,I

E,H

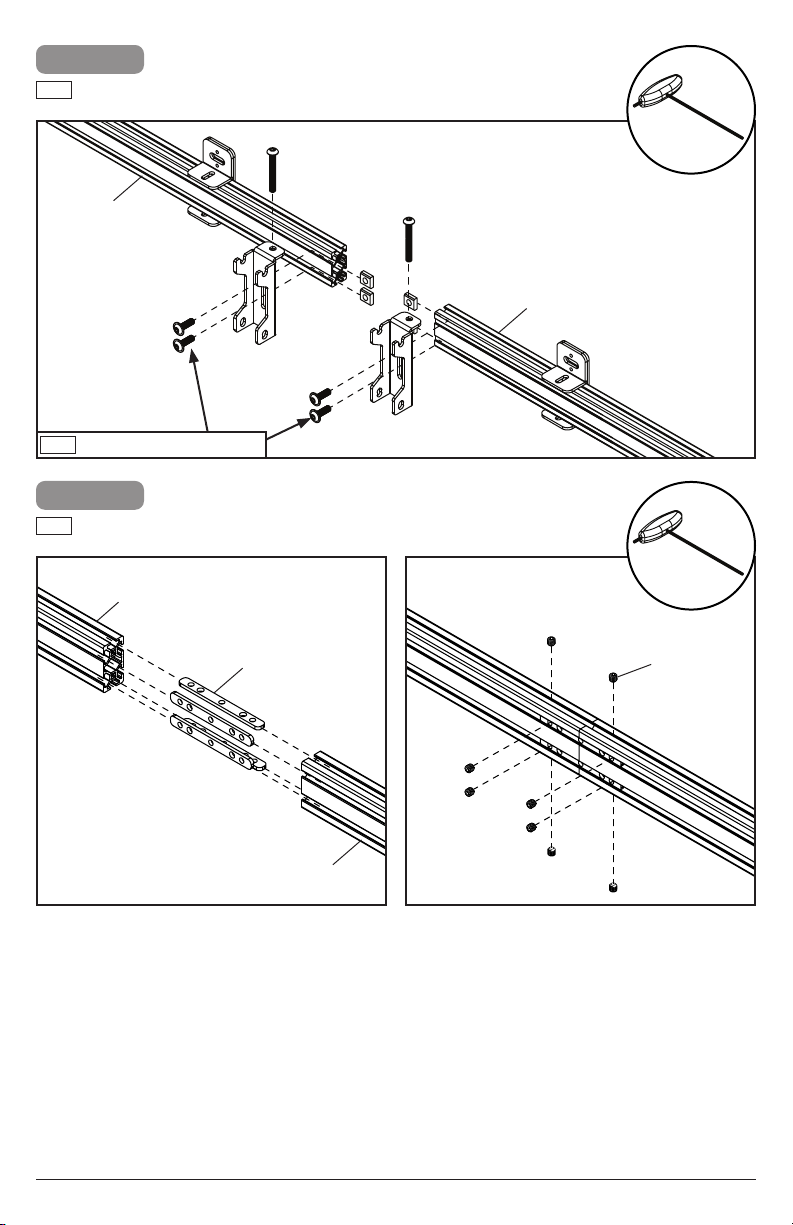

1-3

Replace one hook-on bracket in between connected

extrusions.

ENG

Use saved hardware.

ENG

D,G

D,F

72020-03-23 #:146-9048-5 (2020-11-09)

E,I

E,H

2-2

Use extrusion connectors to connect bottom

horizontal extrusions.

ENG

O (6)

L (3)

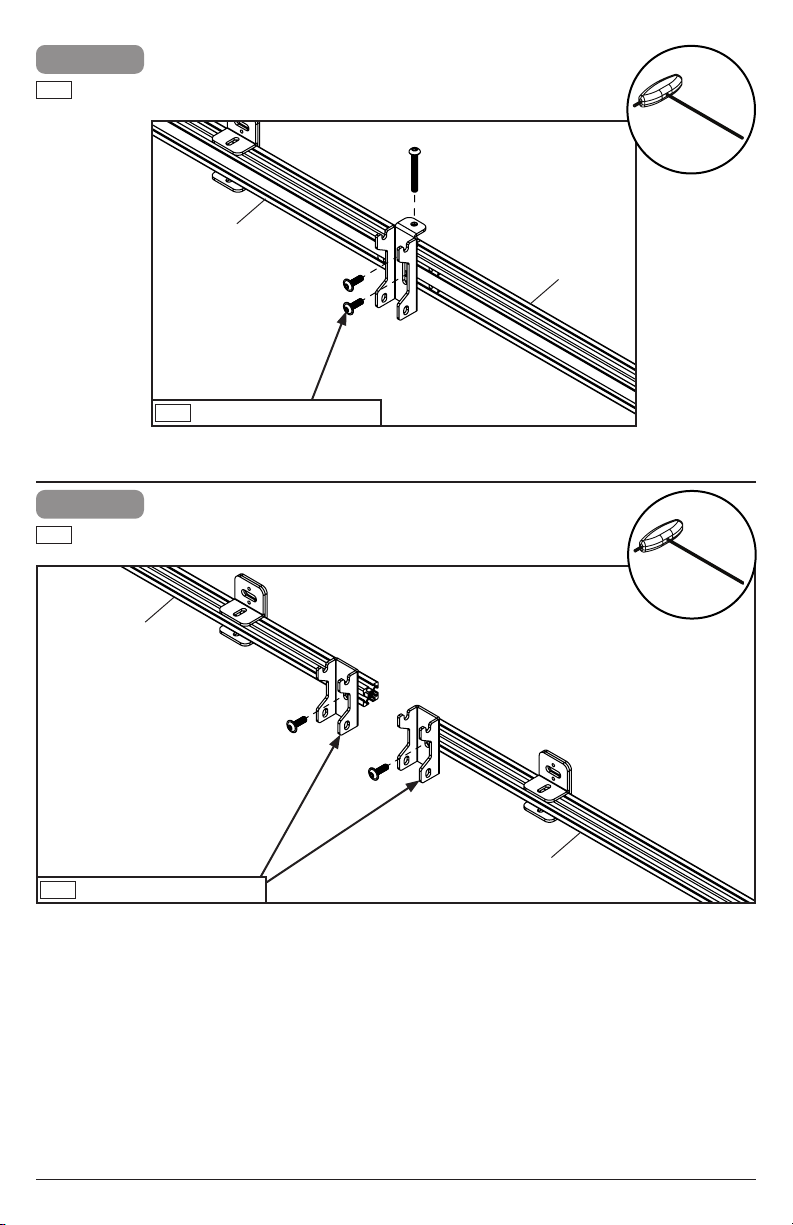

2-3

Replace one hook-on bracket in between connected

extrusions.

ENG

Use saved hardware.

ENG

2.5mm

82020-03-23 #:146-9048-5 (2020-11-09)

ENG - When installing Peerless wall mounts on a wood stud wall covered with plywood, verify that the wood

studs are a minimum of 2" x 4" nominal size and plywood is a minimum Grade BC, 1/2" (13 mm) thick. Plywood

may be covered by gypsum board (drywall) up to 5/8" thick.

WARNING

3-1

ENG When installing more than one display to a wood stud wall reinforced with plywood (minimum Grade BC, 1/2"

thick) that may be covered in gypsum board (drywall) up to 5/8" thick, the mounting surface must be plumb

(+/- .50”) across the height of the video wall and straight (+/- .50”) across the width of the video wall.

92020-03-23 #:146-9048-5 (2020-11-09)

3-2

Use a laser level to keep mounting holes

level.

ENG

display tile

1.25" (32mm) minimum

for mounting clearance

2.75"

(70mm)

10 2020-03-23 #:146-9048-5 (2020-11-09)

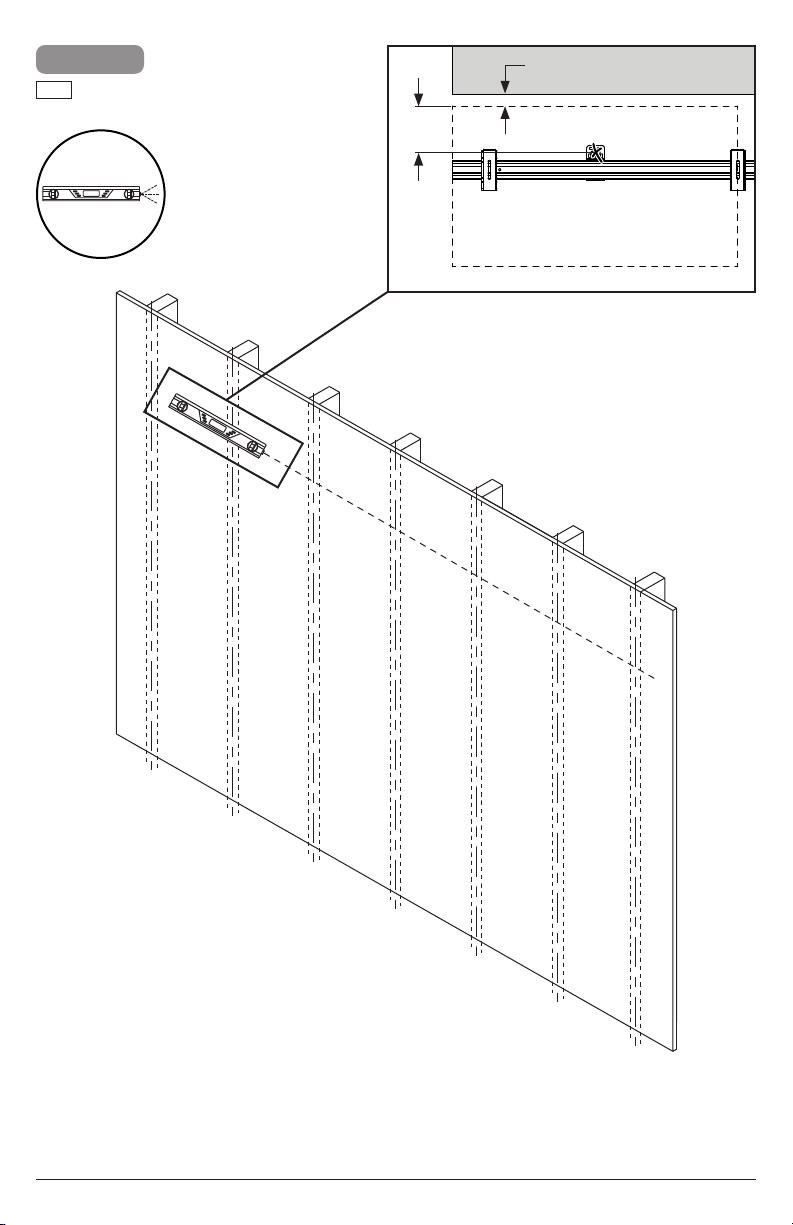

3-3

Level top horizontal extrusion and mark

mounting holes on plywood (must be

minimum Grade BC, 1/2" (13mm) thick.)

ENG

E,G
