PEERLESS IWB600-WB Guida

1 of 7 ISSUED: 02-03-10 SHEET #: 125-9095-5 06-02-10

Model: IWB600-WB

Installation and Assembly:

Wall Mount for SMARTboard SB685/SB690

Max Load Capacity: 50 lb (22.6 kg)

2 of 7 ISSUED: 02-03-10 SHEET #: 125-9095-5 06-02-10

D E

G I

L M N

PARTS LIST

Description Qty. Part #

wall plate 1 095-4652

Bupper cross support 1 095-4962

Csupport bracket 2 095-4667

Dvertical support 2 095-4666

Erubber bumper 2 590-1159

F#10 washer 2 540-9442

GM4 x 6 mm phillips screw 2 520-2032

H#10-32 x 3/8 thumb screw 6 560-2107

Iknob 2 560-0223

J1/4 washer 6 540-9444

KM4 nylock nut 4 530-1055

LM5 nylock nut 8 530-1019

MM4 x 8 mm phillips screw 4 520-2237

NM5 x 20 mm phillips screw 8 510-1208

3 of 7 ISSUED: 02-03-10 SHEET #: 125-9095-5 06-02-10

NOTE: Make sure ange of wall bracket is located on top as shown in detail 1

Be sure wall bracket (A) is level and in desired position. Then use wall bracket (A) as a template to mark center

of four mounting holes. Drill four mounting holes. Attach wall bracket (A) to mounting surface using four screws

provided by installer and four 1/4 washers (J) if required. Once secure, wall bracket (A) will be ush with the top of

the vertical bracket (D).

Fasten two M4 x 6 mm phillips screws (G) into ends of wall bracket (A) as shown in Detail 1.

NOTE: Vertical brackets (D) may be used to determine location of wall bracket (A).

• Installer must verify that the supporting surface will safely support the combined load of the equipment and all

attached hardware and components.

WARNING

Screws provided by installer

Flange

ATOP

Detail 1

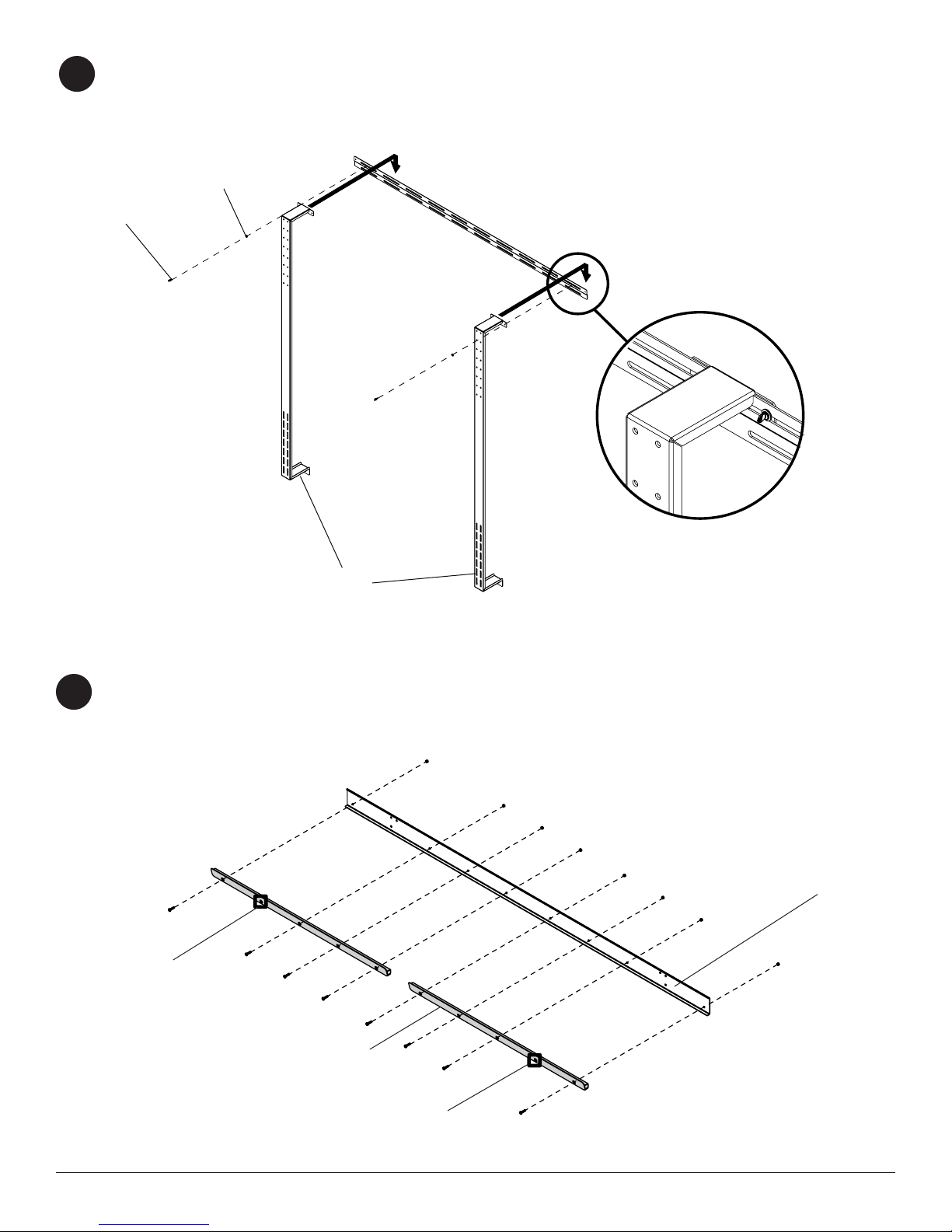

4 of 7 ISSUED: 02-03-10 SHEET #: 125-9095-5 06-02-10

Secure SMARTboard channel to upper cross support (B) using eight M5 x 20 mm phillips screws (N) and eight

M5 nylock nuts (L).

NOTE: Make sure to skip attachment point as shown below.

Skip attachment point

Secure Vertical brackets (D) to wall bracket (A) using two #10-32 x 3/8 thumb screws (H) and #10 at washers

(F).

Detail 2

SMARTboard

channel

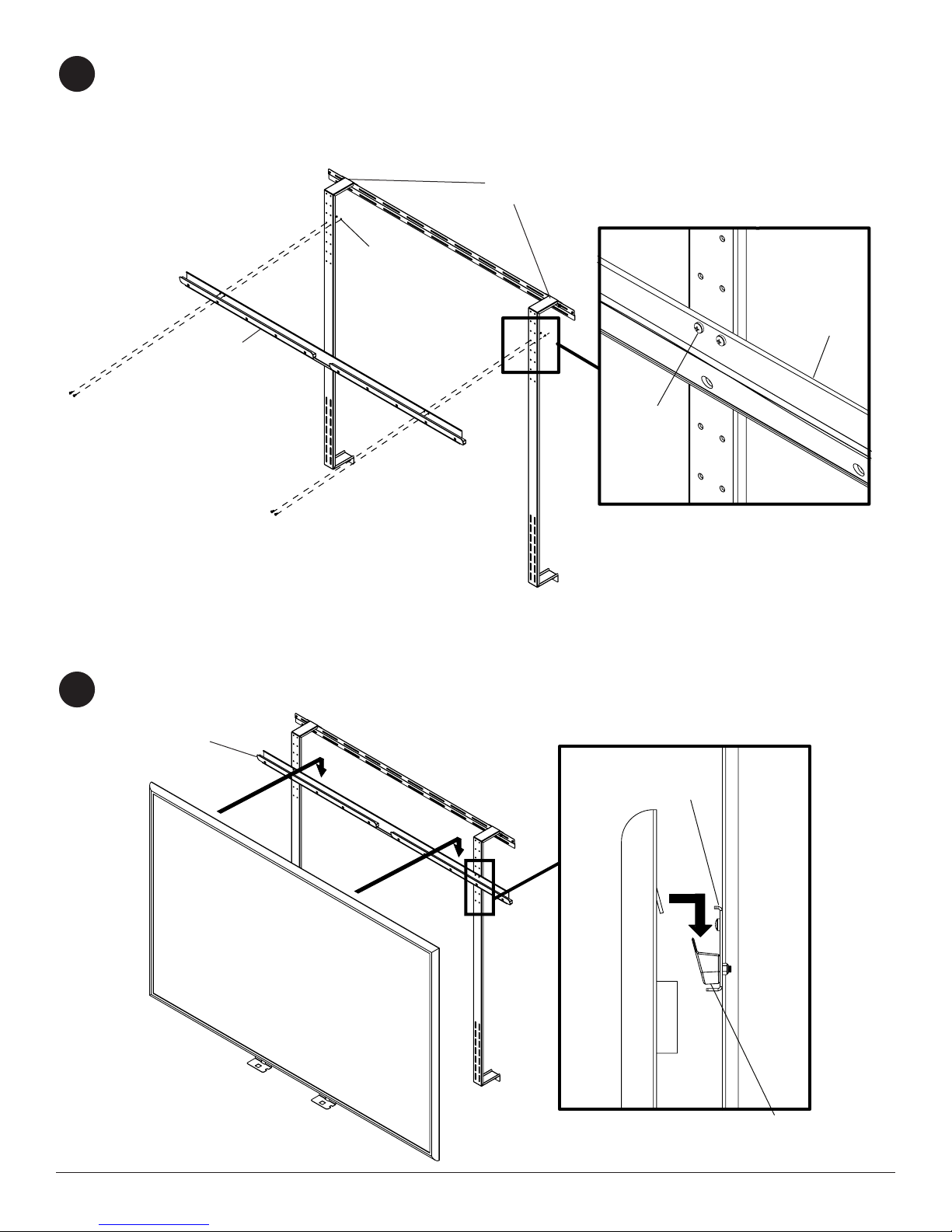

5 of 7 ISSUED: 02-03-10 SHEET #: 125-9095-5 06-02-10

Secure upper cross support (B) to vertical supports (D) using four M4 x 8 mm phillips screws (M), and

M4 nylock nuts (K).

Hook SMARTboard into SMARTboard channel on upper cross support (B).

SMARTboard

Detail 3

Detail 4

SMARTboard

channel

SMARTboard

channel

6 of 7 ISSUED: 02-03-10 SHEET #: 125-9095-5 06-02-10

C D

Detail 5

Fasten two support brackets (C) to vertical supports (D) using four #10-32 x 3/8 thumb screws (H).

Slide support brackets (C) up until bottom of SMARTboard rests on support as shown in detail 5.

Tighten four #10-32 x 3/8 thumb screws (H).

Fasten knob (I) through outside hole in support bracket (C) to determine rubber bumper (E) placement.

Secure rubber bumper (E) to board.

Repeat on opposite side of board.

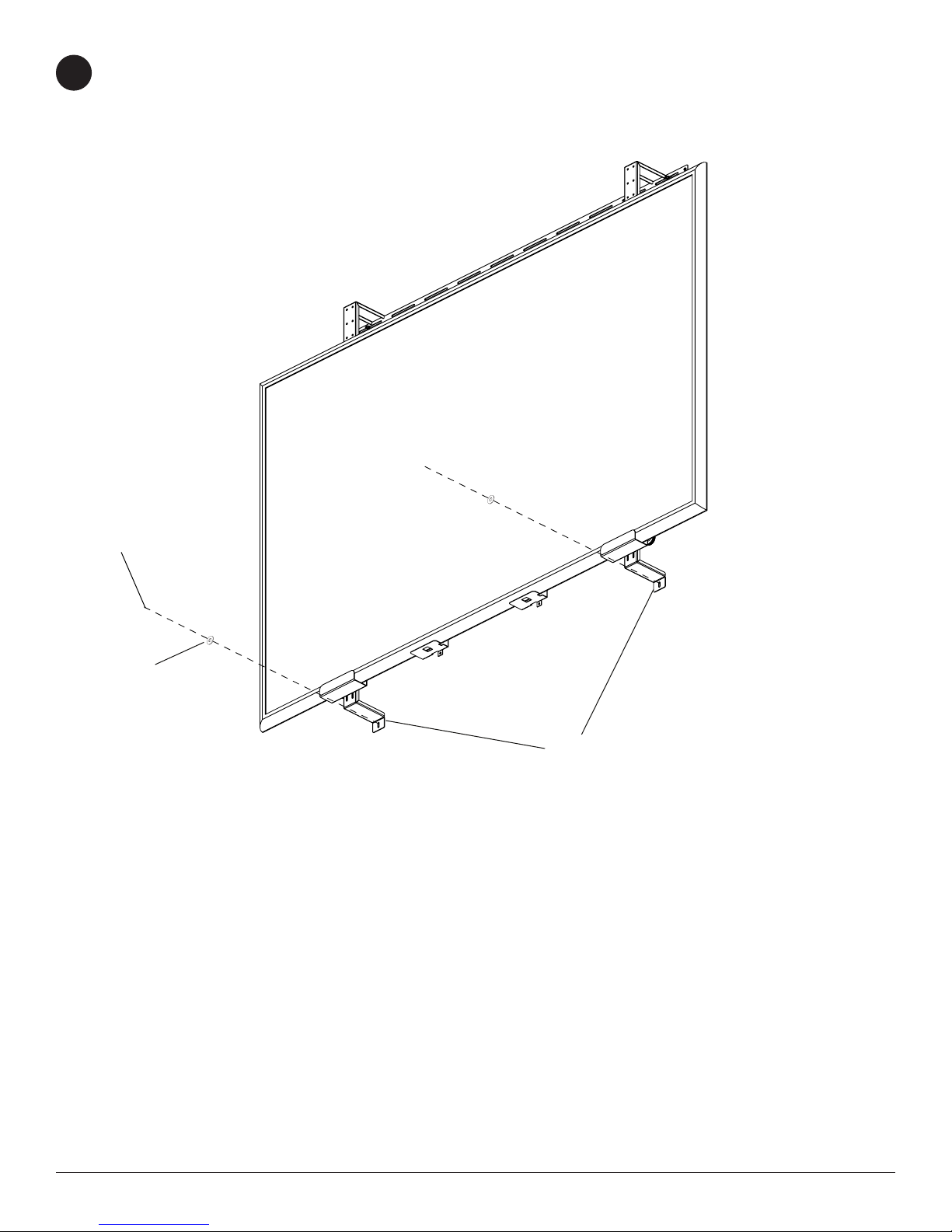

7 of 7 ISSUED: 02-03-10 SHEET #: 125-9095-5 06-02-10

Secure bottom of vertical supports (D) to mounting surface using two screws provided by installer,

and 1/4 washers (J) if required.

NOTE: Make sure mounting surface is suitable to hold the weight of the mount and smart board.

All other brand and product names are trademarks or registered trademarks of their respective owners.

Screws provided by

installer
