Pentax K-5 Manuale utente

PEN tAX

SLR Digital Camera

Operating Manual

/Press the l-¢q button.

The camera switches to Playback mode.

2Use the four-way controller ( • •) to choose a movie to

play back.

The first frame of the movie is displayed on the monitor.

3Press the four-way controller

(A).

Movie playback starts.

Available operations

Four-way controller (A) Pauses/Resumes playback.

Rear e-dial (',,,'_,,,') Volume control (6 levels)

Four-way controller (1_) Forwards a frame (during pause).

Press and hold four-way Fast-forwards playback while pressed.

controller (1_)

Four-way controller (• ) Reverses playback./

Reverses a frame (during pause).

Press and hold four-way Fast-reverses playback while pressed.

controller (• )

Four-way controller (v) Stops playback./

Displays the playback mode palette (when

stopped). (p.234)

AE-L button Saves the displayed image in JPEG format

(during pause).

When the movie ends, playback stops and the first frame is displayed again.

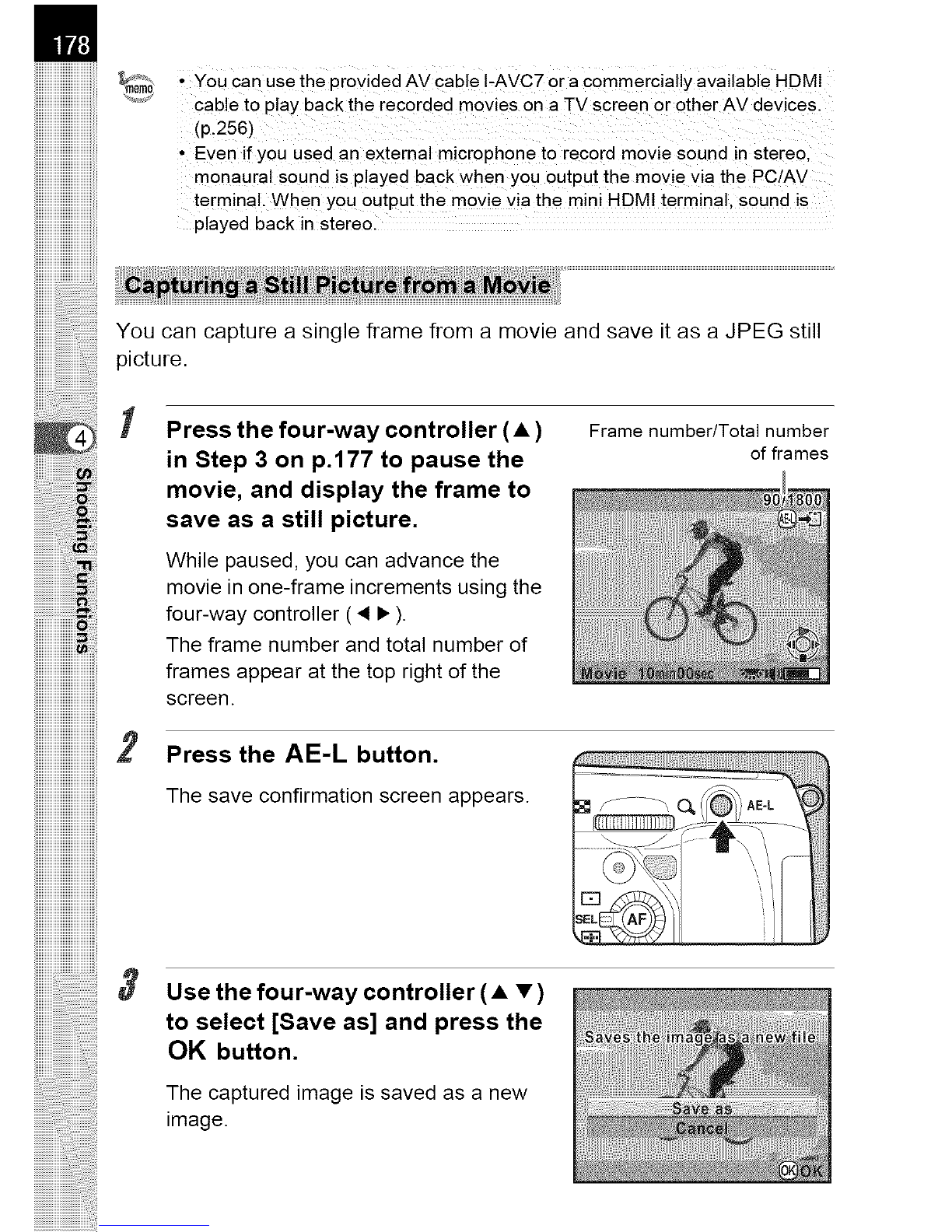

*You ca, usethe provided AV cable !-AVC7 or a C0m_ercial!y availab!e HDMI

cable to p!ay back the recorded movies on a TV screen or other AV devices.

(p.256)

• Even if you used an extema! microphone to rec0rd movie sound in stereo,

monaura! sound !S played back when you output the movie via th ePC/AV:

terminal. When you output the movie via the min i HDM! termina!, sound is

played back in stereo.

You can capture a single frame from a movie and save it as a JPEG still

picture.

Press the four-way controller (•)

in Step 3 on p.177 to pause the

movie, and display the frame to

save as a still picture.

While paused, you can advance the

movie in one-frame increments using the

four-way controller ( 4 • ).

The frame number and total number of

frames appear at the top right of the

screen.

Frame number/Total number

of frames

Press the AE-L button.

The save confirmation screen appears.

3Use the four-way controller (• •)

to select [Save as] and press the

OK button.

The captured image is saved as a new

image.

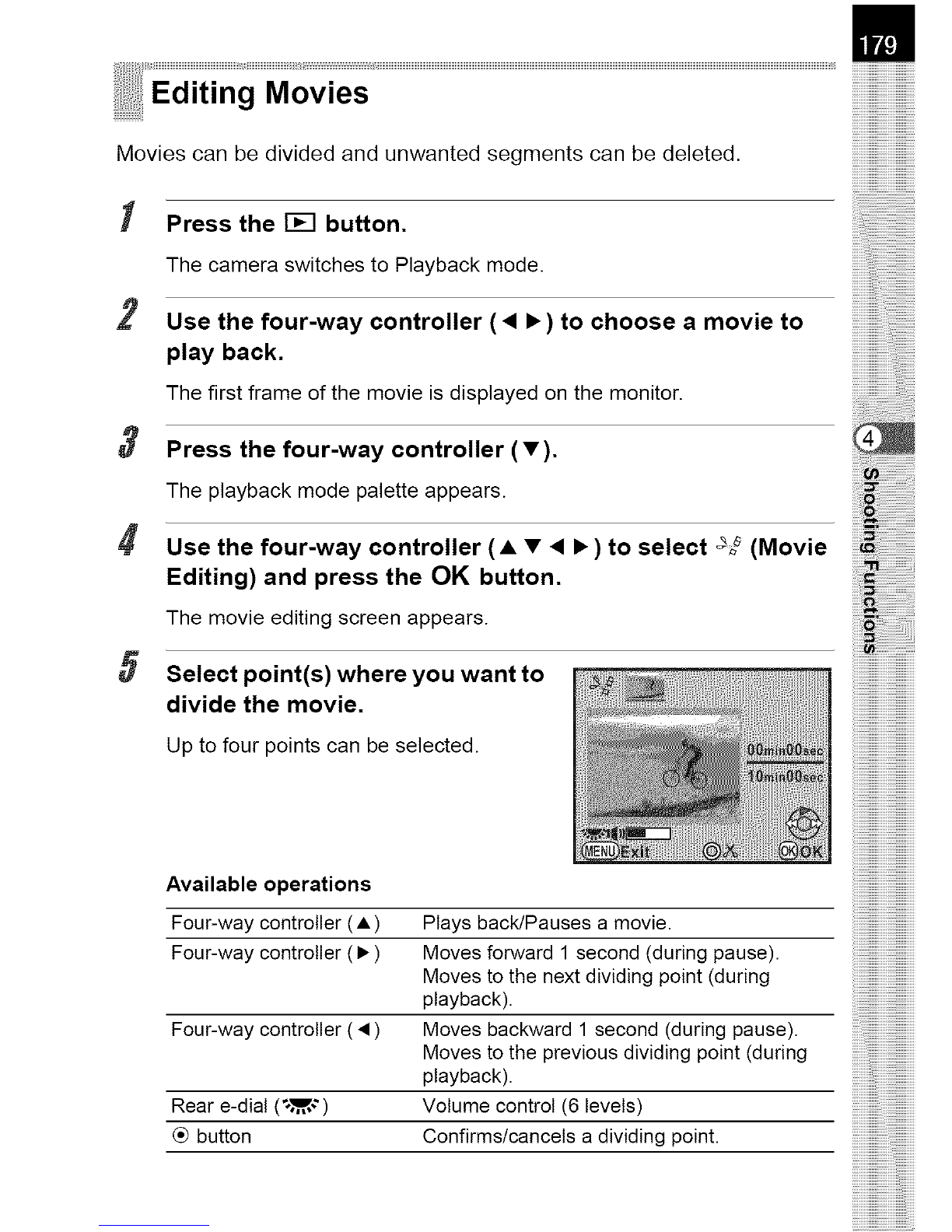

IPress the l-¢q button.

The camera switches to Playback mode.

2 Use the four-way controller (• •) to choose a movie to

play back.

The first frame of the movie is displayed on the monitor.

Press the four-way controller (•).

The playback mode palette appears.

Use the four-way controller (• • • • ) to select _(Movie

Editing) and press the OK button.

The movie editing screen appears.

5Select point(s) where you want to

divide the movie.

Up to four points can be selected.

Available operations

Four-way controller (A) Plays back/Pauses a movie.

Four-way controller (1_) Moves forward 1 second (during pause).

Moves to the next dividing point (during

playback).

Four-way controller (• ) Moves backward 1 second (during pause).

Moves to the previous dividing point (during

playback).

Rear e-dial (',,,_,,,*) Volume control (6 levels)

(_ button Confirms/cancels a dividing point.

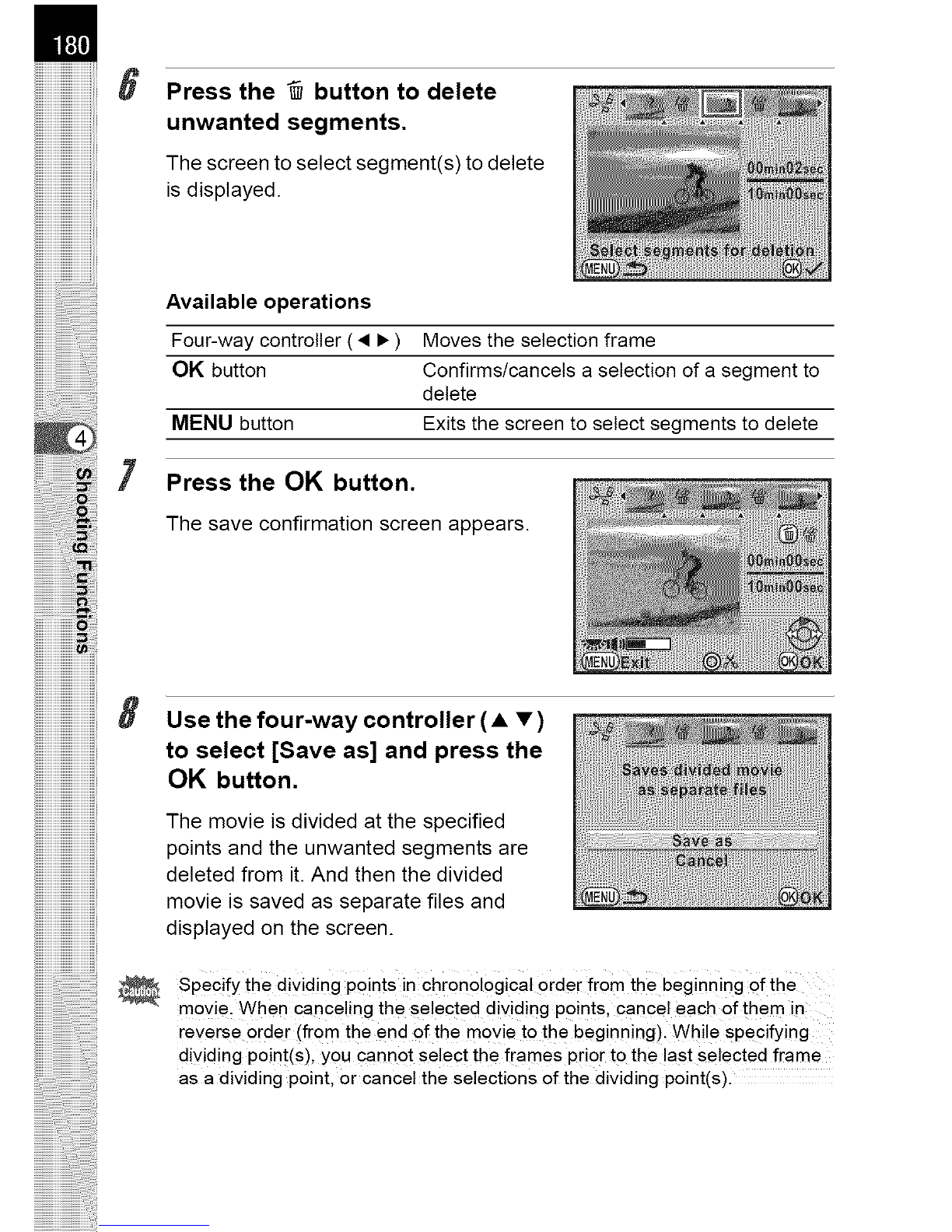

8Press the •button to delete

unwanted segments.

The screen to select segment(s) to delete

is displayed.

Available operations

Four-way controller (< 1_) Moves the selection frame

OK button Confirms/cancels a selection of a segment to

delete

MENU button Exits the screen to select segments to delete

Press the OK button.

The save confirmation screen appears.

8Use the four-way controller (• •)

to select [Save as] and press the

OK button.

The movie is divided at the specified

points and the unwanted segments are

deleted from it. And then the divided

movie is saved as separate files and

displayed on the screen.

Specify the dividing points in chronological order from the beginning of the

m0vie I When canceling the selected dividing points, Cancel each of them in

reverse order (from the end of the movie to the beginning). While specifying

dividing point(s), you cannot select the frames prior to the !ast selected frame

as a dividing point, or cancel the selections of the dividing point(s).

Using the Flash

This chapter provides details on the built-in flash of 1_-5

and describes how to take pictures with the external flash.

Flash Characteristicsin Each Exposure

Mode .................................................................... 182

Distance and Aperture when Using the

Built-in Flash ....................................................... 185

Lens Compatibility with the Built-in Flash ....... 186

Using an External Flash (Optional) ................... 187

• When taking a moving subject, you can use the flash to change the blur

effect.

• Any desired shutter speed of 1/180 sec. or slower can be set for taking a

flash photograph.

• The aperture value automatically changes according to the ambient

brightness.

• The shutter speed is locked at 1/180 sec. when a lens other than a DA,

DA L, D FA, FA J, FA, F or A lens is used.

• You can set the desired aperture value to take a flash photograph when

you want to change the depth of field or shoot a subject farther away.

• The shutter speed automatically changes with the ambient brightness.

• The shutter speed shifts automatically anywhere from 1/180 sec. to a

slow shutter speed (p.70) that reduces camera shake. The slowest

shutter speed depends on the focal length of the lens in use.

• The shutter speed is locked at 1/180 sec. when a lens other than a DA,

DA L, D FA, FA J, FA or F lens is used.

Using the Slow-speed Sync

You can use slow-speed-sync in Tv (Shutter Priority) mode when shooting

portraits with the sunset in the background. Both the portrait and the

background are captured beautifully.

, Slow-speed Sync slows the shutter speed. Use the Shake Reduction function

or turn off the Shake Reduction function and use a tripod to avoid camera

shakel The picture will a!so blur if the subject moves I

, Slow.speed Sync shooting can also be performed with an external flash:

Set the mode dial to P, Sv or Av.

Press the _button.

The built-in flash pops up.

Press the four-way controller (•).

The [Flash Mode] screen appears.

Select s_w or _. and press the OK button.

The shutter speed is set slower to give a proper exposure for the

background.

5Take a picture.

ISet the mode dial to Tv, TAv or M.

2Press the four-way controller (•).

The [Flash Mode] screen appears.

Select _or _® and press the OK button.

4Set the shutter speed (for Tv mode) or shutter speed and

aperture value (for TAv or M mode).

Set so a proper exposure is obtained at a shutter speed of 1/180 second

or slower.

Press the _button.

The built-in flash pops up.

Take a picture.

Trailing Curtain Sync discharges the flash immediately before the shutter

curtain closes. When shooting moving objects with a slow shutter speed,

Trailing Curtain Sync and Slow-speed Sync produce different effects

depending on when the flash is discharged.

For example, when shooting a moving car with Trailing Curtain Sync,

trailing light is captured while the shutter is open and the flash captures the

car immediately before the shutter is closed. Therefore, the picture will

include a sharp, well-lit car with trailing light behind it.

Slow-speed Sync

(Leading Curtain Sync) Trailing Curtain Sync

1Set the mode dial to any mode other than., X or ,I_.

2Press the four-way controller (T).

The [Flash Mode] screen appears.

Select _or >_ and press the OK button.

Press the _button.

The built-in flash pops up.

5Take a picture.

_; Trailing Curtain Sync slows the shutter speed. Use the Shake Reduction

function or turn off the Shake Reduction function and use a tripod to avoid

camera shake.

Relationships between the guide number, aperture and distance must be

considered when shooting with the flash to obtain a correct exposure.

Calculate and adjust the shooting conditions if the flash output is not sufficient.

Sensitivity Built-in Flash Guide Number Sensitivity Built-in flash guide number

ISO 100 Approx. 13 ISO 3200 Approx. 73.5

ISO 200 Approx. 18.4 ISO 6400 Approx. 104

ISO 400 Approx. 26 ISO 12800 Approx. 147

ISO 800 Approx. 36.8 ISO 25600 "1 Approx. 208

ISO 1600 Approx. 52 ISO 51200 "1 Approx. 294

"1 This can beused when [3. Expanded Sensitivity] in the [C Custom Setting 1]menu isset to [On].

The following equation calculates the distance of the flash for aperture values.

Maximum flash distance L1 = Guide number + Aperture value

Minimum flash distance L2 = Maximum flash distance + 5 *

• The value 5 used in the formula above is a fixed value

which applies only when using the built-in flash alone.

Example: When the sensitivity is ISO 100 and the aperture value is F2.8

L1 = 13 + 2.8 = approx. 4.6 (m)

L2 = 4.6 + 5 = approx. 0.9 (m)

Therefore, the flash can be used in a range of about 0.9 m to 4.6 m.

However, the built-in flash in this camera cannot be used when the

distance is 0.7 m or less. When the flash is used at closer than 0.7

m, it causes vignetting in the picture corners, light is distributed

unevenly and a picture may be overexposed.

The following equation calculates the aperture value for shooting distances.

Aperture value F = Guide number + Shooting distance

Example: When the sensitivity is ISO 100 and shooting distance is 4 m,

the aperture value is:

F = 13 + 4 = 3.25

If the resulting number (3.25, in the above example) is not available

as a lens aperture, the smaller number that is closest (2.8, in the

above example) is generally used.
