To ensure the best performance from your camera, please

read the Operating Manual before using the camera.

ByusingthesuppliedAVcable(I-AVC7),youcancaptureandplayback

imagesonequipmentwithavideoINjack,suchasaTV.

Battery/card/terminal cover

_____ /Ext_rrnali_nput J

PC!AV terminal

ITurn the AV device and camera off.

Open the battery/card/terminal cover of the camera and

connect the AV cable to the PC/AV terminal of the

camera.

Connect the terminal of the AV cable with the arrow mark <::ufacing

the front side of the camera.

Connect the other ends of the AV cable to the video

input terminal and audio input terminal of the AV device.

When using stereo sound equipment, insert the sound terminal into the

L (white) terminal.

Turn the AV device on.

When the device that the camera is connected to and the device that

plays back images are different, turn both devices on.

When viewing images on AV equipment with multiple video input

terminals (such as a TV), refer to the operation manual of the device

and select the video input terminal to which the camera is connected.

5Turn the camera on.

-It is recommended touse the optional AC adapter kit K-AC88 if you

intend to use the camera fora !ong time (p

• Depending on the country or region; images and sound files may fail

to be played back if the video output format is set differently from the

one in use there_ !f this happensl change the video output fo[mat

setting (p_201).

, The camera display turns off and the volume cannot be adjusted Wth

the zoom button while the camera is connected to AV equipment,

when connecting to and playing back images on AV equipment, image

data is output at normal screen resolution. To view movies recorded at

(1280x720, 30 fps) and _ (1280x720, 15 fps)in HDTV, transfer

the data to a computer and play it back on the computer (p.211).

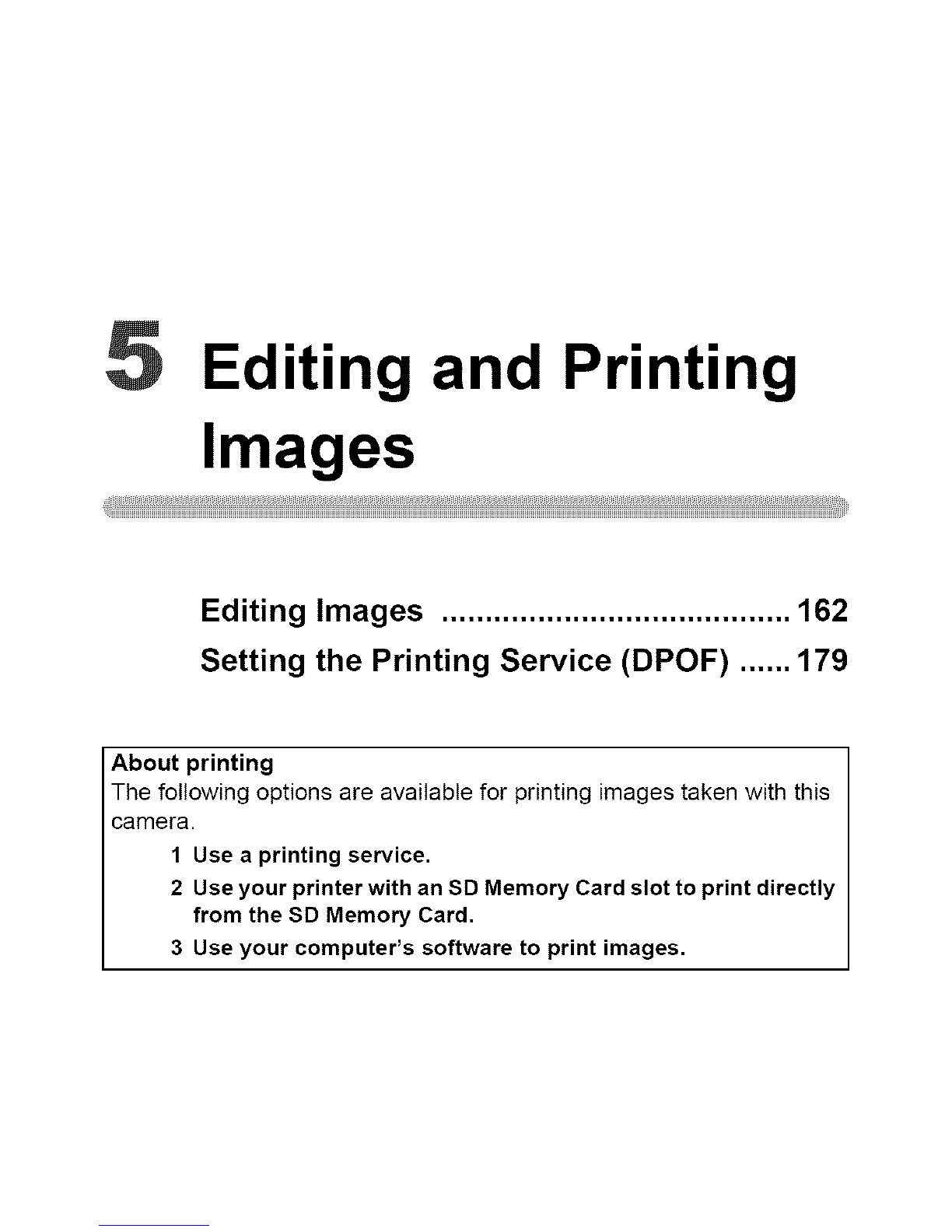

Editing and Printing

Images

Editing Images ........................................ 162

Setting the Printing Service (DPOF) ...... 179

About printing

The following options are available for printing images taken with this

camera.

1 Use a printing service.

2 Use your printer with an SD Memory Card slot to print directly

from the SD Memory Card.

3 Use your computer's software to print images.

By changing the recorded pixels of a selected image, you can make the

file size smaller than the original. You can use this function to continue

taking pictures when the SD Memory Card or the built-in memory is full,

by making the images smaller and overwriting the original images to

make more space available.

, Images taken with_ (!920x1080), Panoramic images and

moviescannot be resized.

• You cannot select a larger resolutionthan that of the original image.

1In I-_ mode, use the four-way controller (•_ ) to

choose the image you want to resize.

2Press the four-way controller (•).

The Playback Mode Palette appears.

3Use the four-way controller

(A • • _) to select _(Resize).

Press the OK button.

The screen for choosing the number of recorded pixels appears.

5Use the four-way controller (• _ )

to select the number of recorded

pixels,

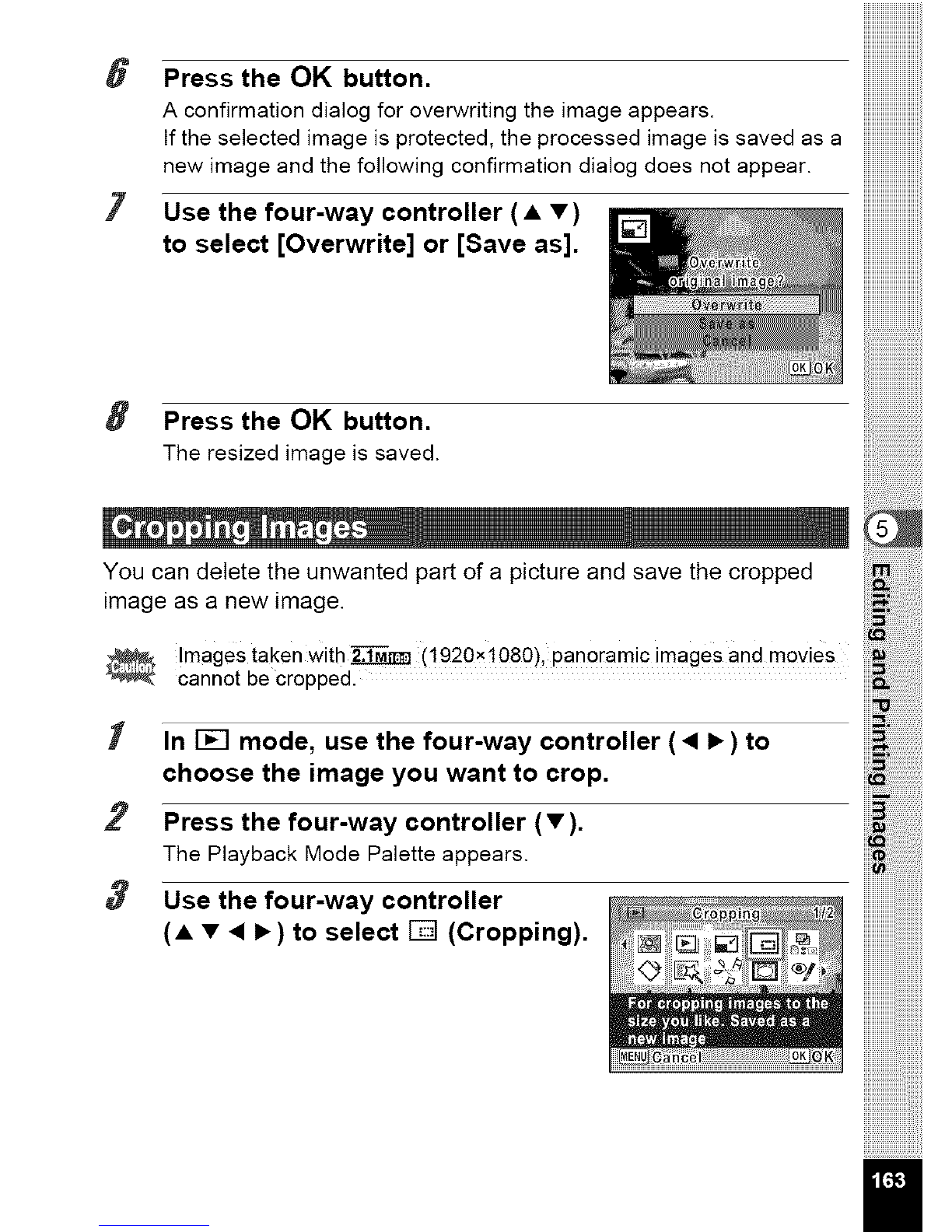

Press the OK button.

A confirmation dialog for overwriting the image appears.

If the selected image is protected, the processed image is saved as a

new image and the following confirmation dialog does not appear.

Use the four-way controller (• •)

to select [Overwrite] or [Save as].

8Press the OK button.

The resized image is saved.

You can delete the unwanted part of a picture and save the cropped

image as a new image.

_ !magestaken with_ (!g20x!080), panQramic images and movies

_ cannot be cropped.

IIn I-_ mode, use the four-way controller ( • _) to

choose the image you want to crop.

2Press the four-way controller (•).

The Playback Mode Palette appears.

3Use the four-way controller

(• • • _) to select D(Cropping).

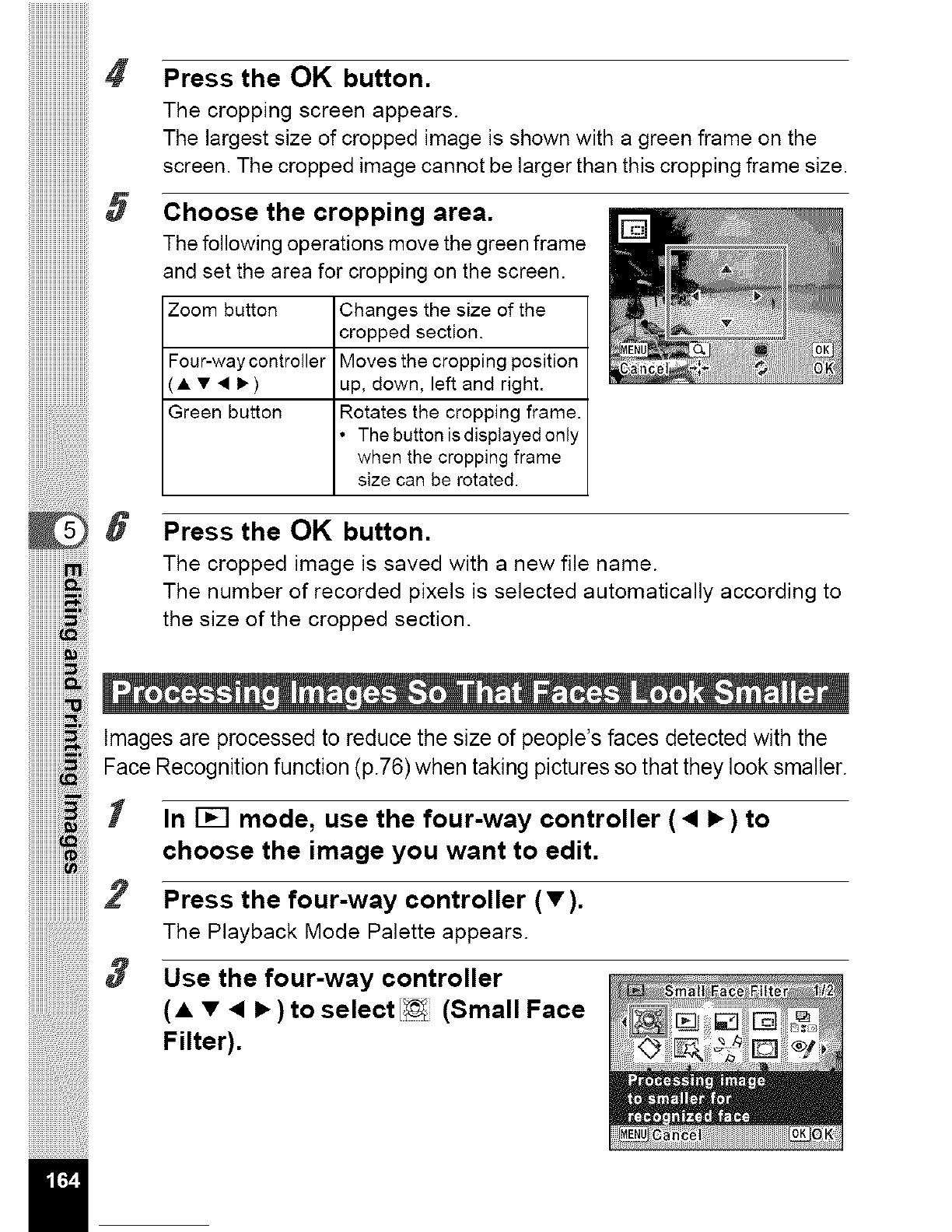

Press the OK button.

The cropping screen appears.

The largest size of cropped image is shown with a green frame on the

screen, The cropped image cannot be larger than this cropping frame size,

Choose the cropping area.

The following operations move the green frame

and set the area for cropping on the screen.

Zoom button Changes the size of the

cropped section.

Four-way controller Moves the cropping position

(A • • I_) up, down, left and right.

Green button Rotates the cropping frame.

• The button is displayed only

when the cropping frame

size can be rotated.

Press the OK button.

The cropped image is saved with a new file name.

The number of recorded pixels is selected automatically according to

the size of the cropped section.

Images are processed to reduce the size of people's faces detected with the

FaceRecognition function (p.76) when taking pictures so that they look smaller.

In _mode, use the four-way controller ( • I_) to

choose the image you want to edit.

Press the four-way controller (v).

The Playback Mode Palette appears.

Use the four-way controller

(A • • I_) to select [_ (Small Face

Filter).

Press the OK button.

Face recognition frames for faces that can be corrected are displayed.

Proceed to Step 6 when there is only one recognition frame.

Use the four-way controller

(• • • !_)to select aface to be

processed.

A green frame indicates the face that is to

be processed.

7Press the OK button.

Use the four-way controller ( •I_)

to change the reduction ratio.

_- " + Approx. 5 %

_=,--1 + Approx. 7 %

- " -+ Approx. 10 %

Press the OK button.

A confirmation dialog for overwriting the image appears.

If the selected image is protected, the processed image is saved as a

new image and the following confirmation dialog does not appear.

Use the four-way controller (• •)

to select [Overwrite] or [Save as].

18 Press the OK button.

The camera returns to _ mode and the processed image is

displayed.

Youmaynotbeabletoprocessimagesinthefollowingsituations;

- Whenthesizeoffacetakeninrelationtoanimageistoolargeor

toosmall

Whenfacesare!ocatedintheedgesofanimage

Insuchcases,thefacerecognitionframeinStep4willnotappear.

iiiilililililililililililililil

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiilililililililililililililil

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

This function lets you change the color tones and perform special

processing on a selected image.

Processes the image into one that has the look of a black and white

B&W photograph.

Processes the image into one that has the look of a sepia

Sepia photograph.

Processes the image that looks as though it was shot with a toy

Toy Camera camera.

Retro Processes the image into one that has the look of an old photo.

Processes the image using the selected color filter. You can choose

Color from six filters: red, pink, purple, blue, green, and yellow.

Extracts only a specific color and processes the rest of the image

Color extraction into black and white. You can choose from three filters: red, green,

and blue.

There are four filters: Sky Blue/Fresh Green/Delicate Pink/Autumn

Color enhancer Leaves.

Soft Processes the image into a soft image that appears soft overall.

Brightness Adjusts the brightness of the image.

._ Panoramic images, movies or images taken with another camera Cannot

be edited Using Digital Filter functionl

1' In _mode, use the four-way controller ( < _) to

choose the image you want to edit,

,2 Press the four-way controller (T).

The Playback Mode Palette appears.

3Use the four-way controller

(A ••_) to select _(Digital

Filter).

#Press the OK button.

The filter selection screen appears.

1B&W

2Sepia

3 Toy Camera

4 Retro

5Color

6 Color extraction

7 Color enhancer

8Soft

9 Brightness

Subsequent steps vary depending on your selection.

ii iii !i !!,!i

5Use the four-way controller (• •) to choose afilter.

The preview image of the results of the filter effect appears.

8 Press the OK button.

A confirmation dialog for overwriting the image appears.

If the selected image is protected, the processed image is saved as a

new image and the following confirmation dialog does not appear.

7Use the four-way controller (• •)

to select [Overwrite] or [Save as].

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

_!iiiiiiiiiiiiiiii_iiiiiiiiiii!!_Ji!i!

iii_i_i!!;!;!;!;!;!;!;!;!;

ii_iiiiiii_i!ii!ii!ii!ii!ii!ii!ii!ii!

iiiiiiiiiiiiiiiiiiiiiii
