Pepperl+Fuchs ARS B2 IA Series Manuale utente

ARS*-B2-IA*

Ethernet-APL Rail Field

Switch

Hardware Manual

With regard to the supply of products, the current issue of the following document is applicable:

The General Terms of Delivery for Products and Services of the Electrical Industry, published

by the Central Association of the Electrical Industry (Zentralverband Elektrotechnik und Elek-

troindustrie (ZVEI) e.V.) in its most recent version as well as the supplementary clause:

"Expanded reservation of proprietorship"

Worldwide

Pepperl+Fuchs Group

Lilienthalstr. 200

68307 Mannheim

Germany

Phone: +49 621 776 - 0

E-mail: info@de.pepperl-fuchs.com

North American Headquarters

Pepperl+Fuchs Inc.

1600 Enterprise Parkway

Twinsburg, Ohio 44087

USA

Phone: +1 330 425-3555

E-mail: [email protected]

Asia Headquarters

Pepperl+Fuchs Pte. Ltd.

P+F Building

18 Ayer Rajah Crescent

Singapore 139942

Phone: +65 6779-9091

E-mail: [email protected]l-fuchs.com

https://www.pepperl-fuchs.com

ARS*-B2-IA*

Contents

2023-04

1 Introduction................................................................................................................ 4

1.1 Content of this Document............................................................................. 4

1.2 Target Group, Personnel ............................................................................... 4

1.3 Symbols Used ................................................................................................ 5

2 Product Description .................................................................................................. 6

2.1 Overview and Application............................................................................. 6

2.2 Type Codes..................................................................................................... 6

2.3 Components and Dimensions ...................................................................... 8

2.4 Accessories.................................................................................................... 9

2.5 Scope of Delivery......................................................................................... 13

2.6 Technical data .............................................................................................. 13

3 Installation................................................................................................................ 15

3.1 General Installation Information ................................................................ 15

3.2 Mounting and Dismounting ........................................................................ 16

3.3 Connection Assignment.............................................................................. 21

3.4 Grounding / Shielding ................................................................................. 23

4 Operation.................................................................................................................. 26

4.1 Operating Elements..................................................................................... 26

2023-04

ARS*-B2-IA*

Introduction

1 Introduction

1.1 Content of this Document

This document contains information that you need in order to use your product throughout the

applicable stages of the product life cycle. These can include the following:

•Product identification

•Delivery, transport, and storage

•Mounting and installation

•Commissioning and operation

•Maintenance and repair

•Troubleshooting

•Dismounting

•Disposal

The documentation consists of the following parts:

•Present document

•Instruction manual

•Datasheet

Additionally, the following parts may belong to the documentation, if applicable:

•EU-type examination certificate

•EU declaration of conformity

•Attestation of conformity

•Certificates

•Control drawings

•Functional safety manual

•Additional documents

1.2 Target Group, Personnel

Responsibility for planning, assembly, commissioning, operation, maintenance, and dismount-

ing lies with the plant operator.

Only appropriately trained and qualified personnel may carry out mounting, installation, com-

missioning, operation, maintenance, and dismounting of the product.The personnel must have

read and understood the instruction manual and the further documentation.

Prior to using the product make yourself familiar with it. Read the document carefully.

Note

This document does not substitute the instruction manual.

Note

For full information on the product, refer to the instruction manual and further documentation on

the Internet at www.pepperl-fuchs.com.

Note

For specific device information such as the year of construction, scan the QR code

on the device. As an alternative, enter the serial number in the serial number search

at www.pepperl-fuchs.com.

ARS*-B2-IA*

Introduction

2023-04

1.3 Symbols Used

This document contains symbols for the identification of warning messages and of informative

messages.

Warning Messages

You will find warning messages, whenever dangers may arise from your actions. It is mandatory

that you observe these warning messages for your personal safety and in order to avoid prop-

erty damage.

Depending on the risk level, the warning messages are displayed in descending order as fol-

lows:

Informative Symbols

Action

1. This symbol indicates a paragraph with instructions.You are prompted to perform an action or

a sequence of actions.

Danger!

This symbol indicates an imminent danger.

Non-observance will result in personal injury or death.

Warning!

This symbol indicates a possible fault or danger.

Non-observance may cause personal injury or serious property damage.

Caution!

This symbol indicates a possible fault.

Non-observance could interrupt the device and any connected systems and plants, or result in

their complete failure.

Note

This symbol brings important information to your attention.

2023-04

ARS*-B2-IA*

Product Description

2 Product Description

2.1 Overview and Application

The Ethernet-APL series of Rail Field Switches are ruggedized, managed switches. The rail

field switches provide connectivity for Ethernet-APL and optionally PROFIBUS PA field devices

to 100/1000-MBit/s industrial Ethernet networks. Port diagnostics facilitate fault finding in

Ethernet-APL networks and providing information for preventive maintenance of the rail field

switches and the network they are connected to.The rail field switches are managed with an

integrated web server.

The rail field switches are suitable for DIN rail mounting or wall mounting.The rail field switches

can be installed in the explosion hazardous Zone 2. The spur connections of the rail field

switches provide power to the connected field devices and are rated intrinsically safe Ex ia IIC

for Zone 1/0 and Zone 20 mounting. The spurs are compatible with the Ethernet-APL port

profile SPAA. 2 RJ45 and 2 SFP Ethernet interfaces permit the connection to industrial Ether-

net networks like PROFINET or EtherNet/IP. 2 of the 4 ports may be used in ring configuration.

Fiber optic small form-factor pluggable (SFP) transceivers are available as accessories. Prod-

uct versions with pluggable screw terminals and spring terminals are available.

Figure 2.1 Typical network structure using Ethernet-APL rail field switches

2.2 Type Codes

The rail field switch series consist in the following range of products:

Zone 2

Div. 2

Zone 1

Div. 2

Zone 0

Div. 1

200 m 200 m

Non-explosion hazardous area

Ethernet Backbone

Ethernet-APL

With Intrinsic Safety

Note

For further information regarding Ethernet-APL refer to the "Engineering Guideline Ethernet-

APL."

Note

The rail field switches are commissioned and configured using the PANOS software.You can

access the software manual from our website.

ARS*-B2-IA*

Product Description

2023-04

The * asterisk stands for different firmware functionality. Refer to the datasheet or software

manual for further details.

Contact your Pepperl+Fuchs representative to check the availability of individual product ver-

sions.

Order designation

Number of Ethernet-

APL spur connec-

tions

Terminal (pluggable)

Screw terminal Spring terminal

ARS1*-B2-IA08-1 8 x

ARS1*-B2-IA08-2 8 x

ARS1*-B2-IA16-1 16 x

ARS1*-B2-IA16-2 16 x

ARS1*-B2-IA24-1 24 x

ARS1*-B2-IA24-2 24 x

Ta b l e 2 . 1

2023-04

ARS*-B2-IA*

Product Description

2.3 Components and Dimensions

Figure 2.2

ARS1*-B2-IA24*: 257

ARS1*-B2-IA16*: 203

ARS1*-B2-IA8*: 149

yyyy

RESET

PWR A

PWR B

STATUS

LNK/CHK

PWR APWR B

STATUS

MAC ID:

LNK/CHK

S21

S22

S23

S24

S24S4

Part No.

136.5

161.5

158

8 2

Dimension a

DIN Rail Mounting

1Year of production

2QR code and serial number

3 PA, connection to equipotential bonding

4 Slot for separation wall

5 MAC ID

6LED S1 ... Sn, status spur ports S1 ... Sn

7 Connectors for intrinsically safe spurs S1 ... Sn

8 Ethernet port P1

9 Ethernet port P2

10 Ethernet SFP port P3

11 Ethernet SFP port P4

12 LED LNK/CHK P1 ... P4, communication status

LED P1 ... P4

13 Connector for auxiliary power and status

indication output

14 LED STATUS, status rail field switch

15 Reset button

16 LED PWR B, status power input B

17 LED PWR A, status power input A

18 DIN rail mounting brackets

All dimensions in millimeters (mm) and without tolerance indication.

ARS*-B2-IA*

Product Description

2023-04

Figure 2.3

2.4 Accessories

Overview

yyyy

RESET

PWR A

PWR B

STATUS

LNK/CHK

PWR APWR B

STATUS

MAC ID:

LNK/CHK

S21

S22

S23

S24

S24S4

Part No.

158

ARS1*-B2-IA24*: 135

ARS1*-B2-IA16*: 81

ARS1*-B2-IA8*:

ARS1*-B2-IA24*: 257

ARS1*-B2-IA16*: 203

ARS1*-B2-IA8*: 149

N/A

6 6

ø6

169

188

6.5

128

153

11 8 2

1Year of production

2QR code and serial number

3 PA, connection to equipotential bonding

4 Slot for separation wall

5 MAC ID

6LED S1 ... Sn, status spur ports S1 ... Sn

7 Connectors for intrinsically safe spurs S1 ... Sn

8 Ethernet port P1

9 Ethernet port P2

10 Ethernet SFP port P3

All dimensions in millimeters (mm) and without tolerance indication.

Dimension a

Dimension b

11 Ethernet SFP port P4

12 LED LNK/CHK P1 ... P4, communication status

LED P1 ... P4

13 Connector for auxiliary power and status

indication output

14 LED STATUS, status rail field switch

15 Reset button

16 LED PWR B, status power input B

17 LED PWR A, status power input A

18 Wall mounting brackets

Wall Mounting

Order designation Description

SFP-1 SFP transceiver, 2 km, 100BASE-FX, fast Ethernet multimode

fiber

SFP-2 SFP transceiver, 550 m, 1000BASE-SX, Gigabit Ethernet mul-

timode fiber

SFP-3 SFP transceiver, 30 km, 100BASE-LX, fast Ethernet single-

mode fiber

SFP-4 SFP transceiver, 10 km, 1000BASE-LX, Gigabit Ethernet, sin-

gle-mode fiber

ACC-PC-45 Protective covers for RJ45 sockets (packaging unit:

10 pieces)

2023-04

ARS*-B2-IA*

Product Description

Fiber Optic SFP Transceivers

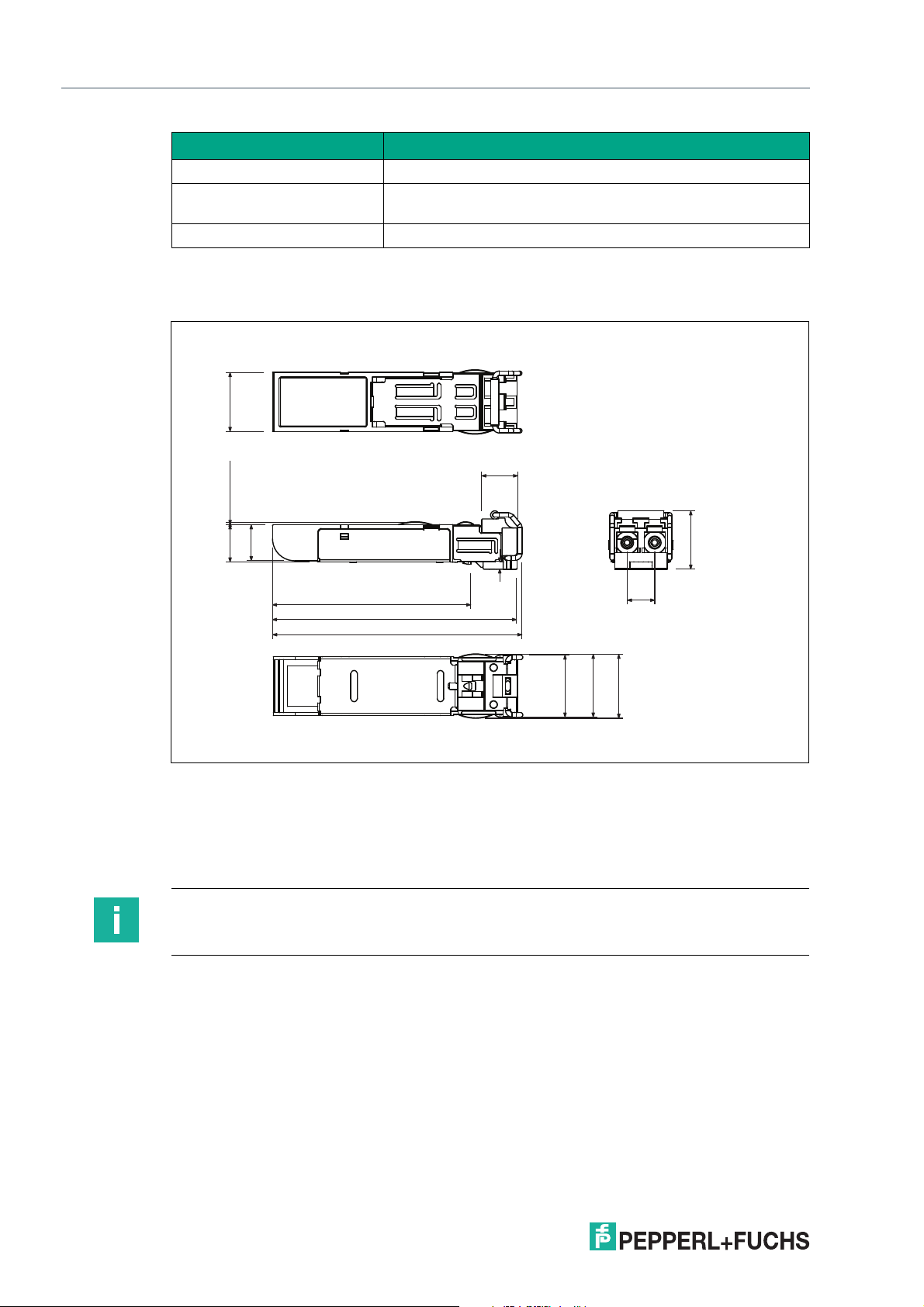

Figure 2.4

The rail field switches provide 2 sockets for small form-factor pluggable (SFP) transceiver

Ethernet modules. Pepperl+Fuchs' SFP transceivers are intended to be used in applications,

where extended distances are required.The SFP transceivers fulfill enhanced requirements for

industrial use as such as installation in explosion-hazardous area, extended temperature

range, and enhanced electromagnetic compatibility (EMC).

SFP-1

•Complies with 100BASE-FX

•Transfer rate 100 Mbit/s

•Reach length of up to 2 km

•LC duplex connector

•Multi-mode fiber with 1310 nm wavelength

•Complies with a Class 1 laser product in accordance with EN 60825-1.

SFP-2

•Complies with IEEE 802.3z Gigabit Ethernet standard 1000BASE-SX

•Transfer rate 1 Gbit/s

ACC-PC-SFP Protective covers for SFP sockets (packaging unit: 10 pieces)

ACC-ARS-SW Separation wall for intrinsically safe port application (packag-

ing unit: 2 pieces)

ACC-ARS-WMK Wall mounting kit consisting of 2 mounting brackets

Ta b l e 2 . 2

Order designation Description

45.00

8.20

8.40 13.40

55.50

56.60

1.68

6.25

8.00

0.60+/-0.40

13.7

14.00

14.60+/-0.40

13.35

Note

Only use SFP transceivers approved by Pepperl+Fuchs for the intended use. Pepperl+Fuchs

accepts no liability as a result of performance issues related to third-party SFP solutions.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Pepperl+Fuchs Interruttore

Pepperl+Fuchs

Pepperl+Fuchs LVL-M4 Manuale utente

Pepperl+Fuchs

Pepperl+Fuchs Vibracon LVL-M2C Manuale utente

Pepperl+Fuchs

Pepperl+Fuchs LVL-M4 Manuale utente

Pepperl+Fuchs

Pepperl+Fuchs Vibracon LVL-M Series Manuale utente

Pepperl+Fuchs

Pepperl+Fuchs PROFINET IO Power Hub Manuale utente

Pepperl+Fuchs

Pepperl+Fuchs LVL-M4 Guida di riferimento

Pepperl+Fuchs

Pepperl+Fuchs RocketLinx ICRL2-U-8RJ45-DIN Manuale utente

Pepperl+Fuchs

Pepperl+Fuchs Vibracon LVL-B1 Manuale

Pepperl+Fuchs

Pepperl+Fuchs LKL-P1 Manuale utente

Pepperl+Fuchs

Pepperl+Fuchs RocketLinx ICRL-U-5RJ45-G-DIN Manuale utente

Pepperl+Fuchs

Pepperl+Fuchs LVL-M4 Manuale utente

Pepperl+Fuchs

Pepperl+Fuchs LVL-M3 Manuale utente

Pepperl+Fuchs

Pepperl+Fuchs Vibracon LVL-A7 Manuale utente

Pepperl+Fuchs

Pepperl+Fuchs LCL2 Guida di riferimento

Pepperl+Fuchs

Pepperl+Fuchs Vibracon LVL-M1H Manuale utente

Pepperl+Fuchs

Pepperl+Fuchs Vibracon LVL-M1 Manuale utente

Pepperl+Fuchs

Pepperl+Fuchs Raritan Dominion KX II-101 Manuale utente

Pepperl+Fuchs

Pepperl+Fuchs LVL-M4 Manuale utente

Pepperl+Fuchs

Pepperl+Fuchs LCL2 Guida di riferimento

Pepperl+Fuchs

Pepperl+Fuchs SI00113O-F Manuale utente

Pepperl+Fuchs

Pepperl+Fuchs LCL1 Manuale utente

Pepperl+Fuchs

Pepperl+Fuchs HiC284 Series Manuale utente

Pepperl+Fuchs

Pepperl+Fuchs KFD0-SD2-Ex2.1045 Manuale utente

Pepperl+Fuchs

Pepperl+Fuchs LVL-M4 Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
