Perlesmith PSTVS04 Manuale utente

V3.0

PSTVS04

Thank you for choosing our product! We strive to provide the best quality

and services for our customers. Would you kindly share your experience

on Amazon if you are satisﬁed? Should you have any issues, please don't

hesitate to contact us.

Telephone：800-5566-806 Mon-Fri 10am - 6pm (PST) (USA) (CAN)

Email：[email protected] (US/CA/DE/UK/FR/IT/ES/JP/AU)

1

V1.0

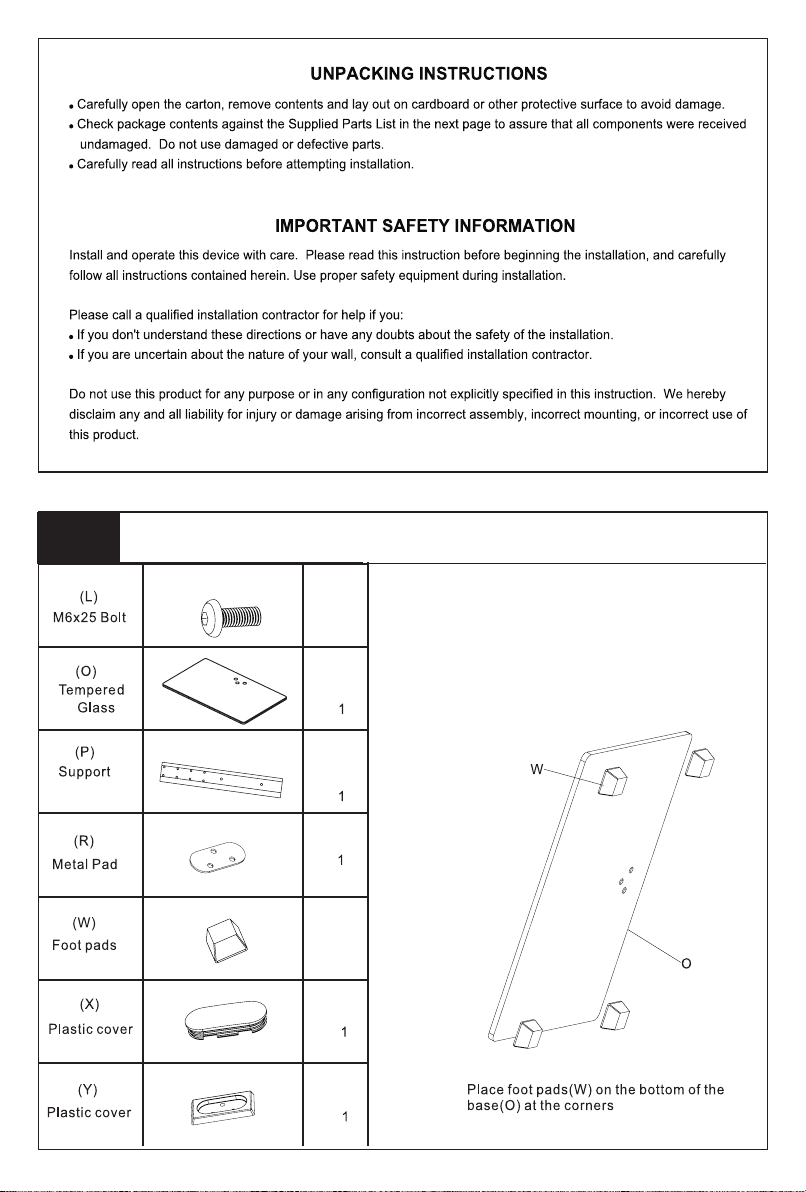

Connecting the Support Pillar to Tempered Glass

Step 1

Pillar

x4

x

x

x

x

x

x3

2

Connecting the TV Plate to Support Pillar

Step 2

pillar

Put O (Tempered Glass) on the table. Put R (Metal Pad) and L

(M26x25 Bolt) under O. Turn Y (Plastic Cover) and P (Support

Pillar) upside down under O to install and then tighten screws.

If you ﬁnd the support column (P) is not in the correct direction, please see ﬁgure 1.1

below. Loosen M6x25 screws(L), adjust the support to the correct direction then

tighten screws again.

R

Y

O

LR

3

Measure VESA and Check TV screws

Measure the distance between the holes located at the

back of your TV (these measures may form the shape of a

square, or a rectangle) and check that these taken

measures are within the VESA (*) range for this wall

mount. (*) VESA: International standard established by the

TV manufacturers used to determine if LCD/LED TVs are

compatible with wall mounts.

Please select the proper screw length for your

TV by hand tightening to check your ﬂat panel

thread depth.

Step 3

4

Mounting the Monitor Bracket to a TV

Step 4

5

Insert the safety lock in the bottom of

the bracket and then tighten the screws.

5

5

5.3

5.4

Attaching TV to TV Plate and Mananging the Wires

Step 5
