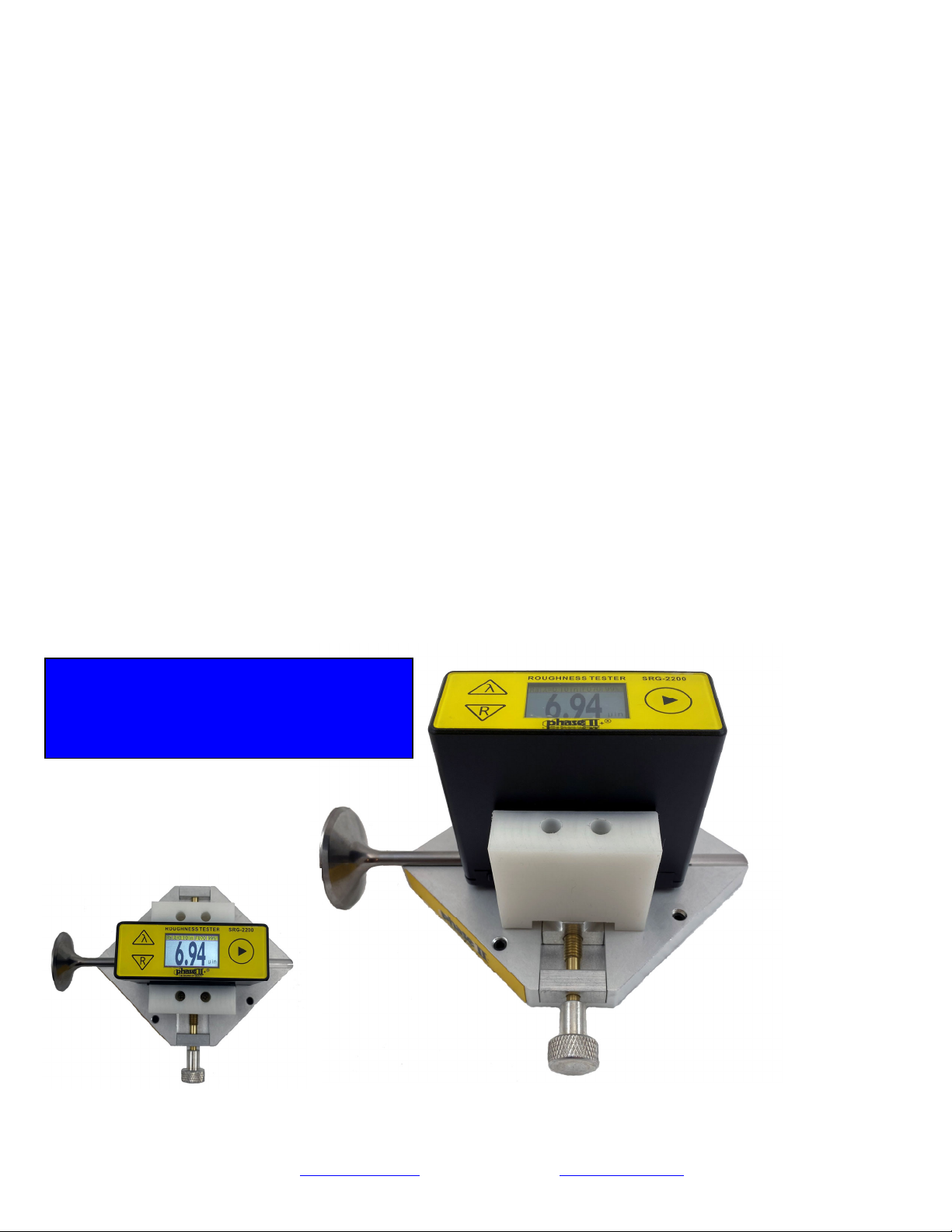

MAJOR TECHNICAL PARAMETERS
ROUGHNESSPARAMETERS
Ra, Rz, Rq, Rt
MEASURINGRANGE
RA: 0.05‐10.0µm RZ: 0.1‐50µm
Rq :0.05~10.0µmRt: 0.1~50µm
CUT‐OFFLENGTHS
0.25, 0.80, 2.50
FILTER
Gauss Digital
TRACINGLENGTH
0.23IN (6MM)
EVALUATIONLENGTH
1.25mm, 4.0mm, 5.0mm
TRACINGSPEED
0.04IN/SECOND (1.0MM/SECOND)
ACCURACY
+/-12% of known value
PICKUPSTYLUS
PIEZO-ELECTRIC
TRACERTIP
DIAMOND, RADIUS 10µM +/- 1µM

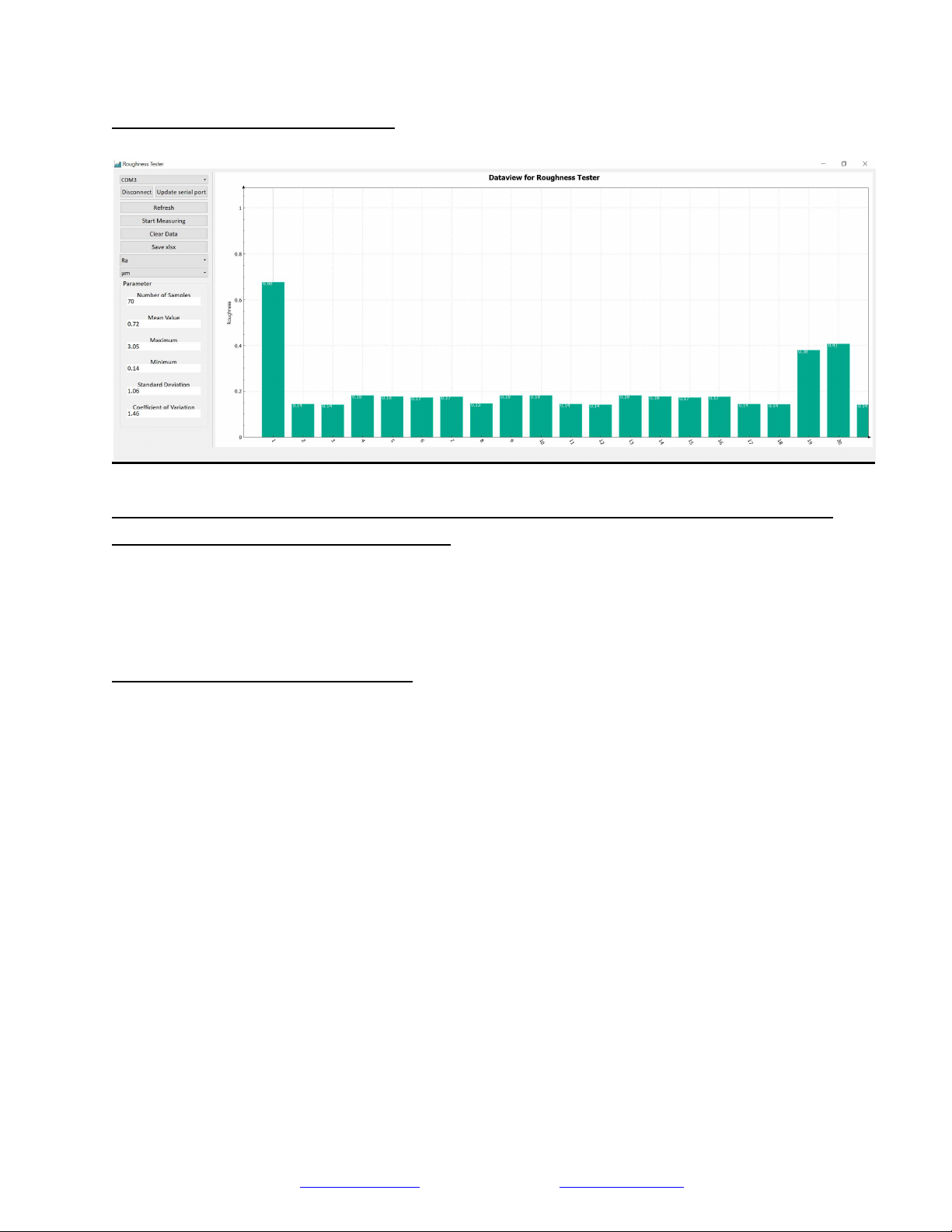

MEMORY/Transmission
500 Values/Bluetooth
OPERATINGTEMPERATURE
32-104 DEGREES F (0-40 DEGREES C)
POWER
One 1.5v AA Battery
CONTACTFORCEONPROBE
<0.5N
STATICMEASURINGFORCEOFSENSORSTYLUS
< 0.016N
DIMENSIONS
73 X 28 X 62mm
WEIGHT
0.5LBS (220G)
USEANDOPERATION
OPERATION:
POWER ON THE DEVICE.

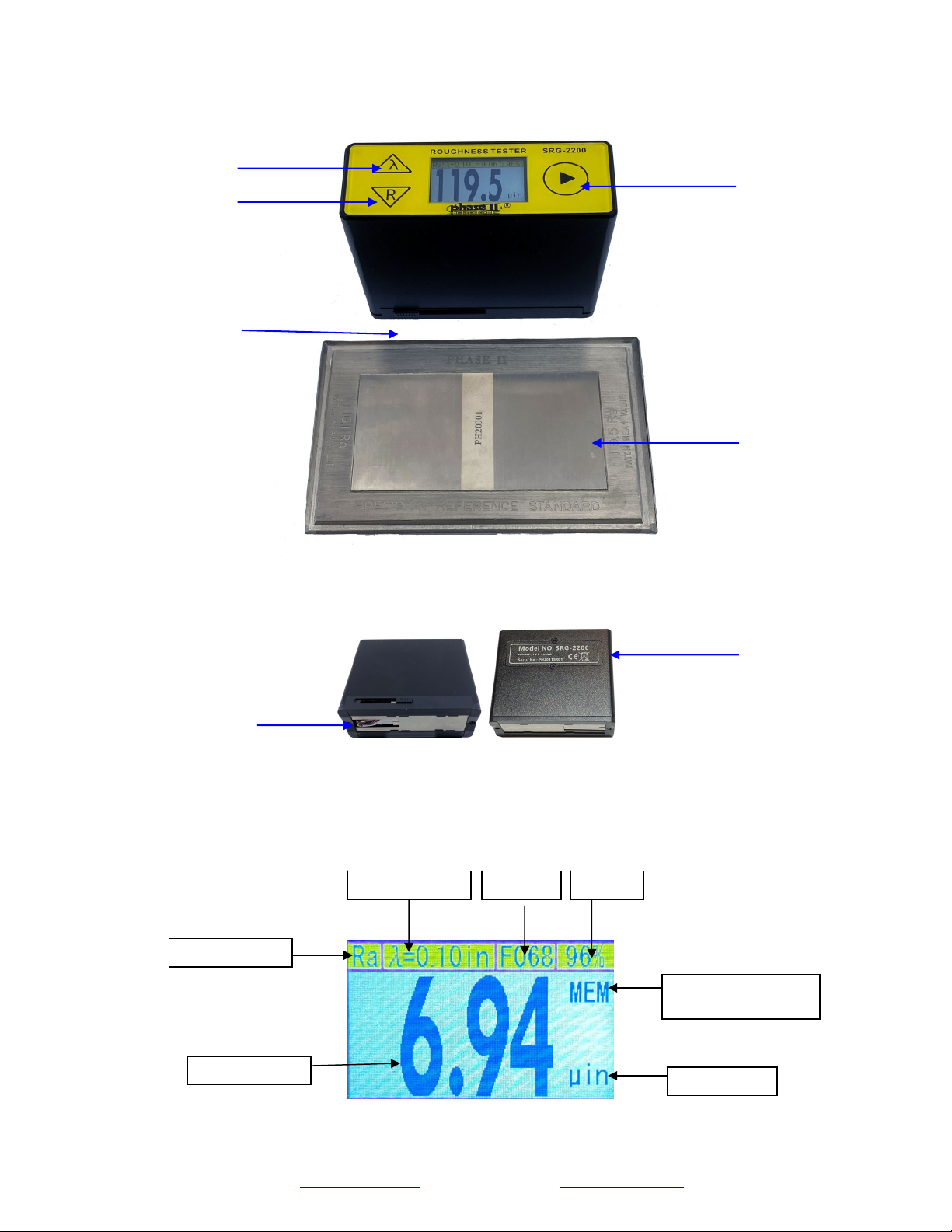

Press and hold the button on the top panel. The display will show the model and serial number and
then the device is ready to work. The 1.14” IPS TFT display will show the measuring parameters and
sampling length of the previous test.
POWER OFF: Press and hold the button for a few seconds until the display turns off.
Before taking a test, choose the desired parameter Ra, Rz, Rq, or Rt and proper sampling length 2.5(0.10),
0.8(0.03) or 0.25(.01) (for sampling length option, consult the appendix).

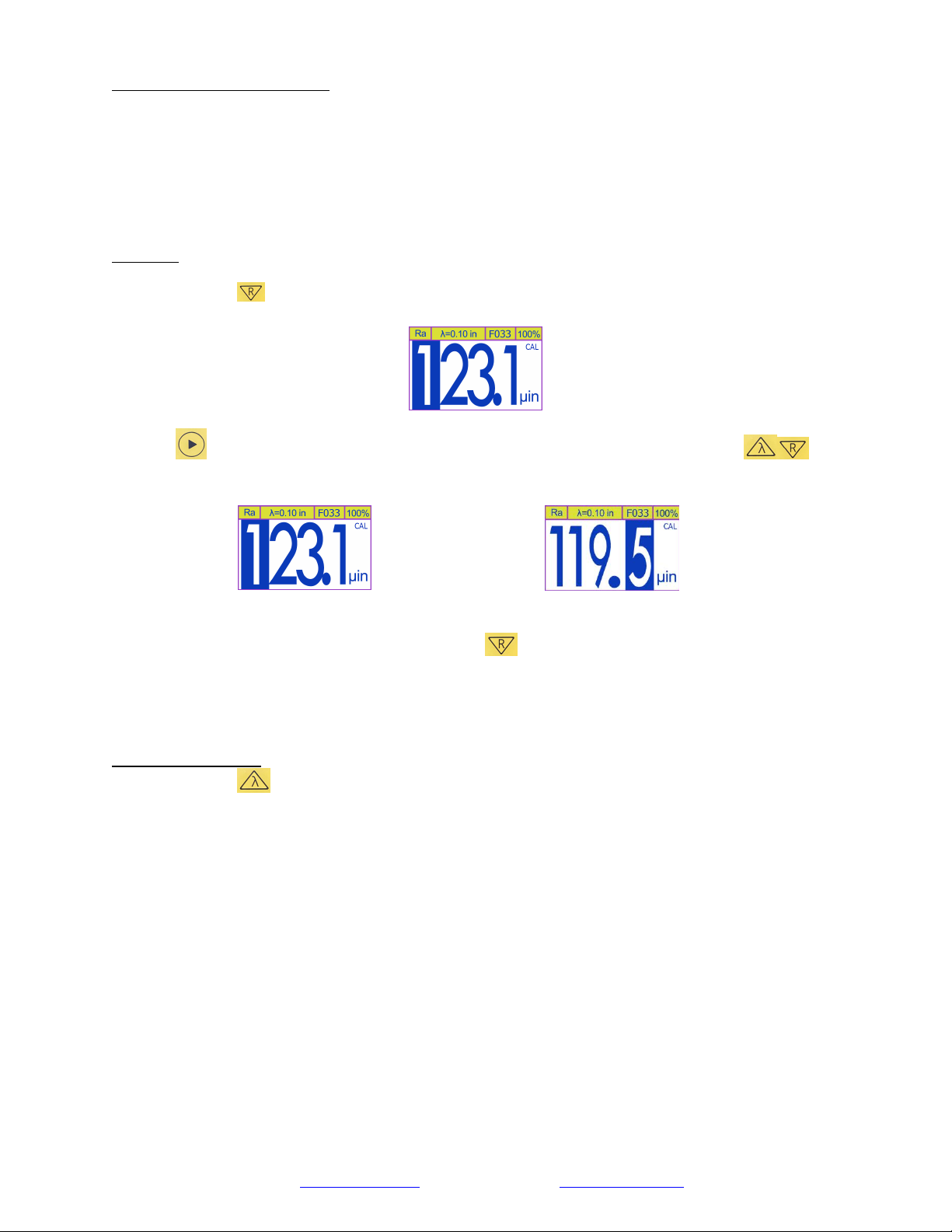

After switching on the device, press the to change parameters.
To choose the proper sampling length, press the keypad button (0.25, 0.8OR 2.5).
After the parameters and sampling lengths are taken, you may begin testing.
Position the unit over the test area and press the start button on top of the unit. The stylus moves
automatically. When the value on the display blinks twice, the measurement has been completed and the
results shown upon the display.
