Phase Technologies CI-6.0 IX QM Guida alla configurazione

T E C H N O L O G Y

CI-6.0 IX QM

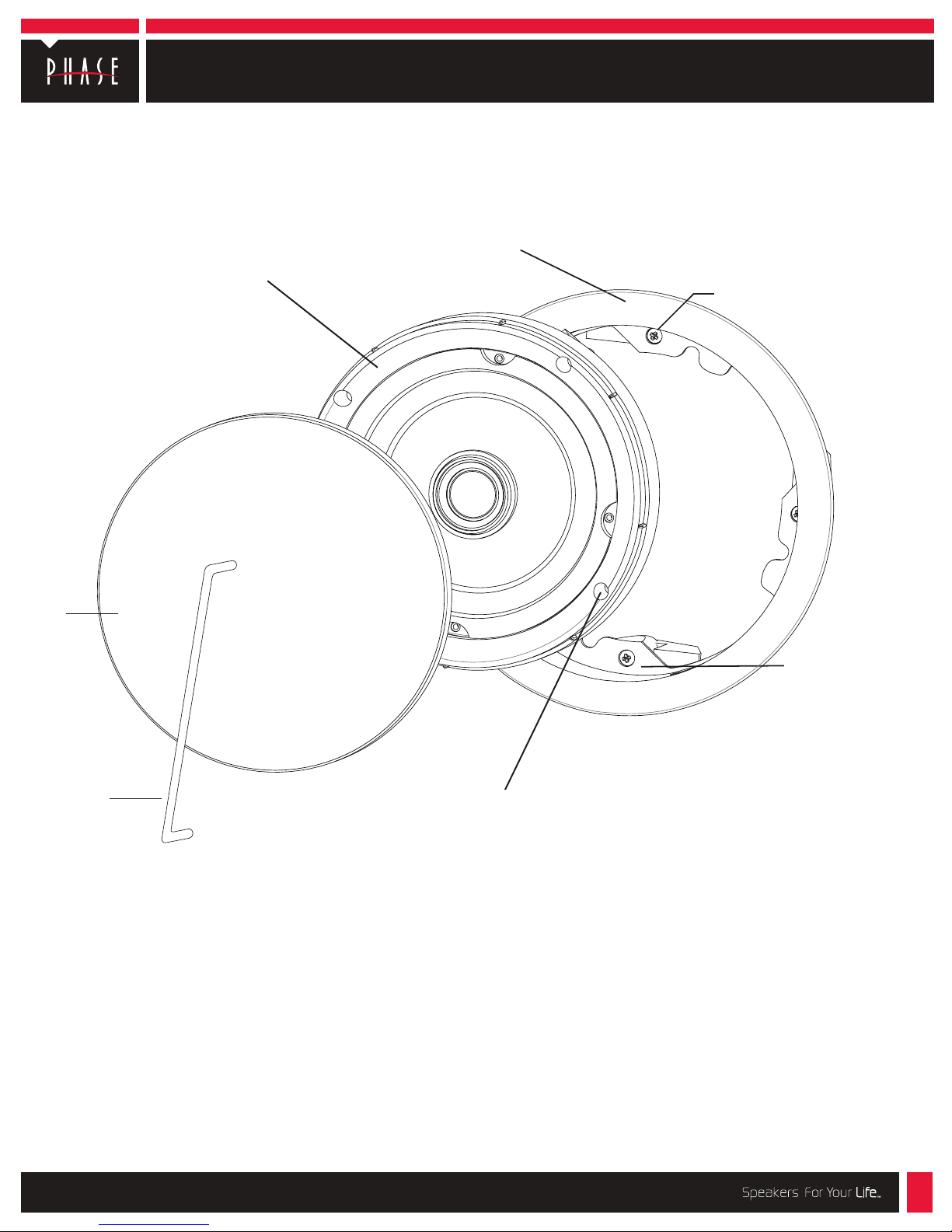

Install instructions for CI round flush mount models:

Universal flange & grille

assembly (CI-FGR QM)

(purchase separately)

Grille

Flange clamp (4x)

The CI-FGR QM will clamp

material up to 1

1/2” thick.

Baffle clamp screw (4x)

Flange clamp

screw (4x)

218-1240

Choose the appropriate mounting location for each speaker.

When deciding upon a location, consider the following:

• Make certain your speaker wires can be run to or are accessible from these

locations.

• Make certain the wall or ceiling material is sturdy enough to support the

weight and vibration of the speakers.

• It is recommended that our pre-construction rough-in brackets (part number

RB-17*) be used whenever possible in new construction. A back box (part

number BB-12) is also available.

• Make certain the area behind the speaker is free of obstacles such as wall

studs, electrical wiring, pipes, etc.

• Each speaker should be positioned properly, relative to the listening area

for good coverage.

• Audio performance and room-to-room isolation will be improved if there is

some fiberglass insulation placed loosely behind the speaker.

*The RB-17 rough-in bracket is available for installations in new construction.

8650 College Boulevard | Overland Park, KS 66210 | (888)phase tk | www.phasetech.com | www.mseaudio.com

Thank you for purchasing Phase Technology Custom Installation

speakers. Before installing, please read through this installation

manual thoroughly.

Speaker/baffle

assembly

Speaker

installation tool

Install instructions for CI round flush mount models, Page 2

Flange Installation:

3. Connect the speaker wires to the

spring-loaded input terminals on the rear of

the speaker, making sure no loose strands

are exposed.

Speaker Installation:

Red/positive Black/negative

5. The tweeter may be aimed toward the

listening area by gently applying pressure

to the inside of the outer edge of the

tweeter assembly.

6. Carefully replace the grille by pressing it

into the gap between the flange and the

baffle. Enjoy your new Phase Technology

speaker!

Grille

SAFETY-LOC™ Clamp

NOTE: Special instructionsfor non-QM

Flanges

If you are installing a CI round speaker with

the QM clamps in a CI-FGR (non-QM flange)

remove the QM clamp feet by unscrewing

them from the speaker baffle. Insert the

speaker baffle into the flange and reuse the

screws from the clamp feet to attach the

speaker to the flange.

8650 College Boulevard | Overland Park, KS 66210 | (888)phase tk | www.phasetech.com | www.mseaudio.com

4. Insert the speaker installation tool into

two of the screw access holes on the

speaker. Carefully place the speaker in the

flange; rotate slightly until the speaker

surface is even with or slightly recessed into

the surface of the flange. While exerting

upward pressure, use the tool to rotate the

speaker COUNTER-CLOCKWISE (left). This

will engage the QM SAFETY-LOC clamps on

the back of the flange. Remove tool and

tighten the four clamp screws on the

speaker. CAUTION: do not over-tighten.

CAUTION: Do NOT attempt to rotate the

speaker by grasping the tweeter!

1. Using the supplied template, carefully

mark the area to be cut out. Using a

drywall knife or saw, cut a hole in the

drywall and prepare the speaker wires for

connection to the speaker terminals.

Remove the grille from the mounting

flange by pressing it from behind. Insert

the mounting flange into the hole.

2. Loosen the flange clamping screws one turn

(counter clockwise) to release the clamp. Next,

tighten all four flange clamp screws evenly to

secure the flange to the drywall. It is best to

tighten each screw with the same amount of

force (torque). CAUTION: Do not over-tighten.
