Philips GC 6022 Manuale utente

ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Boiler steam iron Provapor

GC 6022

PRODUCT INFORMATION

Features

Iron, Azur

- Careeza soleplate

- Max. steam output 60 g/min

- Cord length 1.9 m

Boiler

- Inox boiler

- Capacity 1 litre

4322 277 00840

02/03

TECHNICAL INFORMATION

Voltage : 220 - 240 V

Frequency : 50 - 60 Hz

Power consumption : Iron : 800 W

Boiler : 1200 W

Pressure : 2.5 bar

Water advice : Suitable for tap water use. However if the

tap water in your area is very hard, we

advise you to mix it with a equal portion

of distilled water or to use distilled water

only.

Soleplate

Careeza is a multi layer chemical substance that gives an excellent

gliding over various fabrics and better care for the garments.

This product meets the requirement regarding

interference suppression on radio and television.

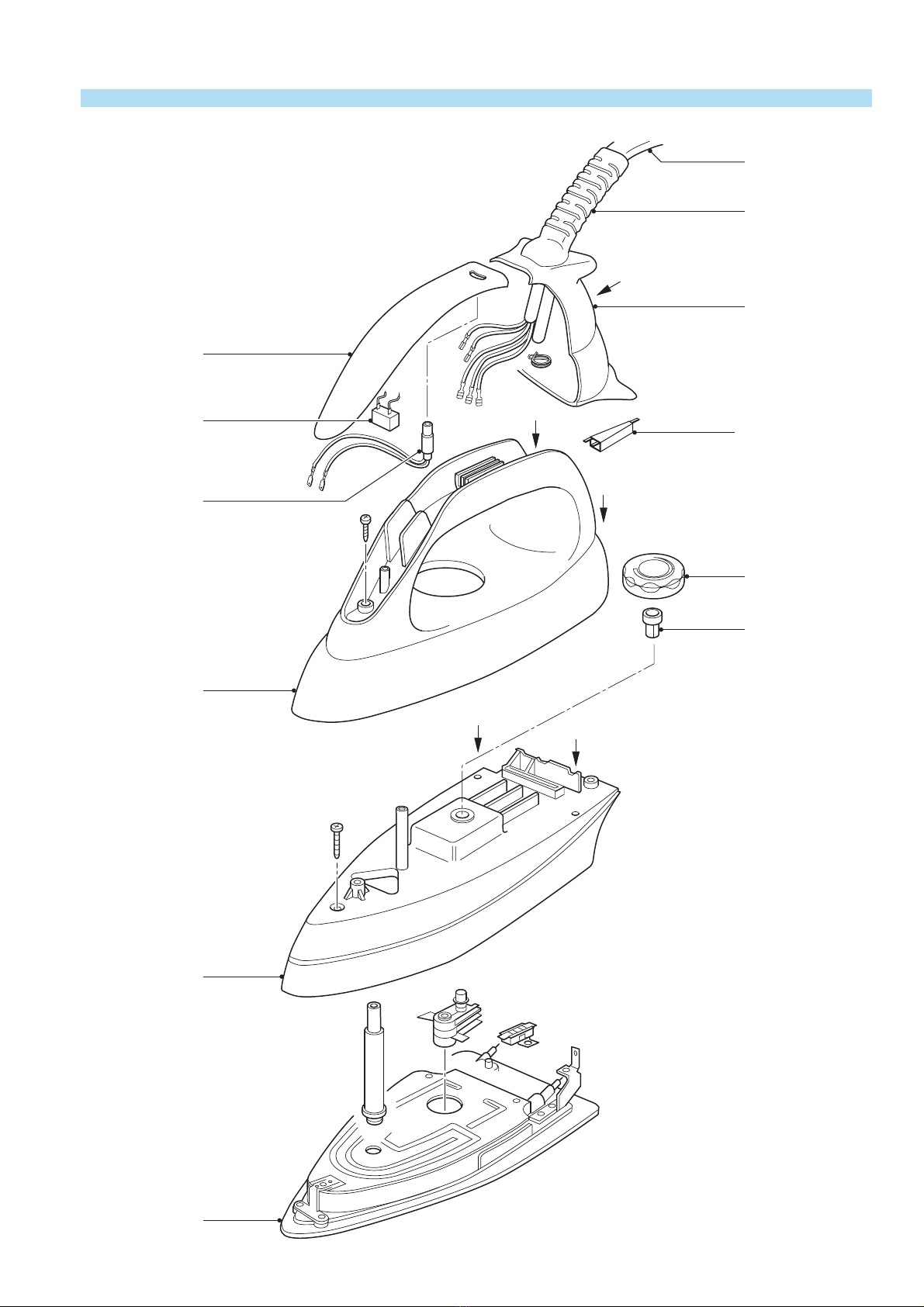

EXPLODED VIEW IRON

C1 C2

PARTS LIST IRON

Pos Description Service code

Dial

Backplate

Inlay

Iron Lamp

Micro switch

9965 000 13233

9965 000 13234

9965 000 13235

9965 000 01686

9965 000 01888

Iron Handle

Intermediate cable + microswitch

Swivel

Thermostat bush

Iron skirt

9965 000 13236

9965 000 13237

9965 000 13238

9965 000 01682

9965 000 13245

Soleplate unit

Electrovalve trigger

9965 000 13246

9965 000 13255

Cut

out

Boiler

thermostat

Main

switch

STAND IRON

Steam-

switch

Thermostat

Electro-

valve

Boiler

heating

element

DISASSEMBLY ADVISE IRON

REPLACE DIAL 1

REPLACE

BACKPLATE 2

disassemble DIAL 1

remove screw A

remove connection

remove hose

REPLACE IRON

HANDLE 6

disassemble DIAL 1

remove screw A

remove connection

remove hose

disassemble BACKPLATE 2

disassemble INLAY 3

IRON LAMP 4

MICRO

SWITCH 5

remove screw B (3x)

REPLACE INTERME-

DIATE CABLE 7

SWIVEL 8

THERMOSTAT

BUSH 9

disassemble DIAL 1

remove screw A

remove connection

remove hose

disassemble BACKPLATE 2

disassemble INLAY 3

IRON LAMP 4

MICRO

SWITCH 5

remove screw B (3x)

disassemble IRON HANDLE 6

REPLACE

IRON SKIRT 10

SOLEPLATE UNIT 11

disassemble DIAL 1

remove screw A

remove connection

remove hose

disassemble BACKPLATE 2

disassemble INLAY 3

IRON LAMP 4

MICRO

SWITCH 5

remove screw B (3x)

disassemble IRON HANDLE 6

disassemble INTERMEDIATE

CABLE 7

SWIVEL 8

THERMOSTAT

BUSH 9

remove screw C (3x)

REPLACE INLAY 3

IRON LAMP 4

MICRO SWITCH 5

Notes :

For disassembly you will need a Torx screwdriver

362 TR T20 x 100.

EXPLODED VIEW STAND

25a

25b

PARTS LIST + DISASSEMBLY ADVICE STAND

SAFETY CAP 21

COMPLETE TRAY 22

Note: pressure ﬁxation rubber

through the tray.

SUPERIOR STAND

PRINTED 29

Remove screws A (4x)

Remove the SUPERIOR STAND

and you will see the respective

parts of the Boiler.

ADJUSTMENT AND CONTROLS

– To avoid leakage of the sealings and damage to the

components in and on the boiler, NEVER clean the boiler

with vinegar, a descaling agent or other chemicals.

– The boiler doesn’t contain serviceable parts.

Never disassemble the boiler body or components and/or

components on and in the boiler.

– The boiler is required to be rinsed after every ten times use.

– ALWAYS REPLACE BOILER (Pos 26) WHEN:

*the mechanical safety valve has been activated.

*the boiler thermostat or hand –resettable safety

thermostat are open.

*the electrovalve fails or the sieve is soiled with scale.

– After the product has been repaired, it should function

properly and has to meet the safety requirements as laid

down and ofﬁcially established at this moment.

Pos Description Service code

25a

Safety cap

Complete tray

Tray rubber foot

Boiler rubber foot

Intermediate supply cable (Europe)

9965 000 13247

9965 000 13248

9965 000 13249

4822 462 71999

9965 000 01793

25b

Intermediate supply cable (Italy)

Inox boiler unit

Electrovalve

Main switch

Superior stand printed GC 6022

9965 000 01792

9965 000 13250

4822 218 11561

9965 000 13251

9965 000 13257

Inferior stand

Tray stopper prevent Iron from sliding

Filling hole gasket

9965 000 13258

9965 000 13254

9965 000 01782
