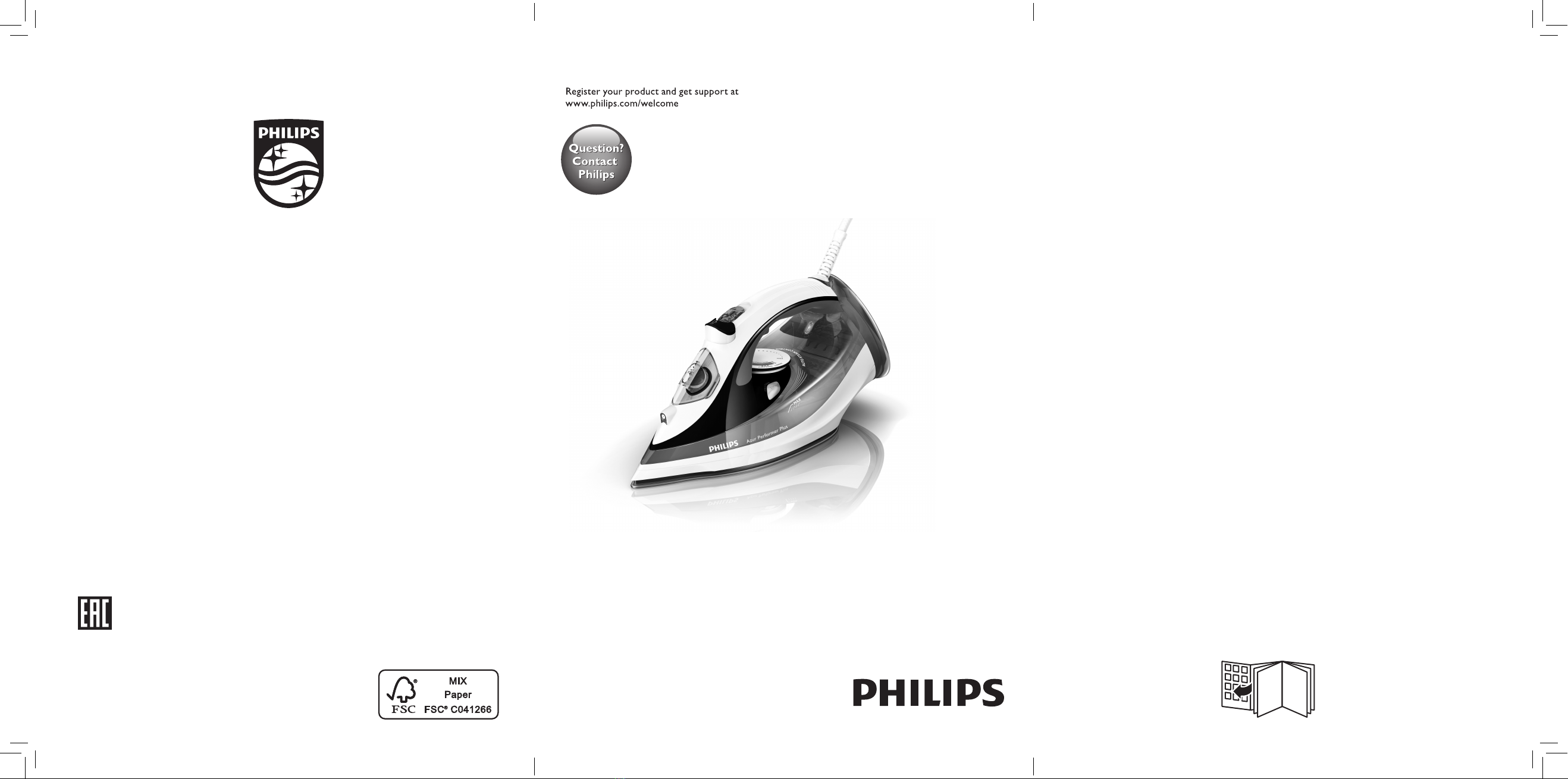

Philips GC3800 series Manuale utente

Specifications are subject to change without notice

4239 000 90944

GC3800 series

User manual

Always there to help you

3 4

GC3800 series

ENGLISH 6

РУССКИЙ 11

TÜRKÇE 17

УКРАЇНСЬКА 22

ҚАЗАҚША 27

6ENGLISH

Introduction

Congratulations on your purchase and welcome to Philips!

To fully beneﬁt from the support that Philips offers,

Product overview (Fig. 1)

1 Spray nozzle

2 Water ﬁlling door

3 Spray button

4 Steam slider

a. Dry setting

b. ECO setting

c. Auto steam setting

5 Steam boost trigger

6 Safety auto-off light (speciﬁc types only)

7 Mains cord

8 Temperature indicator light

9 Water tank

10 Temperature dial with Auto steam control

11 Calc clean button

12 Typeplate

13 Soleplate

Important

Read the separate important information leaet and this user manual

carefully before you use the appliance. Keep both documents for future

reference.

Using the appliance

Filling the water tank

Note: Your appliance has been designed to be used with tap water. If you

live in an area with hard water, fast scale build-up may occur. Therefore, it is

recommended to use 100% distilled or demineralized water to prolong the

lifetime of your appliance.

1 Open the water lling door.

2 Tilt the iron backwards and ll the water tank with tap water up to

the maximum level.

Note: Do not ll the water tank beyond the MAX indication.

Do not put perfume, vinegar, starch, descaling agents, ironing aids or

other chemicals in the water tank.

3 Close the water lling door ( ‘click’).

Temperature and steam setting

Table 1:

Warning: Do not use steam or steam boost at low temperature, as indicated

in the below table. Otherwise, hot water may leak from the iron.

Fabric type Temperature

setting

Auto steam

control

Steam

boost

Linen MAX Automatically

adjusted to the

optimal amount

Ye s

Cotton ●●● Ye s

Wool ●● No

Silk ●● No

Synthetic fabric

(e.g. acrylic, nylon,

polyamide, polyester)

●No steam No

1 Consult table 1 to set the temperature dial to the appropriate

setting for your garment.

2 Select Auto steam setting in the steam slider.

This iron is equipped with Auto steam control. According to the

temperature you select, the iron automatically provides the optimal

amount of steam for the best result.

3 Put the iron on its heel and plug it in.The temperature light goes on

to indicate that the iron is heating up.

4 When the temperature light goes out, the iron has reached the

correct temperature and you could start ironing.

ENGLISH 7

Features

Spray funtion

- Press the spray button to moisten the article to be ironed. This helps

to remove stubborn creases.

Steam boost function

- Press and release the steam boost trigger for a powerful boost of

steam to remove stubborn creases.

Ironing with extra steam

-For extra steam during ironing, press and hold the steam boost trigger.

Vertical steam

- You can use the steam boost function when you hold the iron

in vertical position for removing creases form hanging clothes,

curtains etc.

Eco steam setting / Dry ironing

-In stead of Auto steam, you could choose ECO setting in the steam

slider to save energy, yet to achieve satisfactory ironing results.

- To iron without steam, select dry setting in the steam slider.

ENGLISH8

Safety auto-off (specic types only)

The safety auto-off function automatically switches off the iron if it has not

been used for 30 seconds resting on its soleplate or 8 minutes resting on

its backplate. The auto-off light will light up.

- To let the iron heat up again, pick up the iron or move it slightly.

The auto-off light goes out.

Cleaning and maintenance

Cleaning

1 Unplug the iron and let it cool down.

2 Pour any remaining water out of the water tank from the water

lling door.

3 Wipe akes and any other deposit off the soleplate with a damp

cloth and a non-abrasive (liquid) cleaning agent.

To keep the soleplate smooth, avoid hard contact with metal objects.

Never use a scouring pad, vinegar or other chemicals to clean the

soleplate.

Calc-clean function

IMPORTANT: Use Calc-clean function every 1 month to prolong the life of

your iron. If water in your area is very hard, or you see scales coming out from

the soleplate during ironing, use this function more frequently.

1 Make sure the iron is unplugged and the steam slider is set to dry

setting.

2 Fill the water tank to the MAX indication.

Do not pour vinegar or other descaling agents into the water tank.

3 Plug in the iron and set the temperature dial to MAX.

4 Unplug the iron when the temperature light goes out.

5 Hold the iron over the sink. Keep pushing the calc clean button and

gently shake the iron forth and back until all water in the water tank

has been used up.

Scales is ushed out, steam and boiling water also come out of the

soleplate.

Note: Repeat steps 2 to 5 if the water that comes out of the iron still contains

scale particles.

ENGLISH 9

6 Plug in the iron and let the iron heat up to dry the soleplate.

7 Unplug the iron when the temperature indicator light goes out.

8 Move the iron gently over a piece of cloth to remove any water

stains on the soleplate.

Storage

1 Unplug the iron and empty the water tank. Let it cool down in a safe

place.

2 Wind the mains cord around the backplate of the iron and store it

on its heel.

Troubleshooting

This chapter summarises the most common problems you could

encounter with the appliance. If you are unable to solve the problem with

the information below, visit www.philips.com/support for a list of

frequently asked questions or contact the Consumer Care Centre in your

country (see the worldwide guarantee leaet for contact details).

Problem Possible cause Solution

The steam boost function

does not work properly

(water leaks out of the

soleplate).

You have used the steam boost

function too often within a very

short period.

Wait for a few seconds before you use

the steam boost function again.

You have used the steam

boost function at a too low

temperature.

Set an ironing temperature at which

the steam boost function can be used

(●●● to MAX).

Flakes and impurities

come out of the soleplate

during ironing.

Scales are formed inside the

soleplate.

Use the Calc-clean funtion (see chaper

‘Cleaning and maintenance’, section

‘Calc-clean function’).

Water leaks from the

water ﬁlling door.

You have overﬁlled the water

tank.

Do not ﬁll the water tank beyond the

MAX indication. Pour excess water out

of the water tank.

ENGLISH10

Введение

Поздравляем с покупкой и приветствуем в клубе Philips!

Чтобы воспользоваться всеми преимуществами поддержки Philips,

зарегистрируйте продукт на веб-сайте www.philips.com/welcome.

Описание изделия (рис. 1)

1 Разбрызгиватель

2 Дверца наливного отверстия

3 Кнопка разбрызгивателя

4 Переключатель режимов подачи пара

a. Глажение без пара

b. Экорежим

c. Функция автоматической подачи пара

5 Кнопка парового удара

6 Индикатор автовыключения (только некоторые модели)

7 Сетевой шнур

8 Индикатор нагрева

9 Резервуар для воды

10 Дисковый регулятор нагрева с автоматической регулировкой

подачи пара

11 Кнопка очистки от накипи

12 Табличка

13 Подошва

Важно

Перед использованием прибора внимательно ознакомьтесь

с буклетом с важной информацией и данным руководством

пользователя. Сохраните эти документы для дальнейшего

использования в качестве справочного материала.

Использование прибора

Заполнение резервуара для воды

Примечание. Прибор подходит для использования с водопроводной

водой. Если вода в вашем регионе очень жесткая, в приборе может

быстро образовываться накипь. Поэтому для продления срока

службы прибора рекомендуется использовать дистиллированную или

деминерализованную воду.

1 Откройте дверцу наливного отверстия.

2 Наклоните утюг назад и наполните резервуар водопроводной

водой до отметки максимального уровня.

Примечание. Не заполняйте резервуар для воды выше отметки

максимального уровня (MAX).

Не добавляйте в резервуар для воды духи, уксус, крахмал,

химические средства для удаления накипи, добавки для глажения

или другие химические средства.

РУССКИЙ 11

3 Закройте дверцу наливного отверстия (должен прозвучать

щелчок).

Выбор температурного режима и режима подачи пара

Таблица 1.

Предупреждение. Не используйте функцию парового удара или

глажение с паром при низкой температуре (см. таблицу ниже). В

противном случае из утюга может начать вытекать горячая вода.

Тип ткани Настройка

температуры

Автоматическая

регулировка

подачи пара

"Паровой

удар"

Лен MAX Автоматическая

настройка

оптимального

уровня

Да

Хлопок ●●● Да

Шерсть ●● нет

Шелк ●● нет

Синтетические ткани

(например, акрил,

нейлон, полиамид,

полиэстер)

● Нет пара нет

1 Чтобы выбрать настройку, подходящую для конкретного типа

ткани, ознакомьтесь с таблицей 1.

2 С помощью переключателя режимов подачи пара выберите

режим автоматической подачи пара.

Этот утюг оснащен функцией автоматической регулировки подачи

пара. Количество пара настраивается автоматически в зависимости

от выбранного температурного режима.

3 Поставьте утюг вертикально и подключите к сети. Загорится

индикатор нагрева. Это значит, что утюг нагревается.

4 Если индикатор нагрева погас, значит, утюг нагрелся до заданной

температуры, можно начинать глажение.

РУССКИЙ12
