Philips GC6012 Manuale utente
ServiceManual
Philips Domestic Appliances and Personal Care
Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification
Provapor new profi
GC 6012
SAP coding GC 6012
PRODUCT INFORMATION
Feataures : inox sole plate
boiler capacity 1 litre
length steam hose 1,9 metre
length cord set 1,9 metre
maximum steam output 70 gr/min
Voltage : 220-240 Volt
Frequency : 50-60 Hz
Power consumptium : Boiler : 1200 Watt
Pressure : 3 bar
Iron : 800 Watt
4322 277 00521
01/04
Product meets the requirements regarding interference
suppression on radio and television.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as laid
down officially established at this moment.
!Service
Information
EXPLODED VIEW IRON
5
1
15 8
44
24
12
13
14
13
19
16
10
18
6
9
X
4 3 21 11
17232220
2
7
2x
2x
BH
I
2x
E
D
C
G
A
F
PARTS LIST IRON DISASSEMBLY ADVISE IR
O
DIAL 1
RING 2
MICROSWITCH 3
LEVER
MICROSWITCH 4
remove SCREW A
remove COVER
MICROSWITCH 5
lift MICROSWITCH 3
unsolder WIRING
Cut
out
Boiler
thermostat
Main
switch
STAND IRON
Steam-
switch
Thermostat
Electro-
valve
Boiler
heating
element
p
Pos DescriptionService Nummer
Insert dial
Dial ring
Microswitch
Lever microswitch
Cover microswitch
1
2
3
4
5
9965 000 08247
4822 532 12772
4822 282 30239
9965 000 08184
4822 442 00787
Handle right + left part
Swivel black
Steam hose / electric cable
Pilot light
Cork grip
6+7
8
9
10
11
4822 310 10944
4822 325 10193
9965 999 08248
4822 134 10076
4822 498 10638
Clamping ring
Clamping ring
Sleeve
Connecting bracket therm.
Metal cover
12
13
14
15
16
4822 492 71001
4822 532 12742
4822 325 10194
4822 402 10689
4822 442 00788
Insulating bracket
Sole plate + pos. 19
Thermostat
Insulating plate
Bracket + item 22 and 23
17
18
19
20
21
4822 466 11473
4822 259 10234
4822 282 30238
4822 466 11474
4822 310 10945
Hose joint24 4822 526 10669
O
N

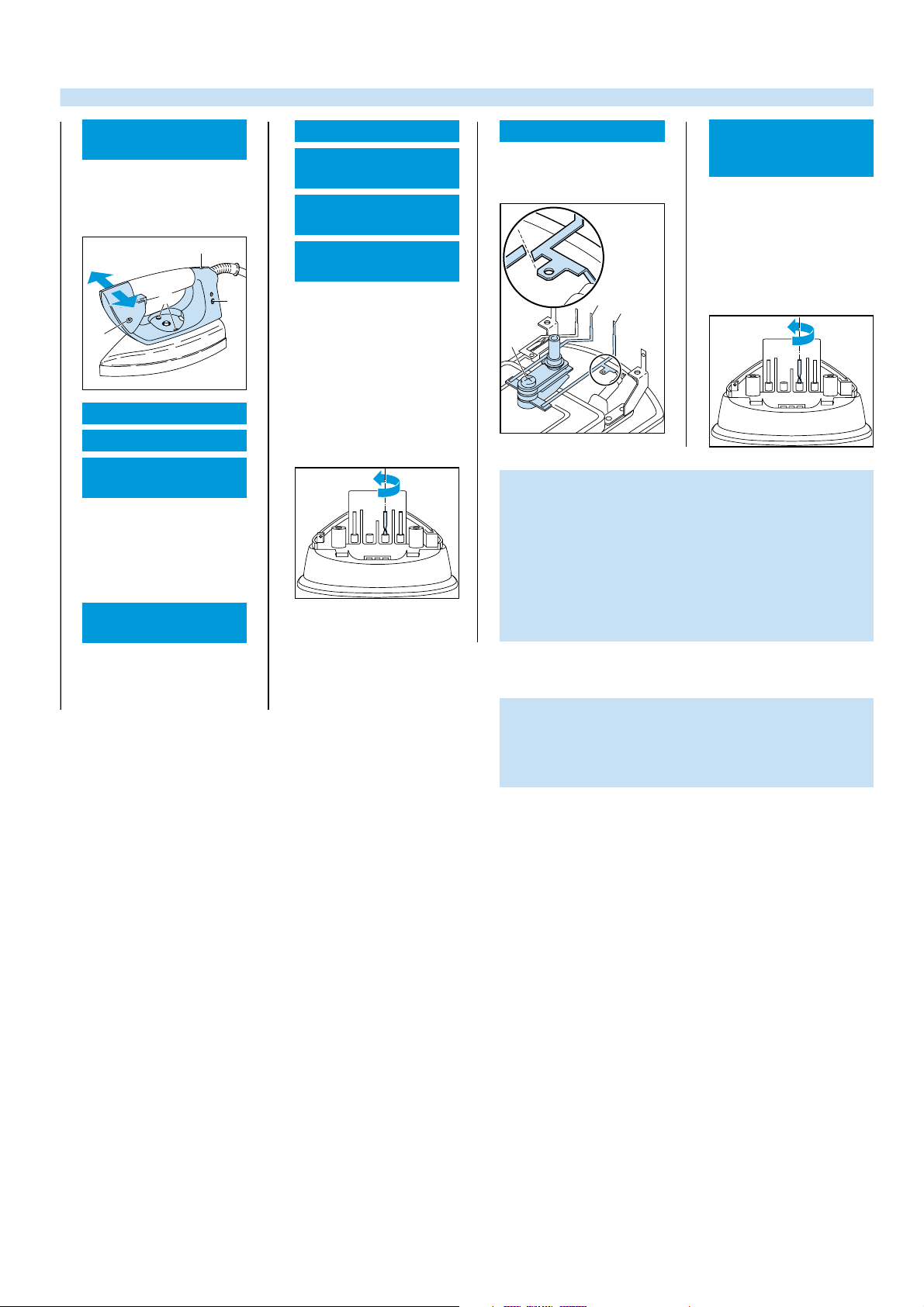

ADJUSTMENT AND CONTROLS
Thermostat 19
Thermostat ( 19 ) supplied as a spare part or fitted to
the sole plate ( 18 ) has already been adjusted by the
supplier and secured by glue.
To avoid disfunction of the iron , NEVER readjust the
thermostat.
REPLACE
HANDLE 6 + 7
remove SCREW B
remove SCREW C
remove SCREW D
remove SCREW E
D
C
E
B
REPLACE SWIVEL 8
REPLACE HOSE 9
REPLACE
PILOT LAMIP 10
disassemble HANDLE
PARTS 6+7
remove SCREW F 2 x
remove CONNECTING
WIRES
remove CLAMP( S )
REPLACE
CORK GRIP 11
disassemble HANDLE
PARTS 6+7
remove SCREW G
remove SCREW H
REPLACE COVER 16
REPLACE
SOLE PLATE 18
REPLACE
THERMOSTAT 19
REPLACE
INSULATING PLATE 20
remove DIAL 1
remove RING 2
remove HANDLE
PARTS 6+7
remove HOSE
remove SLEEVE
remove CORK GRIP
remove SCREW I
remove BRACKET 21
turn conductor B through
180 degrees
remove PLATE 17
THERMOSTAT 19 ONLY
cut CONDUCTOR A
at location P
remove SCREW J
P
Q
BA
D
NOTE :
For opening you need aTorx screwdriver 362 TR
T20 x 100.
ASSEMBLY
REQUIREMENTS
THERMOSTAT 19
Instead of metal conductor A,
the new thermostat has a wire
with AMP clamp.
After fixing screw J, connect
the AMP clamp to tag Q.
After assembling cover 16
ALWAYS turn conductor B
through 180 degrees.

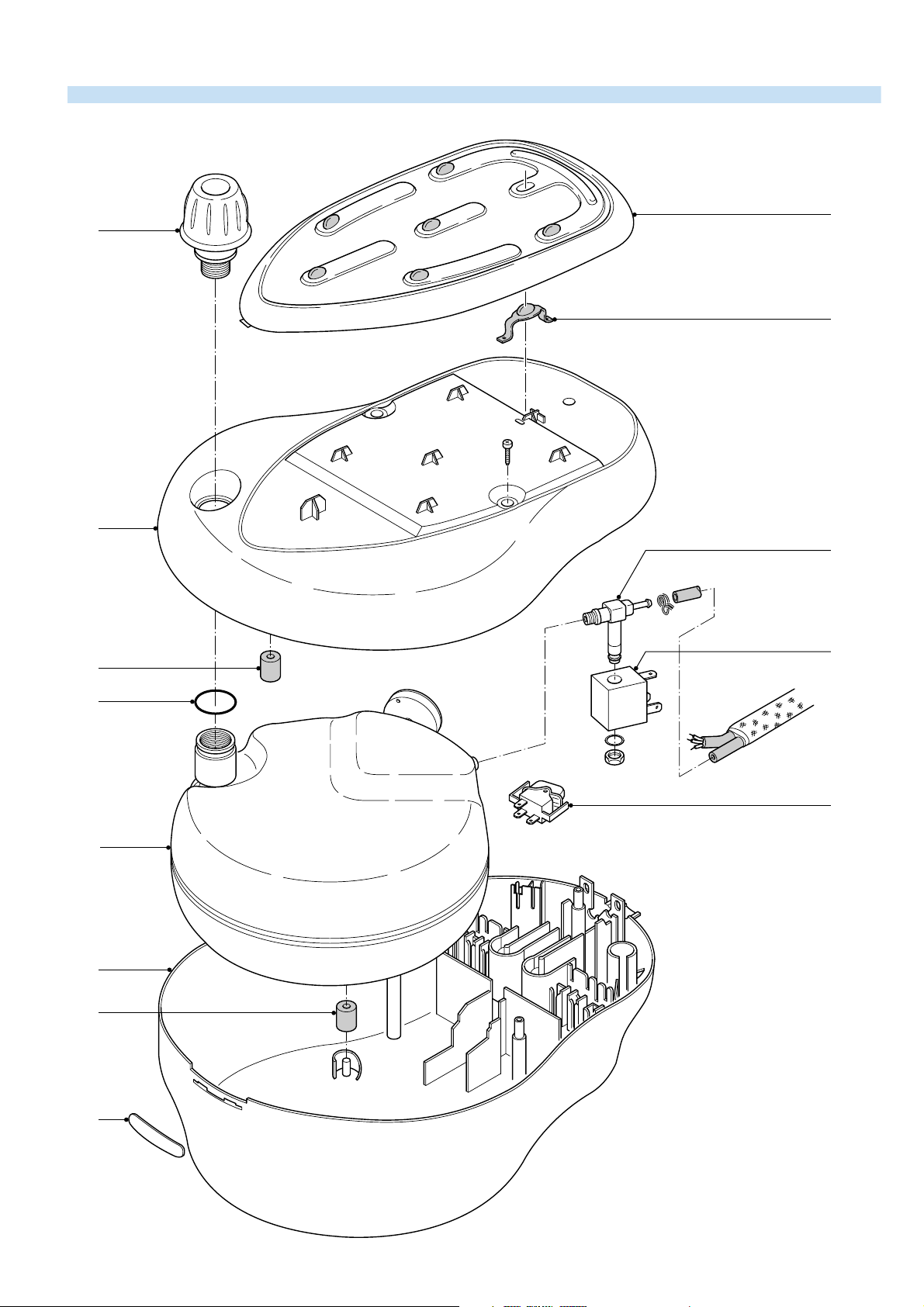

EXPLODED VIEW STAND
DAP1580
E
33
35
36
34
37
39
36
38
40
42
41
31
32
PARTS LIST + DISASSEMBLY ADVICE STAND

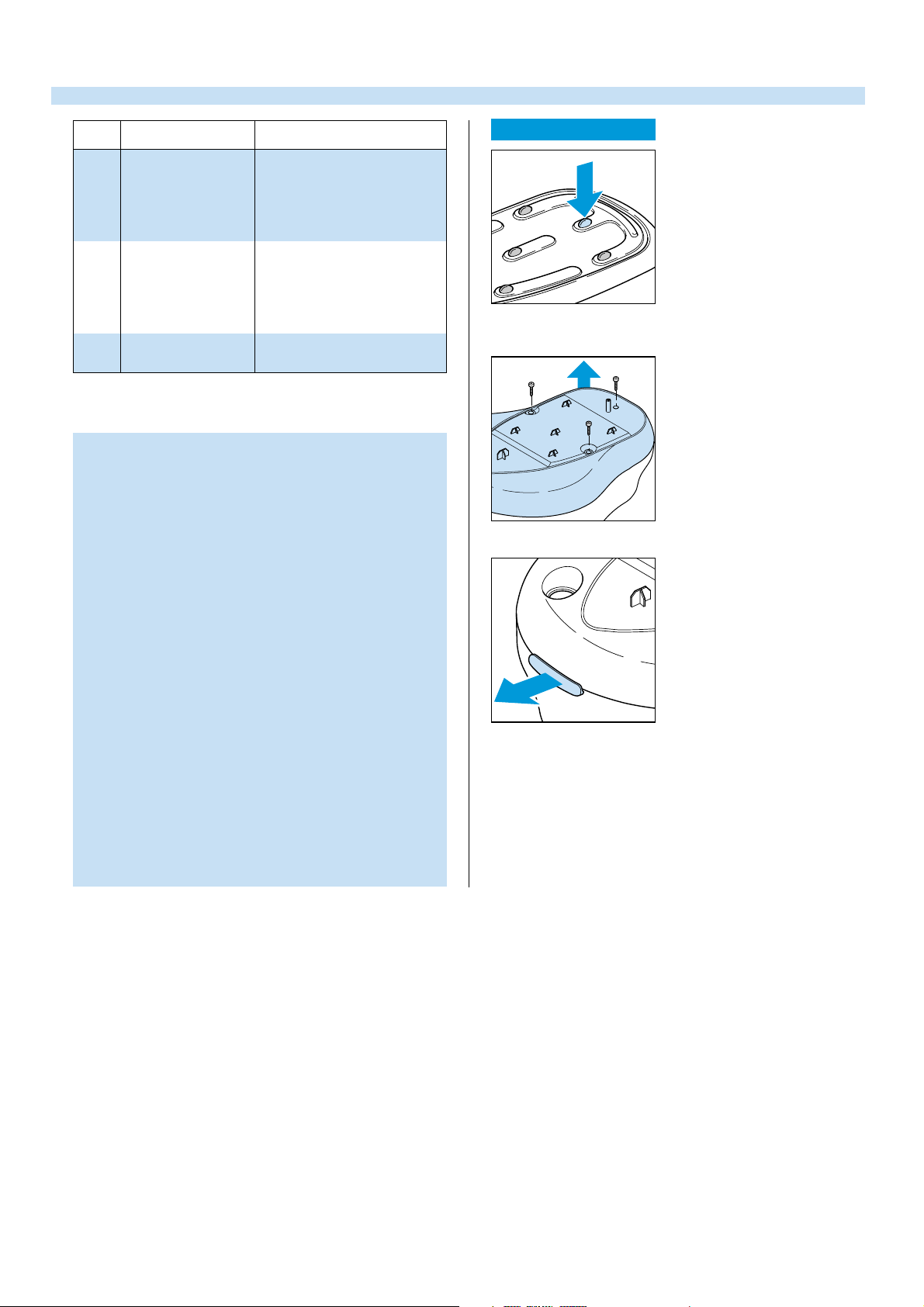

OPEN THE STAND
pressure fixation rubber through
the tray
E
EE
remove SCREW E (3 x)
remove LOCKED INSERT 38
NOTE:
OPEN NOWTHE STAND.
DON’T WORRY IF THE SNAPS AT THE SIDE WILL BE
BROKEN.
THEY ARE ONLY FORTHE ASSEMBLY.
THE STAND REMAINS CLOSE WITHOUT THESE SNAPS.
ADJUSTMENT AND CONTROLS
– To avoid leakage of the sealings and damage to
the components in and on the boiler, NEVER clean
the boiler with vinegar, a descaling agent or other
chemicals.
– The boiler doesn’t contain serviceable parts.
Never disassemble the boiler body and /or compo-
nents on and in the boiler.
– ALWAYS REPLACETHE BOILER ( 37 ) WHEN:
*the mechanical safety valve ( 33 ) has been acti-
vated.
*the boiler thermostat or hand - resettable safety
thermostat are open, because the boiler has
been subjected to too high temperatures.
*the electrovalve ( 42 ) fails or the sieve is soiled
with scale.
–After the product has been repaired, it should func-
tion properly and has to meet the safety require-
ments as laid down and officially established at this
moment.
Pos Service Nummer
Tray rubber foot for fixation
Complete tray
Safety cap for boiler
Filling hole gasket for alu boiler
Superior stand printed
31
32
33
34
35
9965 000 08193
9965 000 08194
9965 000 08195
9965 000 01782
9965 000 08250
36
37
38
39
40
41
42
Description
4822 462 71999
9965 000 08238
9965 000 08201
9965 000 08202
9965 000 01790
Boiler rubber feet
Complete boiler
Locket insert
Inferior stand
Filter
9965 000 08203
4822 218 11561
Main switch
Electrovalve
