Philips 3000 series Manuale utente
Register your product and get support at
www.philips.com/support
User manual
Party Speaker
3000Series
TAX3705
Scan for channels
Save the channels
Play the saved channels
Play music from an external device
party speaker
Check and identify the contents of your
рackаgе:
Enjoy microphone and guitar function.
Enjoy FM radio.
Enjoy audio from Bluetooth enabled
devices, USB and SD card storage devices,
or other external devices.
system
Main unit x 1
AC Power cord x 1
Remote control x 1
AAA Batteries x 2
3.5mm to 2-RCA adapter audio cable x 1
QSG x 1
Warranty Card x 1
Safety Sheet x 1
support.

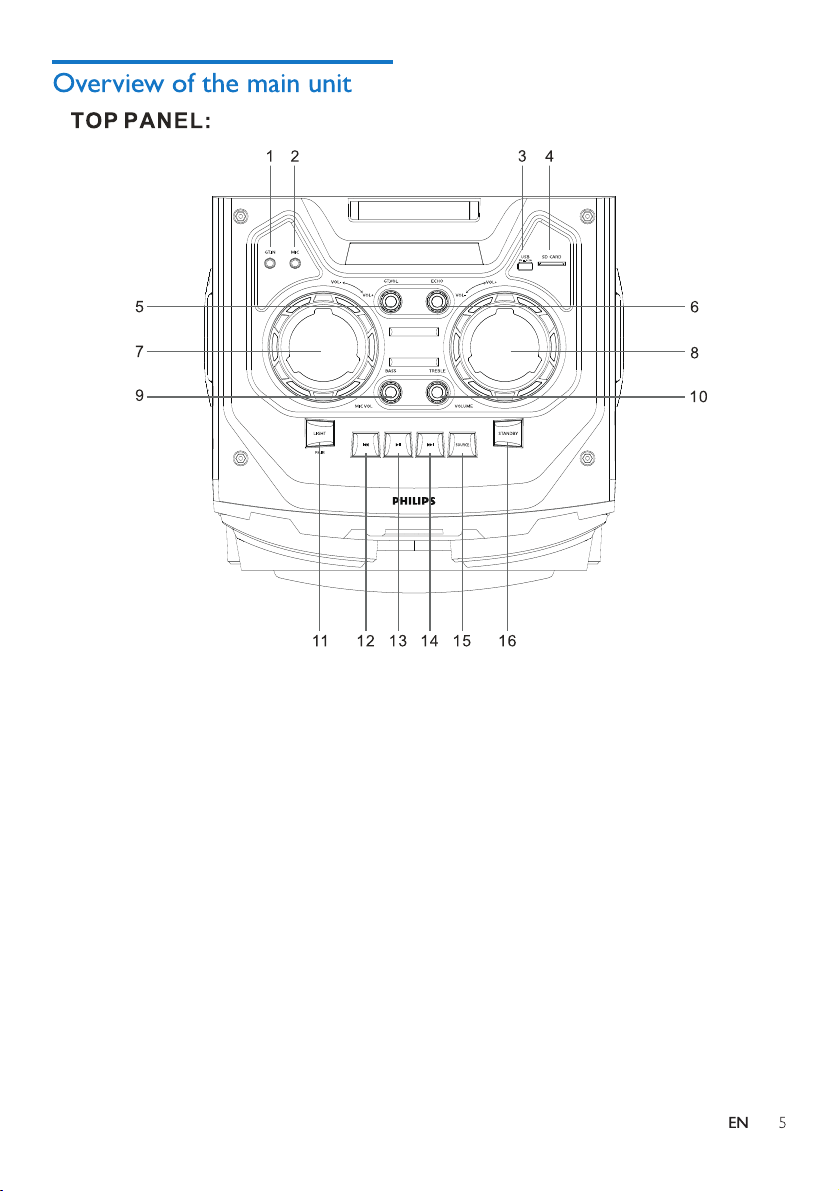

1.GT.IN: Guitar Input
2.MIC: Microphone Input
3.USB: USB Port
4.SD CARD: SD Card Slot
5.GT.VOL: Adjust the guitar volume.
6.ECHO: Adjust to control amount of Echo.
7.MIC VOL-/VOL+: Control the microphone volume in any mode.
8.VOLUME VOL-/VOL+: Control the Bluetooth/FM Radio/AUX Input/USB Input/SD
Input volume.
9.BASS: Adjust the bass level.
10.TREBLE: Adjust the treble level.
11. LIGHT/PAIR: Short press to switch the speaker light mode; long press PAIR to
enter pair mode or disconnect existing paired Bluetooth device.
12. : In USB/SD/Bluetooth mode, press to skip to the previous track; on FM mode,
press to search FM channel manually.
13. : In USB/SD/Bluetooth mode, press to pause or resume play; in FM mode,
long press to search and save FM channels automatically; short press to select the saved
channel. In recording function, press to stop the recording and return to the current
source.
14. : In USB/SD/Bluetooth mode, press to skip to the next track; in FM mode, press
to search FM channel manually.
15.SOURCE:Press to select the input source between Bluetooth/FM Radio/Aux Input/
USB Input/SD Input.
16.STANDBY: Long press to turn on or turn off the speaker.
1.AC IN: Connect the AC cable to get power supply.
2.AUX IN: Connect the external device in AUX mode.
3.FM ANT: For FM Radio.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
18
16
17
19
20
21
22
1. : Short press to turn on and turn off the speaker.
2.M.VOL+: Increase the Microphone Volume.
3.M.VOL-: Decrease the Microphone Volume.
4.ECHO+: Increase the Microphone Echo.
5.ECHO-: Decrease the Microphone Echo.
6.SOURCE: Select the input source between: Bluetooth/FM Radio/Aux Input/
USB Input/SD Input.
7.VOL+: Increase the master volume.
8. : In USB/SD/Bluetooth mode, this button is Play/Pause; in FM mode, long
press to search and save FM channels automatically; short press to select the
saved channel; in recording function, press to stop the recording and return to
the current source.
9.VOL-: Decrease the master volume.
10. : In USB/SD/Bluetooth mode, press to skip to the previous track; in FM
mode, press to search FM channel manually.
11. : In USB/SD/Bluetooth mode, press to skip to the next track; in FM mode,
press to search FM channel manually.
12.M.PRI: When Microphone voice is detected, music level is automatically
ducked.
13.REC: Short press to record the microphone audio to USB or SD card; long
press to play the record content, or return to the current source when playing
the record content.
14.R-DEL: When playing the record content, press to delete the record content.
15.MUTE: Press to mute or unmute the sound in any mode.
16.TREB+: Increase the treble.
17.TREB-: Decrease the treble.
18.BASS+: Increase the bass.
19.BASS-: Decrease the bass.
20. LIGHT/PAIR: Short press to change the speaker light mode; long press to
enter pairing mode or disconnect existing paired Bluetooth device.
21.EQ: Select the EQ between: NORM/CLASSICAL/POP/ROCK/JAZZ.
22.0-9: In USB/SD mode, press to select the track you want; in FM mode,
press to select the channel that has been searched and saved.
Connect the AC power cord to the AC IN
jack on the rear panel of the unit, then Plug
the other end of the AC power cord into a
power outlet.
