Philips CSP652/51 Manuale utente

CSP550

CSP650

CSP652

EN User manual

www.philips.com/welcome

b edac

ghjki

b c

e f

Option 1:

Flush mounting

Option 2:

Flush mounting

Option 3:

Surface mounting

Option 4:

Surface mounting

Option 5:

Angle mounting

White lined

Amplifier

Network

Woofer

Tweeter

Black

English

1. Important

Safety

Read and understand all instructions before you use the apparatus.•

If damage is caused by failure to follow instructions, the warranty does

not apply.

Use only the supplied mounting hardware for a safe and secure•

installation.

Do not continuously use the speaker system beyond the peak power•

handling capacity.

Keep credit cards, watches, recorded tapes etc. with magnetic coding•

away from the speaker system to prevent damage caused by the

magnets in the speakers.

Clean the apparatus with soft, damp cloth. Never use substances such•

as alcohol, chemicals or household cleaners on the apparatus.

Notice

Environmental information

All unnecessary packaging has been omitted. We have tried to make

the packaging easy to separate into three materials: cardboard (box),

polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused if

disassembled by a specialized company. Please observe the local regulations

regarding the disposal of packaging materials, exhausted batteries and old

equipment.

Any changes or modications made to this device that are not expressly

approved by Philips Consumer Lifestyle may void the user’s authority to

operate the equipment.

Specications are subject to change without notice. Trademarks are the proper ty of Koninklijke Philips

Electronics N.V. or their respective owners. Philips reserves the right to change products at any time

without being obliged to adjust earlier supplies accordingly.

2.Your car stereo speakers

Congratulations on your purchase, and welcome to Philips!

To fully

benet from the support that Philips offers, register your product at

www.philips.com/welcome.

Introduction

With the woofers and tweeters, you can enjoy high power music with

vivid sound.

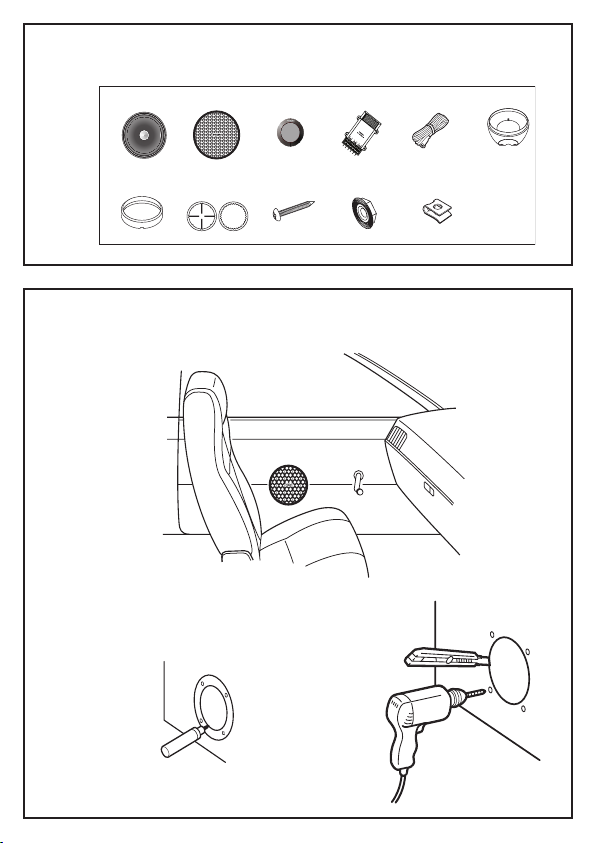

What’s in the box A

Check and identify the contents of your package:

aWoofer (x2)

bGrille assembly (x2)

c Tweeter (with wire) (x2)

dNetwork (x2)

eSpeaker wire (x4)

fAngle adapter (x2)

gFix frame (x2)

hMounting bracket (x4)

iScrew

jScrew nut

kShrapnel

3. Installation

A depth of at least 52mm is required to mount the woofer and a depth

of at least 19mm is required to mount the tweeter. Measure the depth

of the area where you are to mount the woofer/tweeter, and ensure that

the woofer/tweeter does not obstruct any other components of the car.

Note

Make sure that nothing obstructs around the mounting location of the door.

•

A hole for mounting may already be cut out of the inner panel of the door

•

(front or rear). In this case, you need to modify the board only.

Ensure that the speaker terminals, frame or magnet do not interfere with any

•

inner parts, such as the window mechanism in the door (when you open or

close the window), etc. Also ensure that the speaker grille does not touch any

inner ttings, such as the window cranks, door handles, arm rests etc.

Mount the woofer

Option 1: Mount on door (front or rear) B

You can mount the wooferss on the front/rear door of your car. a

1 Turn off the car ignition key.

If the power is on, the click noise generated by the connection

•may damage the speakers.

2Cut out the mounting template from the packing box and paste

it on the location selected for mounting the woofer.

3Mark the cut-off hole and the 4 bolt holes. b

4Cut out the marked area and drill the bolt holes. c

5Remove the grille net. d

6Connect the woofers to the network or car audio (see ‘Connect

the woofer/tweeter to the network’).

7Mount on the speaker as shown below. e

8Press and insert the edges of the grille net. f

Tip

The speaker grille can be mounted without the grille net, if you like.

•

Option 2: Mount on rear tray C

You can also mount the woofers into the surface of the rear tray.

Follow the steps in section “Option 1: Mount in door” to mount the

speakers into the rear tray.

Mount the Tweeter D

Follow steps mentioned in “Mount the woofer” section to mount the

tweeters.

Mount the network E

1Find a proper location to mount the networks.

2Mount the networks onto the car with the supplied screws.

Connect the woofer/tweeter to the network F

Note

Match the “left”, “right”, “+” and “-” terminals correctly. Revised polarity may

•

degrade sound quality.

Two 4-ohm speakers, wired in stereo, present a 8 ohm load to each channel

•

of the amplier. Most two channel ampliers work well in this conguration.

However, if two 4-ohm speakers, wired in parallel to a bridged two -channel

amplier, present a 2-ohm mono load to the amplier. Most 2-channel ampliers

do not support 2-ohm mono operation! Amplier damage may result!

1Connect the woofers and the tweeters to the 2-way crossover

network rst, then connect the network to your amplier or car

audio directly.

4. Product information

Model CSP550 CSP650 CSP652

Speaker type 13cm, 2-way

component

speaker

16.5cm, 2-way

component

speaker

16.5cm, 2-way

component

speaker

RMS power (Watts) 40W 50W 60W

Peak music power (Watts) 210W 240W 300W

Sensitivity (dB/W/m) 90dB 90dB 91dB

Frequency response (Hz) 40-35kHz 36-35kHz 34-35kHz

Impedance (ohms) 4 ohms 4 ohms 4 ohms

Magnet mass (Oz) 11Oz 12.6Oz 18.8Oz

Woofer mounting depth (mm) 52mm 61mm 63mm

Tweeter mounting depth (mm) 19mm 19mm 19mm

Note

Product information is subject to change without prior notice.

•

5.Troubleshooting

To keep the warranty valid, never try to repair the system yourself.

If you encounter problems when using this apparatus, go to the

Philips web site (www.philips.com/welcome). When you contact

Philips, ensure that the apparatus is nearby and the model number

and serial number are available.

CSP550_51_UM_V2.0
