Philips HSB3280 Manuale utente
HSB3280
Quick Start Guide
What’s in the Box?
You should find these items upon opening the box.
Table stand Smart remote control
(with battery)
FM antenna
Wall mount bracket and screws
(x4)
Studs (x2) used to attach
speakers to main unit
Coaxial cable (orange)
Composite cable (yellow)
AV cable
AC adaptor
for main unit
User manual
Quick Start Guide
HSB3280_QSG_Eng.indd 1HSB3280_QSG_Eng.indd 1 2008-07-24 9:59:262008-07-24 9:59:26
Tips
– See the User Manual for how to mount
the main unit and speakers onto wall.
– See “Connect AV devices” for more AV
connection options.
– For connection and operation of your AV
devices, see the respective user manuals.
2
5
3
1
6
4
Note:
– If automatic setup of wireless connection
fails, see “Set up wireless connection
manually” in the User Manual for the
solution.
AUDIO VIDEO
AUDIO OUT
L
R
AUDIO VIDEO
AUDIO OUT
L
R
LR
AUDIO OUT
AUDIO OUT
(DIGITAL)
AUDIO VIDEO
AUDIO OUT
L
R
TV
Not used
AC Power
DVD player
Game console
Set-top box
FM antenna
4
5
123
6
AOR B

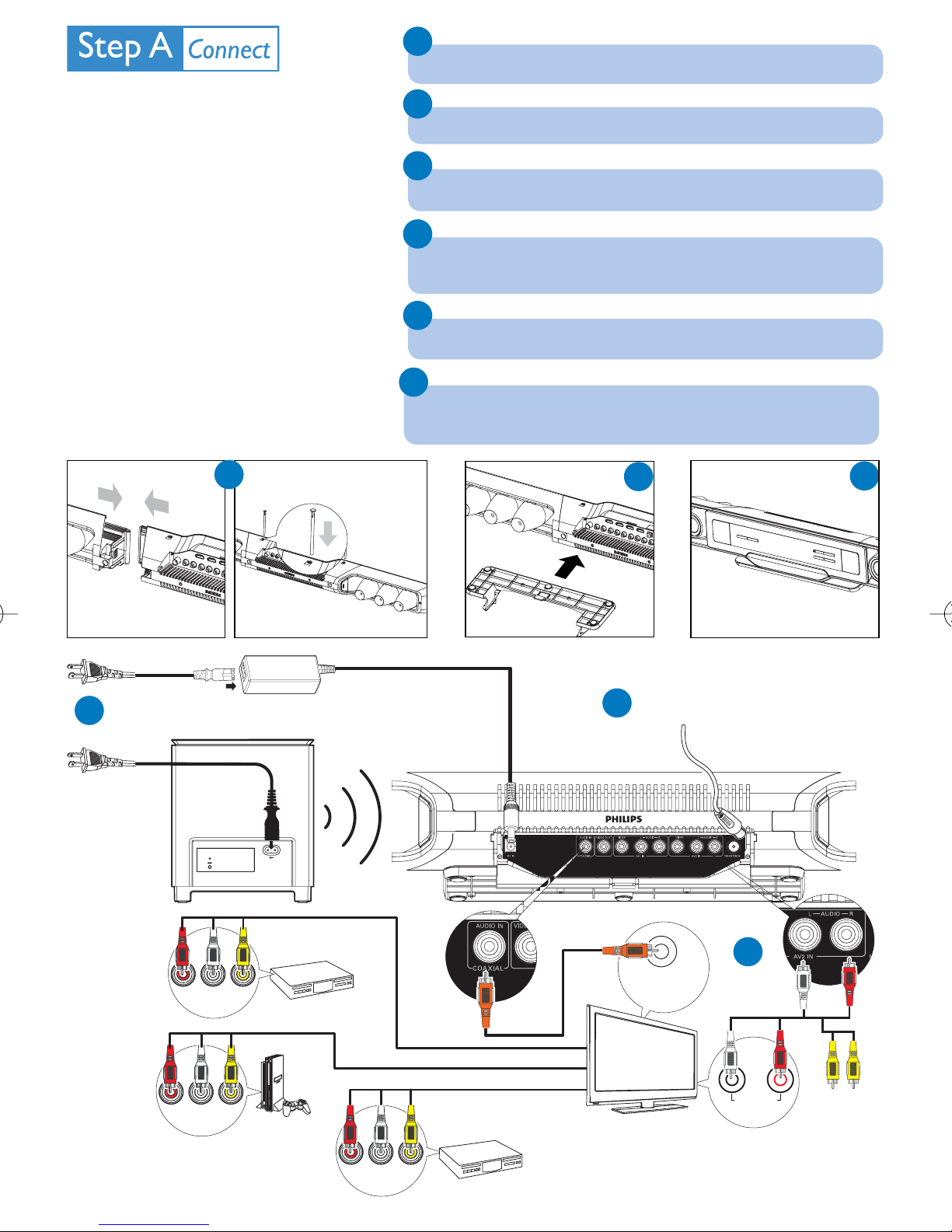

Attach the speakers to the main unit.
Slide the table stand onto the bottom of the main unit.
Place the main unit and speakers.
Connect the audio sockets of the system and TV with the supplied coaxial
cable Aor the white/red connectors of the supplied AV cable B.
Connect the FM antenna.
Connect the power cords of the main unit and wireless subwoofer.
➜
Wireless connection sets up automatically.
HSB3280_QSG_Eng.indd 2HSB3280_QSG_Eng.indd 2 2008-07-24 9:59:342008-07-24 9:59:34
IMPORTANT!
– To set clock in the Eco Power Standby mode, first press and hold 2for more than 2
seconds to switch to the standby mode.
Setting the clock
1
2
3
4
5
In standby mode, press and hold SET TIME/PRO.
When the hour digits flash, press VOL +/- to set the hours.
Press SET TIME/PRO.
When the minute digits flash, press VOL +/- to set the minutes.
Press SET TIME/PRO again to confirm the time setting.
Program remote control
1
2
3
4
5
6
Place the smart remote control (A) within 1mm-10mm distance from the other remote control
(B).
Press LEARN for 2 seconds to activate the learning mode.
➜
A blue indicator on the smart remote control (A) lights up.
Press the button on the other remote control (B) that is to be stored on the smart remote
control (A).
➜
If the code is received successfully, the blue indicator flashes.
Press one of the 12 white learning buttons on the smart remote control (A) to store the code
of this button.
➜
If the code is stored successfully, the indicator flashes green for 2 seconds, then turns blue
again.
Repeat steps 3 and 4 to program more buttons on the smart remote control (A).
Press LEARN to exit the learning mode.
Notes:
– If there is no operation within
8 seconds, the systme quits the
learning mode automatically
and the indicator turns off.
– During the learning process,
the normal remote control
functions are disabled.
– By default, the remote control
codes of a Philips TV are stored
in the smart remote control.
The available preset buttons
are POWER,AV, 3CH4, 3VOL4,
MUTE and SLEEP.
HSB3280_QSG_Eng.indd 3HSB3280_QSG_Eng.indd 3 2008-07-24 9:59:382008-07-24 9:59:38
6
Enjoy sound of a connected AV device through the soundbar system
1
2
Select an AV source.
Select the feature and settings you want.
Programming and tuning to radio stations
1
2
3
Press TUNER to select tuner (FM) source.
Press and hold SET TIME/ PROG for more than two seconds to program all available stations
in order of waveband.
Press PRESET/ALB/34 until the desired preset station is displayed.
Playing a USB mass storage device
1
2
3
4
5
PDCC-JS/JW-0828
Tip
Detailed playback features and additional functions are
described in the accompany owner's manual.
Flip open the cover on the front panel.
Insert the USB plug of a USB device into the socket.
Press USB to select the USB source.
➜
The total number of tracks is displayed.
Press PRESET/ALB/34 to select a folder.
Press ¡/ ™to select a file.
Press ÉÅ to start play.
HSB3280_QSG_Eng.indd 4HSB3280_QSG_Eng.indd 4 2008-07-24 9:59:392008-07-24 9:59:39
