Philips Model US-24ST2200/27

Back of the TV.

Component Video Input

This connection is the best method for

connecting your periferals

These connections are not functional

MONITOR OUTPUT

This connection is used to monitor the

channel you are watching. Usually

connected to a VCR or recording type

device. May power an additional display.

TV SETUP MAIN MENU

LANGUAGE ENGLISH

CHANNEL INSTALL >

CABLE TUNING >

BRIGHTNESS 0 - 63

COLOR 0 - 63

CONTRAST 0 - 63

SHARPNESS 0 - 63

TINT -31 - +31

NOISE REDUCTION NO / YES

SOUND MODE MONO / STEREO

SAP NO / YES

AVL NO / YES

BALANCE ||||||||||||| -31 - +31

TREBLE 0 - 63

BASS 0 - 63

INCREDIBLE STEREO NO / YES

ULTRA BASS YES

VOLUME BAR YES

AUDIO/VIDEO OUT MUTE NO / YES

REMINDER NO / YES

CC OFF / CC-1 / CC-2 / CC ON MUTE

SAVED V-CHIP NO / YES

V-CHIP SETUP >

SLEEPTIMER OFF / 15 MIN / 30 MIN / 45 MIN / 60 MIN / 90 MIN / ... / 240 MIN

1) To scroll through the menu, press (cursor up / down) on the remote control. A highlight

indicates that the respective menu item’s setting is selected for modification.

2) To modify the setting of the selected menu item press (cursor left / right).

3) To exit, press Menu

Remote (RC2888/01) Control Keys

Standby

Press to switch

the TV off.

DVD PLAY

Not functional on this model

DVD FAST

FORWARD

Not functional on this model

Close Caption

To activate Close

Caption functionality

DVD STOP

ot functional on this model

DVD PAUSE

Not functional on this model

Smart Keys

Not functional on this model

Sleep

Activates the sleep timer. Press repeatedly

to increment the countdown time with 15

minutes.

+ Vol -

To adjust the volume.

Mute

Interrupt the sound or

restore it.

0/9 Digit keys

To select a TV channel.

For a two digit program

number, enter the second

digit before the dash

appears.

Alternate Channel

To toggle between

alternating channels

16:9 Formats

Not functional on this model

To call up or exit the

menus.

DVD Rewind

Not functional on this model

CH Guide

On this model Channel Guide

does not function

Source Select

To toggle between

available video sources

+ CH – Channel

Selection

To move up or down a TV

channel.

LANGUAGE (English / Espanol / Francais)

When you first enter the TV SETUP menu, LANGUAGE is highlighted. You can scroll to

the LANGUAGE item. Select the desired language with cursor right / cursor left.

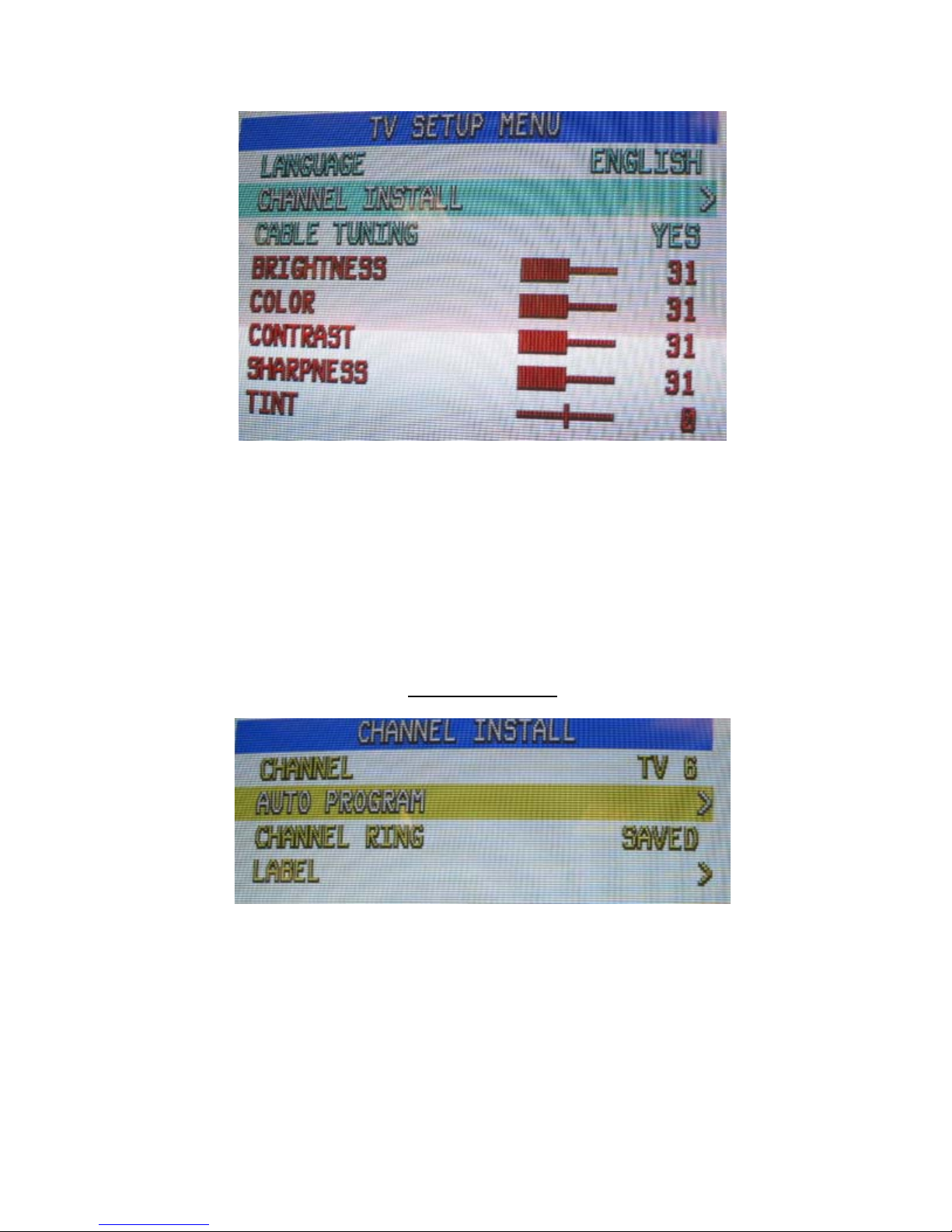

CHANNEL INSTALL(>)

The CHANNEL INSTALL menu allows the user to configure the channels that can be

accessed. When installing the channels, different inputs can be mapped to TV channels to

allow seamless integration into the channel map.

Installing channels

•AUTO INSTALL TV:

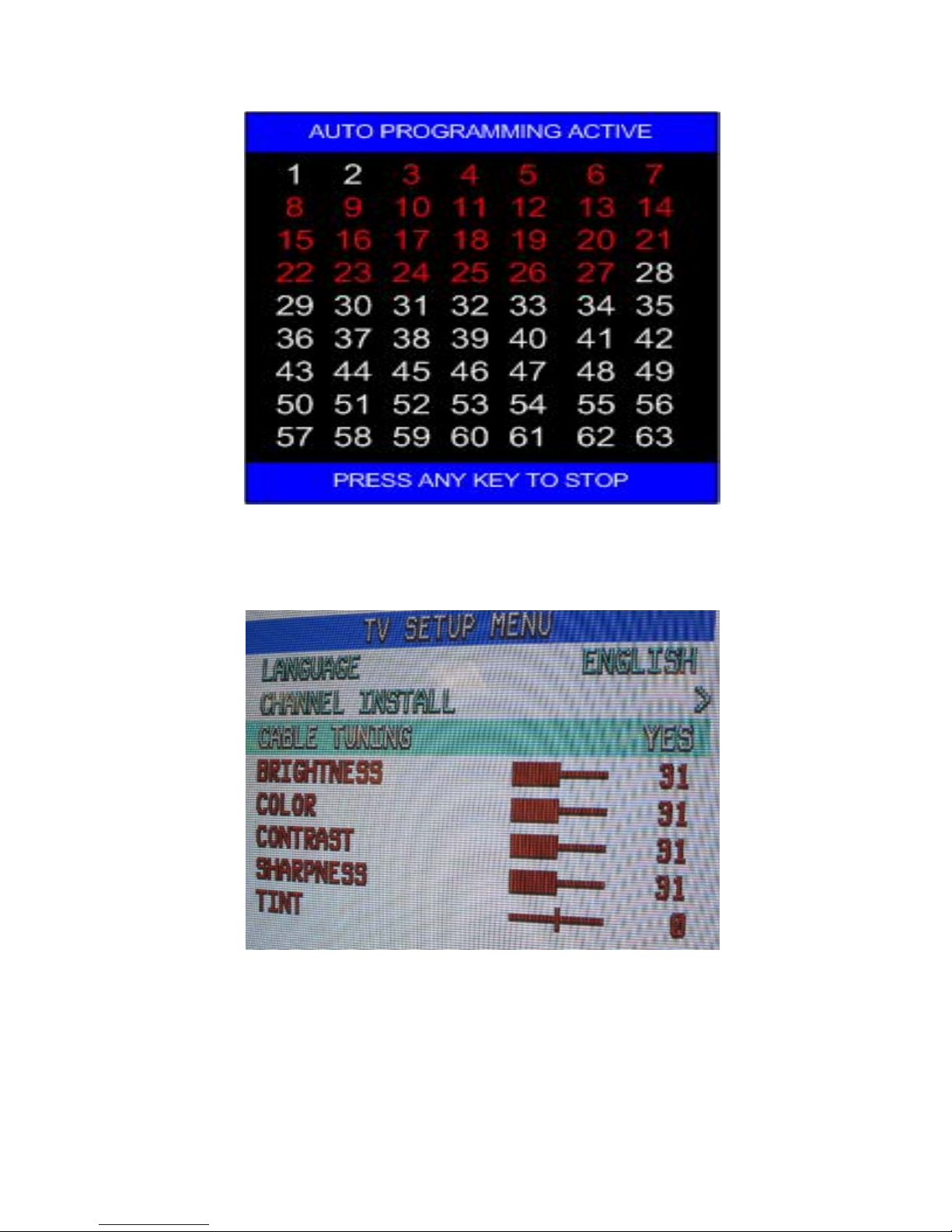

When AUTO INSTALL TV is selected (cursor right), the TV performs an automatic

search for the presence of viable RF signals at its tuner input. An AUTO-

PROGRAMMING ACTIVE message and a table of channel numbers will appear.

When a viable signal is detected on a given channel, that channel is highlighted in red

and is added to the channel ring. Any command from a remote control terminates the

AUTO PROGRAM session. Front-panel commands do not cancel auto-programming.

CABLE TUNING: If CABLE TUNING is set to NO, channels 2 through 69 are available.

If CABLE TUNING is set to YES, channels 2 through 125 will be available.

BRIGHTNESS / COLOR / CONTRAST / SHARPNESS / TINT

( 0 - 63, TINT -31 - 31)

Adjust the respective picture setting, using left and right cursor.

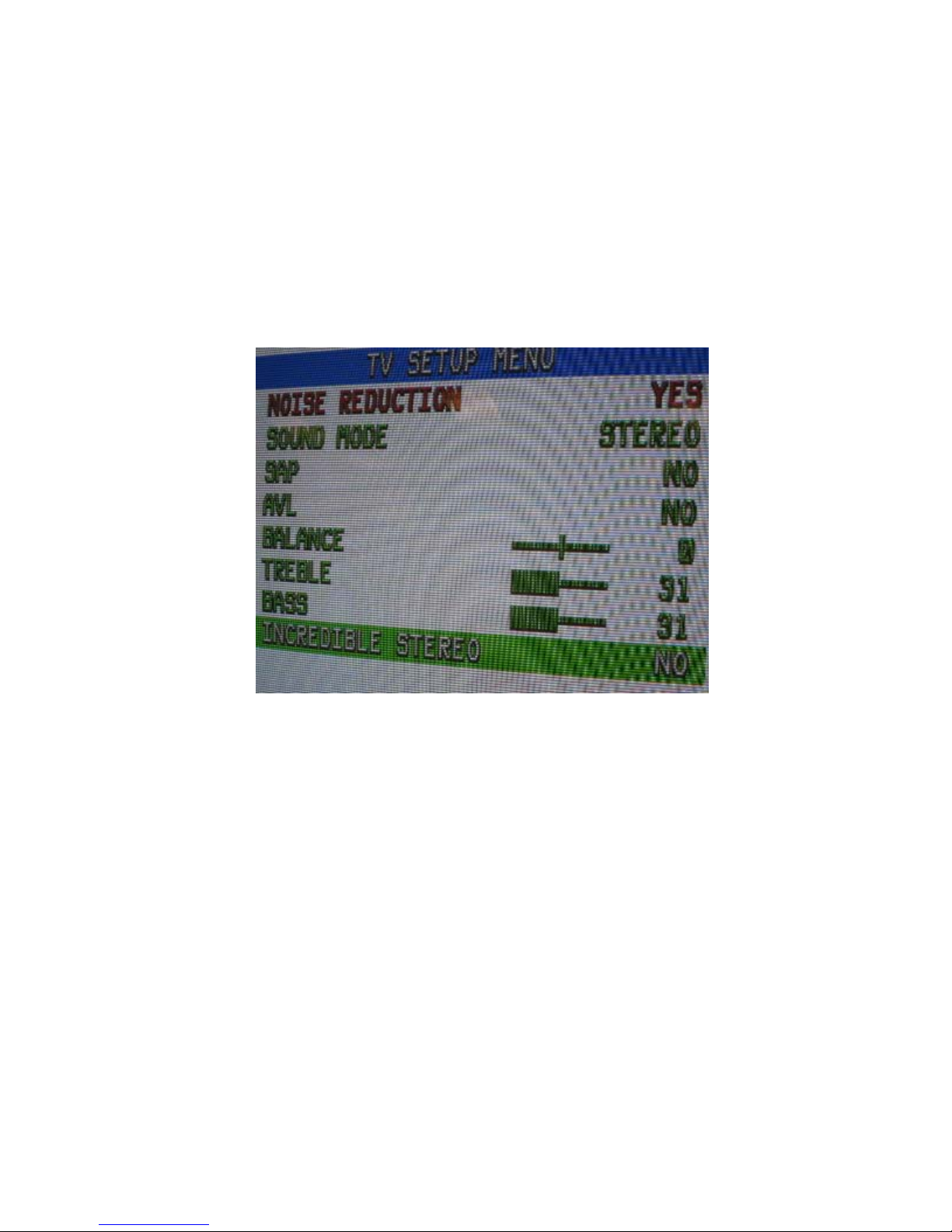

NOISE REDUCTION (NO / YES)

Disable or enable the video noise reduction feature, in which video noise is reduced, with

minimum reduction in picture sharpness.

SOUND MODE (MONO / STEREO)

Select either STEREO or MONO (monaural) sound modes. Note: STEREO has no effect if

the current audio signal is monaural. When SOUND MODE is changed, an on-screen

display will appear, indicating the actual audio status (MONO or STEREO)

SAP (OFF / ON)

Disable or enable the Second Audio Program channel feature. SAP is not in wide use, and

most channels do not transmit a SAP signal. Uses of the SAP channel include:

- Spanish translation or other language translation

- Descriptive information about the program

- Duplication of main audio (mono)

- Audio unrelated to the program.

Note: When SAP is ON, but SAP is not present on the current channel / input, the primary

audio will be audible.

AVL (OFF / ON)

Disable or enable the Automatic Volume Leveling feature, which minimizes variations in

audio playback level.

BALANCE / TREBLE / BASS ( 0 - 63, BALANCE -31 - 31)

Adjust the respective audio playback setting.

INCREDIBLE STEREO (NO / YES)

When INCREDIBLE STEREO is set to YES, and the current SOUND MODE is MONO, a

signal processing technique is applied for the purpose of simulating a “stereo-like” effect.

Note: When INCREDIBLE STEREO is set to YES, and the current SOUND MODE is

STEREO (regardless of whether there is a stereo signal on the current channel) the

resultant effect will be imperceptible, minimal or possibly degraded, depending upon

various factors.

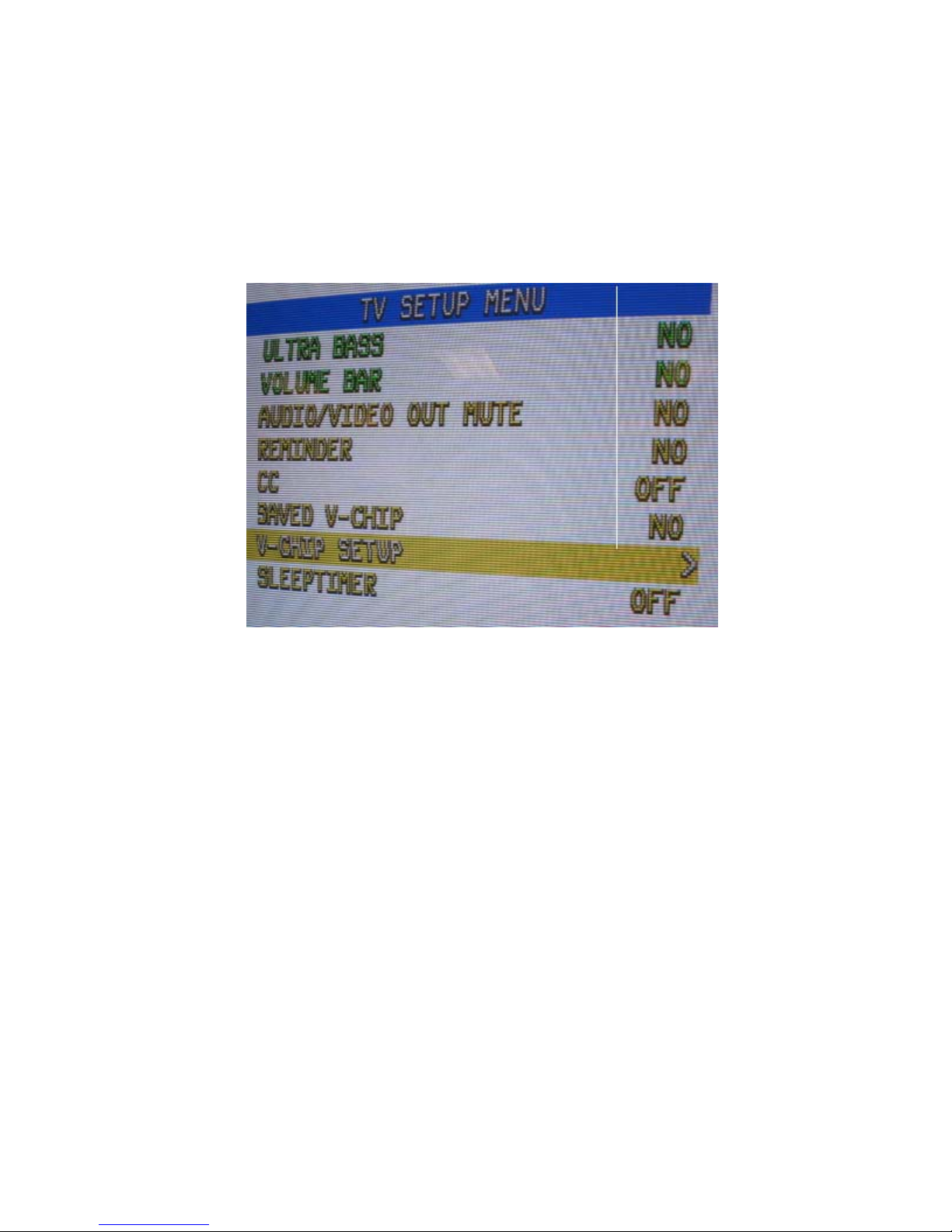

ULTRA BASS (NO / YES)

When ULTRA BASS is set to YES, the audio frequency equalization is modified such that

the bass frequencies are significantly emphasized.

VOLUME BAR (NO / YES)

When VOLUME BAR is set to YES, an OSD graphic appears that provides visual

verification ( e.g. “||||||----- 15”) during volume adjustment, by means of either the remote

control, or the front panel.

AUDIO/VIDEO OUT MUTE (NO / YES)

When set to YES, turns off the audio and video MONITOR OUT signals (either

demodulated RF input or loop-through video).

REMINDER (NO / YES)

When REMINDER = YES, the reminder feature provides a constant on-screen indication

of the current channel or input, (e.g., TV 2, CVI, etc.), that channel’s or input’s label (if a

label has been assigned in CHANNEL INSTALL), and the current MUTE status (i.e., if

sound MUTE is active). The REMINDER on-screen indication appears near the top of TV

screen viewing area. When REMINDER = NO, the reminder information appears only

when the channel or input is changed, then disappears after approximately ten seconds.

CC (OFF / CC-1 / CC-2 / CC ON MUTE)

Closed Captioning. Since July 1, 1993, television sets with 13" screens or larger must have

built-in caption decoders. Captioning of most broadcast and cablecast programming is

mandated under the Telecommunications Act of 1996, except for certain types of programs

exempted by the FCC. For additional information, please visit the U.S. FCC web site at

(http://ftp.fcc.gov/cgb/consumerfacts/closedcaption.html). OFF: Regardless of whether

there is a closed captioning signal present on the current source, closed captioning will not

appear.

CC-1: CC-1-mode closed captioning will be displayed if it is present on the incoming

signal.

CC-2: CC-2-mode closed captioning will be displayed if it is present on the incoming

signal.

CC ON MUTE: If the television is in audio mute mode, CC-1-mode closed captioning will

be displayed if it is present on the incoming signal.

Note: When the television is powered down and back on again, the closed captioning

setting will default to OFF.

SAVED V-CHIP (NO / YES)

This feature provides the option to specify whether the current V-CHIP SETUP

configuration remains in effect after television is powered down.

NO: The current V-CHIP setup configuration reverts to defaults when the television is

powered down.

YES: The current V-CHIP setup configuration remains in effect when the television is

powered down.

V-CHIP SETUP (>)

Configures the V-CHIP program content viewing restriction feature. Please consult the

mainstream / consumer product documentation for information about this feature.

NO: The current V-CHIP setup configuration reverts to defaults when the television is

powered down.

YES: The current V-CHIP setup configuration remains in effect when the television is

powered down.

SLEEPTIMER (OFF / 15 MIN / 30 MIN / 45 MIN / 60 MIN / 90 MIN / 120 MIN / 180

MIN / 240 MIN)

Activates the SLEEPTIMER feature, in which the television powers down automatically

after the specified period of time.
