Phoenix Contact FL EPA 2 Manuale utente

User manual

FL EPA 2

UM EN FL EPA 2

2018-02-21

PHOENIX CONTACT 108452_en_00

FL EPA 2

UM EN FL EPA 2

—

Designation Order No.

FL EPA 2 1005955

FL EPA 2 RSMA 1005957

FL BT EPA 2 1005869

User manual

Designation:

Revision:

Order No.:

This user manual is valid for:

PHOENIX CONTACT

Please observe the following notes

User group of this manual

The use of products described in this manual is oriented exclusively to:

– Qualified electricians or persons instructed by them, who are familiar with applicable

standards and other regulations regarding electrical engineering and, in particular, the

relevant safety concepts.

– Qualified application programmers and software engineers, who are familiar with the

safety concepts of automation technology and applicable standards.

Explanation of symbols used and signal words

How to contact us

Internet Up-to-date information on Phoenix Contact products and our Terms and Conditions can be

found on the Internet at:

phoenixcontact.com

Make sure you always use the latest documentation.

It can be downloaded at:

phoenixcontact.net/products

Subsidiaries If there are any problems that cannot be solved using the documentation, please contact

your Phoenix Contact subsidiary.

Subsidiary contact information is available at phoenixcontact.com.

Published by PHOENIX CONTACT GmbH & Co. KG

Flachsmarktstraße 8

32825 Blomberg

GERMANY

Should you have any suggestions or recommendations for improvement of the contents and

layout of our manuals, please send your comments to:

tecdoc@phoenixcontact.com

This is the safety alert symbol. It is used to alert you to potential personal injury

hazards. Obey all safety measures that follow this symbol to avoid possible

injury or death.

There are three different categories of personal injury that are indicated with a

signal word.

DANGER This indicates a hazardous situation which, if not avoided, will

result in death or serious injury.

WARNING This indicates a hazardous situation which, if not avoided, could

result in death or serious injury.

CAUTION This indicates a hazardous situation which, if not avoided, could

result in minor or moderate injury.

This symbol together with the signal word NOTE and the accompanying text

alert the reader to a situation which may cause damage or malfunction to the

device, hardware/software, or surrounding property.

This symbol and the accompanying text provide the reader with additional

information or refer to detailed sources of information.

Please observe the following notes

PHOENIX CONTACT

General terms and conditions of use for technical documentation

Phoenix Contact reserves the right to alter, correct, and/or improve the technical

documentation and the products described in the technical documentation at its own

discretion and without giving prior notice, insofar as this is reasonable for the user. The

same applies to any technical changes that serve the purpose of technical progress.

The receipt of technical documentation (in particular user documentation) does not

constitute any further duty on the part of Phoenix Contact to furnish information on

modifications to products and/or technical documentation. You are responsible to verify the

suitability and intended use of the products in your specific application, in particular with

regard to observing the applicable standards and regulations. All information made

available in the technical data is supplied without any accompanying guarantee, whether

expressly mentioned, implied or tacitly assumed.

In general, the provisions of the current standard Terms and Conditions of Phoenix Contact

apply exclusively, in particular as concerns any warranty liability.

This manual, including all illustrations contained herein, is copyright protected. Any

changes to the contents or the publication of extracts of this document is prohibited.

Phoenix Contact reserves the right to register its own intellectual property rights for the

product identifications of Phoenix Contact products that are used here. Registration of such

intellectual property rights by third parties is prohibited.

Other product identifications may be afforded legal protection, even where they may not be

indicated as such.

Note: Installation only by qualified specialist personnel

The product may only be installed, started up, and maintained by qualified specialist

personnel who have been authorized to do so by the system operator. An electrician is

someone who because of their education, experience, and instruction and their knowledge

of relevant standards is able to assess all planned activities and recognize any possible

dangers. Specialist personnel must read and understand this document and follow the

instructions. You must comply with the applicable national regulations regarding the

operation, function tests, repair, and maintenance of electronic devices.

Table of contents

108452_en_00 PHOENIX CONTACT 5

Table of contents

1 FL EPA 2 ....................................................................................................................................1

1.1 Properties.............................................................................................................. 1

1.1.1 Device versions ..................................................................................... 1

1.2 FL WLAN EPA ... country approvals......................................................................1

2 Installation ..................................................................................................................................1

2.1 General.................................................................................................................. 1

2.2 Mechanical installation .......................................................................................... 2

2.2.1 DIN rail mounting ................................................................................... 3

2.2.2 Wall or mast mounting ........................................................................... 3

2.2.3 Connectors ............................................................................................ 4

2.3 Antenna connection (FL EPA 2 RSMA only).......................................................... 5

2.4 LED indicators ....................................................................................................... 5

3 Configuration .............................................................................................................................1

3.1 Easy Config (“MODE” button)................................................................................ 1

3.1.1 Using the “MODE” button ....................................................................... 2

3.1.2 Easy Config modes ................................................................................ 2

4 Web-based management ..........................................................................................................1

4.1 General.................................................................................................................. 1

4.1.1 System overview .................................................................................... 2

4.1.2 Easy Config ........................................................................................... 3

4.1.3 Network settings .................................................................................... 3

4.1.4 WLAN settings – Client mode ................................................................ 4

4.1.5 WLAN settings - Access Point mode .....................................................6

4.1.6 Bluetooth settings - General ................................................................... 7

4.1.7 Bluetooth settings - Mode-specific ......................................................... 8

4.1.8 Firmware update .................................................................................. 12

4.1.9 AT commands ...................................................................................... 12

4.1.10 System settings ................................................................................... 13

4.2 Restoring the factory defaults..............................................................................13

4.3 PROFINET communication ................................................................................. 14

5 Technical data ...........................................................................................................................1

FL EPA 2

6 / 20 PHOENIX CONTACT 108452_en_00

FL EPA 2

108452_en_00 PHOENIX CONTACT 1-7

1FLEPA2

1.1 Properties

The FL EPA 2 is an industrial wireless module for the wireless integration of industrial Ether-

net and PROFINET devices in wired networks via WLAN and/or Bluetooth.

Typical applications for the FL EPA 2 include:

•Wireless network connection for industrial machines, devices and vehicles

•Ethernet cable replacement between moving machine parts

WLAN or Bluetooth?

WLAN is the preferred technology when it is important to integrate multiple devices with high

data throughput and fast roaming.

Bluetooth offers particular advantages for applications requiring highly robust wireless con-

nections or if precise channel planning is not possible.

1.1.1 Device versions

Three device versions are available:

– FL EPA 2 Internal antenna, WLAN and Bluetooth Order No. 1005955

– FL EPA 2 RSMA External antenna, WLAN and Bluetooth Order No. 1005957

– FL BT EPA 2 Internal antenna, Bluetooth (one device) Order No. 1005869

Depending on the model, not all of the properties described above are available.

1.2 FL WLAN EPA ... country approvals

An up-to-date list of the country approvals can be found in the e-shop at

phoenixcontact.com.

There are different ways of implementing the Bluetooth PAN profile in mobile devices. The

implementation may be incompatible with the FL EPA 2. A Bluetooth PAN connection

must be individually tested.

5 GHz WLAN cannot be used at the same time as 2.4 GHz WLAN or Bluetooth.

FL EPA 2

1-8 PHOENIX CONTACT 108452_en_00

Installation

108452_en_02 PHOENIX CONTACT 2-9

2 Installation

2.1 General

CAUTION:

This device emits radio frequency (RF) energy in the ISM (Industrial, Scientific, Medical)

band. Make sure that all medical devices used in proximity to this device meet appropriate

susceptibility specifications for this type of RF energy.

NOTE:

This product is recommended for use in both industrial and domestic environments. 

Functional ground needs to be connected in industrial environments to comply with im-

munity requirements. For domestic environments the functional ground must be omitted

if a shielded Ethernet cable is used, in order to meet the emission requirements.

NOTE:

This product contains parts that can be damaged by electrostatic discharge (ESD). Take

appropriate protective measures against electrostatic discharge.

NOTE:

The product may only be installed, started up, and maintained by qualified specialist per-

sonnel who have been authorized to do so by the system operator. An electrician is some-

one who because of their education, experience, and instruction and their knowledge of

relevant standards is able to assess all planned activities and recognize any possible dan-

gers. Specialist personnel is also required to read and understand this document and fol-

low the instructions.

Observe the applicable national regulations regarding the operation, function tests, re-

pair, and maintenance of electronic devices.

NOTE:

Observe the permitted operating temperatures of the EPA when using it outdoors. The de-

vice is suitable for installation in protected outdoor areas (e.g., under a porch). Direct sun-

light may lead to overheating and permanent damage of the device.

Observe the applicable regulations for using wireless devices outdoors.

FL WLAN EPA

2-10 PHOENIX CONTACT 108452_en_02

2.2 Mechanical installation

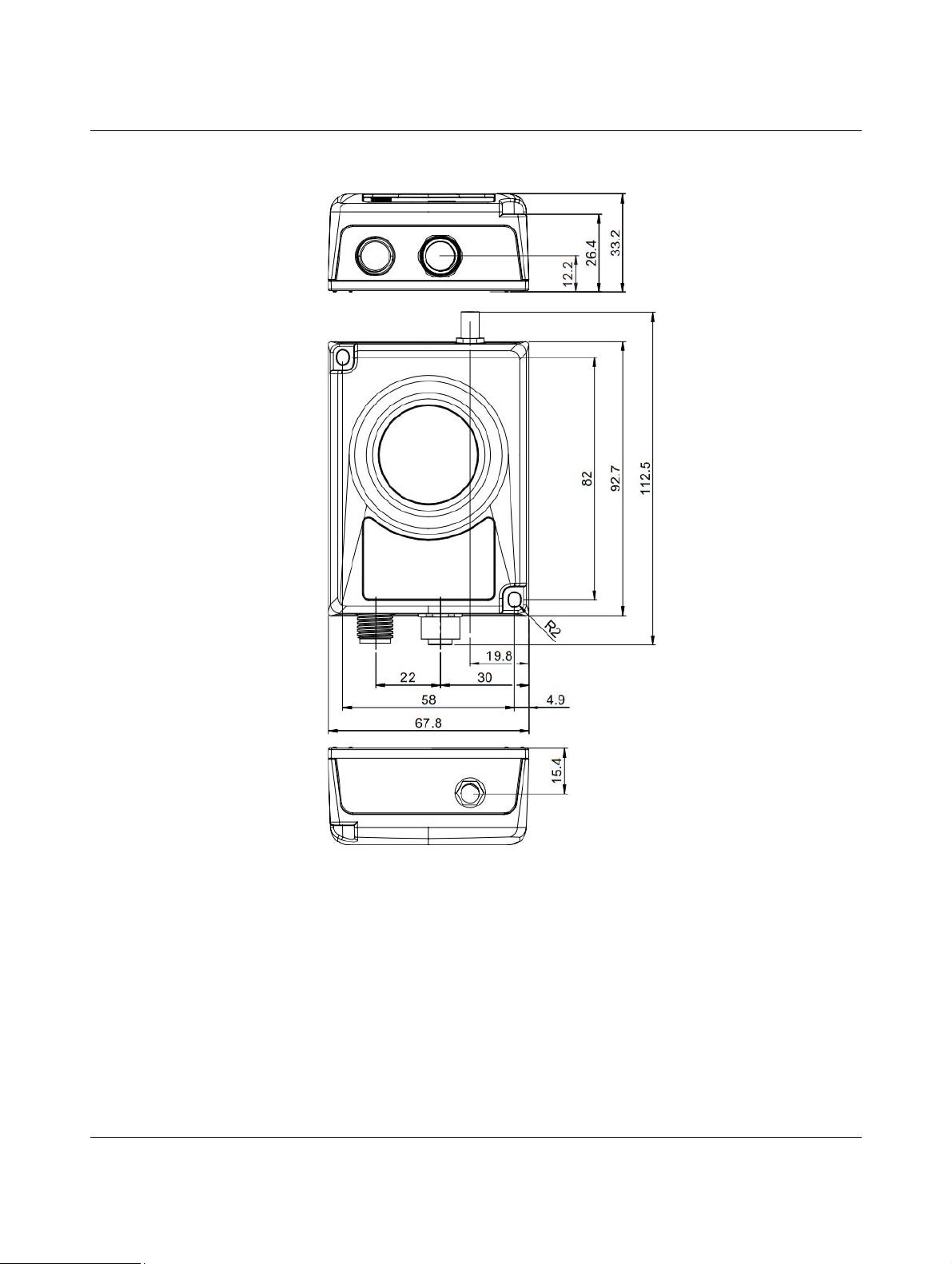

Figure 2-1 Assembly drawing (all dimensions in mm, antenna connection for the

FL EPA 2 RSMA only)

Altri manuali per FL EPA 2

Indice

Altri manuali Phoenix Contact Unità di controllo

Phoenix Contact

Phoenix Contact ILB BT ADIO MUX-OMNI Manuale utente

Phoenix Contact

Phoenix Contact Axioline F Manuale utente

Phoenix Contact

Phoenix Contact Fieldbus FB-DIAG/FF/LI Manuale utente

Phoenix Contact

Phoenix Contact FL WLAN 1100 Manuale utente

Phoenix Contact

Phoenix Contact IBS IP 400 ME-ELR 2-3A FO Manuale utente

Phoenix Contact

Phoenix Contact PSM Series Manuale utente

Phoenix Contact

Phoenix Contact CONTACTRON Series Manuale utente

Phoenix Contact

Phoenix Contact FL WLAN 1000 Series Manuale utente

Phoenix Contact

Phoenix Contact PP-RJ Series Manuale utente

Phoenix Contact

Phoenix Contact UM EN AXL F PSDI8/4 1F Manuale utente

Phoenix Contact

Phoenix Contact PSR-TRISAFE-S Manuale utente

Phoenix Contact

Phoenix Contact Axioline F Manuale utente

Phoenix Contact

Phoenix Contact PSM-EG-RS232/RS422-P/4K Manuale utente

Phoenix Contact

Phoenix Contact Axioline F Manuale utente

Phoenix Contact

Phoenix Contact Axioline F AXC Series Manuale utente

Phoenix Contact

Phoenix Contact INTERBUS series Manuale utente

Phoenix Contact

Phoenix Contact FL WLAN 1100 Manuale utente

Phoenix Contact

Phoenix Contact IBS IP 400 ME-ELR R-3A FO Manuale utente

Phoenix Contact

Phoenix Contact PSR-TRISAFE-S Manuale utente

Phoenix Contact

Phoenix Contact IPCH-4X-PCL-TCP-24DC-UT Manuale utente

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
