Quick Start Guide PicoScope USB Oscilloscope

1 English

1.1 Introduction

Thank you for purchasing a PicoScope 4444 differential PC oscilloscope, a highly exible

differential oscilloscope suitable for a wide range of voltage measurement applications.

This guide explains how to install the PicoScope software and connect and set up your

oscilloscope. For further information on the software, please refer to the PicoScope 6 User’s

Guide. For technical data relating to the oscilloscope itself, see the PicoScope4444 Data Sheet.

Both are available for download from www.picotech.com/downloads. You can also access the

PicoScope 6 User’s Guide from the Help menu within the PicoScope software.

1.2 Safety information

To prevent possible electrical shock, re, personal injury, or damage to the product, carefully

read this safety information before attempting to install or use the product. In addition, follow all

generally accepted safety practices and procedures for working with and near electricity.

The product has been designed and tested in accordance with the harmonized standard

publication EN61010‑1:2010+A1:2019 (Safety Requirements for Electrical Equipment for

Measurement, Control and Laboratory Use) and EN61010‑2‑030:2010 (Requirements for

Testing and Measuring Circuits). The product left the factory in a safe condition.

A WARNING identies conditions or practices that could result in injury or death.

A CAUTION identies conditions or practices that could result in damage to the product or the

equipment to which it is connected.

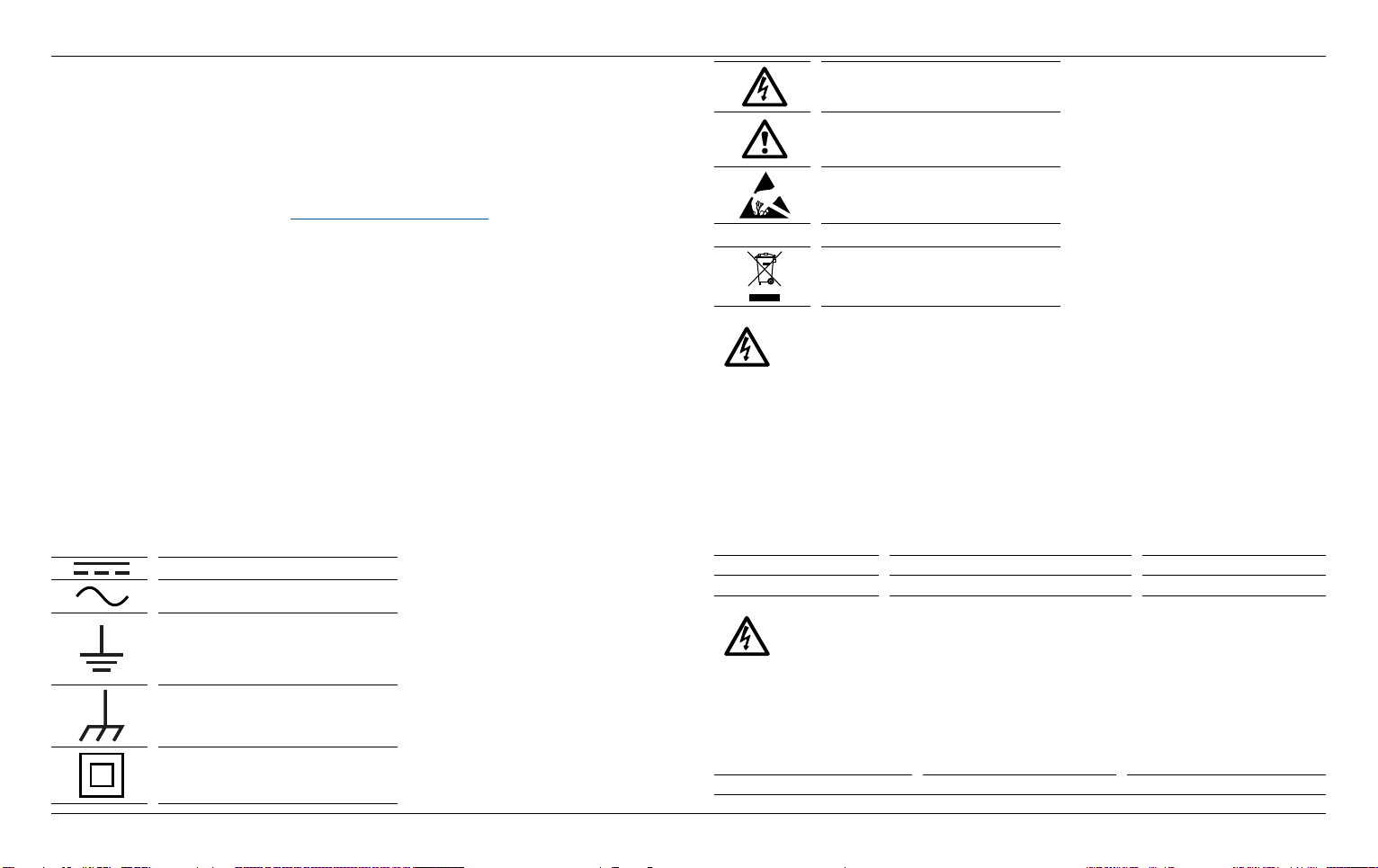

1.2.1 Symbols

These safety and electrical symbols may appear on the product or in this guide.

Symbols Description

Direct current

Alternating current

Earth (ground) terminal

The terminal can be used to make a

measurement ground connection. The

terminal is NOT a safety or protective

earth.

Frame or chassis terminal

Equipment protected throughout

by double insulation or reinforced

insulation

Caution, possibility of electric shock

Caution

Appearance on the product indicates a

need to read these safety and operation

instructions

Static awareness Static discharge can damage parts

CAT EN 61010 overvoltage category

Do not dispose of this product as

unsorted municipal waste

WARNING

To prevent injury or death, use the product only as instructed and use only the

accessories that have been supplied or recommended. Protection provided by the

product may be impaired if used in a manner not specied by the manufacturer.

1.2.2 Maximum input ranges

Observe all terminal ratings and warnings marked on the product.

The full‑scale measurement range is the maximum voltage that the PicoScope4444 can

accurately measure. The common‑mode range is the maximum voltage that can be applied to

both differential inputs with respect to the scope chassis or ground. The overvoltage protection

range is the maximum voltage that can be applied without damaging the instrument.

Input range Overvoltage protection

Full-scale measurement ±50 V DC and ±42.4V pk max AC ±100V DC + AC peak

Common-mode ±50 V DC and ±42.4V pk max AC ±100V DC + AC peak

WARNING

To prevent electric shock, do not attempt to measure voltages outside the specied

full‑scale measurement or common‑mode ranges above.

WARNING

Signals exceeding the voltage limits in the table below are dened as “hazardous

live” by EN 61010. To prevent electric shock, take all necessary safety precautions

when working on equipment where hazardous live voltages may be present.

Signal voltage limits of EN 61010-1:2010-1:2021+A1:2019

±60 V DC 30 V AC RMS ±42.4 V pk max.

PicoScope USB Oscilloscope Quick Start Guide

WARNING

To prevent injury or death, the oscilloscope must not be directly connected to

hazardous live signals as dened by EN 61010. To measure such voltages, use

a differential probe specically rated for this use, such as the PicoConnect442

1000V CATIII differential probe.

CAUTION

Exceeding the overload protection range of the oscilloscope and its recommended

accessories can cause permanent damage to the oscilloscope and other connected

equipment.

If the signal voltage exceeds the measurement input range, the PicoScope software displays

the red overrange indicator in the top left corner of the display, with the message “Channel

overrange”. A smaller version appears next to the vertical axis of the affected channel. The

waveform will be clipped: no data outside the measurement input range will be shown. In the

software, increase the input range of the affected channel until the indicator disappears.

If the common‑mode voltage of the differential input exceeds the scope’s common‑mode

input range, the yellow common‑mode overrange indicator appears, with the message

“Common‑mode overrange”. Again, a smaller version appears next to the vertical axis of the

affected channel. Exceeding the common‑mode input range of the scope causes inaccurate

measurements and can lead to severe signal distortion.

1.2.3 Grounding

WARNING

The oscilloscope’s ground connections through the USB cable and through the

ground terminal are for measurement purposes only. The oscilloscope does not

have a protective safety ground.

WARNING

Never connect the ground terminal (chassis) to any electrical power source. To

prevent personal injury or death, use a voltmeter to check that there is no signicant

AC or DC voltage between the oscilloscope ground and the point to which you

intend to connect it.

CAUTION

Applying a voltage to the ground input is likely to cause permanent damage to the

oscilloscope, the attached computer, and other equipment.

CAUTION

To prevent measurement errors caused by poor grounding, always use the high‑

quality USB cable supplied with the oscilloscope.

1.2.4 External connections

WARNING

To prevent injury or death, only use the Pico approved power cord and adaptor

supplied with the product. These are approved for the voltage and plug

conguration in your country.

USB connection

DC power input

Voltage (V) Current (A pk)

Total power:

oscilloscope +

powered accessories

USB3.0 5V 3A 15W

Depending on the combined power requirements of the accessories connected to it, the

PicoScope4444 can operate with or without a DC power input. If the USB connection alone is

insucient to power all the accessories connected, the PicoScope software will prompt you to

connect the DC power supply.

1.2.5 Environment

WARNING

To prevent injury or death, do not use in wet or damp conditions, or near explosive

gas or vapor.

WARNING

This product is for indoor or outdoor use, in dry locations only. The products

external mains power supply (if required) is for indoor use only.

CAUTION

To prevent damage, always use and store your oscilloscope in appropriate

environments, as specied below.

Please contact Pico technical support if you would like any advice on integrating a PicoScope

into your own product or application.

Storage Operating Quoted accuracy

Temperature –20 to +60°C 0 to 45°C 15 to 30°C

Humidity 5 to 95 %RH

(non‑condensing)

5 to 80 %RH

(non‑condensing) N/A

Altitude Up to 2000m

Pollution degree Pollution degree 2

Quick Start Guide PicoScope USB Oscilloscope

1.2.6 Care of the product

The product contains no user‑serviceable parts. Repair, servicing and calibration require

specialized test equipment and must only be performed by Pico Technology or an approved

service provider. There may be a charge for these services unless covered by the Pico ve‑year

warranty.

WARNING

To prevent injury or death, do not use the product if it appears to be damaged in any

way, and stop use immediately if you are concerned by any abnormal operations.

WARNING

When cleaning the product, use a soft cloth and a solution of mild soap or detergent

in water. To prevent electric shock, do not allow water to enter the oscilloscope

casing; this will also cause damage to the electronics inside.

CAUTION

Do not tamper with or disassemble the oscilloscope, connectors or accessories.

Internal damage will affect performance.

1.3 Conformance

1.3.1 General Statement of Conformity

1.3.2 FCC notice

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference

to radio communications. Operation of this equipment in a residential area is likely to cause

harmful interference which the user will be required to correct at their own expense.

1.3.3 CE & UKCA notices

This PicoScope oscilloscope meets the intent of the CE EMC directive 2014/30/EU and UKCA SI

2016/1091 EMC Regulations.

This oscilloscope also meets the intent of the CE Low Voltage Directive 2014/35/EU and UKCA

SI 2016/1101 Electrical Equipment (Safety) Regulations.

1.4 Included with your PicoScope

Your PicoScope 4444 is supplied with the items shown below.

Item Order code

PicoScope 4444 high-resolution differential oscilloscope PQ088

PicoScope 4444 User’s Guide free download

Universal power supply PS011

USB 3.0 cable, 1.8 m TA155

A number of accessories are available, including a selection of voltage and current

probes and D9‑BNC adaptors. See the PicoScope 4444 Data Sheet, available from

www.picotech.com/downloads, for more information.

Convenient precongured kits are available from our distributors. Alternatively, you can devise

your own conguration at www.picotech.com/oscilloscope/picoscope‑4000‑series.

1.5 Minimum system requirements

To make sure your PicoScope 4444 oscilloscope operates correctly, you must have a computer

with the system requirements shown in the table below. The performance of the oscilloscope

will improve with a more powerful PC and will benet from a multi‑core processor.

Specications

Operating system

Microsoft Windows 7, 8 or 10, 32‑bit and 64‑bit versions.

Linux (64‑bit)*

macOS*

Processor

Memory

Free disk space

As required by the operating system

Ports One free USB 2.0 or USB 3.0 port

* Requires PicoScope Beta software, available from www.picotech.com/downloads.

PicoScope USB Oscilloscope Quick Start Guide

1.6 Installing your oscilloscope

1. Go to www.picotech.com, click Downloads, select the PicoScope 4000 Series and the

PicoScope 4444 model, then select the latest PicoScope software. Download and run the

installer.

2. In the PicoScope installer, select the language you wish to use.

3. Follow the on‑screen instructions to install the PicoScope software. Do not connect the

oscilloscope until the installation is complete.

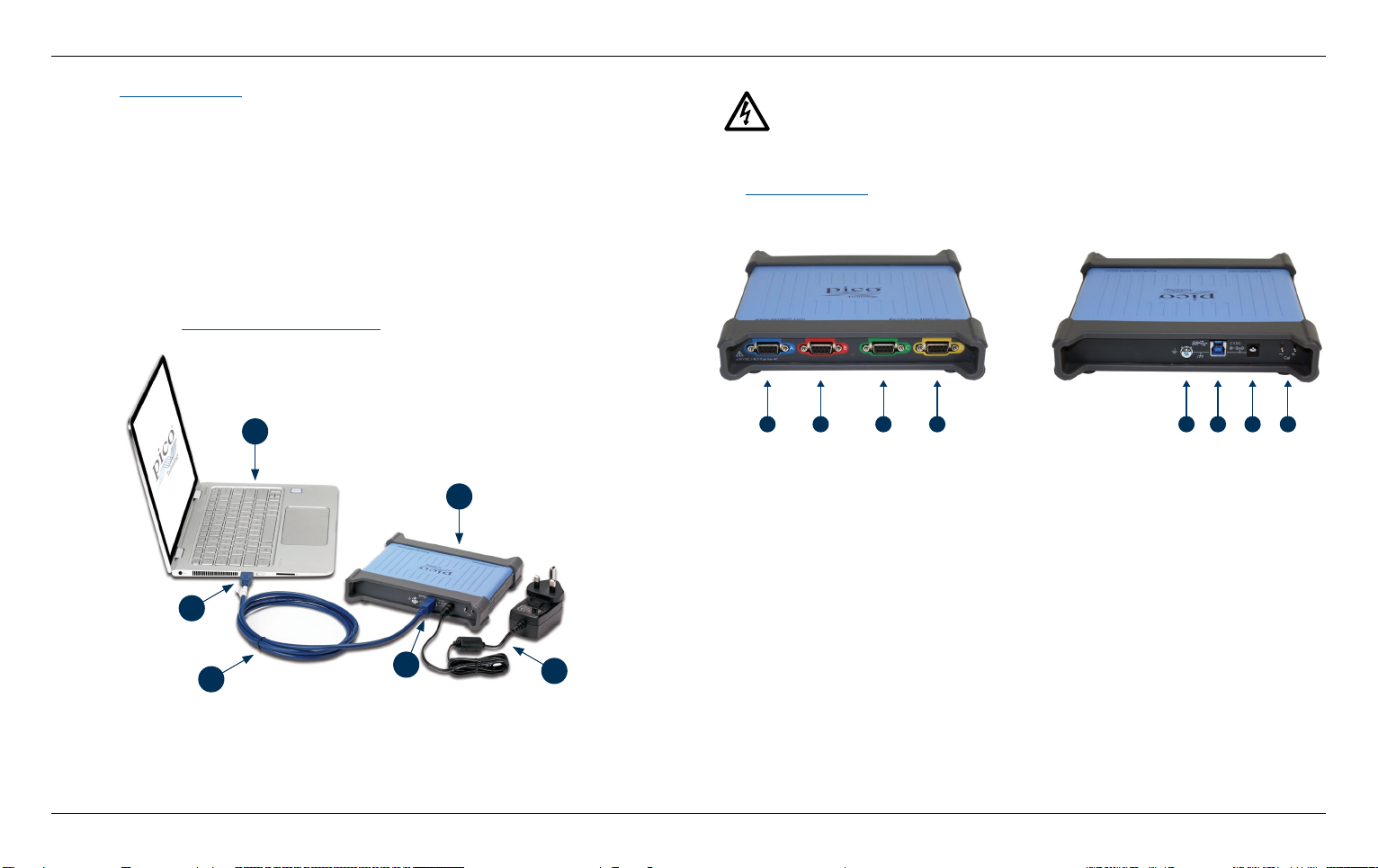

4. Connect the oscilloscope to the PC using the USB cable supplied, as shown in the

connection diagram below.

5. Wait for Windows to install the oscilloscope. While doing so it will display a message or

icon in the taskbar telling you it has found the device.

6. Run the software by clicking the new PicoScope 6 icon on your Windows desktop. For more

information on the software, please refer to the PicoScope6 User’s Guide, which you can

download from www.picotech.com/downloads or access from the Help menu within the

software.

a. PicoScope 4444 differential oscilloscope

b. Oscilloscope USB port

c. Pico USB cable

d. PC

e. PC USB port

f. Power adaptor

cbf

1.7 Connecting accessories to the PicoScope 4444

WARNING

To prevent electric shock or damage to the unit, only connect Pico Technology D9‑

type accessories directly to the oscilloscope. BNC‑type accessories should only be

used in conjunction with the TA271 or TA299 D9(m)‑BNC(f) adaptors. Use of any

alternative connectors is dangerous and will invalidate the warranty.

Visit www.picotech.com for more information about approved accessories and how to order

them.

1.7.1 Connector diagram

a. Input channel A

b. Input channel B

c. Input channel C

d. Input channel D

e. Ground terminal

f. USB 3.0 port

g. DC power socket. For use with the Pico supplied power adaptor.

h. Probe compensation pins

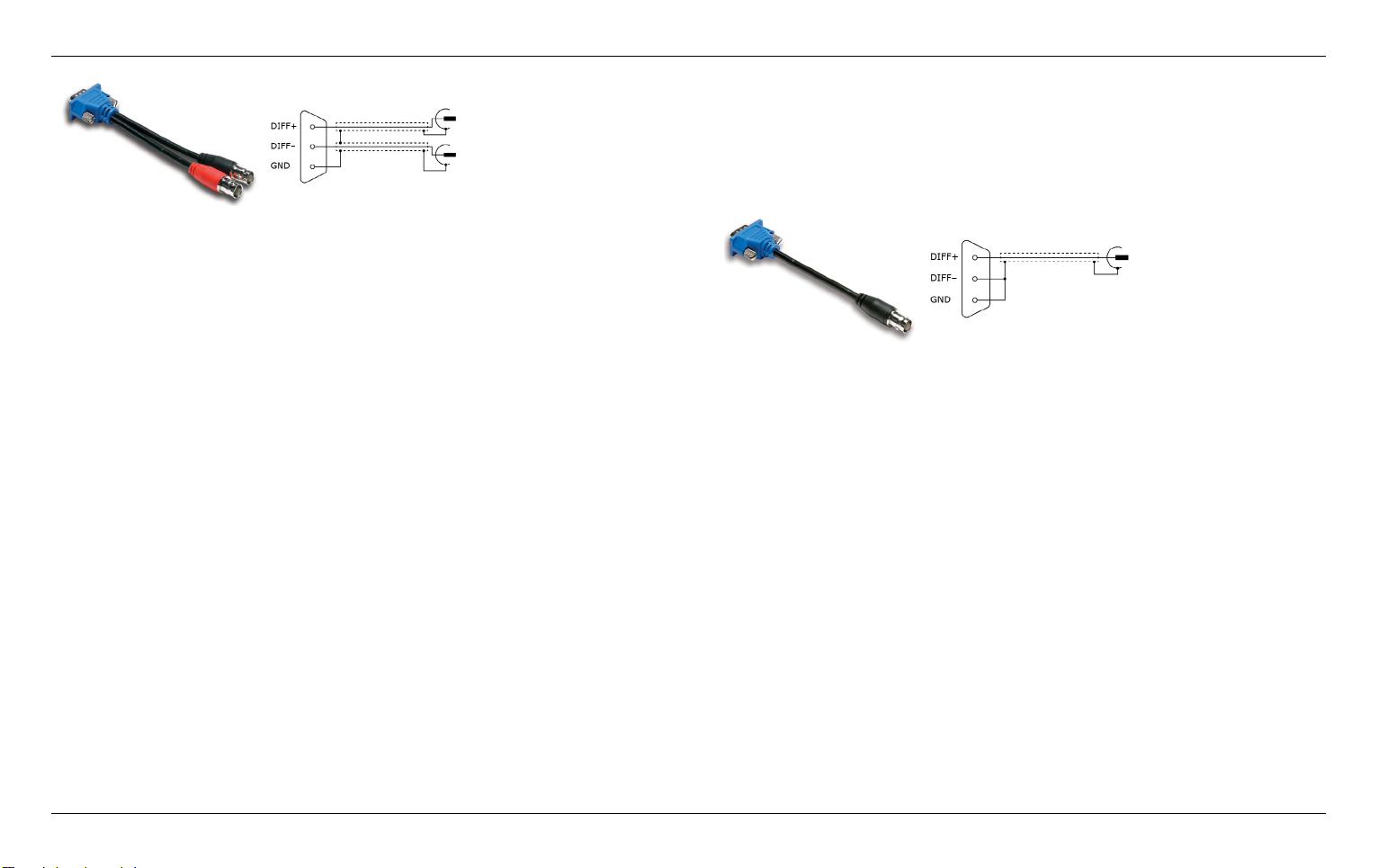

1.8 Using the TA299 D9-dual BNC adaptor

The TA299 D9‑dual BNC adaptor allows you to make differential measurements using two

single‑ended probes with BNC connectors.

The PicoScope 4444 will identify the TA299 adaptor, but not the probes connected to it. Use

the Channel Options menu in the PicoScope 6 software to set up your probes, and compensate

them using the pins on the back of the scope unit.

1.8.1 Compensating a pair of probes for common-mode voltages

This example uses two TA375 probes set to 10:1 attenuation, but applies to any single‑

ended attenuating probes with BNC connectors: just remember to adjust the Probes settings

accordingly.

Quick Start Guide PicoScope USB Oscilloscope

1. Connect the TA299 adaptor to the scope channel

2. Connect two single‑ended oscilloscope probes to the TA299 adaptor

3. Open the Channel Options menu and select the correct attenuation factor for your probe.

For 10:1 probes, this will be x10.

4. Set the Coupling control to DC

5. Set the Input Range to ±5V

6. Set the Trigger Mode control to Auto

7. Decide which probe will be the positive probe and which will be the negative probe

8. Connect the positive probe to Cal+ and attach its ground clip to Cal–

9. Attach the negative probe’s ground clip to the negative probe tip

10. A square wave will appear on the PicoScope 6 display

11. Adjust the Collection Time until the display contains one cycle of the square wave signal

12. Adjust the positive probe: trim it until the waveform is as near ideal as possible, with no

overshoot or undershoot visible

13. Without disconnecting the positive probe, connect the negative probe to Cal+ and attach

its ground clip to Cal–

14. Set the Trigger Mode to None

15. Trim the negative probe: aim for a null signal, with the amplitude as close to zero as

possible

16. With both probes compensated, you are now ready to test your signal

1.9 Using the TA271 D9-BNC adaptor

The TA271 D9‑BNC adaptor converts the differential input of the PicoScope 4444 to a single‑

ended input. This allows you to connect conventional accessories such as single‑ended and

differential voltage probes or current probes. The adaptor grounds the negative input of the

channel.

The PicoScope 4444 will identify the TA271 adaptor, but not the probe connected to it. Use the

Channel Options menu in the PicoScope 6 software to set up your probe. If necessary, follow

the steps below to compensate your probe using the pins on the back of the scope unit.

1.9.1 Compensating a single-ended probe

1. Find the probe compensation pins (marked Cal) on the back of the PicoScope4444 unit

2. Connect the probe tip to Cal+ and the ground lead to Cal–

3. Follow the probe manufacturer’s instructions to compensate your probe

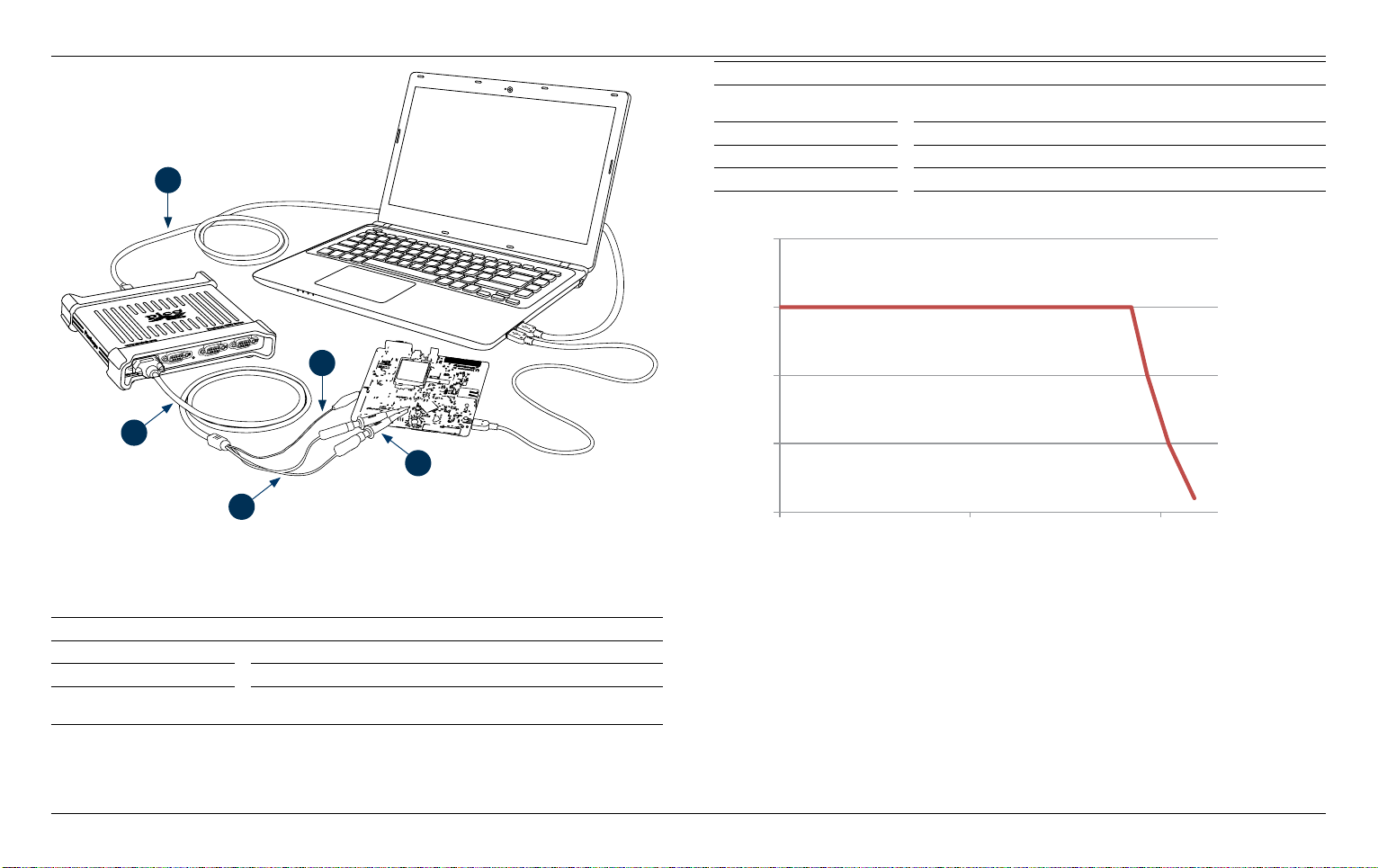

1.10 Using the PicoConnect®441 1:1 differential probe

1.10.1 Installing your PicoConnect 441 probe

Follow these instructions to install and start using your differential probe.

1. Plug the D9(m) connector into an input channel of the PicoScope 4444 differential

oscilloscope.

2. Using the appropriate probe accessories, connect the input leads to the circuit under test.

PicoScope USB Oscilloscope Quick Start Guide

BCD

www.picotech.com

PicoScope 4000 Series

a. TA327 and TA328 unshrouded 4 mm sprung hooks

b. Input leads of the PicoConnect 441 probe

c. Ground lead of the PicoConnect 441 probe

d. Output lead of the PicoConnect 441 probe

e. TA155 Pico blue USB cable

1.10.2 PicoConnect 441 probe specications

Input

Working voltage 50 V DC, 42.4 V peak AC

Overload voltage 100 V DC + peak AC

Connector 1 x red, 1 x black 4 mm plugs, unshrouded. Crocodile clip on

screen/ground.

Output

Connector D9(m) with screw locks. Only for connection to PicoScope

4444 differential oscilloscope.

General

Bandwidth (–3 dB) 15 MHz

Overall length 1.2 m

1.10.3 Differential input voltage derating

100 k 1M 10 M

Voltage (V RMS)

Frequency (Hz)

1.11 Using other Pico D9 accessories

A number of other current and voltage probes are available that connect directly to the input

channels of the PicoScope 4444. Each probe is supplied with its own User’s Guide, which you

should refer to for full operating instructions.

Indice

Lingue:

Altri manuali pico Technology Apparecchiature di prova

pico Technology

pico Technology PicoScope 4000 Series Manuale utente

pico Technology

pico Technology TA041 Manuale utente

pico Technology

pico Technology PicoScope 5000 Series Manuale utente

pico Technology

pico Technology PicoScope 2203 Manuale utente

pico Technology

pico Technology PicoScope 2200A Series Manuale utente

pico Technology

pico Technology PicoScope 6000 Series Manuale utente

pico Technology

pico Technology PicoScope 2000 Series Manuale

pico Technology

pico Technology PicoVNA 106 Manuale

pico Technology

pico Technology PicoScope 2000 Series Manuale utente

pico Technology

pico Technology PicoScope 2000 Series Manuale utente

pico Technology

pico Technology PicoScope 6000 Series Manuale per l'uso e la cura

pico Technology

pico Technology PicoDiagnostics PicoBNC+ Manuale utente

pico Technology

pico Technology PicoScope 2000 Series Manuale

pico Technology

pico Technology PicoScope 3425 Manuale utente

pico Technology

pico Technology PicoDiagnostics Manuale utente

pico Technology

pico Technology ADC-100 Manuale utente

pico Technology

pico Technology PicoScope 3000 Series Manuale utente

pico Technology

pico Technology PicoScope Manuale utente

pico Technology

pico Technology PicoScope 3000D Series Manuale utente

pico Technology

pico Technology PicoScope 4000 Series Manuale utente

pico Technology

pico Technology PicoScope 5000 A Series Manuale utente

pico Technology

pico Technology PicoScope 6 Manuale utente

pico Technology

pico Technology PicoScope 4000 Series Manuale utente

pico Technology

pico Technology PicoScope 9400 Series Manuale utente

Manuali Apparecchiature di prova popolari di altre marche

SMART

SMART KANAAD SBT XTREME 3G Series Manuale utente

Agilent Technologies

Agilent Technologies BERT Serial Manuale utente

Agilent Technologies

Agilent Technologies N3280A Manuale utente

Vernier

Vernier Go Direct Voltage Manuale utente

Lifeloc

Lifeloc R.A.D.A.R. Manuale utente

Fluke

Fluke T5-600 Istruzioni per l'uso e l'installazione

Mercury

Mercury TSL01 Manuale utente

MAHA

MAHA MBT Series Manuale utente

Fuji Electric

Fuji Electric P-61 Manuale utente

ETC

ETC SealerAtor Manuale utente

Skyfine

Skyfine ETHYWAY V2 Manuale utente

Appion

Appion G5 Twin Manuale utente

PCB Piezotronics

PCB Piezotronics 8159-0112A Manuale utente

BW Technologies

BW Technologies MicroDock II Manuale utente

Sun Nuclear

Sun Nuclear 1027 Manuale utente

Biomark

Biomark HPR LITE READER Manuale utente

Hioki

Hioki 3169-20 Manuale utente

Ashcroft

Ashcroft ATE-100 Manuale utente

pico Technology PicoScope 4444 Manuale utente

Manuali Apparecchiature di prova popolari di altre marche
