Contents

General Operations

Accessories............................................................................. 3

Carrying Case, Boot & Changing Batteries ............................ 4

Storing EZ-CHECK Outputs & Connections........................... 5

Basic Operation

Switches & Knobs...............................................................6, 7

MAIN Menus - Functions, Units & Ranges ......................7, 8, 9

FEATURE Menu - Stepping & Ramping / Auto Off ............... 10

FEATURE Menu - Stepping & Ramping / Backlight ............. 11

Functions and Hookup Diagrams

4-20 mA or 10-50 mA Operation............................... 12, 13

Milliamp

Simulate 2 Wire Transmitters........................................... 14, 15

Source mA, Read mA ..................................................... 16, 17

Power/Measure Transmitters ................................................. 18

Using Ground Leak Detection......................................... 19, 20

Voltage & Millivolt

Source V & mV; Read V & mV........................................21, 22

Source pH....................................................................... 23, 24

Thermocouple

Source T/C & Read T/C Sensors.................................... 25, 26

Resistance

Source Resistance, Read Resistance & Continuity .........27, 28

RTD

Source RTD & Read RTD Sensors.................................29, 30

Frequency

Source KHz, Hz & CPM; Read KHz, Hz & CPM ............ 31, 32

Pressure

Read Pressure ...................................................................... 33

Pressure Accessories............................................................ 34

Pressure Module Ranges & Specifications........................... 35

Specifications

General ............................................................................36-40

Thermocouple Ranges & Accuracies............................... 41-43

RTD Ranges & Accuracies ................................................... 44

Warranty

Warranty & Additional Information ........................................ 45

www. .com information@itm.com1.800.561.8187

Page 1

General Information

Get more tools in a smaller calibrator

Carry eight single function calibrators

plus

a 4-20/10-50 milliamp calibrator with loop supply

plus

a loop troubleshooter in the palm of your hand!

Milliamp • Voltage • Frequency • pH • Ohms

Thermocouples • RTDs • Pressure

Loop Diagnostics • Transmitter Supply

Detect ‘hidden’ loop problems

Quickly diagnose troublesome ground faults & current leak-

age with patented Loop Diagnostic technology. These prob-

lems are undetectable with other instruments!

Check all loop parameters at once with LoopScope™

Simultaneously displays current, voltage and resistance

to let you know the condition of a live loop. Finds prob-

lems with power supplies & loops with too many loads.

Patented by PIE!

Troubleshoot wiring problems without a multimeter

Built in continuity checker with ‘beeper’ quickly finds broken

wires or shorts in instrumentation wiring. Also handy for

checking operation of relays and controller outputs.

www. .com information@itm.com1.800.561.8187

Page 2

General Information

The PIE Model 850 is more than a multifunction

calibrator. It is also a loop detective that is able to

diagnose common problems that other test

equipment just can’t find. Have a flooded junction

box or unknown ground faults? Our Loop Diagnostic

technology will detect it. Or use the LoopScope to

see at a glance all the parameters - milliamps,

voltage and resistance - in the loop.

Diagnostic

features are covered by

US Patent #7,248,058.

Become a troubleshooting technician with

Patented Diagnostic Technology - Available only

with PIE Calibrators!

www. .com information@itm.com1.800.561.8187

Page 3

Accessories

INCLUDED:

Four “AA” Lithium batteries, Certificate of Calibration

Evolution Hands Free Carrying Case Part No. 020-0211

(Evolution Hands Free Carrying Case with

Pressure Module Pocket, Part No. 020-0233,

will replace the 020-0211 when the Model 850

is ordered with at least one pressure module)

Blue Rubber Boot Part No. 020-0213

Test Leads - one pair with Part No. 020-0207

banana plug & alligator clips

Evolution RTD Wire Kit Part No. 020-0208

2 Red & 2 Black Leads with

Banana Plugs & Spade Lugs

OPTIONAL:

T/C Wire Kit 1* for Types J, K, T & E Part No. 020-0202

T/C Wire Kit 2* for Types B, R/S & N Part No. 020-0203

*Three feet (1 meter) of T/C extension wire, stripped on one

end with a miniature T/C male connector on the other end.

www. .com information@itm.com1.800.561.8187

Page 4

Operating Instructions

FIELD & BENCH USE

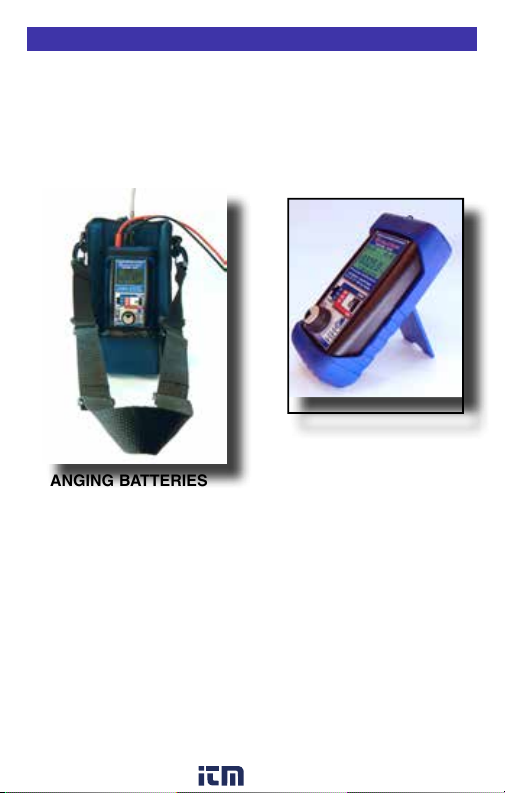

PIE 850 comes with a carrying case designed for hands-free

operation and a rubber boot with a built-in tilt stand. The PIE 850

is held in the case by elastic straps for use with the carrying

case open. The tilt stand is easily raised by pulling the stand until

it locks into place.

CHANGING BATTERIES

Low battery is indicated by a battery symbol on the display.

Approximately one to four hours of typical operation remain before

the PIE 850 will automatically turn off. To change the batteries

remove the rubber boot and remove the battery door from the

back of the unit by sliding the door downward. This allows access

to the battery compartment. Replace with four (4) “AA” 1.5V

batteries being careful to check the polarity. Replace the battery

door and replace the boot. All stored configuration options (T/C

Type, EZ-CHECK Memories, etc.) are reset to factory settings

when the batteries are removed.

Note: Lithium batteries are supplied and recommended for typical

battery life and performance.

www. .com information@itm.com1.800.561.8187

Page 5

Operating Instructions

STORING HI and LO EZ-CHECK Source Outputs

Speed up your calibration by storing Span & Zero output setting

for instant recall with the EZ-CHECK switch.

1) Store your high (SPAN) output temperature by moving the

EZ-CHECK switch to the HI position and turning the EZ-Dial

knob until the desired output value is on the display. Press

and hold the EZ-Dial knob until STORED appears to store

the value. Release the EZ-Dial knob.

2) Store your low (ZERO) output value by moving the EZ-CHECK

switch to the LO position and turning the EZ-Dial knob until

the desired output value is on the display. Press and hold the

EZ-Dial knob until STORED appears to store the value.

Release the EZ-Dial knob.

3) Instantly output your SPAN and ZERO output settings by

moving the EZ-CHECK switch between HI and LO. You may

also select any third output setting (such as mid-range) using

the SET position on the EZ-CHECK switch.

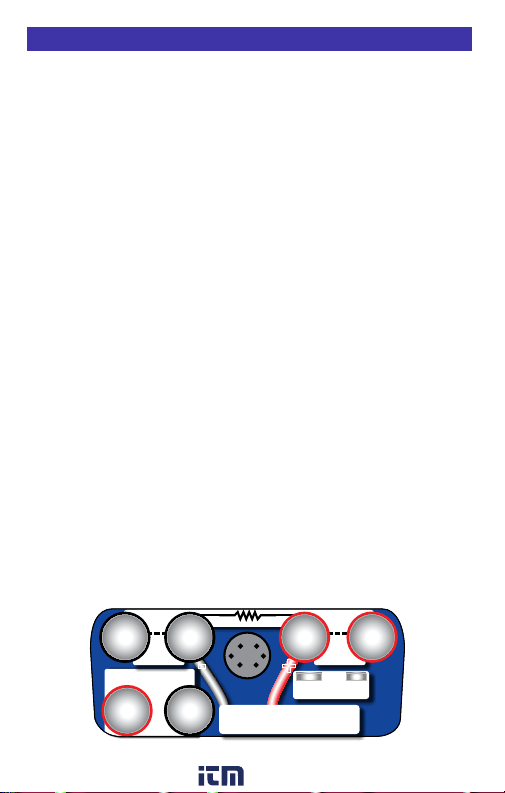

Connections

PIE 850 has banana jacks compatible with unshielded or

retractable banana plugs. Included with your calibrator are a pair

of test leads with alligator clips for mA, V, pH & Hz connections.

Four test leads with spade lugs are also included for 2, 3 and 4

Wire RTD connections. Thermocouple connections are made

through a miniature thermocouple socket.

T/C

All mA∙Read V

RTD

Ω

RTD

Ω

Source & Read Hz∙mV

Source V∙pH

www. .com information@itm.com1.800.561.8187

Page 6

SOURCE

SET

MAX

READ

MIN

READ

850.0 °C

PWRM

5 6

TYPE K

18.300 mA

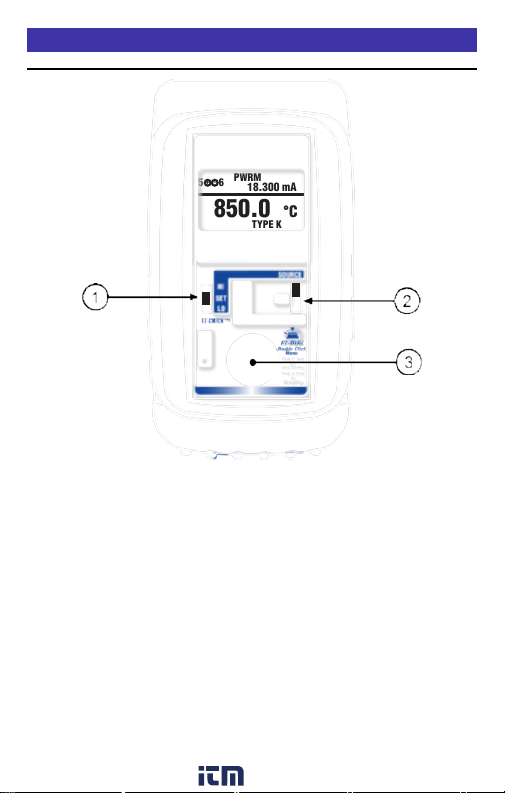

qEZ-CHECK™ SWITCH

SOURCE: Instantly output two preset settings by moving the

EZ-CHECK™ switch to the “LO” position or “HI” position.

For fast

three point checks select the “SET” position. The PIE 850 will

remember the last “SET” value, even with the power off.

These values can easily be changed to suit the calibration requirements.

The values stored in the HI and LO positions are also used for Auto

Stepping.

READ: Slide the switch to the SET position. The PIE 850 will display

the current reading from the sensor or device being measured. Slide

the switch to MAX and the highest value measured since turn-on or

reset will be displayed; slide the switch to MIN and the lowest value

measured since turn-on or reset will be displayed.

Operating Instructions

Basic Operation

www. .com information@itm.com1.800.561.8187

Page 7

wSOURCE/OFF/READ Switch

Select “SOURCE” to output mA, V, pH, T/C, Ω, RTD or frequency.

Select “READ” to read mA, V, T/C, Ω, RTD, pressure or frequency.

Select “OFF” to turn off the 850.

eEZ-DIAL™ KNOB

SOURCE: Turn the knob to adjust the output level. Turn clockwise

to increase the output, counter clockwise to decrease the output in

one least significant digit step at a time. Push down and turn the

EZ-DIAL knob for faster dialing.

Press and hold the knob for two seconds to store desired

EZ-Check™ HI/LO points in SOURCE mode. Continue to press and

hold the knob for two more seconds to start the automatic ramping.

READ: Press and hold to transfer the current temperature

into the EZ-Check™ MIN/MAX points. This clears the MIN/

MAX readings which will update as the input value changes.

SELECTING FUNCTIONS

The EZ-DIAL knob is used to setup the PIE 850 to match the

instrument to be calibrated or signal to be measured. Each time

you turn on the PIE 850 the LCD displays the screen below for

about 1 second followed by operating in the function used the

last time it was operated.

Double Click the EZ-DIAL knob to change the function of the

calibrator and to select ranges, units and other user settings.

Each function (mA, V, T/C, Ohms, RTD, Frequency) has up to

three pages of menus. The first menu page has settings for the

function and the last menu page has settings for STEPPING,

AUTO OFF and BACKLIGHT. Settings are remembered even

with the power off but are reset when the batteries are changed.

PIE 850

DOUBLE CLICK

EZ-DIAL KNOB

FOR CONFIGURATION

Operating Instructions

Basic Operation

www. .com information@itm.com1.800.561.8187

Page 8

Operating Instructions

Double Click Menus - MAIN Page

MAIN

> EXIT

FUNCTION mA

MODE SOURCE 2W SIM

UNITS mA %

HART 250Ω* ON OFF

>EXIT

FUNCTION V

RANGE 10V 100mV 1V

> EXIT

FUNCTION mA

MODE READ PWR MEAS

UNITS mA %

HART 250Ω* ON OFF

Double click the EZ-DIAL knob to access the Double Click

Menus. Shown are the MAIN menus for each function. Turn the

knob to scroll thru the menus and press the knob to select. Default

settings are represented in black and other choices in grey.

>EXIT

FUNCTION V

RANGE 10V 1V 60V 100mV

Source mA & Simulate 2 Wire Transmitters

Read mA, Power/Measure Transmitters

& Leak Detect

Source V & mV Read V & mV

> EXIT

FUNCTION FREQ

RANGE 20KHZ 10000HZ 1000HZ 2000CPM

Source & Read Frequency

> EXIT

FUNCTION pH

Source pH

* Hart 250Ωonly appears

in 4-20 mA operation

www. .com information@itm.com1.800.561.8187

Altri manuali per 850

Indice

Manuali Apparecchiature di prova popolari di altre marche

SMART

SMART KANAAD SBT XTREME 3G Series Manuale utente

Agilent Technologies

Agilent Technologies BERT Serial Manuale utente

Agilent Technologies

Agilent Technologies N3280A Manuale utente

Vernier

Vernier Go Direct Voltage Manuale utente

Lifeloc

Lifeloc R.A.D.A.R. Manuale utente

Fluke

Fluke T5-600 Istruzioni per l'uso e l'installazione

Mercury

Mercury TSL01 Manuale utente

MAHA

MAHA MBT Series Manuale utente

Fuji Electric

Fuji Electric P-61 Manuale utente

ETC

ETC SealerAtor Manuale utente

Skyfine

Skyfine ETHYWAY V2 Manuale utente

Appion

Appion G5 Twin Manuale utente

PCB Piezotronics

PCB Piezotronics 8159-0112A Manuale utente

BW Technologies

BW Technologies MicroDock II Manuale utente

Sun Nuclear

Sun Nuclear 1027 Manuale utente

Biomark

Biomark HPR LITE READER Manuale utente

Hioki

Hioki 3169-20 Manuale utente

Ashcroft

Ashcroft ATE-100 Manuale utente
