Pioneer DR-704S Manuale utente

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presenceofuninsulated"dangerousvoltage"withinthe

product'senclosurethatmaybeofsufficientmagnitude

to constitute a risk of electric shock to persons.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

IMPORTANT

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER (OR BACK). NO USER-

SERVICEABLEPARTSINSIDE. REFERSERVICING

TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is

intendedto alert theuser to thepresence of important

operating and maintenance (servicing) instructions in

the literature accompanying the appliance.

English

Français

Deutsch

IMPORTANT NOTICE:

RECORD THE MODEL NUMBER

AND SERIAL NUMBER OF THIS

EQUIPMENT BELOW. THE NUM-

BERS ARE ON THE TOP PANEL.

MODEL NO. DR-A14S

SERIAL NO.

KEEP THESE NUMBERS FOR

FUTURE USE.

CD-ROM DRIVE UNIT

UNITE DE LECTEUR DE CD-ROM

CD-ROM –LAUFWERK

LETTORE DI CD-ROM

Italiano

Operating instructions

Mode d’emploi

Bedienungsanleitung

Istruzioni per l'uso

Thank you for buying this PIONEER

product. Please read through these

operating instructions so you will

knowhowtooperateyourunitprop-

erly. After you have finished read-

ing the instructions, put them away

in a safe place for future reference.

WARNING: TO PREVENT FIRE

OR SHOCK HAZARD, DO NOT EX-

POSE THIS APPLIANCE TO RAIN

OR MOISTURE.

DR-A14S

BUSYPHONES

CD-ROM DRIVE

This product complies with the EMC Directives (89/336/EEC, 92/31/EEC) and CE

Marking Directive (93/68/EEC).

Ceproduitestconformeauxdirectivesrelativesàlacompatibilitéélectromagnétique

(89/336/CEE, 92/31/CEE) et à la directive CE relative aux marquages (93/68/CEE).

Dieses Produkt entspricht den EMV-Richtlinien (89/336/EEC, 92/31/EEC) und CE-

Markierungsrichtlinien (93/68/EEC).

Questo prodotto è conforme alle direttive EMC (89/336/CEE, 92/31/CEE) e alla

direttiva sul marchio CE (93/68/CEE).

Dit produkt voldoet aan de EMC-richtlijnen (89/336/EEC en 92/31/EEC) en de CE-

markeringsrichtlijn (93/68/EEC).

Denna produkt uppfyller föreskrifterna i EMC-direktiv (89/336/EEC, 92/31/EEC) och

CE-märkningsdirektiv (93/68/EEC).

Este producto cumple con las Directivas EMC (89/336/CEE, 92/31/CEE) y Directiva

de Marcación CE (93/68/CEE).

Este produto cumpre com as Directivas EMC (89/336/CEE, 92/31/CEE) e Directiva

da Marcação CE (93/68/CEE).

Dette produkt er i overensstemmelse med direktiverne vedrørende

elektromagnetisk kompatibilitet (89/336/EEC, 92/31/EEC) og CE-direktivet

vedrørende mærkning (93/68/EEC).

VARNING!

Om apparaten används på annat sätt än i denna bruksanvisning spacificerats, kan

användaren utsättas för osynling laserstrålning som överskrider gränsen för

laserklass 1.

ADVARSEL:

Usynlig laserstråling ved åbning når sikkerhedsafbrydere er ude af funktion. Undgå

udsaettelse for stråling.

VAROITUS!

Laitten käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla saattaa

altistaa käuttäjän turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle.

SAFETY INSTRUCTIONS

To ensure your personal safety and to maximize the full operating potential of your Drive, read

and follow these safety precautions:

ENVIRONMENT - Please do not use the unit at places with much dust, high temperature, or

high humidity. Please use the unit at a place where it is not subjected to vibrations or shocks.

POWER - Power-off your system and attached hardware devices before installation.

READ INSTRUCTIONS - Read all safety and operating instructions before the Drive is operated.

RETAIN INSTRUCTIONS - Retain the safety and operating instructions for future reference.

FOLLOW INSTRUCTIONS - Follow all operating and use instructions.

HEED WARNINGS - All warnings must be adhered to.

CLEANING - DO NOT use liquid, aerosol cleaners, or alcohol. Use only a damp cloth to clean

the exterior housing.

WATER AND MOISTURE - DO NOT use this product near water.

POWER SOURCES - Operate this product from the type of power source indicated on the

marking label. If you are not sure of the type of power available, consult your Authorized Pioneer

Dealer.

OVERLOADING - DO NOT overload wall outlets and extension cords. Doing so can result in

fire or electric shock.

OBJECT AND LIQUID ENTRY - Never push objects of any kind into this product. Touching

dangerous voltage points may cause a short resulting in fire or electric shock. Do not spill liquid

of any kind on this product.

CONDENSATION - Moisture will form in the operating section of the product causing

performance to be impaired if it is brought from cool surroundings into a warmer environment.

If you are moving the unit to a location with a warmer temperature, let the product stand for 1-

2 hours in the new location before turning it back on.

SERVICING - Do not attempt to repair this product yourself. Opening or removing covers may

expose you to dangerous voltage or other hazards. Refer all servicing to qualified service

personnel. (Refer to the enclosed Service and Support Card.)

IMPORTANT

CAUTION

This product contains a laser diode of higher class than

1. To ensure continued safety, do not remove any

covers or attempt to gain access to the inside of the

product.

Refer all servicing to qualified personnel.

The following caution label appears

on your unit.

Location: on top of the cover

Forpluggableequipmentthesocket-outletshallbeinstallednear

the equipment and shall be easily accessible.

CLASS 1 LASER PRODUCT

LASER KLASSE 1

SAFETY INSTRUCTIONS

[For Canadian model]

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing

Equipment Regulations.

RADIO SIGNAL INTERFERENCE - This equipment has been tested and found

to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses,

andcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordance

with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation.Ifthis equipment does cause harmful interference toradioortelevision

reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the

following measures:

]Reorient or relocate the receiving antenna.

]Increase the separation between the equipment and receiver.

]Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

]Consult the dealer or an experienced radio/TV technician for help.

LASER DIODE - This product contains a laser diode. To assure continued safety,

DO NOT removeany convers or attempt to gain access totheinside of the product.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.

CAUTION: USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE

HAZARD.

Information to User

Alteration or modifications carried out without appropriate authorization may invalidate the

user’s right to operate the equipment.

The Generation of Acoustical Noise Is Less Than 70dB.

(ISO7779/DIN45635)

[Pour le modèle Canadien]

Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le

matériel brouilleur du Canada.

SAFETY INSTRUCTIONS

The enclosed device driver is for use with MS-DOS/Windows 3.XX. This driver is

not required for use with Windows 95.

* MS-DOS and Windows are trademarks of Microsoft Corporation.

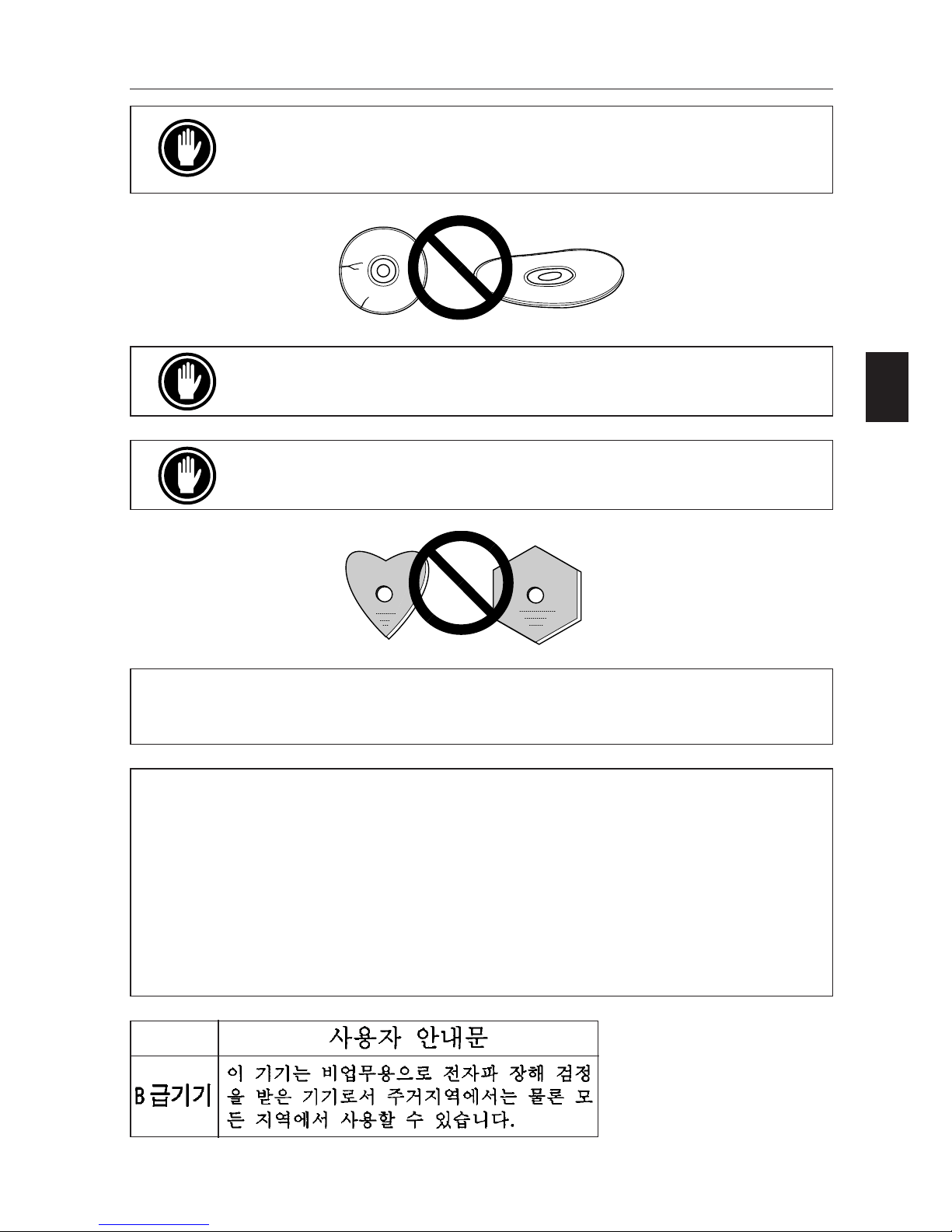

DO NOT use non-standard discs, as these may adversely influence

this unit and other equipment.

DO NOT use damaged,cracked, or warped discs. If they break inside

the unit, they may damage the optics. Discs rotate at high speed in-

side the changing mechanism.

DO NOT play a CD having other shape than a circular disc, such as

heart shaped disc. Otherwise malfunction may occur.

FEDERAL COMMUNICATIONS COMMISSION

DECLARATION OF CONFORMITY

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

Product Name: CD-ROM DRIVE UNIT

Model Number: DR-A14S

Responsible Party Name: PIONEER ELECTRONICS SERVICE, INC.

Address: 1925 E. DOMINGUEZ ST. LONG BEACH, CA 90810 U.S.A.

Phone: (310) 952-2359

FEATURES

÷High-speed reading

Transfer rate (sustained):

2,100 kBytes/sec. – 5,400 kBytes/sec. (CAV 36X max)

÷High-speed access

Random average: 70 ms

÷Low vibration mechanism

÷ATAPI correspondence

÷Buffer size: 128 kBytes

÷Applicable discs

CD-ROM Mode 1

CD-ROM XA Mode 2 (Form 1, 2)

CD-DA (Digital audio output)

CD Extra, Video CD, CD-I Ready and CD-XA Ready support

CD-RW disc reading

NOTES:

This product can read out CD-RW disc data. Note the following:

(1) A little longer time is needed to sense a CD-RW disc when the operation starts, compared

with normal CD-ROM discs.

(2) The read-out speed of CD-RW discs is usually 4 times higher than that of normal discs.

However, according to the quality of the disc or under extremely hot or cold conditions,

the player may reduce the speed of rotation of the disc during read-out. (Because the

reproduced signal level from CD-RW discs is lower than that of normal discs.)

(3) Blank discs, discs where you failed to write data or discs where session close processing

has not been made - these discs cannot be used.

(4) Theoperationsmaynotstartor the data may not be read out under the following conditions:

The quality of the recorded signal has deteriorated due to the dirt or scratches on the

disc, or frequently rewrote discs.

If you fail to start the operation, take out the disc and reinsert it to try again to start.

÷Correspondence to Kodak Photo CD (single and multisession)

÷Conforming to MPC-3 specifications

÷Half-height size

÷Slot in loading

÷Windows 95 and Windows 98 (Plug and Play) supported

*Windows is a trademark of Microsoft Corporation.

Precautions on plying CD singles (8 cm Discs)

(1) When playing CD singles (8 cm discs), always use the adapter for 8 cm discs. Before loading

the disc into the CD-ROM drive unit, be sure to check that it is secured properly by the

catches of the adapter. If discs have been inserted without the adapter by mistake, remove

the disc immediately by pressing the eject button. If the disc does not come out with one

press, press another time.

(2) Use 8 cm disc adapters labeled with the

mark (recommended standard product). Do

not use adapters which cause the disc to idle, nor adapters which are bent or curved.

A HARDWARE TOUR

1Disc loading slot

Insert the CD-ROM with the label facing up.

When using 8 cm discs, attach a CD adapter (available at stores) to the disc, and

insert the disc into the disc loading slot.

2Stop (7)/Eject (0) button

This button is used to eject the disc. When this button is pressed once during

playback of an audio disc, the playback will be stopped, and when it is pressed in

stopped condition, the disc will be ejected.

3Play (3)/Skip (¢) button

This is used for direct playback of audio discs. When an audio disc is inserted and

this button is pressed, play status will be reached, and when this button is pressed

in play status, the playback will skip to the next track. Data discs will not be played

back.

4BUSY indicator

This flashes during data access.

5Volume Control (headphone level)

This is used to adjust the volume level of the headphone jack.

6Headphone jack (PHONES)

This is a stereo minijack for headphones.

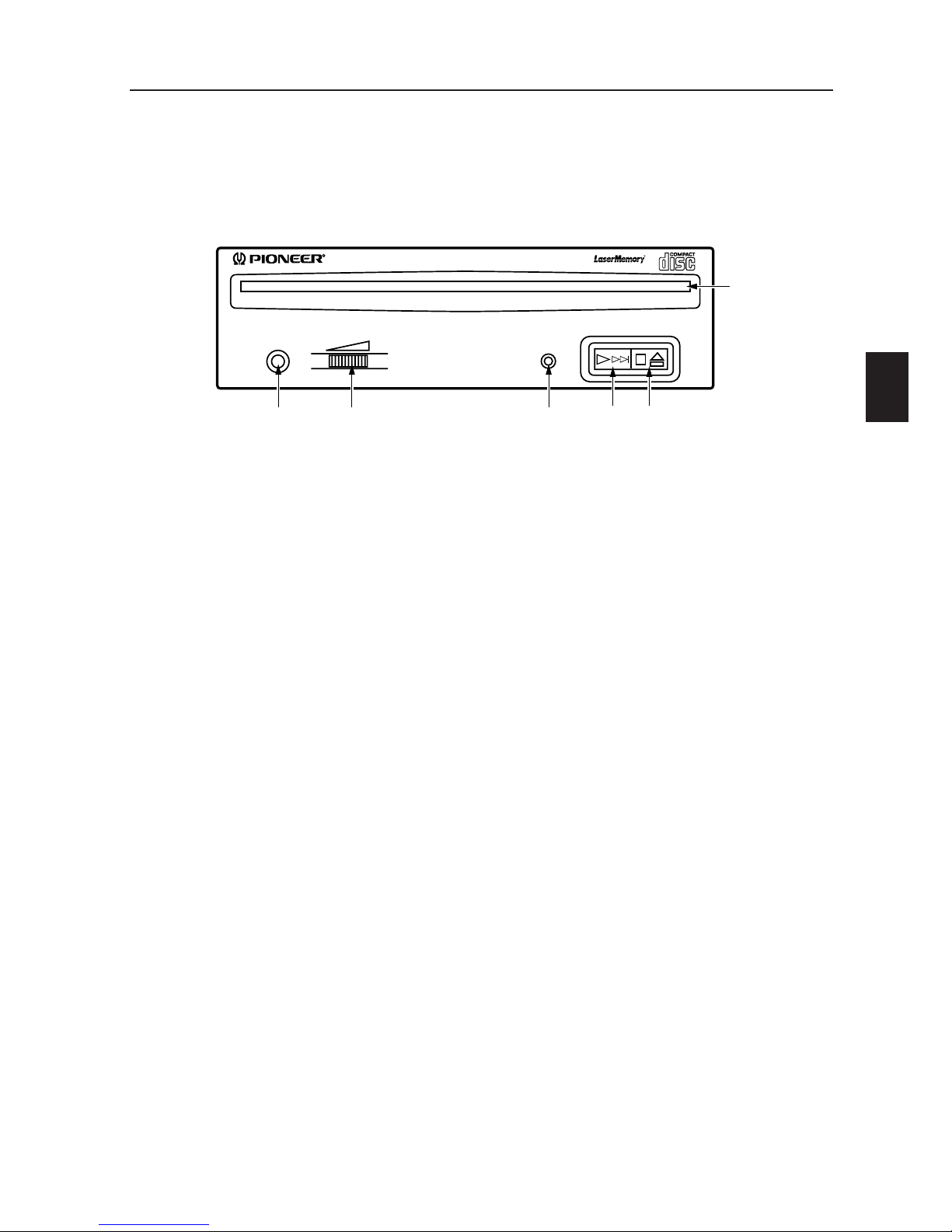

Fig. 1

Illustrations are provided in this chapter as a visual introduction to the Drive.

Please Familiarize yourself with these illustrations and refer to them when necessary

to complete the installation and operation of the unit.

BUSYPHONES

6 5 4

CD-ROM DRIVE

FRONT VIEW

7DC Input

This is the power supply input for DC +5 V and +12 V.

A HARDWARE TOUR

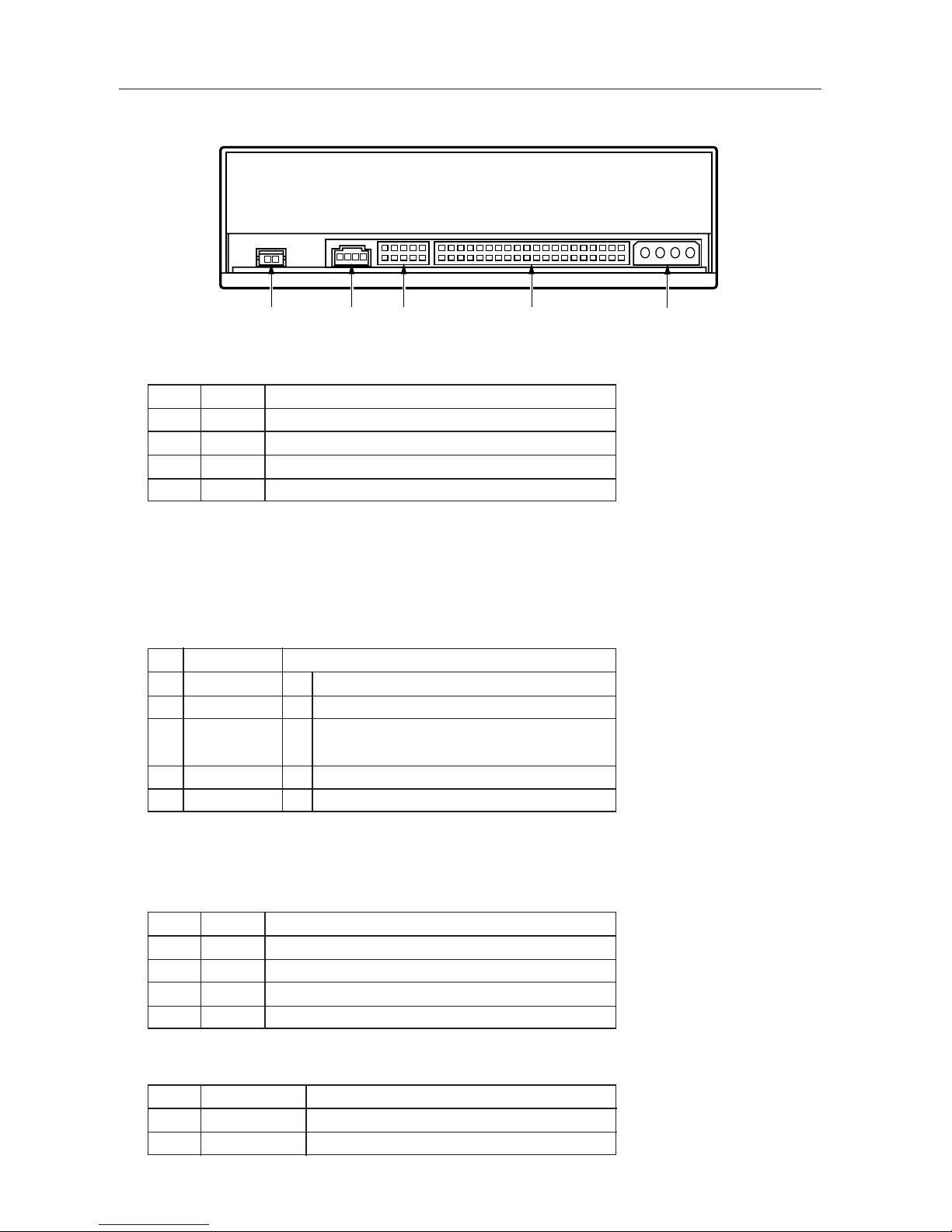

REAR VIEW

Fig. 2

401145

- 0 9 8 7

Pin Name Function

1 +12 Power supply input for DC +12 V.

2 G Ground.

3 G Ground.

4 +5 Power supply input for DC +5 V.

Pin Name Function

1 L Left channel audio output.

2 G Ground.

3 G Ground.

4 R Right channel audio output.

Pin Name Function

1 GND Ground.

2 Digital Out Digital audio signal output.

8Host IDE Interface

This is a 40 pin I/O connector according to the ATA specifications.

9Device Configuration Jumper

This is the jumper switch for selection of the drive use mode and supporting PC.

Short-circuit socket is attached for the setting

attached : on not attached : off

* Only MASTER is ON at the time of shipping from the plant.

0Audio Output

This is a connector for output of analog audio.

As a Molex 70553 type connecter is used, select a matching connection cable.

-Digital Audio Output

This is a connector for output of digital audio signal.

Pin Name Function

1 MASTER* on The drive is used in master mode.

2 SLAVE on The drive is used in slave mode.

3 CABLE on Mode for drive setting by CABLE

SELECT SELECT of the IDE interface.

4 Reserved.

5 Reserved.

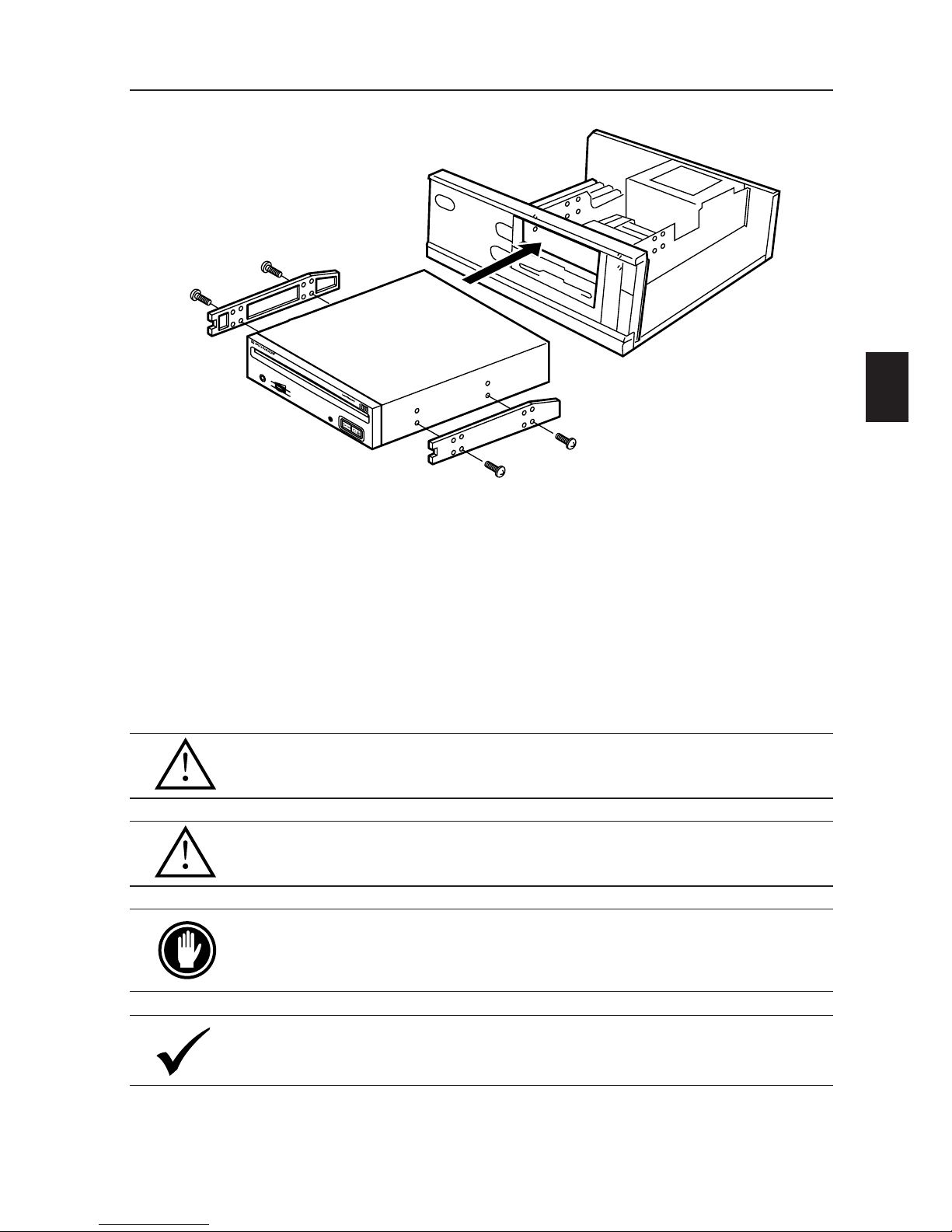

TO INSTALL THE DRIVE

÷Switch off the power of the personal computer and remove the cover or the front

panel.

÷Remove the blank panel installed at the front of the 5.25 inch slot.

Installation is not possible when there is no empty slot.

÷Install the fixation slide rails on the drive. (If slide rails are required, contact the

shop where you bought the computer or the computer manufacturer.)

÷Insert the drive into the slot.

÷Iffixing is required,fixthedriveaccordingto the instruction manual for the computer.

Fig. 3

BUSY

PHONES

CD-ROM DRIVE

Use mounting screws with a length of 5 mm (3/16 in.) or less.

Use of long screws may damage the drive.

Install the drive after the power supply of the personal computer has

been switched off.

When the mounting screws are loose etc., the vibrations from disc

rotation can generate a ripping noise, so that the screws should be

tightened securely.

The drive installation method differs according to the computer type.

For details, please refer to the manuals of your computer.

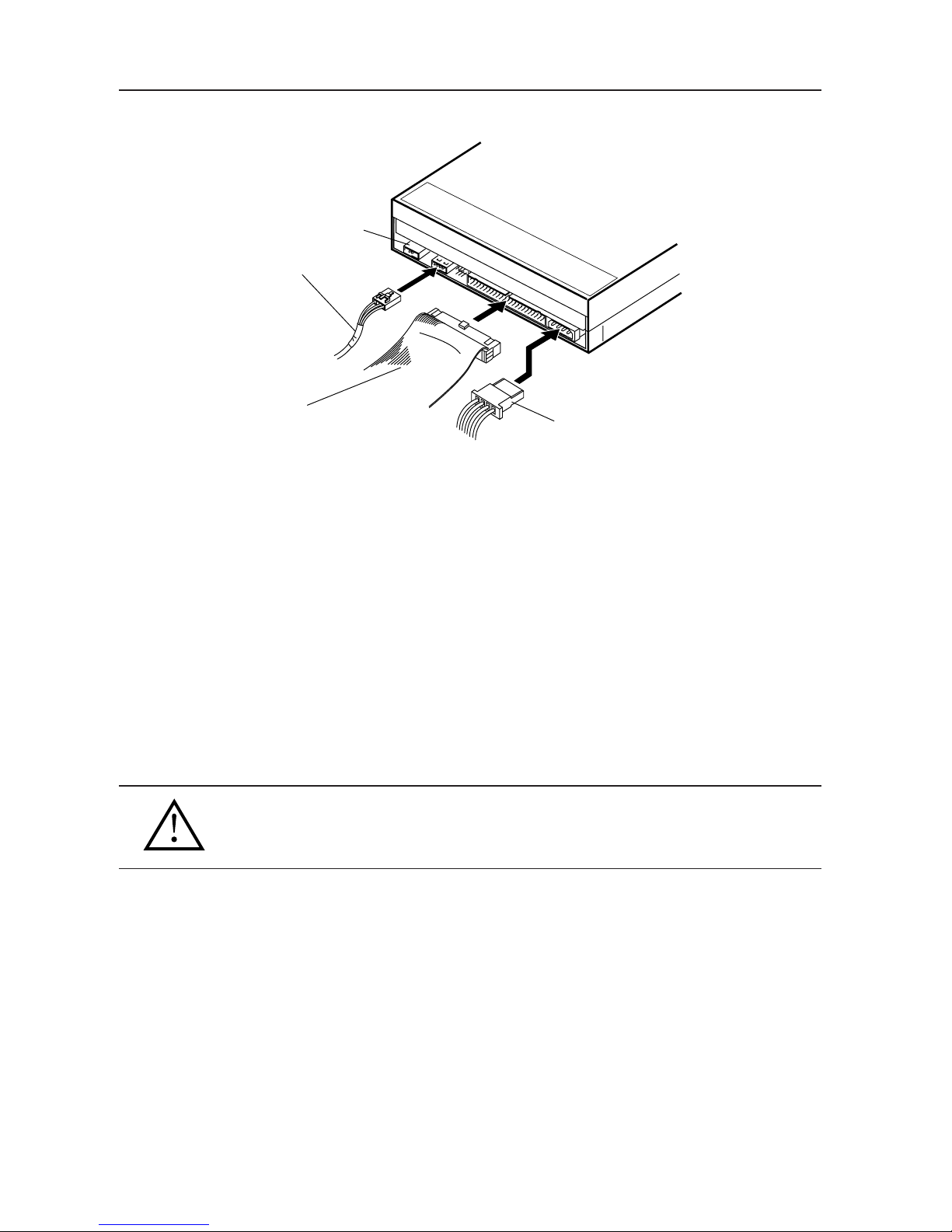

CONNECTION

÷Switch off the power supply of the personal computer.

÷Connect the power supply cable from the personal computer. At the time of

connection, please pay attention to the cable polarity.

÷Connect the IDE interface cable. At this time, confirm that the pin 1 of the IDE

connector is connected correctly to pin 1 of the cable.

÷When a sound board is used, connect the audio output with an audio cable to the

sound board.

IDE Interface cable Power cable

Audio Cable

Fig. 4

Pin 1

Digital Audio Output

WARNING

The power supply of the personal computer always must be switched

off before cables are connected.

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Pioneer Unità CD/CDR

Pioneer

Pioneer BDR-212DBK Manuale utente

Pioneer

Pioneer DR-506S Manuale utente

Pioneer

Pioneer BDR-XD05 Manuale utente

Pioneer

Pioneer BDR-XD05S Manuale utente

Pioneer

Pioneer LaserMemory DR-744 Manuale utente

Pioneer

Pioneer DR-U104X Manuale utente

Pioneer

Pioneer DR-706S Manuale utente

Pioneer

Pioneer DVR-S201 Manuale utente

Pioneer

Pioneer DVD-106S Manuale utente

Pioneer

Pioneer BDR-XS07TUHD Manuale utente

Pioneer

Pioneer DRM-UF701 Manuale utente

Pioneer

Pioneer BDR-212UBK Manuale utente

Pioneer

Pioneer BDR-XD08B Manuale utente

Pioneer

Pioneer DE-UH9101 Manuale utente

Pioneer

Pioneer DVR-SK12D Manuale utente

Pioneer

Pioneer BDR-212V Manuale utente

Pioneer

Pioneer DR-R102 Manuale utente

Pioneer

Pioneer DRM-600 Manuale utente

Pioneer

Pioneer DVR-112 Manuale utente

Pioneer

Pioneer BDR-208EBK Manuale utente

Pioneer

Pioneer DVR-111D Manuale utente

Pioneer

Pioneer DVR-216D Manuale utente

Pioneer

Pioneer BDR-S12UHT Manuale utente

Pioneer

Pioneer LaserMemory DR-U16S Manuale utente

Manuali Unità CD/CDR popolari di altre marche

Philips

Philips CDD3610 Manuale utente

QPS

QPS Que!Fire Manuale utente

LG GCC-4241N Manuale utente

Plextor

Plextor 12X-3 Guida

Samsung

Samsung SN-324B Manuale utente

Teac

Teac CD-211E Manuale utente

SmartDisk

SmartDisk Firewire CD-R/W Manuale utente

Axis

Axis CD-ROM SERVER Manuale utente

LG CRD-8322B Manuale utente

Memorex

Memorex 32023234 - 52x32x52x External USB2.0 CD... Istruzioni per l'installazione

Yamaha

Yamaha CD Recordable/Rewritable Drive CRW3200 Manuale utente

Sony

Sony CRX230AE Manuale utente

Sony

Sony CRX - 160E Manuale utente

Panasonic

Panasonic KX-LD742 Manuale utente

Panasonic

Panasonic LK-MC606BP Manuale utente

Panasonic

Panasonic CF-VCW Series Manuale utente

LG CRD-8320B Manuale utente

Conner

Conner CFP2107 Series Manuale utente
