Planar PX23MW Manuale utente

The information contained in this document is subject to change without notice.

This document contains proprietary information that is protected by copyright. All rights

are reserved. No part of this document may be reproduced, translated to another lan-

guage or stored in a retrieval system, or transmitted by any means, electronic,

mechanical, photocopying, recording, or otherwise, without prior written permission.

Windows is a registered trademark of Microsoft, Inc.

Other brand or product names are trademarks of their respective holders.

Important Recycle Instruction:

LCD Lamp(s) inside this product contain mercury. This product may contain

other electronic waste that can be hazardous if not disposed of properly. Recycle or

dispose in accordance with local, state, or federal Laws. For more information,

contact the Electronic Industries Alliance at WWW.EIAE.ORG. For lamp specific

disposal information check WWW.LAMPRECYCLE.ORG.

Usage Notice

Precautions ................................................................................. 2

Introduction

About the Product ....................................................................... 3

Package Overview...................................................................... 4

Installation

Product Overview........................................................................ 5

Start Your Installation..................................................................8

User Controls

Front Panel Controls...................................................................10

How to Use the OSD Menus.......................................................11

On-Screen Display Menus..........................................................12

Appendices

Troubleshooting...........................................................................14

Warning Signal............................................................................15

Product Dimensions....................................................................16

Compatibility Modes...................................................................17

Table of Contents

Usage Notice

Warning- To prevent the risk of fire or shock hazards, do not

expose this product to rain or moisture.

Warning- Please do not open or disassemble the product as this

may cause electric shock.

Precautions

Follow all warnings, precautions and maintenance as recommended

in this users manual to maximize the life of your unit.

Do:

qTurn off the product before cleaning.

qUse only a dry soft cloth or clean room wiper when cleaning the

LCD Display screen surface.

qUse a soft cloth moistened with mild detergent to clean the display

housing.

qUse only a high quality and safety approved AC/DC power adapter.

qDisconnect the power plug from the AC outlet if the product is not

going to be used for an extended period of time.

Don’t:

qDo not touch the LCD Display screen surface with sharp or hard

objects.

qDo not use abrasive cleaners, waxes or solvents for your cleaning.

qDo not operate the product under the following conditions:

- Extremely hot, cold or humid environment.

- Areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

- Place in direct sunlight.

Introduction

About the Product

liquid crystal display (LCD), this product also demonstrate the following

outstanding features.

q1920 x 1200 high resolution

qWide Viewing Angle Technology

q30~ 95kHz horizontal scan

q60 ~ 85 Hz refresh rate

qHigh quality full screen re-scaling capability

qVESA DPMS power saving

qKensington lock capability

Having a 23.1 LCD dsiplay with an active matrix, thin-film transistor (TFT)

Analog and Digital dual signal input

Auto Adjustment capability

qInternal power adaptor

Built-in speaker for multimedia application

qComposite and S-Video signal input

qUSB port connectivity

23.1” diagonal screen size

PIP (Picture-in-Picture) and PAP (Picture-and-picture) capability

Multiple aspect ratio selection (Native,Full,Aspect,Panorama)

PowerCord

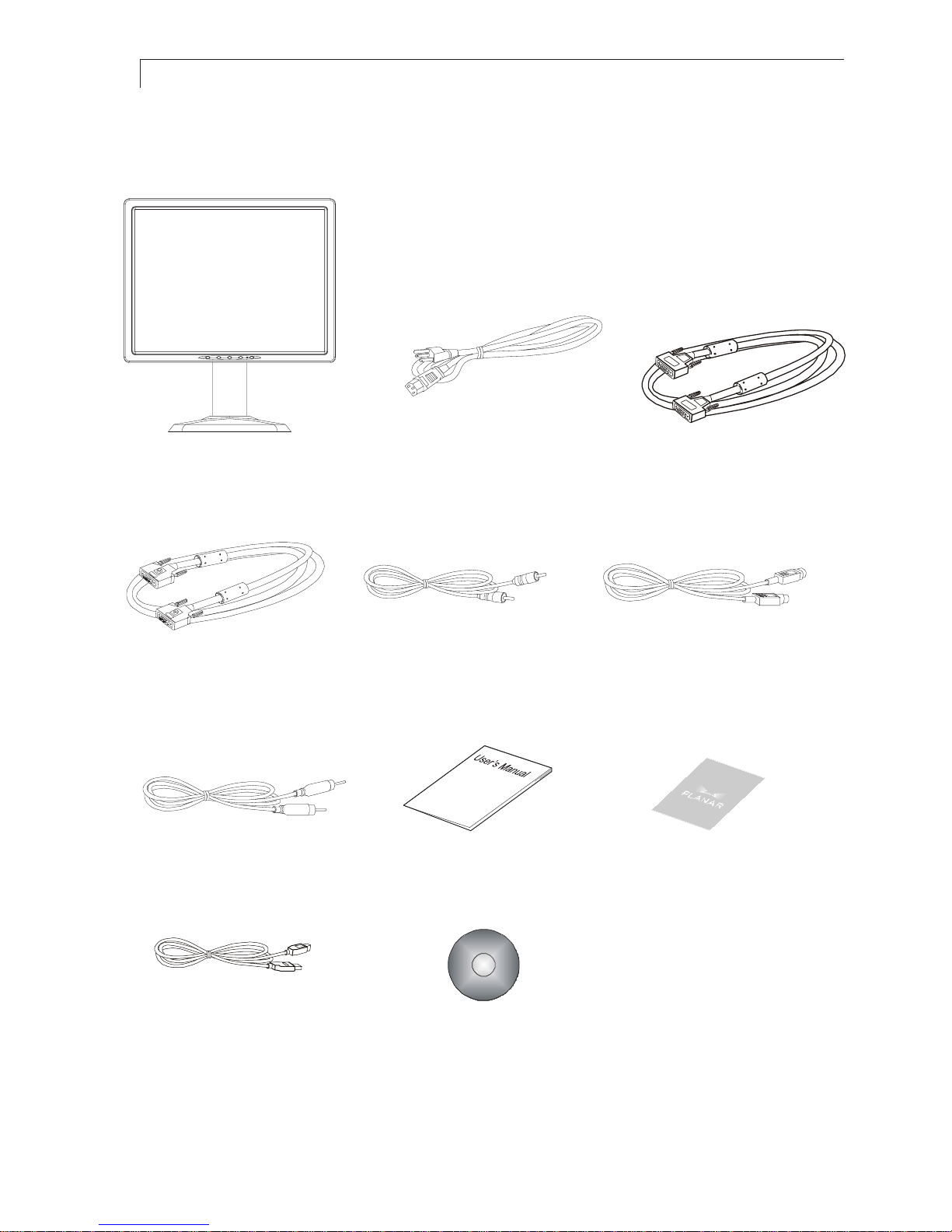

Package Overview

VGA Signal Cable

DVI-D Cable

Video Cable

S-VideoCable

LCDDisplay

Audio-InCable

User’s Guide Landing Strip

Family Product CD

USB Upstream Cable

Installation

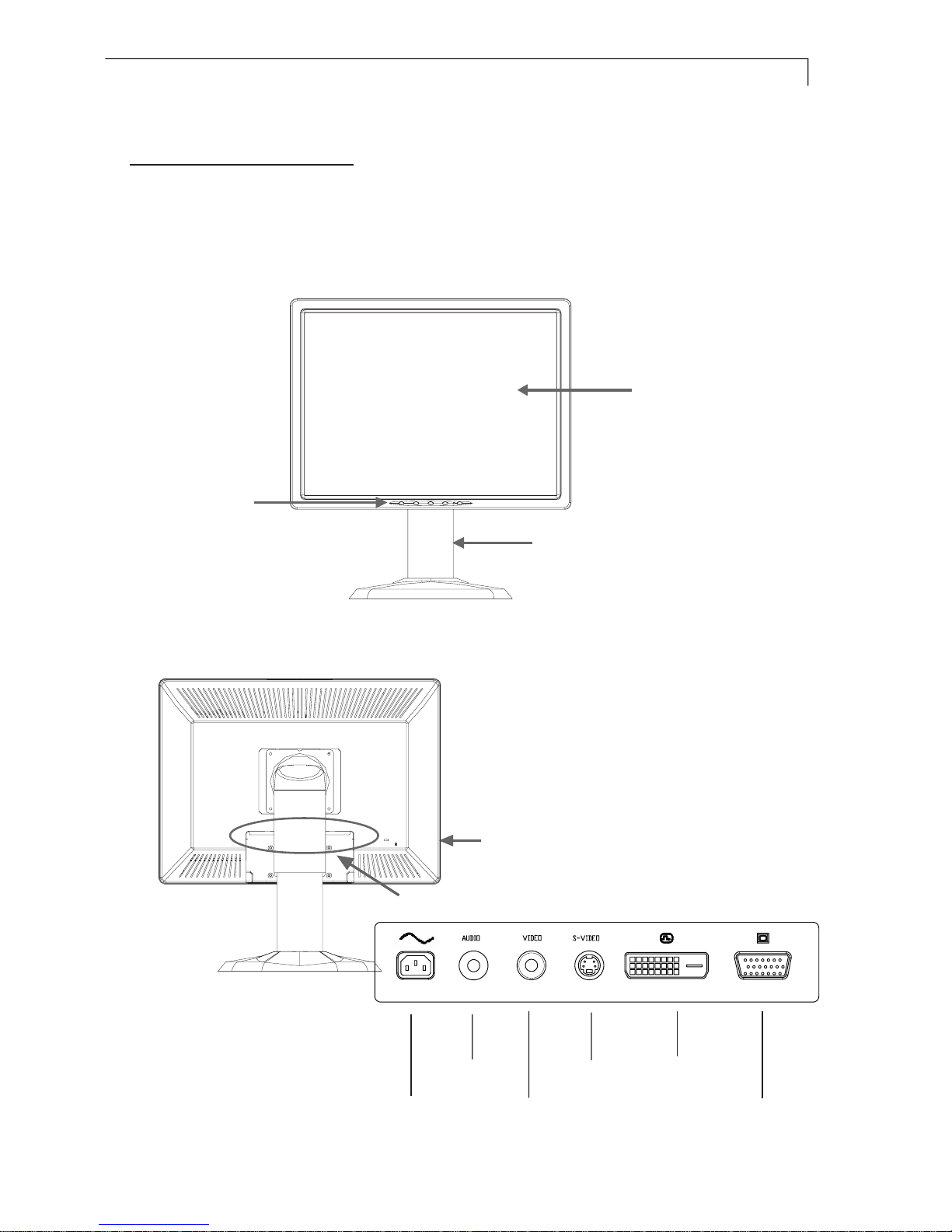

Product Overview

uFront View

Stand

Controls

uBack View

Connector Ports (Inside the back cover)

DVIInput

Port Analog

Input Port

Composite

Video

S-Video

Liquid Crystal Display

(LCDDisplay)

Audio

FrontPanel

USB Ports

AC-In

u Kensington Security Slot

The monitor can be secured to your desk or any other fixed object with

Kensington lock security products. Kensington lock is not included.

Kensington Security Slot

uTilt

Grasp the LCD Display with both hands and adjust the tilt as desired.

Tilt Angle:-5°~ 20°
