Planet Networking & Communication IPX-2000 Manuale utente

Internet Telephony PBX System

IPX-2000

Quick Installation Guide

Overview

PLANET IPX-2000 is the next generation voice communication platform for the small

to medium enterprise. Designed as an open, scalable, and highly reliable telephony

solution, the IPX-2000 is able to accept 200 extension registrations, and effectively

scales from under 100 users to as many as 200 in a standard rack-mountable unit.

Designed to run on a variety of VoIP applications, IPX-2000 provides centralized

call control, auto-attendant, voice conferencing, PSTN access, digital and IP-based

communications. IPX-2000 integrates up to 8 calls via the IPX- FXO (Foreign

eXchange Ofce, FXO) module to become a feature-rich PBX system that supports

seamless communications between existing PSTN calls, analog, IP phones and SIP-

based endpoints.

IPX-2000 integrates telephony call processing, call control, voice mail, and a widely

PBX application programming interface into a highly scalable architecture designed

to support both traditional circuit-based and the Internet telephony service within a

distributed enterprise communications network.

With IPX-2000, standard SIP phones can be easily integrated in your ofce; plus

the auto-cong feature, you may integrate our IP phone VIP-254T/VIP-254PT,

and the analog telephone adapter – VIP-156/VIP-157 series to build up the VoIP

network deployment in minutes.

Allowing distributed IP technology to meet traditional voice services, with proactive

management interface, the IPX-2000 in the daily business processes, enterprises

can make people more productive, more intelligent tasks, and more customer

satisfaction

Table of Contents

Preparation before beginning administration on IP PBX System............................ 5

Physical Interfaces...................................................................................... 5

Administration Interface .............................................................................. 5

Web conguration access ..................................................................... 5

LAN/WAN Interface quick congurations ................................................ 6

WAN IP address conguration via web interface ..................................... 7

IP PBX Basic operation guideline ....................................................................... 9

Adding PSTN to IPX-2000..................................................................... 9

Quick reference in CD-ROM guide ....................................................................12

Document Objectives

This guide provides physical installation, network congurations, and Internet

access establishment information for the IP PBX System.

Document Organization

This guide is organized as follows:

• Preparation before beginning administration on IPX-2000

• Administration interface

• Network Interface quick congurations

• Internet access setup guide

Preparation before beginning administration on IP

PBX System

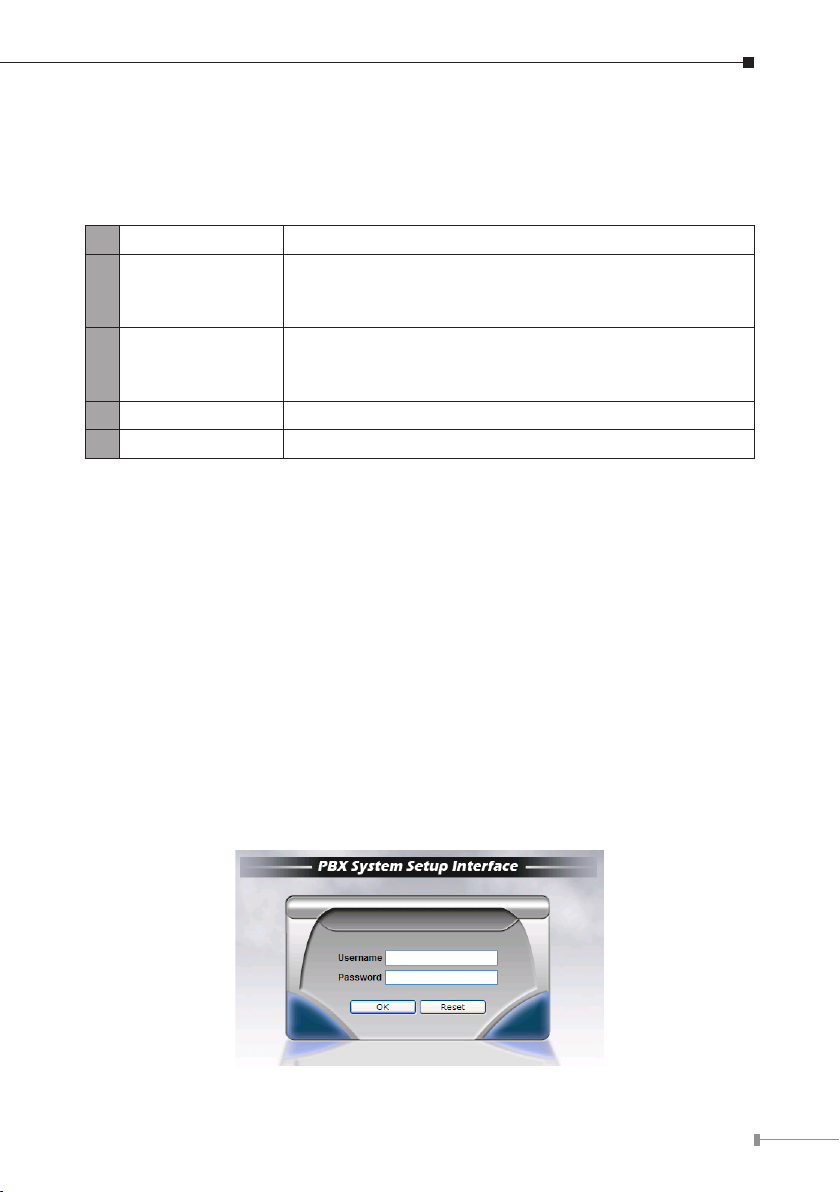

Physical Interfaces

1AC Power AC 100-240V, 50-60 Hz

2Telephony

interface ports

4 ports per module, numbered from right to the left.

The rightmost port at slot A is port 1 and the leftmost

port at slot B (if installed) is port 8.

3USB ports

2 external ports with compliance to USB 1.1/2.0. Plug

in a USB hard drive for voicemail backup from the

internal one

4WAN Connect to a broadband modem or a WAN router

5LAN Connect to a LAN switch

Administration Interface

The IP PBX provides GUI (Web based, Graphical User Interface) for machine

management and administration.

Web conguration access

To start IP PBX web conguration, you must have one of these web browsers

installed on computer for management

• Microsoft Internet Explorer 6.0 or higher with Java support

Default LAN IP address of IP PBX is 192.168.1.1. You may now open your web

browser, and insert https://192.168.1.1 in the address bar of your web browser

to logon IP PBX web conguration page.

IPX-2000 will prompt for logon username/password, please enter: admin / admin

to continue machine administration.

Note

The IPX-2000 supports HTTPs secure web session. Machine

operators or system administrator may login machine via secure

web connection for machine administration.

Format: https://WAN IP address of IP PBX

Note

In order to connect machine for administration, please locate your

PC in the same network segment (192.168.1.x) of IPX-2000. If

you’re not familiar with TCP/IP, please refer to related chapter on

user’s manual CD or consult your network administrator for proper

network configurations.

LAN/WAN Interface quick congurations

Nature of PLANET IPX-2000 is an IP Sharing (NAT) device, it comes with two

default IP addresses, and default LAN side IP address is “192.168.1.1”, default

WAN side IP address is “192.168.0.1”. You may use any PC to connect to the

LAN port of IPX-2000 to start machine administration.

Hint

In general cases, the LAN IP address is the default VoIP router

of LAN side workstations for Internet access, and the WAN IP of

IPX-2000 are the IP address for remote calling party to connect

with.

Execute your web browser, and insert the IP address (default:

https://192.168.1.1) of IP PBX in the adddress bar. After logging on machine

with username/password (default: admin / admin), browse to “System” -->

“LAN setup” conguration menu:

Parameter Description

IP address LAN IP address of the IP PBX

Default: 192.168.1.1

Mask LAN mask of the IP PBX

Default: 255.255.255.0

After conrming the modication you’ve done, Please click on the Save button to

apply settings and browse to “IP PBX service” page in “Service” menu to click

the “Reload” button to make the settings effective

Hint

It is suggested to keep the DHCP server related parameters in

default state to keep machine in best performance.

WAN IP address conguration via web interface

Execute your web browser, and insert the IP address https://192.168.0.1

(default: 192.168.0.1) of IP PBX in the adddress bar. After logging on machine

username/password (default: admin / admin), browse to “System” conguration

menu and select “WAN setup” option, you will see the conguration screen

below:

Parameter Description

IP address WAN IP address of IPX-2000

Default: 192.168.0.1

Subnet Mask WAN mask of IPX-2000

Default: 255.255.255.0

Connection Type Data required

DHCP In most circumstances, it is no need to congure the

DHCP settings

PPPoE The ISP will assign PPPoE username / password for

Internet access

STATIC IP The ISP will assign IP Address, and related information.

After conrming the modication you’ve done, Please click on the Save button to

apply settings and browse to “IP PBX service” page in “Service” menu to click

the “Reload” button to make the settings effective.

Hint

Please contact your Internet service provider to obtain the Internet

access type, and select the proper network settings in IPX-2000 to

establish the network connections.

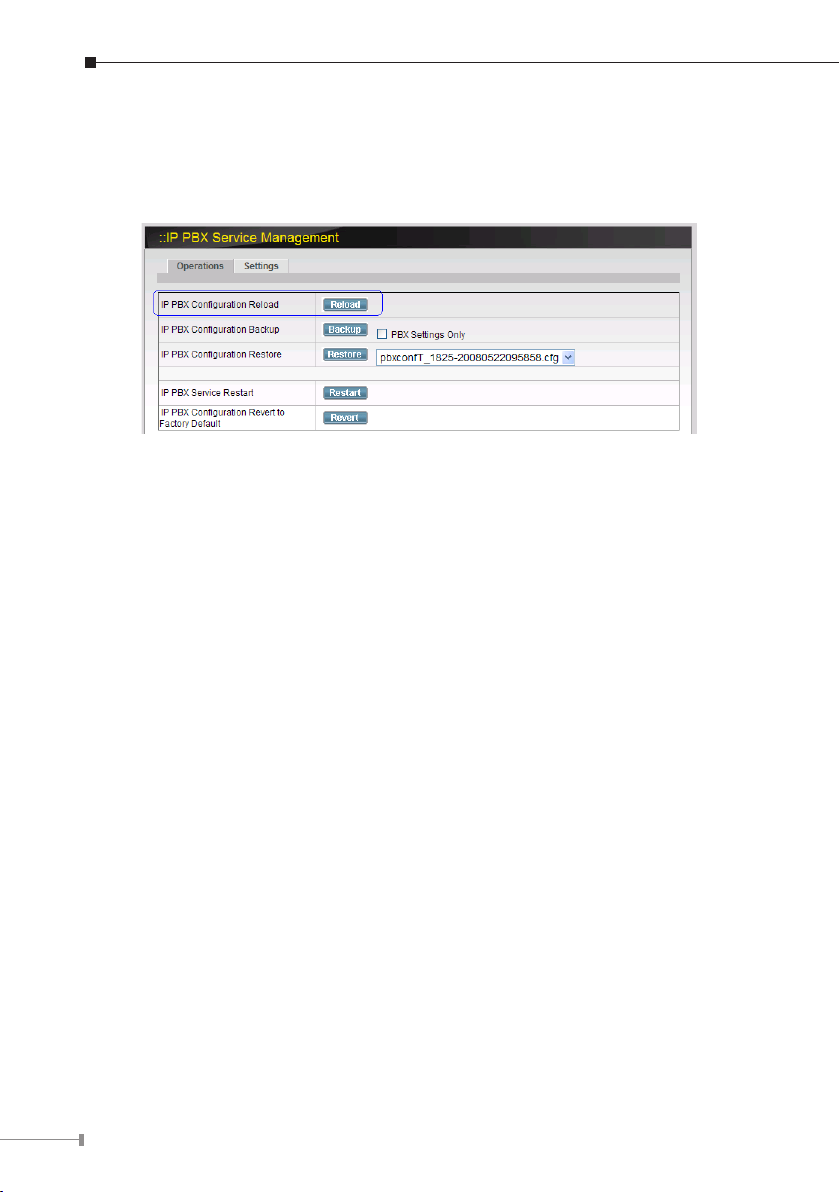

Save Change to reload congurations

After modifying the IP PBX parameters, the changes are temporary stored in

machine memory,. Please be sure to activate the modications via reloading the

machine congurations.

Operation path: Service ---> IP PBX service

IP PBX Basic operation guideline

Adding PSTN to IPX-2000

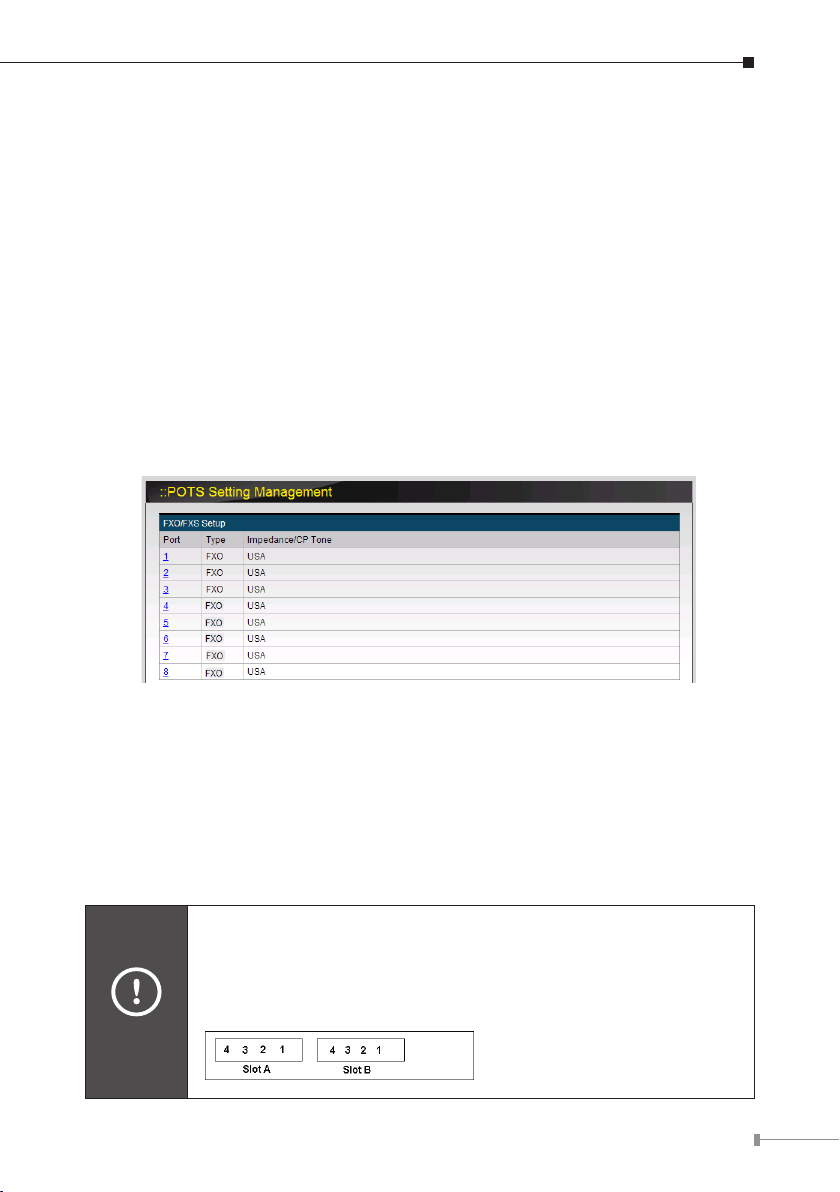

When inserting or removing the IPX-2000 FXO Module (IPX-FXO), please follow

these operation procedure to ensure the system operating properly.

• Install the FXO module securely into machine.

• Login the GUI as administrator.

• Enter FXO Setup page. (Trunk ™POTS Setup)

• Select the proper Country Setting for each port.

• Press APPLY to save the change.

• Enter IP PBX Service page. (Service ™IP PBX service)

• Press Restart to restart IP PBX service.

After the PSTN physical installation, please browse to “Analog PSTN trunk”

page in “Trunk” menu, and refer to the following conguration steps for more

understandings:

a) Press <Add new> button from the left panel to add a new PSTN trunk.

b) Insert ID number of this PTSN “Trunk group (1~31)” and FXO port indices

grouped by this PTSN “Trunk ports” in the eld for management the PSTN

trunk.

Hint

• Maximum port index depends on the number of physical ports

available. Such as 1 or 1,2 or 1-4.

• Please make sure the FXO module is connected properly; the

sequence from left to right: Slot A -> Slot B; Port 4 ™Port 3 ™

Port 2 ™Port 1
