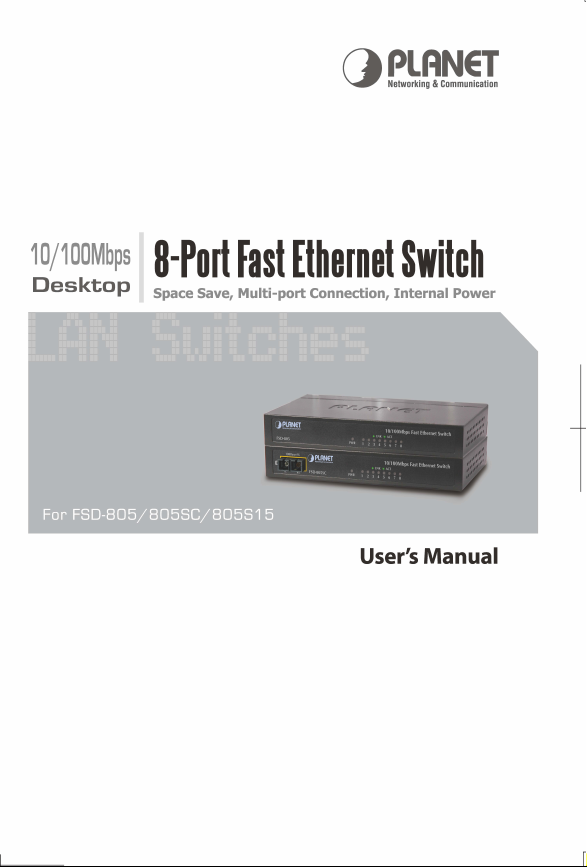

Planet FSD-805 Manuale utente

10/100Mbps

Fast Ethernet Switch

FSD-805 / FSD-805SC / FSD-805S15

User's Manual

Trademarks

Contents subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp.

All other trademarks belong to their respective owners.

Disclaimer

PLANET Technology does not warrant that the hardware will

work properly in all environments and applications, and makes

no warranty and representation, either implied or expressed,

with respect to the quality, performance, merchantability, or

tness for a particular purpose.

PLANET has made every effort to ensure that this User’s Manual

is accurate; PLANET disclaims liability for any inaccuracies or

omissions that may have occurred.

Information in this User’s Manual is subject to change without

notice and does not represent a commitment on the part of

PLANET. PLANET assumes no responsibility for any inaccuracies

that may be contained in this User’s Manual. PLANET makes no

commitment to update or keep current the information in this

User’s Manual, and reserves the right to make improvements

to this User’s Manual and/or to the products described in this

User’s Manual, at any time without notice.

If you nd information in this manual that is incorrect,

misleading, or incomplete, we would appreciate your comments

and suggestions.

FCC Warning

This equipment has been tested and found to comply with the

limits for a Class A digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated

in a commercial environment. This equipment generates, uses,

and can radiate radio frequency energy and, if not installed and

used in accordance with the Instruction manual, may cause

harmful interference to radio communications. Operation of

this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct

the interference at his own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this

product may cause radio interference, in which case the user

may be required to take adequate measures.

WEEE Warning

To avoid the potential effects on the environment and

human health as a result of the presence of

hazardous substances in electrical and electronic

equipment, end users of electrical and electronic

equipment should understand the meaning of the crossed-out

wheeled bin symbol. Do not dispose of WEEE as unsorted

municipal waste and have to collect such WEEE separately.

Revision

PLANET 8-Port 10/100Mbps Fast Ethernet Switch User's Manual

For Models: FSD-805 / FSD-805SC / FSD-805S15

Revision: 1.0 (May, 2008)

Part No: EM_FSD805v1.0 (2350-A31150-000)

TABLE OF CONTENTS

1. INTRODUCTION................................................................ 6

1.1 Package Contents ....................................................... 6

1.2 How to Use This Manual .............................................6

1.3 Product Features.........................................................7

1.4 Product Specications.................................................. 8

2. INSTALLATION.................................................................. 9

2.1 Product Description ..................................................... 9

2.1.1 Product Overview............................................. 10

2.1.2 Switch Front Panel ........................................... 10

2.1.3 LED Indicators ................................................. 11

2.1.4 Switch Rear Panel ............................................ 11

2.2 Installing the Switch ................................................. 11

2.2.1 Desktop Installation ......................................... 12

3. Switch Operation ............................................................ 14

3.1 Address Table ........................................................... 14

3.2 Learning .................................................................. 14

3.3 Forwarding & Filtering ............................................... 14

3.4 Store-and-Forward .................................................... 15

3.5 Auto-Negotiation....................................................... 15

4. TROUBLESHOOTING........................................................ 17

APPENDIX A: NETWORKING CONNECTION............................ 18

A.1 Switch's RJ-45 Pin Assignments ................................. 18

A.2 RJ-45 cable Pin Assignments ..................................... 18

A.3 Fiber Optical Cable Connection Parameter ................... 19

1.INTRODUCTION

1.1 Package Contents

Check the contents of your package for following parts:

● Fast Ethernet Switch x 1

● User's manual x 1

● Power cord x 1

● Rubber feet x 4

If any of these are missing or damaged, please contact your

dealer immediately, if possible, retain the carton including the

original packing material, and use them against to repack the

product in case there is a need to return it to us for repair.

1.2 How to Use This Manual

This Fast Ethernet Switch User Manual is structured as follows:

Chapter 2 Installation

The chapter explains the feature, functionality and the physical

installation of the Switch.

Chapter 3 Switch operation

The chapter explains the Fast Ethernet Switch transmit

operation.

Chapter 4 Troubleshooting

The chapter explains the troubleshooting of the Fast Ethernet

Switch.

Appendix A

This chapter contains cable information of the Fast Ethernet

Switch.

1.3 Product Features

● Complies with the IEEE 802.3 Ethernet and IEEE 802.3u Fast

Ethernet standard

● Features Store-and-Forward mode with wire-speed ltering

and forwarding rates

● Support 2K MAC address table

● Support to handle up to 1522 bytes packet size

● LED indicators for simple diagnostics and management

● Hardware based 10/100Mbps auto-negotiation

● Full / Half-Duplex capability on every TX ports, total band-

width is up to 200Mbps per port

● IEEE 802.3x PAUSE frame ow control for full duplex opera-

tion

● Backpressure ow control for half duplex operation

● One shared 100Base-FX interface for up to 2km (multi-mode

ber 50µm/125µm) on FSD-805SC

● One shared 100Base-FX interface for up to 15km (single-

mode ber 9µm/125µm) on FSD-805S15

● Automatic source address learning and aging

● Internal power adapter 100-240V AC, 50/60Hz, 0.2A

● FCC, CE class A compliant

1.4 Product Specications

Product FSD-805 FSD-805SC FSD-805S15

Hardware Specication

10/100Base-TX Ports 8 8 8

100Base-FX SC Port - 1 1

Dimensions (W x D x H) 191 mm x 85 mm x 26 mm

Weight 325g

Power Requirement Internal power 100-240V AC, 50/60Hz, 0.2A

Power Consumption / Dissipation 4.3 watts / 14.6 BTU

Switch Specication

Switch Processing Scheme Store-and-Forward

Address Table 2K entries

Share data Buffer 1Mbit on-chip frame buffer

Flow Control Back pressure for half duplex, IEEE 802.3x Pause

Frame for full duplex

Switch fabric 1.6Gbps

Throughput (packet per second) 11.9Mpps

Network cables

10/100Base-TX:

2-Pair UTP Cat. 3, 4, 5 (100meters, max.)

EIA/TIA-568 100-ohm STP (100meters, max.)

100Base-FX:

Multi-mode optic ber 62.5/125μm, 50/125μm (FSD-

805SC. 2km, max.)

Single-mode optic ber 9/125μm (FSD-805S15.

15km, max.)

Standards Conformance

Standards Compliance

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3x Full-duplex ow control

Temperature Operating: 0~50 degree C

Storage: -40~70 degree C

Humidity Operating Operating: 5% to 90%, Storage: 5% to 90% (Non-

condensing)

Regulation Compliance FCC Part 15 Class A, CE

2.INSTALLATION

This section describes the functionalities of the Fast Ethernet

Switch’s components and guides how to install it on the desktop.

Basic knowledge of networking is assumed. Please read this

chapter completely before continuing.

In the following section, the term “Switch” means the three

Switches, i.e. FSD-805, FSD-805SC and FSD-805S15; term of

“switch” can be any third part switches.

2.1 Product Description

The PLANET FSD-805 / FSD-805SC and FSD-805S15 are

10/100Mbps Fast Ethernet Switches in a compact housing for

easily desktop placement. With 8 ports respectively and it’s

Auto-negotiation capability, all the RJ-45 ports can be congured

to speeds of 10/20Mbps or 100/200Mbps automatically; With

increasing bandwidth requirements for local area networks,

the Switch provide non-blocking wire-speed performance

and 1.6Gbps internal switching fabric, it is the ideal option

to alleviate bottlenecks in client/ server and peer-to-peer

environments in a cost-effective way.

The FSD-805SC and FDS-805S15 provide one shared 100Base-

FX port with port 1, TP / Fiber port Selection through the DIP

switch.

All RJ-45 copper interfaces support 10/100Mbps Auto-Negotiation

for optimal speed detection through RJ-45 Category 6, 5 or 5e

cables. Support is standard for Auto-MDI/MDI-X that can detect

the type of connection to any Ethernet device without requiring

special straight or crossover cables.

The Flow Control function allows your Fast Ethernet Switch

supported routers and servers to directly connect to this Switch

for fast, reliable data transfer.
