Planet SW-504 Manuale utente

10/100Mbps Desktop

Fast Ethernet Switch

SW-504 / SW-804

User's Manual

Trademarks

Content subjects to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp. All other

trademarks belong to their respective owners.

Disclaimer

PLANET Technology does not warrant that the hardware will work

properly in all environments and applications, and makes no warranty

and representation, either implied or expressed, with respect to

the quality, performance, merchantability, or tness for a particular

purpose.

PLANET has made every effort to ensure that this User’s Manual is

accurate; PLANET disclaims liability for any inaccuracies or omissions

that may have occurred.

Information in this User’s Manual is subject to change without notice

and does not represent a commitment on the part of PLANET. PLANET

assumes no responsibility for any inaccuracies that may be contained in

this User’s Manual. PLANET makes no commitment to update or keep

current the information in this User’s Manual, and reserves the right

to make improvements to this User’s Manual and/or to the products

described in this User’s Manual, at any time without notice.

If you nd information in this manual that is incorrect, misleading, or

incomplete, we would appreciate your comments and suggestions.

FCC Warning

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with

the Instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area

is likely to cause harmful interference in which case the user will be

required to correct the interference at its own expense.

CE Mark Warning

This is a Class B product. In a domestic environment, this product may

cause radio interference, in which case the user may be required to

take adequate measures.

WEEE Warning

To avoid the potential effects on the environment and human health

as a result of the presence of hazardous substances in electrical and

electronic equipment, end users of electrical and electronic equipment

should understand the meaning of the crossed-out wheeled bin symbol.

Do not dispose of WEEE as unsorted municipal waste and have to

collect such WEEE separately.

Revision

PLANET 5/8-Port Desktop Fast Ethernet Switch User's Manual

FOR MODELS: SW-504, SW-804

Rev: 1.0 (November. 2007)

Part No.: 2011-A33200-000

Table of Contents

1. INTRODUCTION ........................................................................ 5

1.1 Package Contents ............................................................... 5

1.2 How to Use This Manual ..................................................... 5

1.3 Product Features................................................................. 6

1.4 Product Specications ......................................................... 7

2. INSTALLATION .......................................................................... 8

2.1 Product Description ............................................................. 8

2.1.1 Product Overview ....................................................... 8

2.1.2 Switch Front Panel ..................................................... 9

2.1.3 LED Indicators ..........................................................10

2.2 Installing the Switch ..........................................................10

2.2.1 Desktop Installation...................................................11

3. SWITCH OPERATION.................................................................12

3.1 Address Table....................................................................12

3.2 Learning ...........................................................................12

3.3 Forwarding & Filtering ........................................................12

3.4 Store-and-Forward .............................................................12

3.5 Auto-Negotiation................................................................13

4. TROUBLESHOOTING .................................................................14

Appendix A ...................................................................................15

A.1 Switch’s RJ-45 Pin Assignments ..........................................15

A.2 RJ-45 Plug, Jack pin out.....................................................15

1. INTRODUCTION

1.1 Package Contents

Check the contents of your package for following parts:

● Desktop Fast Ethernet Switch x 1

● User’s manual x 1

● Power adapter x 1

If any of these are missing or damaged, please contact your dealer

immediately, if possible, retain the carton including the original packing

material, and use them against to repack the product in case there is a

need to return it to us for repair.

1.2 How to Use This Manual

This Desktop Fast Ethernet Switch User Manual is structured as follows:

Chapter 2 Installation

The chapter explains the feature, functionality and the physical

installation of the Switch.

Chapter 3 Switch operation

The chapter explains the Switch transmit operation.

Chapter 4 Troubleshooting

The chapter explains the troubleshooting of the Switch.

Appendix A

This chapter contains cable information of the Switch.

In the following section, the term “Desktop Fast Ethernet Switch”

means the two Switch devices, ie. SW-504 and SW-804; term of

“switch” can be any third switches.

1.3 Product Features

● Comply with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX

● 5/8-Port 10/100Mbps Auto-Negotiation ports - 10/20Mbps (Half-

duplex), 100/200Mbps (Full-duplex) Auto-sensing

● Compact size design for wall mount or desktop placement

● High performance Store-and-Forward Switching Architecture

● Runt and CRC ltering

● Flow control (Back Pressure) supports in half-duplex mode

● 1K MAC Address Table, automatically learning and aging

● LED indicators array for easy diagnostic, troubleshooting

● Plug-and-Play Installation

● Auto-MDI/MDIX on each port

● FCC Part 15 Class B, CE

1.4 Product Specications

Model SW-504 SW-804

Hardware Specication

Network Ports 5 10/100Base-TX

RJ-45 MDI/MDI-X ports

8 10/100Base-TX RJ-45

MDI/MDI-X ports

Dimensions

(W x D x H) 184 x 110 x 30mm

Weight (KG) 0.17 KG

Power

Requirement External Power adapter DC 9V 700 mA

Switch Specication

Switch

Architecture Store-and-Forward

Address Table 1K entries, auto learning/ageing

Switch

Throughput 0.74Mpps 1.19Mpps

Switch Fabric 1Gbps 1.6Gbps

Shared Buffer 384K 768K

Flow Control IEEE 802.3x full duplex operating and ow control

Packet Control Runt & CRC ltering, Broadcast storm control

Standard Conformance

Network

Standards

IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet)

and IEEE 802.3x (ow control)

Operation

Temperature 0~50ºC (operating); -20~70ºC (storage)

Humidity 5% to 90% (Non-condensing)

Regulation

Compliance FCC Part Class B, CE

2. INSTALLATION

This section describes the functionalities of the Desktop Fast Ethernet

Switch’s components and guides how to install it on the desktop.

Basic knowledge of networking is assumed. Please read this chapter

completely before continuing.

2.1 Product Description

With concepts of “Easy to Install and use”, “Compact-sized

design”, and “Simple troubleshooting”, PLANET SW-504/SW-804

provides cost-conscious business and home users with the foundation

of an integrated system of small-ofce / home-ofce networking. The

SW-504/SW-804 is the fancy-shape plastic models and just right for

your network of 10 to 50 users.

The SW-504/SW-804 Desktop Fast Ethernet Switch is a Simple

and cost-effective, highly reliable network Switch. And it is the ideal

device for bridging Ethernet to Fast Ethernet workgroups or networks.

Therefore, the Switches will be the fast being recognized as one of the

most important building blocks for today networking technology.

To segment the network, ease the network trafc, the 5/8-Port

10/100Mbps are useful for the SOHO switched networks as the friendly

network backbone. Provides array LED indicators, the network status

can be monitored at a glance.

2.1.1 Product Overview

PLANET SW-504/SW-804 are Desktop Fast Ethernet Switches with

5/8 RJ-45 10/100Mbps ports for high-speed network connectivity. The

Switches can also automatically identify and determine the correct

transmission speed and half/full duplex mode of the attached devices

with its 5/8 ports.

This Desktop Fast Ethernet Switch also supports store-and-forward

forwarding scheme to ensure low latency and high data integrity,

eliminates unnecessary trafc and relieves congestion on critical

network paths. With an intelligent address recognition algorithm, the

switches could recognize up to 1K different MAC address and enables

ltering and forwarding at full wire speed.

2.1.2 Switch Front Panel

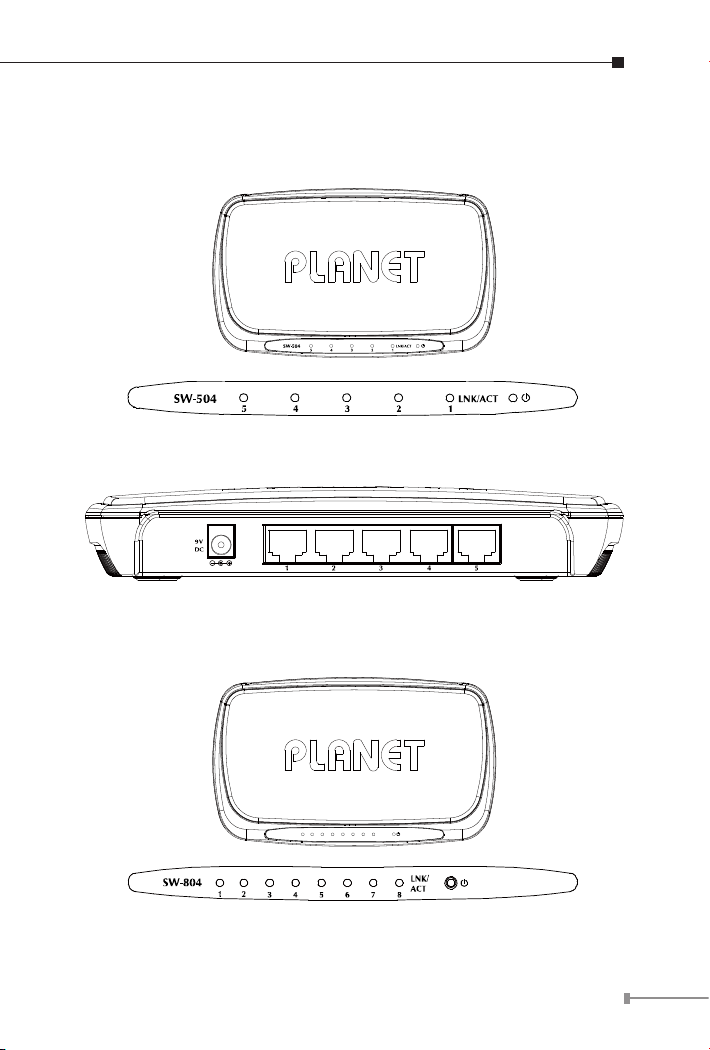

Figure 2-1 & 2-2 show the front panel and rear panel of SW-504

Figure 2-1 SW-504 front panel

Figure 2-2 SW-504 rear panel

Figure 2-3 & 2-4 show the front panel and rear panel of SW-804

1 2 3 5 64 87

SW -804

LN K/AC T

Figure 2-3 SW-804 front panel

Figure 2-4 SW-804 rear panel

2.1.3 LED Indicators

LED Color Function

PWR Green Lights to indicate that the Switch is powered

on.

LNK/ACT Green

Lit: indicate the link through that port is

successfully established.

Blink: indicate that the Switch is actively

sending or receiving data over that port.

Power Notice:

1. The device is a power-required device, it means, it will not work till

it is powered. If your networks should active all the time, please

consider using UPS (Uninterrupted Power Supply) for your device. It

will prevent you from network data loss or network downtime.

2. In some area, installing a surge suppression device may also help

to protect your Switch from being damaged by unregulated surge or

current to the Switch or the power adapter.

2.2 Installing the Switch

This part describes how to install your Desktop Fast Ethernet Switch

and make connections to it. Please read the following topics and

perform the procedures in the order being presented.

Note

This Switch does not need software configuration.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Planet Router di rete

Planet

Planet FGSD-1022VHP Manuale utente

Planet

Planet FGSW-2620VM Series Manuale utente

Planet

Planet ADE-3400v3 Manuale utente

Planet

Planet PL-501-EU Manuale utente

Planet

Planet IGS-5225-16T4S Manuale utente

Planet

Planet 802.11g Wireless Access Point / Bridge... Manuale utente

Planet

Planet ADW-4301A/B Manuale utente

Planet

Planet GS-4210-24P2S Manuale utente

Planet

Planet WDAP-C7210E Manuale utente

Planet

Planet GRT-402 Manuale utente

Planet

Planet GSW-1602SF Manuale utente

Planet

Planet XRT-101A Manuale utente

Planet

Planet GSW-2416 Manuale utente

Planet

Planet IRT-1001ST Manuale utente

Planet

Planet G.SHDSL.bis Bridge Router GRT-504 Manuale utente

Planet

Planet MGSW-28240F Manuale utente

Planet

Planet gsd-1002vhp Manuale utente

Planet

Planet VC-200S Manuale utente

Planet

Planet ADE-3410 Manuale utente

Planet

Planet SOHOConnect Series Manuale utente

Planet

Planet ADSL 2/2+ VPN Firewall Router ADE-4300A/B Manuale utente

Planet

Planet ADE-3100 Manuale utente

Planet

Planet XRT-811 Manuale utente

Planet

Planet FGSW-2620VM Series Manuale utente

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
