Planet GS-4210 SERIES Manuale utente

L2/L4 Managed Gigabit Ethernet Switch

GS-4210 Series

Quick Installation Guide

Table of Contents

1. Introduction ............................................................................................... 3

2. Package Contents ....................................................................................... 4

3. Requirements ............................................................................................. 5

4. Starting Web Management .......................................................................... 6

4.1 Logging in to the Managed Switch ........................................................ 6

 4.2 SavingCongurationviatheWeb ......................................................... 8

5. Terminal Setup ........................................................................................... 9

5.1 Logging on to Console ........................................................................10

 5.2 ConguringIPAddress........................................................................10

 5.3 SavingtheCongurationviatheConsole..............................................12

6. RecoveringBacktoDefaultConguration.....................................................13

7. Customer Support .....................................................................................15

1. Introduction

Thank you for purchasing PLANET L2/L4 Managed Gigabit Ethernet Switch. The

followingistheGS-4210series:

GS-4210-8P2S 8-Port10/100/1000T802.3atPoE+2-Port100/1000XSFP

Managed Switch (120W)

GS-4210-8P2T2S 8-Port10/100/1000T802.3atPoE+2-Port10/100/1000T

+2-Port100/1000XSFPManagedSwitch(240W)

GS-4210-16P4C 16-Port10/100/1000T802.3atPoE+4-PortGigabitTP/SFP

Combo Managed Switch (220W)

GS-4210-24P4C 24-Port10/100/1000T802.3atPoE+4-PortGigabitTP/SFP

Combo Managed Switch (220W)

GS-4210-24PL4C 24-Port10/100/1000T802.3atPoE+4-PortGigabitTP/SFP

Combo Managed Switch (440W)

GS-4210-48T4S 48-Port10/100/1000T+4-Port100/1000XSFPManaged

GigabitSwitch

GS-4210-48P4S 48-Port10/100/1000T802.3atPoE+4-Port100/1000X

SFPManagedSwitch(400W)

“Managed Switch” is used as an alternative name in this Quick Installation

Guide.

Open the box of the Managed Switch and carefully unpack it. The box should

containthefollowingitems:

2. Package Contents

Model Series GS-4210-

ModelName

Packaged Items

8P2S 8P2T2S 16P4C 24P4C/

24PL4C

48T4S/

48P4S

The Managed Switch     

QuickInstallationGuide     

RS232 to RJ45 Console

Cable - 

RubberFeet     

TwoRack-mountingBrackets

withAttachmentScrews     

Power Cord     

SFPDustCaps 2 2 4 4 4

If any item is found missing or damaged, please contact your local reseller for

replacement.

3. Requirements

zWorkstations running Windows 10/XP/2003/Vista/7/8/2008, MAC OS X or later,

Linux,UNIX,orotherplatformsarecompatiblewithTCP/IPprotocols.

zWorkstationsareinstalledwithEthernetNIC(NetworkInterfaceCard)

zSerial Port Connection (Terminal)

 The above Workstations come with COM Port (DB9) or USB-to-RS-232

converter.

The above Workstations have been installed with terminal emulator, such as

TeraTerm,PuTTYorHyperTerminalincludedinWindowsXP/2003.

Serial cable--OneendisattachedtotheRS-232serialport,whiletheother

end to the console port of the Managed Switch.

zEthernet Port Connection

Network cables--Usestandardnetwork(UTP)cableswithRJ45connectors.

The above PC is installed with Web browser.

Note

It is recommended to use Internet Explorer 8.0 or above to access

the Managed Switch. If the Web interface of the Managed Switch

is not accessible, please turn off the anti-virus software or firewall

and then try it again.

4. Starting Web Management

The following shows how to start up the Web Management of the Managed

Switch. Note the Managed Switch is congured through an Ethernet connection.

Please make sure the manager PC must be set to the same IP subnet address.

For example, the default IP address of the Managed Switch is 192.168.0.100,

then the manager PC should be set to 192.168.0.x (where x is a number

between 1 and 254, except 100), and the default subnet mask is 255.255.255.0.

PC / Workstation

with Web Browser

192.168.0.x

Managed Switch

RJ45/UTP Cable

IP Address: 192.168.0.100

Figure 4-1: IP Management Diagram

4.1 Logging in to the Managed Switch

1.Use Internet Explorer 8.0 or above Web browser and enter IP address

http://192.168.0.100 to access the Web interface.

2. When the following dialog box appears, please enter the default user name and

password “admin”.TheloginscreeninFigure4-2appears.

DefaultIPAddress:192.168.0.100

DefaultUsername:admin

DefaultPassword:admin

Figure 4-2: Login Screen

Note

Thefollowing webscreenbased onGS-4210-8P2Swill be thesame

asthatofGS-4210series.

3.Afterenteringthepassword,themainscreenappearsasFigure4-3shows.

Figure 4-3: Web Main Screen of Managed Switch

The Switch Menu on the top of the Web page lets you access all the commands

and statistics the Managed Switch provides. The Switch Menu always contains one

or more buttons, such as “System”, “Switching”, “QoS”, “Security”, “PoE”

and “Maintenance”.

Figure 4-4: Switch Menu

Figure 4-5: Switch Menu

Now, you can use the Web management interface to continue the Switch

management.

Please refer to the user’s manual for more.

4.2 SavingCongurationviatheWeb

To save all applied changes and set the current conguration as a startup

conguration on the Web user interface, the startup-conguration le will be

loaded automatically across a system reboot.

1. Click the Save icon on the top Switch Menu bar.

Figure 4-6: Save Cong -- Hot key

2. Press the “Apply” button to save running conguration to start up congura-

tion.

Figure 4-7: Save Cong -- Maintenance

5. Terminal Setup

The GS-4210-8P2T2S, GS-4210-16P4C, GS-4210-24P4C and GS-4210-24PL4C

are equipped with a console interface for local switch setup and maintenance. To

congure the system, connect a serial cable to a COM port on a PC or notebook

computer and to the RJ45 type of the console port of the Managed Switch.

Managed Switch

PC / Workstation

with

Terminal Emulation Software

Serial Port

RS232 to RJ45 Cable

Console Port

RJ45

Figure 5-1: Managed Switch Console Connectivity

A terminal program is required to make the software connection to the Managed

Switch.

1. Run terminal program on the OS.

2. When the following screen appears, make sure that the COM port should be

conguredas:

zBaud:115200

zDatabits:8

zParity:None

zStopbits:1

zFlowcontrol:None

Figure 5-2 COM Port Conguration

Note

Console interface is not available for the GS-4210-8P2S and

GS-4210-48P4S.

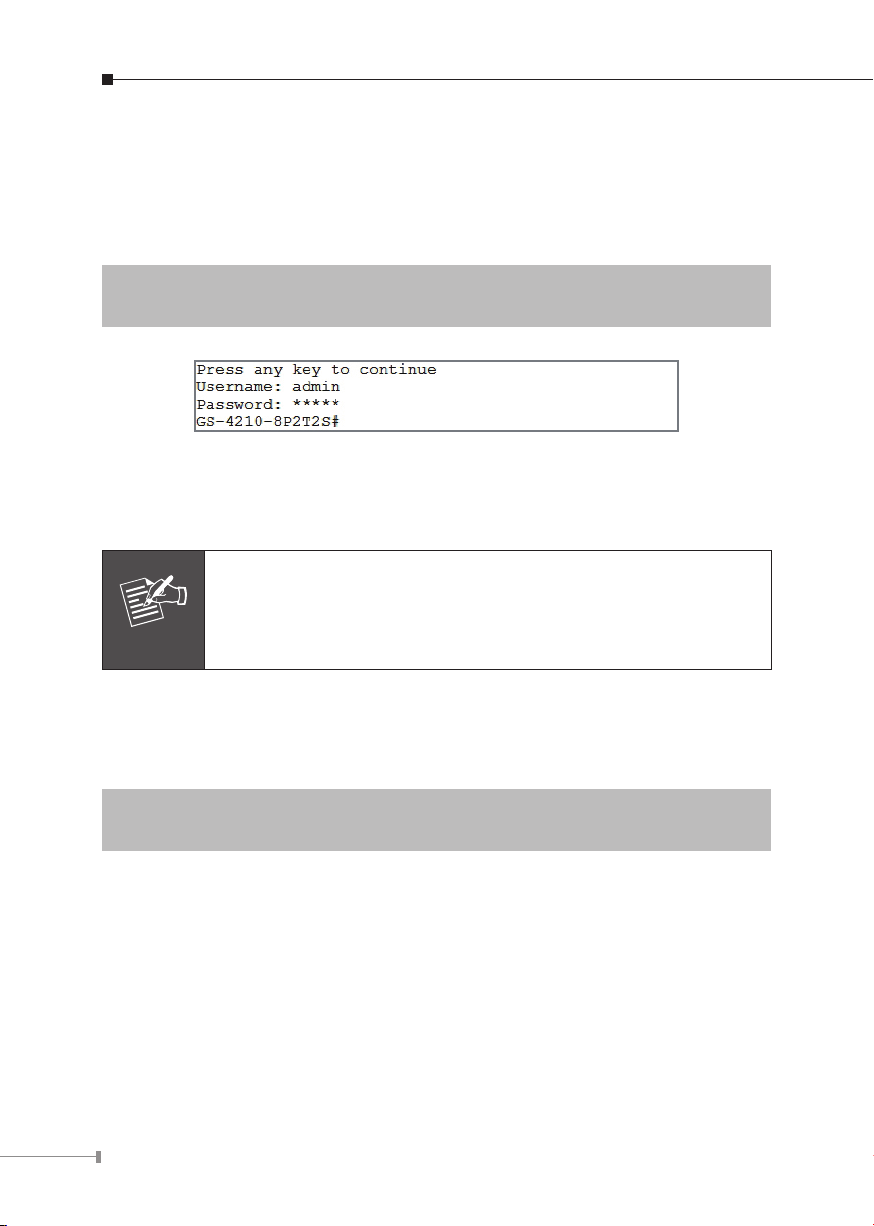

5.1 Logging on to Console

Once the terminal is connected to the device, power on the Managed Switch and

the terminal will display “running testing procedures”. Then, the following message

asks to log in user name and password. The factory default user name and

passwordareshownasfollows,andtheloginscreeninFigure5-3appears.

Username:admin

Password:admin

Figure 5-3: Managed Switch Console Login Screen

The user can now enter commands to manage the Managed Switch. For a detailed

description of the commands, please refer to the following chapters.

Note

1.For security reason, please change and memorize the new pass-

word after this first setup.

2.Only accept command in lowercase letter under console interface.

5.2 ConguringIPAddress

TheManagedSwitchisshippedwithdefaultIPaddressasfollows:

IPAddress:192.168.0.100

SubnetMask:255.255.255.0
