Planet GS-5220-8UP2T2X Manuale utente
L3 8-Port 10/100/1000T 802.3at/bt PoE + 2-Port
10/100/1000T + 2-Port 10G SFP+ Managed Switch
GS-5220-8P2T2X/GS-5220-8UP2T2X
Quick Installation Guide
Table of Contents
1 Package Contents ....................................................................................... 3
2. Requirements ............................................................................................. 4
3. Terminal Setup ........................................................................................... 5
3.1 Logging on to Console ......................................................................... 6
3.2 ConguringIPAddress......................................................................... 6
3.3 StoringCurrentSwitchConguration..................................................... 8
4. Starting Web Management .......................................................................... 9
4.1 LoggingintotheManagedPoESwitch .................................................. 9
4.2. SavingConguration...........................................................................14
5. RecoveringBacktoDefaultConguration.....................................................15
6. Customer Support .....................................................................................16
3
1 Package Contents
Thank you for purchasing PLANET Managed PoE Switch, GS-5220-8P2T2X/GS-
5220-8UP2T2X.Thedescriptionsofthesemodelsareshownbelow:
GS-5220-
8P2T2X(v2)
L38-Port10/100/1000T802.3atPoE+2-Port
10/100/1000T+2-Port10GSFP+ManagedSwitch
GS-5220-8UP2T2X L38-Port10/100/1000T802.3btPoE+2-Port
10/100/1000T+2-Port10GSFP+ManagedSwitch
“Managed PoE Switch” is used as an alternative name in this Quick Installation
Guide.
Open the box of the Managed PoE Switch and carefully unpack it. The box should
containthefollowingitems:
zTheManagedPoESwitchx1
zQuickInstallationGuidex1
zRJ45 to RS232 Cable x 1
zRubberFeetx4
zTwoRack-mountingBracketswithAttachmentScrewsx1
zPowerCordx1
zSFPDust-proofCapsx2
If any item is found missing or damaged, please contact your local reseller for
replacement.
4
2. Requirements
zWorkstations running Windows 10/XP/2003/Vista/7/8/2008, MAC OS X or later,
Linux,UNIX,orotherplatformsarecompatiblewithTCP/IPprotocols.
zWorkstationsareinstalledwithEthernetNIC(NetworkInterfaceCard)
zSerialPortConnection(Terminal)
The above Workstations come with COM Port (DB9) or USB-to-RS232
converter.
The above Workstations have been installed with terminal emulator, such as
TeraTerm,PuTTYorHyperTerminalincludedinWindowsXP/2003.
Serial cable -- one end is attached to the RS232 serial port, while the other
endtotheconsoleportoftheManagedPoESwitch.
zEthernetPortConnection
Networkcables--Usestandardnetwork(UTP)cableswithRJ45connectors.
The above PC is installed with Web browser and JAVA runtime environment
plug-in.
Note
It is recommended to use Internet Explorer 8.0 or above to access
the Managed PoE Switch. If the Web interface of the Managed PoE
Switch is not accessible, please turn off the anti-virus software or
firewallandthentryitagain.
5
3. Terminal Setup
To congure the system, connect a serial cable to a COM port on a PC or
notebookcomputerandtoRJ45typeofserialportoftheManagedPoESwitch.
Managed Switch
PC / Workstation
with
Terminal Emulation Software
Serial Port
RS232 to RJ45 Cable
Console Port
RJ45
Figure 3-1: Managed PoE Switch Console Connectivity
A terminal program is required to make the software connection to the Managed
PoESwitch.
1. Run terminal program on the OS.
2.When the following screen appears, make sure that the COM port should be
conguredas:
Baud:115200
Databits:8
Parity:None
Stopbits:1
Flowcontrol:None
Figure 3-2: COM Port Conguration
6
3.1 Logging on to Console
Once the terminal is connected to the device, power on the Managed PoE Switch,
and the terminal will display “running testing procedures”. Then, the following
message asks to log in user name and password. The factory default user name
andpasswordareshownasfollowsandtheloginscreeninFigure3-3appears.
Username:admin
Password:admin
Note
The following console screen based on GS-5220-8P2T2X will be the
sameasthatofGS-5220-8UP2T2X.
Figure 3-3: Managed PoE Switch Console Login Screen
The user can now enter commands to manage the Managed PoE Switch. For a
detaileddescriptionofthecommands,pleaserefertothefollowingchapters.
Note
1.For security reason, please change and memorize the new pass-
wordafterthisfirstsetup.
2.Onlyacceptcommandinlowercaseletterunderconsoleinterface.
3.2 ConguringIPAddress
TheManagedPoESwitchisshippedwithdefaultIPaddressshownbelow.
IPAddress:192.168.0.100
SubnetMask:255.255.255.0
7
To check the current IP address or modify a new IP address for the Switch, please
usetheproceduresasfollows:
Show the current IP Address
1.Atthe“#”prompt,enter“show ip interface brief”.
2.ThescreendisplaysthecurrentIPaddressasshowninFigure3-4.
Figure 3-4: IP Information Screen
ConguringIPAddress
3.At the “#” prompt, enter the following command and press <Enter> as shown
inFigure3-5.
GS-5220-8P2T2X#congureterminal
GS-5220-8P2T2X(cong)#interfacevlan1
GS-5220-8P2T2X(cong-if-vlan)#ip address 192.168.1.100 255.255.255.0
The previous command would apply the following settings for the Managed PoE
Switch.
IP Address: 192.168.1.100
Subnet Mask: 255.255.255.0
Figure 3-5: Conguring IP Address Screen
8
4.Repeatstep1tocheckiftheIPaddresshaschanged.
If the IP is successfully congured, the Managed PoE Switch will apply the new IP
addresssetting immediately. Youcanaccess theWebinterface ofthe ManagedPoE
SwitchthroughthenewIPaddress.
3.3 StoringCurrentSwitchConguration
In the Managed PoE Switch, the running conguration sequence running-cong
can be saved from the RAM to FLASH by “copy” command, so that the running
conguration sequence becomes the start-up conguration le, which is called
congurationsave.
Atthe“#”prompt,enterthefollowingcommandandpress<Enter>.
#copyrunning-congstartup-cong
Figure 3-6: Saving Current Conguration Command Screen
Note
If you are not familiar with the console command or the related
parameter, enter “help” anytime in console to get the help
description.
9
4. Starting Web Management
The following shows how to start up the Web Management of the Managed
PoE Switch. Note the Managed PoE Switch is congured through an Ethernet
connection. Please make sure the manager PC must be set to the same IP subnet
address.
Forexample,thedefaultIPaddress oftheManagedPoESwitchis192.168.0.100,
then the manager PC should be set to 192.168.0.x (where x is a number
between1and254,except100),andthedefaultsubnetmaskis255.255.255.0.
PC / Workstation
with Web Browser
192.168.0.x
Managed Switch
RJ45/UTP Cable
IP Address: 192.168.0.100
Figure 4-1: IP Management Diagram
4.1 Logging in to the Managed PoE Switch
1.Use Internet Explorer 8.0 or above Web browser and enter IP address
http://192.168.0.100(the factorydefaultIPaddressortheonethatyouhave
justchangedinconsole)toaccesstheWebinterface.
2.When the following dialog box appears, please enter the default user name and
password “admin” (or the password you have changed via console). The login
screeninFigure4-2appears.
DefaultIPAddress:192.168.0.100
DefaultUsername:admin
DefaultPassword:admin
Figure 4-2: Login Screen
10

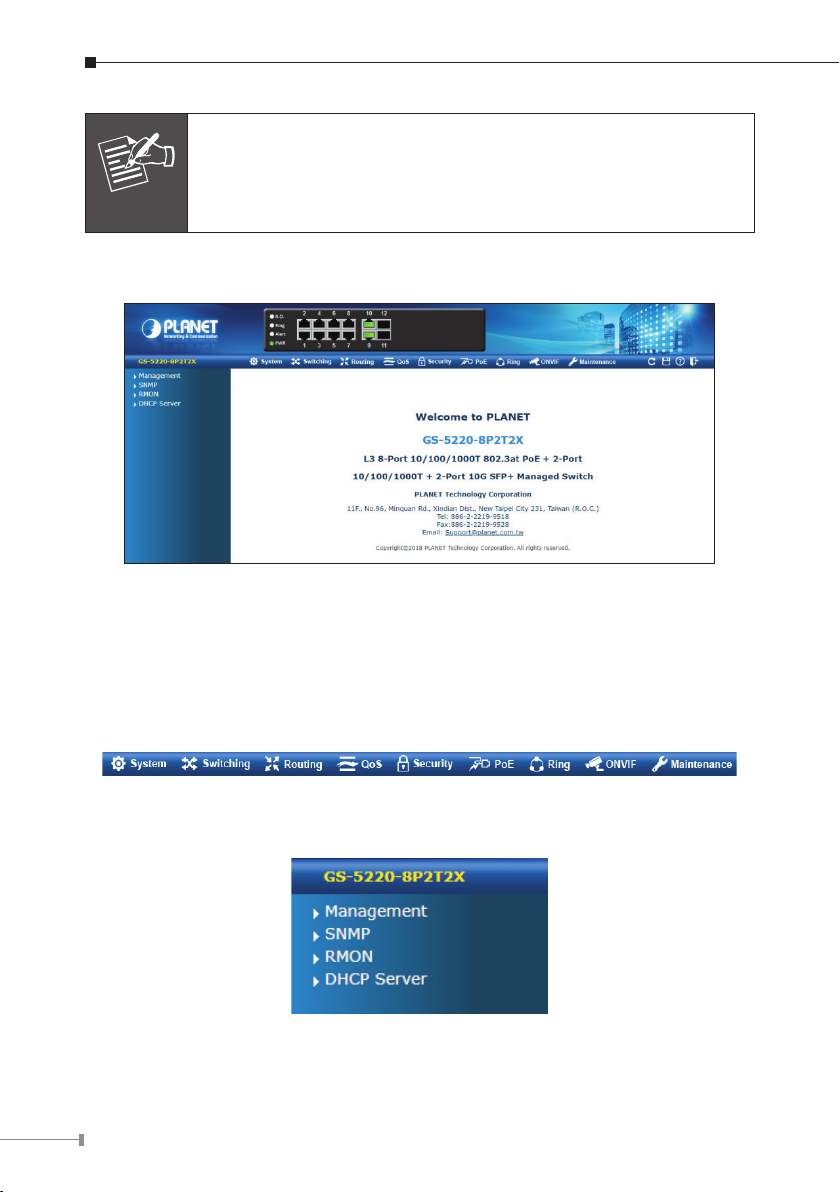

Note
The following web screen based on GS-5220-8P2T2X will be the
sameasthatofGS-5220-8UP2T2X.
3.Afterenteringthepassword,themainscreenappearsasFigure4-3shows.
Figure 4-3: Web Main Screen of Managed PoE Switch
The Switch Menu on the top of the Web page lets you access all the commands
and statistics the Managed PoE Switch provides. The Switch Menu always contains
one or more buttons, such as “System”, “Switching”, “Routing” “QoS”,
“Security”, “PoE” , “Ring” , “ONVIF” and “Maintenance”.
Figure 4-4: Switch Menu
Figure 4-5: Switch Menu -- System
