Planet GSD-503 Manuale utente
10/100/1000Mbps
Gigabit Ethernet Switch
GSD-503/GSD-504
GSD-803/GSD-804
User's Manual
Trademarks
Copyright ©PLANET Technology Corp. 2005.
Content subjects to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp.
All other trademarks belong to their respective owners.
Disclaimer
PLANET Technology does not warrant that the hardware will
work properly in all environments and applications, and makes
no warranty and representation, either implied or expressed,
with respect to the quality, performance, merchantability, or
fitness for a particular purpose.
PLANET has made every effort to ensure that this User's
Manual is accurate; PLANET disclaims liability for any
inaccuracies or omissions that may have occurred.
Information in this User's Manual is subject to change without
notice and does not represent a commitment on the part of
PLANET. PLANET assumes no responsibility for any
inaccuracies that may be contained in this User's Manual.
PLANET makes no commitment to update or keep current the
information in this User's Manual, and reserves the right to
make improvements to this User's Manual and/or to the
products described in this User's Manual, at any time without
notice.
If you find information in this manual that is incorrect, misleading,
or incomplete, we would appreciate your comments and
suggestions.
FCC Warning
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the Instruction manual,
may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be
required to correct the interference at its own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this
product may cause radio interference, in which case the user
may be required to take adequate measures.
Revision
PLANET Gigabit Ethernet Switch User's Manual
FOR MODELS: GSD-503/GSD-504/GSD-803/GSD-804
Rev: 1.0(May.2005)
Part No.: 2010-A33110-000
1. INTRODUCTION
1.1 Package Contents
Check the contents of your package for following parts:
。 Gigabit Ethernet Switch x1
。 User's manual x1
。 Power adapter x1
If any of these are missing or damaged, please contact your dealer
immediately, if possible, retain the carton including the original
packing material, and use them against to repack the product in case
there is a need to return it to us for repair.
1.2 How to Use This Manual
This Gigabit Ethernet Switch User Manual is structured as
follows:
Chapter 2 Installation
The chapter explains the feature, functionality and the physical
installation of the Switch.
Chapter 3 Switch operation
The chapter explains the Gigabit Ethernet Switch transmit operation.
Chapter 4 Troubleshooting
The chapter explains the troubleshooting of the Gigabit Ethernet
Switch.
Appendix A
This chapter contains cable information of the Gigabit Ethernet
Switch.
1.3 Product Features
。 Complies with IEEE802.3, 10Base-T, IEEE802.3u,
100Base-TX and IEEE802.3ab, 1000Base-T
。 IEE802.3x, full-duplex flow control compliant; back-pressure,
half-duplex flow control
。 10/100/1000Mbps 5/8-port Gigabit Switch (RJ-45)
。 8K MAC address table auto-ageing,
112K(GSD-503/GSD-504) / 144K(GSD-803/GSD-804) bytes
packet buffer
。 9.6K Jumbo packet size support
。 Per port Auto-MDI, MDI-X detection
。 Non-blocking, Store and Forward switching architecture
。 Automatic source address learning and aging
1.4 Product Specifications
Model GSD-503/GSD-504 GSD-803/GSD-804
Hardware Specification
Network Ports 5 10/100/1000Base-T
RJ-45 MDI/MDI-X ports
8 10/100/1000Base-T
RJ-45 MDI/MDI-X ports
155 x 86 x 26 mm (503) 155 x 86 x 26 mm (803)Dimensions (W x D x H)
170 x 87 x 32mm (504) 170 x 87 x 32 mm (804)
Weight (KG) 0.42(503) 0.22(504) 0.43(803) 0.24(804)
Power Requirement External Power adapter 12V 1A
Switch Specification
Switch Architecture Store-and-forward
Address Table 8K entries, auto learning/ageing
Shared Data Buffer 112K bytes 144KB
Flow Control IEEE 802.3x full duplex operating and flow control
Packet Control Runt & CRC filtering, Broadcast storm control
Switch Fabric 10Gbps 16Gbps
Standard Conformance
Network Standards IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet) and IEEE802.3x
(flow control)
Operation Temperature 0~50ºC
10% to 90% (Non-condensing)
Humidity -40~70ºC
Regulation Compliance FCC, CE
2. INSTALLATION
This section describes the functionalities of the Gigabit Ethernet
Switch’s components and guides how to install it on the desktop.
Basic knowledge of networking is assumed. Please read this chapter
completely before continuing.
2.1 Product Description
The PLANET GSD-503/GSD-504 and GSD-803/GSD-804 are 5/8
ports 10/100/1000Mbps Ethernet switches in a compact housing for
easily desktop placement.
The GSD-503/GSD-504 and GSD-803/GSD-804 provide 10/16Gbps
non-blocking switch fabric, 8K MAC Address table, all support 802.3x
full duplex flow control and also offers wire-speed packet transfer
performance without risk of packet loss.
All five/eight RJ-45 copper interfaces support 10/100/1000Mbps
auto-negotiation for optimal speed detection through RJ-45 Category
3, 4, 5 or above cables. MDI/MDI-X auto detection is provided for
direct wire connection to any Ethernet device without requiring
crossover cables.
2.1.1 Product Overview
PLANET GSD-503/GSD-504/GSD-803/GSD-804 are Gigabit Ethernet
switches with 5/8 RJ-45 10/100/1000 Mbps ports for high-speed
network connectivity. The switches can also automatically identify and
determine the correct transmission speed and half/full duplex mode of
the attached devices with its 5/8 ports. The Gigabit port with jumbo
frame feature supported, can handle extremely large amounts of data
transmission in a secure topology linking to a backbone or high-power
servers.
This product also supports store-and-forward forwarding scheme to
ensure low latency and high data integrity, eliminates unnecessary
traffic and relieves congestion on critical network paths. With an
intelligent address recognition algorithm, the switches could recognize
up to 4K different MAC address and enables filtering and forwarding at
full wire speed.
2.1.2 Switch Front Panel

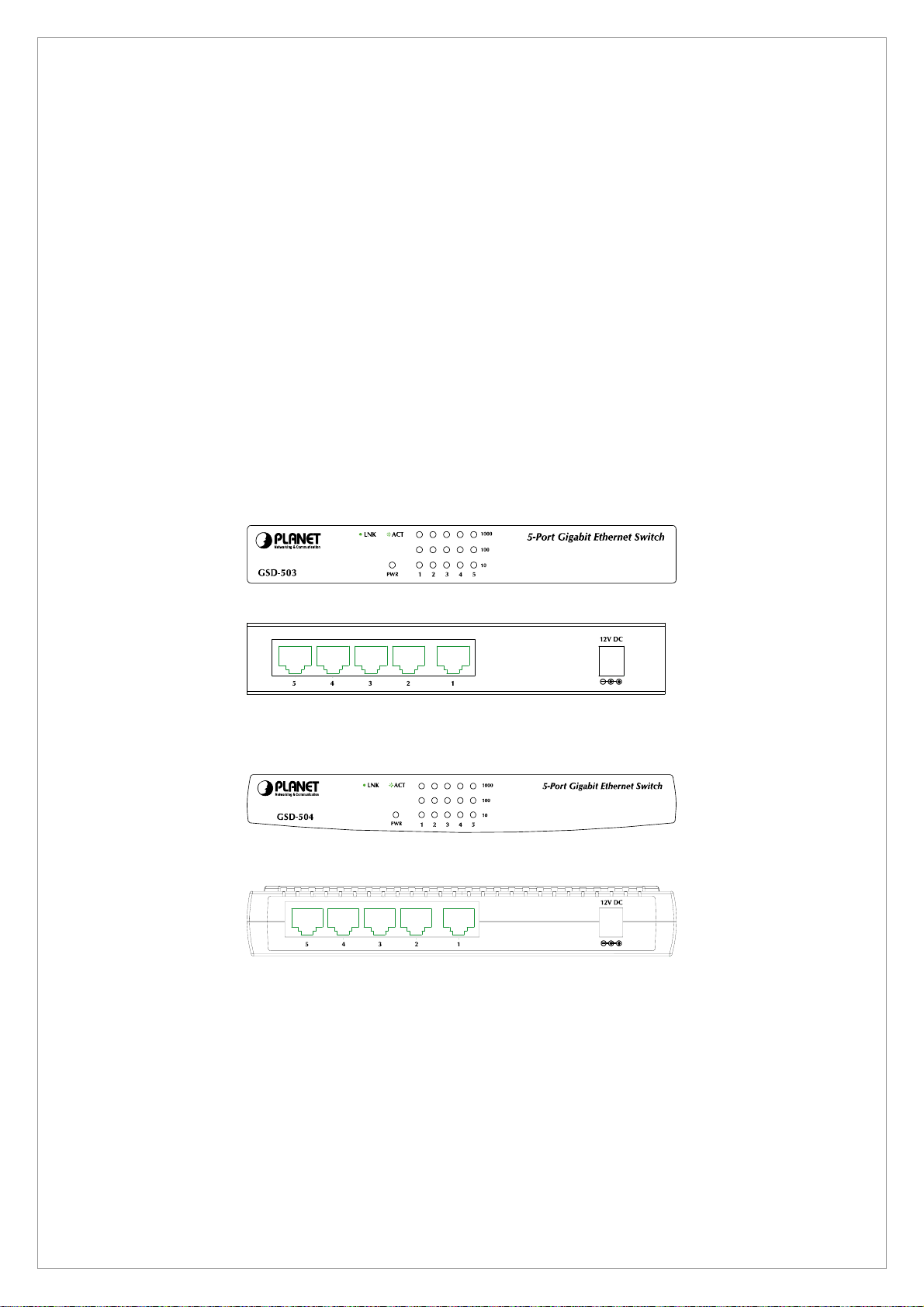

Figure 2-1 & 2-2 show the front panel and rear panel of GSD-503
Figure 2-1 GSD-503 front panel
Figure 2-2 GSD-503 rear panel
Figure 2-3 & 2-4 show the front panel and rear panel of GSD-504
Figure 2-3 GSD-503 front panel
Figure 2-4 GSD-504 rear panel
Figure 2-5 & 2-6 show the front panel and rear panel of GSD-803
Figure 2-5 GSD-803 front panel
Figure 2-6 GSD-803 rear panel
Figure 2-7 & 2-8 show the front panel and rear panel of GSD-804
Figure 2-7 GSD-804 front panel
Figure 2-8 GSD-804 rear panel
2.1.3 LED Indicators
LED Color Function
PWR Green Lit: Power on
1000 Green
Lit: indicate that the port is operating at 1000Mbps.
Blink: indicate that the switch is actively sending or
receiving data over that port.
100 Green
Lit: indicate that the port is operating at 100Mbps.
Blink: indicate that the switch is actively sending or
