Plusivo DM301B Manuale utente
Mastering The Art of
Measurement
User Guide for the Plusivo
DM301B Multimeter
Mastering the Art of Measurement (Digital Multimeter) r.01 www.plusivo.com
Table of Contents
Introduction 2
1. Overview 2
2. Parts 3
2.1 Rotary Switch / Function Knob 4
2.2 Function keys description 4
2.3 LCD 5
3. Technical Specifications 6
4. Safety Specifications 6
5. Reference Table 7
5.1 Table of SI Units 7
5.2 Table of Prefixes 7
6. Instrument Specifications 7
6.1 DC Voltage 7
6.2 AC Voltage 8
6.3 DC Current 8
6.4 AC Current 8
6.5 Resistance 9
6.6 Capacitance 9
6.7 Diode and Continuity Test 9
7. Measurement Operation 10
7.1 DC Voltage Measurement 10
7.2 AC Voltage Measurement 11
7.3 DC/AC Current Measurement 12
7.4 Resistance Measurement 14
7.5 Continuity Test 15
7.6 Diode Test 16
7.7 Capacitance Test 17
7.8 Non Contact Voltage (NCV) Test 18
7.9 Live Test 19
7.10 Battery Test 20
8. Basic Concepts 21
8.1 Ohm's Law 21
8.1.1 Example 21
8.2 Joule's Law for Electrical Power 23
8.2.1 Example 24
8.3 Kirchhoff's Law 26
8.3.1 Kirchhoff's Current Law 26
8.3.2 Kirchhoff's Voltage Law 26
1
Mastering the Art of Measurement (DM301B Digital Multimeter) r.01 www.plusivo.com
8.3.3 Example 27
8.4 Shunt Resistor 31
8.4.1 Example 32
8.5 Choosing the Right Resistor for an LED 34
8.5.1 Example 35
8.6 Measuring Internal Resistance of a Battery 37
8.6.1 Example 38
8.7 Testing Some Components Using Multimeter 40
8.7.1 Potentiometer Test 40
8.7.2 BJT Transistor Test 42
Introduction
In this guide, you are going to learn how to measure DC voltage and AC voltage, DC current,
resistance, diodes, capacitance and continuity test using DM301B 4000 Counts T-RMS Digital
Multmeter. We are going to study some basic concepts like Ohm's Law and Kirchhoff's Law. Please note
that product color may slightly vary due to photographic lighting sources or your monitor settings.
1. Overview
This True RMS high performance digital multimeter can be used to measure DC voltage and AC
voltage, AC and DC current, resistance, diodes and do continuity tests. It can also be used to assess the
battery quality, has NCV and live test functions. The new display and function layout show clearer and
better user experience. It is the best choice for professional electricians, enthusiasts and families.
2
Mastering the Art of Measurement (DM301B Digital Multimeter) r.01 www.plusivo.com
Please take the time and read the printed operating instructions manual that is inside the
kit before use and pay attention to the safety information and retain them for future reference.
Failure to follow these instructions may lead to serious injury and damage to property.
In general, if something unusual happens or if you suspect that something is wrong or has
malfunctioned, do not do anything with the product and immediately contact the seller for assistance
(email address: of[email protected])

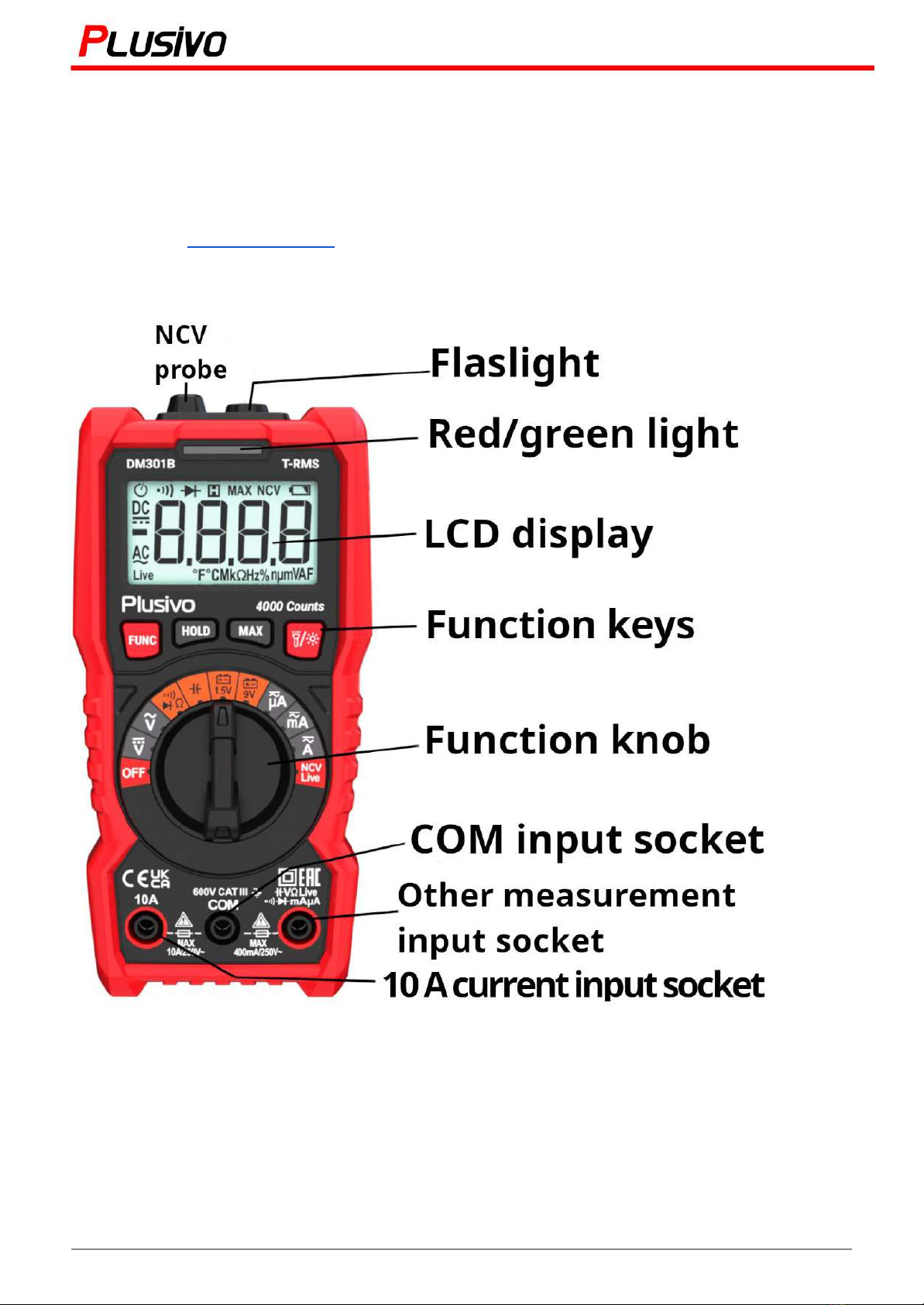

2. Parts
3
Mastering the Art of Measurement (DM301B Digital Multimeter) r.01 www.plusivo.com

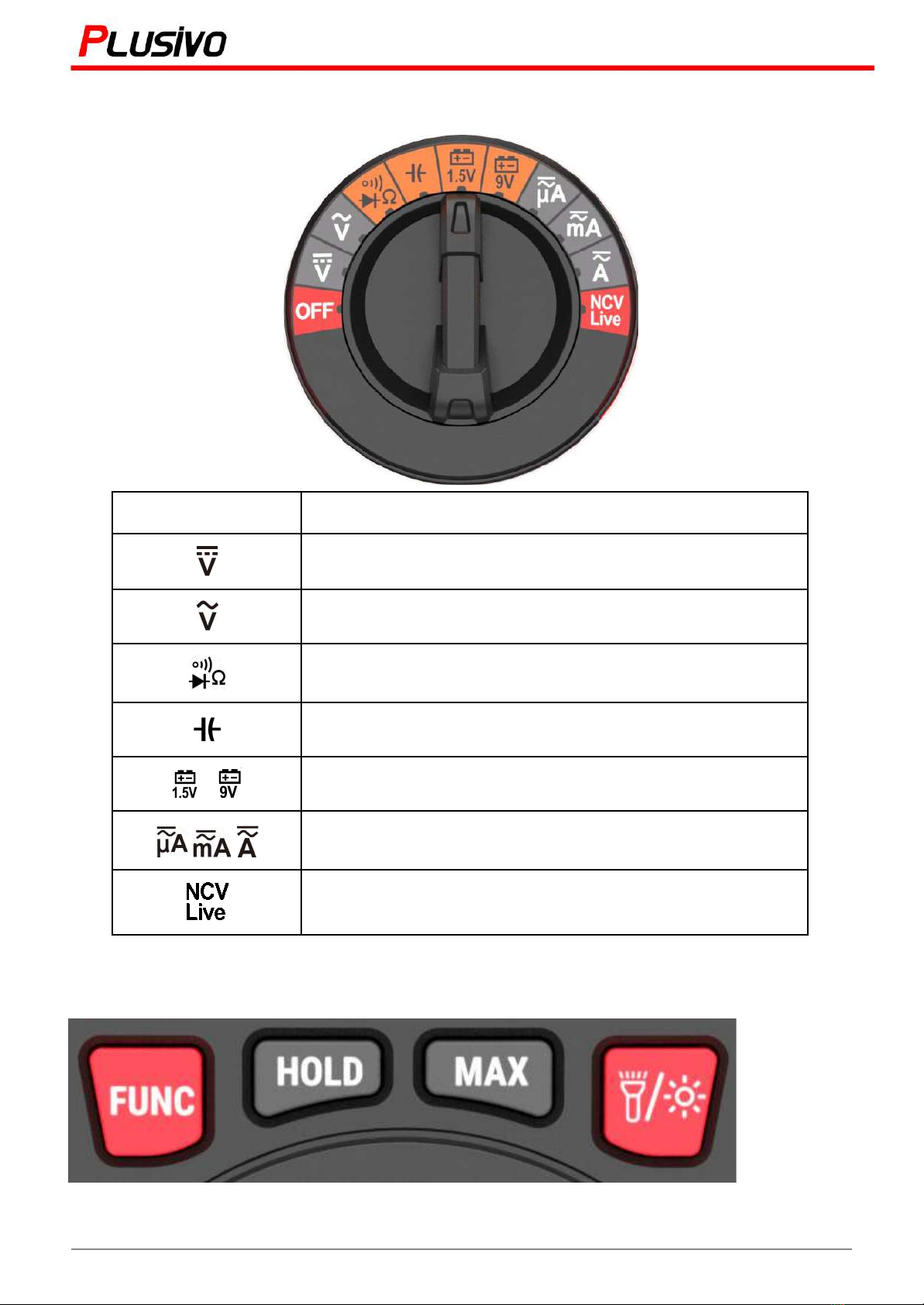

2.1 Rotary switch / Function Knob
OFF
Instrument turned OFF
DC Voltage measurement
AC Voltage measurement
Resistance/Diode/Continuity measurement
Capacitance Measurement Function
Battery Test Function
AC/DC Current measurement
Non Contact Voltage measurement (NCV) / Live Test
2.2 Function keys description
4
Mastering the Art of Measurement (DM301B Digital Multimeter) r.01 www.plusivo.com
FUNC
Function Key to switch between measurements
HOLD
Hold Function for data or reading retention
MAX
Maximum value measurement mode
Flashlight / Backlight Function

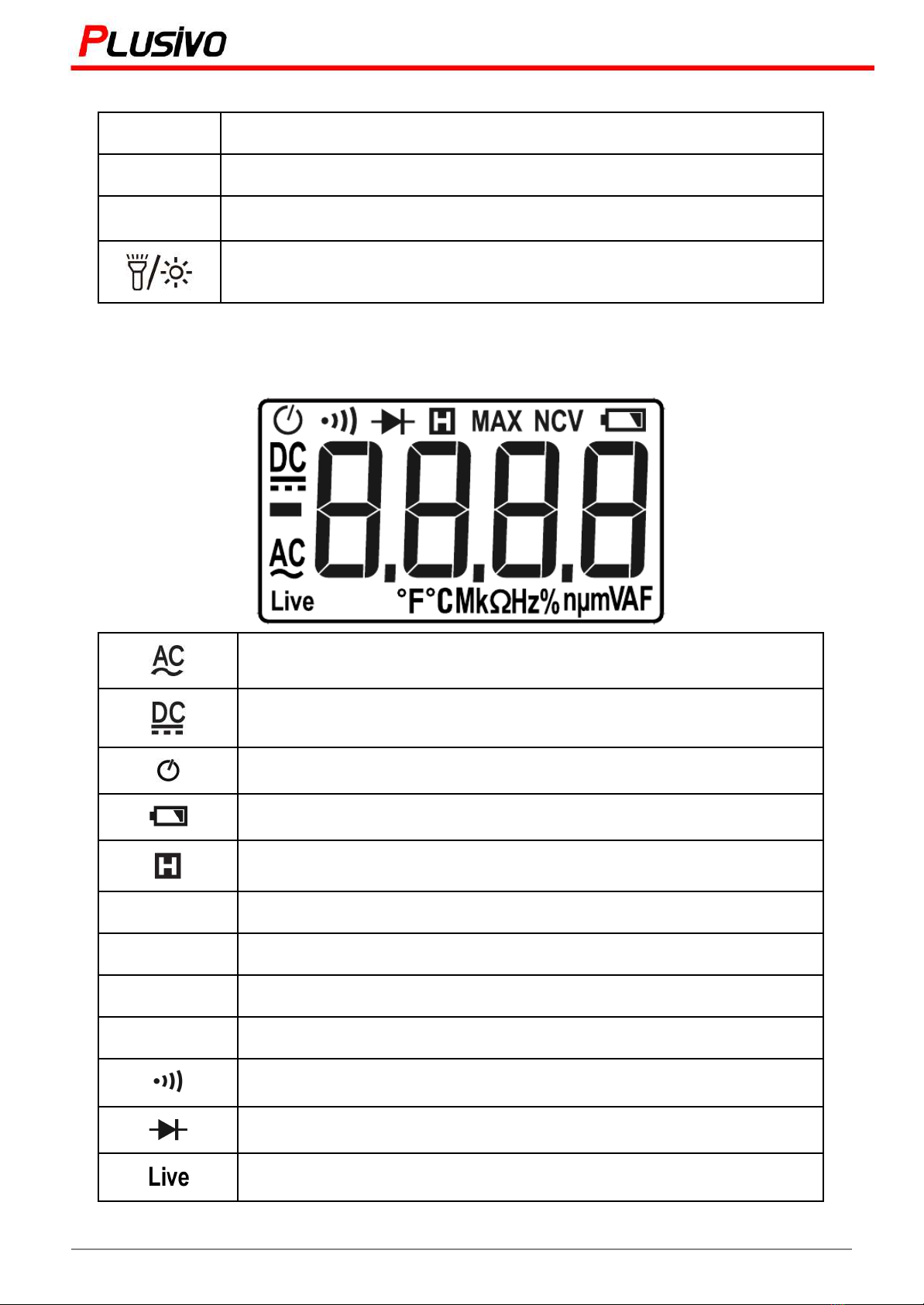

2.3 LCD
Alternating current measurement
Direct current measurement
Auto power off indicator
Low battery indicator
Hold function activated
V
Voltage measurement
A
Current measurement
MAX
Maximum value
F
Capacitance
Continuity measurement
Diode measurement
Live Test measurement
5
Mastering the Art of Measurement (DM301B Digital Multimeter) r.01 www.plusivo.com
3. Technical Specifications
● Environmental conditions of use:
CAT. III 600 V
Pollution level: 2
Altitude < 2000 m
Working environment temperature and humidity:
0~40°C (<80% RH, <10°C non condensing)
Storage environment temperature and humidity:
-10~60°C (<70% RH,remove the battery)
● Temperature coefficient: 0.1 x accuracy/°C (<18°C or >28°C)
● MAX. Voltage between terminals and earth ground: 600 V
● Fuse protection: mA: F400 mA/250 V fuse, 10 A: F10 A/250 V fuse
● Sampling rate: about 3 times/second
● Display: 4000 counter readout. Automatically displays the unit symbols according to the shift of
the measurement function
● Over range indication: it displays "OL"
● Low battery indication: when the battery voltage is lower than the normal working voltage, "
" will be displayed
● Input polarity indication: automatically displays " - “
● Power requirement: 2 x 1.5 V AAA batteries
● Dimension: 151 mm x 75 mm x 46 mm
4. Safety Specifications
The instrument is designed according to the requirements of the international electrical safety standard
IEC61010-1 for the safety requirements of the electronic testing instruments. The design and
manufacture of instruments strictly comply with the requirements of IEC61010-1 CAT. 111 600V over
voltage safety standards and pollution level 2.
To avoid possible electric shock, personal injury or other accidents, please follow the instructions
specified in the printed DM301B manual that comes with the DM301 Multimeter kit purchase.
● Please read this manual carefully before using the instrument and pay attention to the safety
information.
● Strictly observe the operating instructions in this manual before using it. Otherwise, the protective
function of the device may be damaged or weakened.
Complete safety instructions can be found in the DM301B manual that is inside the DM301B Multimeter
Kit.
In general, if something unusual happens or if you suspect that something is wrong or has
malfunctioned, do not do anything with the product and immediately contact the seller for assistance
(email address: of[email protected])
6
Mastering the Art of Measurement (DM301B Digital Multimeter) r.01 www.plusivo.com
5. Reference Table
5.1 Table of SI units
Quantity
SI Unit
Abbreviation
Voltage
Volts
V
Current
Ampere
A
Power
Watt
W
Energy
Joule
J
Electric charge
Coulomb
C
Resistance
Ohm
Ω
Capacitance
Farad
F
Inductance
Henry
H
Frequency
Hertz
Hz
5.2 Table of prefixes
Prefix
Power
Numeric Representation
Tera (T)
1012
1 trillion
Giga (G)
109
1 billion
Mega (M)
106
1 million
Kilo (k)
103
1 thousand
No prefix
100
1 unit
Milli (m)
10−3
1 thousandth
Micro (u)
10−6
1 millionth
Nano (n)
10−9
1 billionth
Pico (p)
10−12
1 trillionth
6. Instrument Specifications
Accuracy specifications
The accuracy applies within one year after the calibration.
Reference condition: the environment temperature is 18°C to 20°C, the relative humidity is no more than
80%.
Accuracy: ± (% reading + word)
6.1 DC Voltage
Range
Resolution
Accuracy
400 mV
0.10 mV
7
Mastering the Art of Measurement (DM301B Digital Multimeter) r.01 www.plusivo.com
± (0.5% + 3)
4 V
0.001 V
40 V
0.010 V
400 V
0.100 V
600 V
1 V
Input impedance: 10 MΩ
Overload protection: 600 V
Maximum input voltage: 600 V
6.2 AC Voltage
Range
Resolution
Accuracy
4 V
0.001 V
± (1.0% + 3)
40 V
0.01 V
400 V
0.1 V
600 V
1 V
Input impedance: 10 MΩ
Overload protection: 600 V
Maximum input voltage: 600 V
Frequency response: 10 Hz ~ 1 kHz, TRMS
6.3 DC Current
Range
Resolution
Accuracy
400 μA
0.1 μA
±(1.2%+3)
4000 μA
1μA
40 mA
0.01 mA
400 mA
0.1 mA
4 A
0.001 A
10 A
0.010 A
Overload protection: μA/mA : F400 mA/250 V fuse, A: F10 A/250 V fuse
Maximum input current: uA/mA: 400 mA; A: 10 A
When measuring large current, continuous measurement should be no longer than 15 seconds.
6.4 AC Current
Range
Resolution
Accuracy
400 μA
0.1 μA
±(1.5%+3)
4000 μA
1μA
40 mA
0.01 mA
400 mA
0.1 mA
4 A
0.001 A
10 A
0.01 A
Overload protection: μA/mA : F400 mA/250 V fuse; A: F10 A/250 V fuse
Maximum input current: mA: 400 mA; A: 10 A
8
Mastering the Art of Measurement (DM301B Digital Multimeter) r.01 www.plusivo.com
Frequency response: 10 Hz ~ 1 kHz; TRMS
When measuring large current, continuous measurement should be no longer than 15 seconds.
6.5 Resistance
Range
Resolution
Accuracy
400 Ω
0.100 Ω
±(1.0%+3)
4 kΩ
0.001 kΩ
40 kΩ
0.010 kΩ
400 kΩ
0.100 kΩ
4 MΩ
0.001 MΩ
±(1.2%+3)
40 MΩ
0.01 MΩ
Overload protection: 250 V
6.6 Capacitance
Range
Resolution
Accuracy
4 nF
0.001 nF
±(4.0%+5)
40 nF
0.010 nF
400 nF
0.100 nF
4 μF
0.001 μF
40 μF
0.010 μF
400 μF
0.100 μF
4 mF
0.001 mF
Overload protection: 250 V
6.7 Diode and Continuity Test
Forward DC current is about 1 mA
Reverse DC voltage is about 2.5 V
Overload protection: 250 V
It displays the approximate forward voltage value of the diode.
Open circuit voltage is about 0.5 V
Overload protection: 250 V
The resistance is <30, the buzzer sounds and the indicator light turns
green. When the resistance is >30 and <60, the buzz does not ring, the
indicator light is red.
Overload Protection: 250 V DC or AC peak
9
Mastering the Art of Measurement (DM301B Digital Multimeter) r.01 www.plusivo.com
