Polaroid 5503W Manuale utente
FHD Driving Recorder
S503W
Quick Start Guide
400-8401-030400-8401-030 www.polaroidcarcam.com
www.polaroidcarcam.com
Polaroid ●S503W
1. Packing List
1.Polaroid Driving Recorder 2.USB Cable 3.Car Power Adaptor
4.Warranty Card 5.Quick Start Guide
2.Instructions for Use of Car Charger
●The current for car charger should not be less than 2.5A.
●If the recorder is powered off due to weak power, an icon of
a battery being recharged will appear after the recorder is
connected to the charger. You are advised to press and hold
on the power button after a few minutes of recharging.
●Camera specications: Front camera: support of 1080P/720P;
Rear camera: support of VGA (Optional).
3. Video Recording During Driving

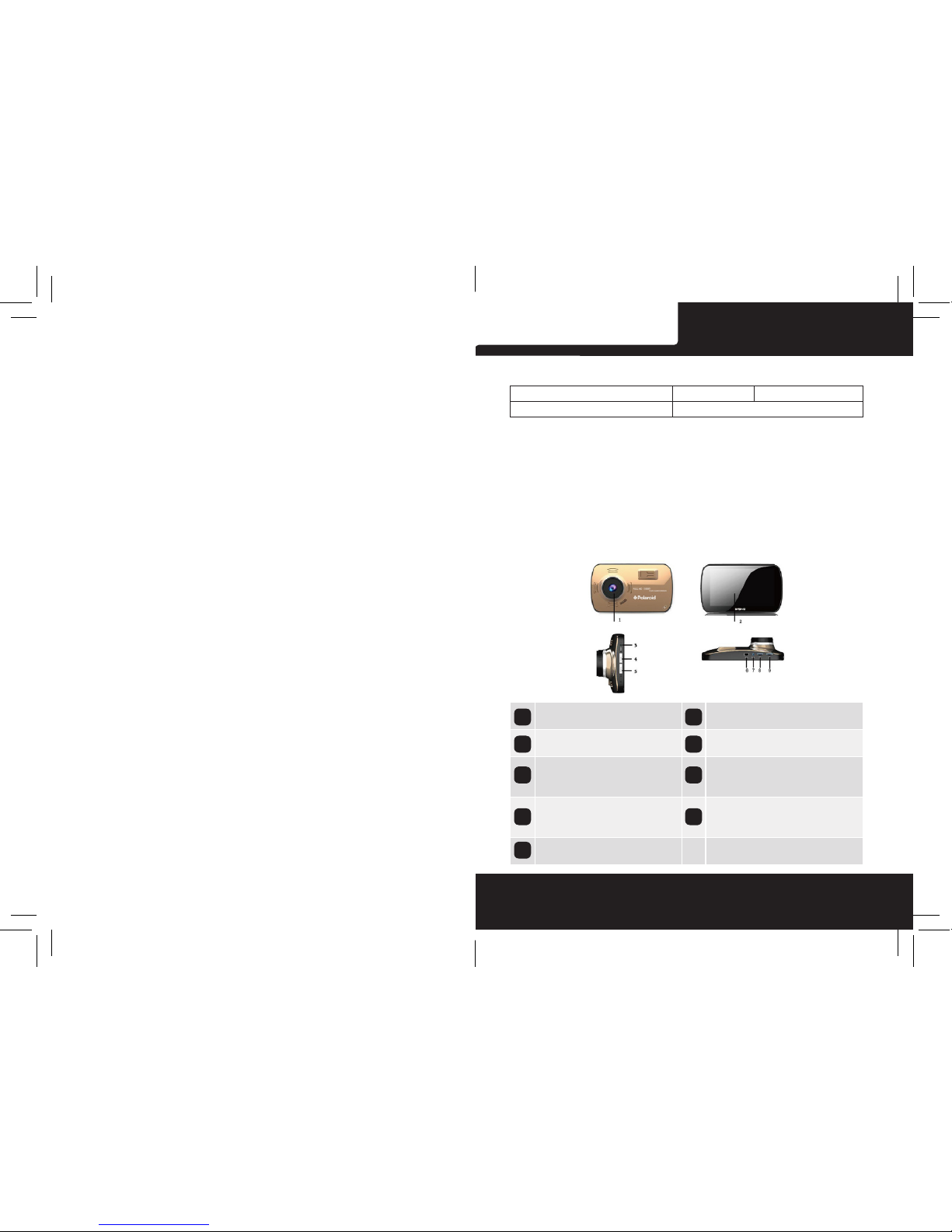

Lens USB Port
LED Light AVIN Port
Reset Button SD Card Slot 1
(Recorder Dedicated)
Return Button SD Card Slot 2
(Map Navigation Dedicated)
Power Button
1 6
2 7
3 8
4 9
5
EN-1
Polaroid ●S503W Polaroid ●S503W

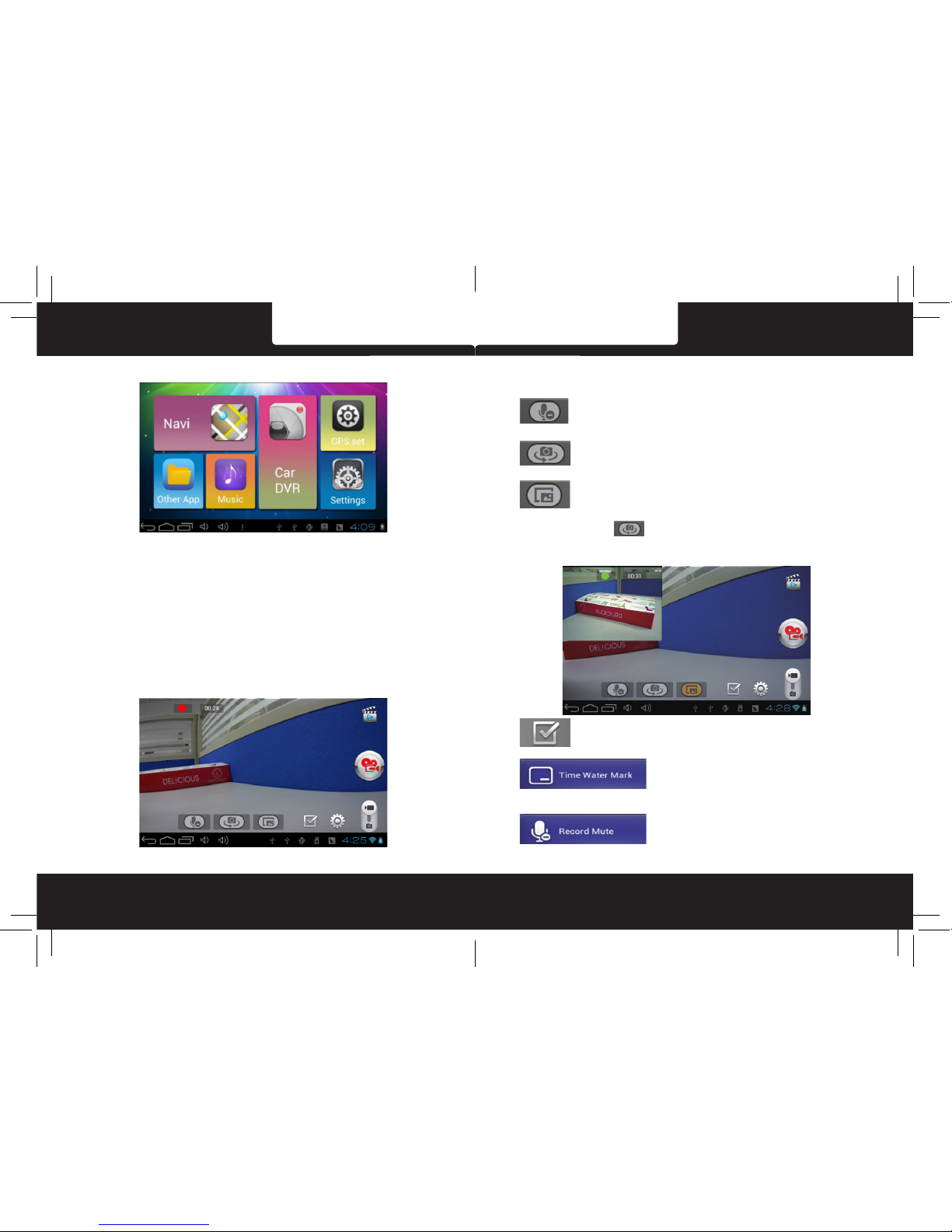

Main Interface
4. Video Recording During Driving
Note: The option Automatic Video Recording is selected by
default for the rst use of the recorder. After being powered on,
the recorder (with an SD card) starts recording automatically,
and returns to the main interface automatically ve seconds later
(Background video recording is underway.)
4.1 Click Video Recording During Driving on the main interface
or recording a video.
4.2 Function keys for video recording
ON/OFF of mute function for video recording
Switchover of front/rear camera
ON/OFF of Picture-In-Picture function (Activate this
function, the front and rear cameras will be viewed in small
windows; click , then you can switch over the pictures
between front and rear cameras, as shown in the Figure
below.
Menu of function options
ON/OFF of watermark
ON/OFF of mute function for
video recording
EN-2 EN-3
Polaroid ●S503W Polaroid ●S503W
Setting of Gsensor sensitivity
Gsensor : It is equipped with high sensitivity Gsensor detector,
so the current file can be automatically locked in case of
danger and cyclic covering of the le is impossible. As shown
below:
Switchover of front/rear camera
ON/OFF motion detection
ON/OFF automatic video-recording function
ON/OFF of Picture-In-Picture function
Formatting of SD card
（Only format the special TF card for
vehicle traveling data recorder.）
Setup menu of video recording
Setting of white balance
Setting of exposure rate
Setting of color mode
Setting of recording time
Setting of resolution ratio of video
Setting of camera switchover
Switchover of Video Recording/Taking Picture
Start recording/Stop key
Playback key of video
4.3 Function for taking picture
EN-4 EN-5
Polaroid ●S503W Polaroid ●S503W
Setting menu of taking picture
Setting of resolution ratio of picture
Switchover of Video Recording/Taking Picture
Key for taking picture
Playback key of pictures
*As for other setting, please refer to Introduction of Function
Keys of Video Recording.
4.4 Automatically switch over to rear camera menu during
backup (Support Backup Wakeupfunction.).
5. GPS Navigation
5.1 Click Navigation or icon on the panel for relevant functions.
5.2 Other navigation applications (such as AutoNavi Map, RITU
Map, Google Map, Baidu Map, etc.) can be supported. The
users can install them for trial.
6 Other Applications
Click Other Applications and preset or user-installed APK
application program will appear.
EN-6 EN-7
Polaroid ●S503W Polaroid ●S503W
7 Music
Click Music to play your favorite.
8 Setting
Click Setting to see relevant setting for WIFI, Bluetooth
connection, sound, display, date, time, etc..
9 Default GPS navigation settings.
9.1 Select the desired default one-key navigation map, e.g.
Careland Map, Gaode Map. (If you want to install some
necessaryAPK applications, please refer to Gaode Navigation
Installation Guide.pdf or search the installation instructions
via internet).
9.2 Return to the home screen, click “Navigation” to display the
EN-8 EN-9
Polaroid ● S503W Polaroid ● S503W
set applications.
Safety precautions
Please observe all safety precautions before using Road
Ranger S503W. Please follow all procedures outlined in this
manual to correctly operate the device.
●Do not attempt to disassemble or alter any part of the device
that is not described in this guide.
●Do not place the device in contact with water or any other
liquids. The device is NOT designed to be liquid proof of any
sort.
●In the event of liquid entry into interior of device, immediately
disconnect the device from the computer. Continuing use
of the device may result in fire or electrical shock. Please
consult your product distributor or the closest support center.
●To avoid risk of electrical shock, do not connect or disconnect
the device with wet hands.
●Do not place the device near a heat source or directly expose
Never place the device in vicinity of equipments generating
Safety precautions
Technical specifications
Recording resolution 1920x1080 (30 fps), 1280x720(60 fps),
1280x720(30 fps), 640x480 pixels(30 fps)
Video format MOV
Picture format JPG
Power source Rechargeable battery(inside) and car
charger
Interfaces USB, SD card (Supports max 32GB,high-
speed SD card recommended.)
Microphone Built-in
Operating temperature 0° ~ 45° C
Disclaimer
●If device has been damaged by liquid (for example, water,
coffee or a soft drink, etc.), the service for such liquid damage
is not covered by the Polaroid one (1) year limited warranty.
●As the Polaroid products are constantly updated and
improved, your device may have a slightly different
Quick Start Guide.
EN-10 EN-11
Polaroid ● S503W
全高清行車記錄儀
S503W
快速使用指南
EN-12
400-8401-030 www.polaroidcarcam.com
Polaroid ●S503W Polaroid ●S503W
1. 產品和配件清單
1. Polaroid 行車記錄儀 2. USB 線 3. 車載充電器
4. 保修卡 5. 快速指引
2. 使用車充注意事項
●車充電流不得小於 2.5A
●機器低電關機後，再接入車充會出現充電電池圖示提示，此
時機器電池低電需要充電幾分鐘後，再長按電源鍵手動開機。
3. 產品圖按鍵說明
鏡頭 USB 介面
顯示幕 AVIN 介面
複位孔 SD 卡槽 1( 記錄儀專用 )
返回鍵 SD 卡槽 2( 地圖導航專用 )
電源鍵
1 6
2 7
3 8
4 9
5
EN-14 TC-1
Polaroid ●S503W Polaroid ●S503W
錄影靜音打開 / 關閉（打開：錄影時同時錄入聲音；
關閉：錄影時不會錄入聲音）
前 / 後攝像頭切換
畫中畫功能打開 / 關閉（打開此功能，前後攝像頭以
小窗口形式展現，可點擊 可對畫中畫進行前後
攝像頭切換），如下圖：
功能選項菜單
時間浮水印打開 / 關閉（時間浮水印打
開時，錄影或拍照後可顯示操作時間）
錄影靜音打開 / 關閉（同 一樣）

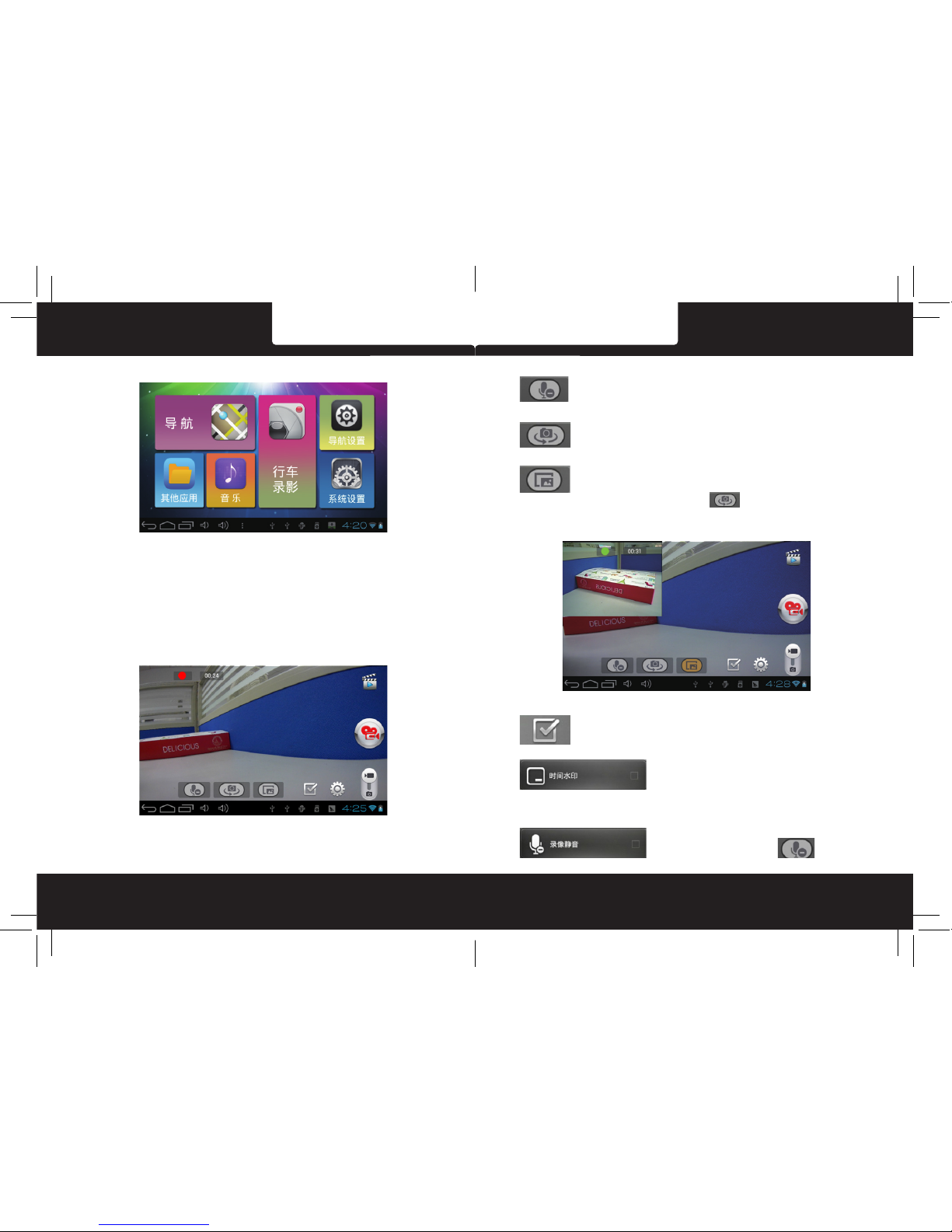

主介面圖
4. 行車錄影
注：系統第一次默認勾選“自動錄影”，啟動後，會自動錄影（需
插入 SD 卡），5 秒鐘後自動返回主屏（系統後臺錄影）。
4.1 點擊主介面的【行車錄影】，進入行車錄影介面。
4.2 錄影功能鍵說明：
TC-2 TC-3
