HIGH PRESSURE

CLIPPED HEAD

FRAMING NAILER

Instruction

manual

The Model and Serial No. plate is located on the main

housing of the tool. Record these numbers in the

spaces below and retain for future reference.

Model No. ______________________________________

Type ___________________________________________

Serial No. _______________________________________

IMPORTANT

Please make certain that the person who is

to use this equipment carefully reads and

understands these instructions before

starting operations.

Part No. 906388 - 10-28-02

ESPAÑOL: PÁGINA 13

FRANÇAISE : PAGE 25

To learn more about Porter-Cable

visit our website at:

http://www.porter-cable.com

MODEL FCP350

906388 - 10-28-02.qxd 10/28/02 11:47 AM Page 1

Matthew G. Popik

Vice President of Engineering

PORTER

✦✦

CABLE

Porter-Cable Corporation

4825 Highway 45 North

Jackson, TN 38305

Date of Manufacture:___________________________

Fecha de fabricación:, Date de fabrication:

Serial No:______________________________________

Número de serie:, Nombre d'ordre

ENGLISH

EC-DECLARATION OF

CONFORMITY

We declare under our sole

responsibility that this product is in

conformity with the regulations

EN292-2: section 3 of 1992

EN292-1: section 5 of 1992

EN1050: 1993

EN792 13: 2000

ESPANOL

DECLARACION DE

CONFORMIDAD ”CE”

Declaramos bajo nuestra sola

responsabilidad que est e producto está en

conformidad con las regulaciones

EN292-2: section 3 of 1992

EN292-1: section 5 of 1992

EN1050: 1993

EN792 13: 2000

FRANÇAISE

DÉCLARATION DE CONFORMITÉ CE

Nous declarons sous notre propre

responsabilite que ce produit est conforme

aux reglementations

EN292-2: section 3 of 1992

EN292-1: section 5 of 1992

EN1050: 1993

EN792 13: 2000

906388 - 10-28-02.qxd 10/28/02 11:47 AM Page 2

GENERAL SAFETY RULES

DANGER: When using pneumatic tools, basic safety precautions

should always be followed to reduce the risk of personal injury, including

the following: READ AND FOLLOW ALL INSTRUCTIONS.

There are certain applications for which this tool was designed. Porter-Cable

strongly recommends that this tool NOT be modified and/or used for any

application other than for which it was designed. If you have any questions

relative to its application DO NOT use the tool until you have written Porter-

Cable and we have advised you. Technical Service Manager

Porter-Cable Corporation

4825 Highway 45 North

Jackson, TN 38305

Fig. 1

Fig. 2

Fig. 3

Fig. 4

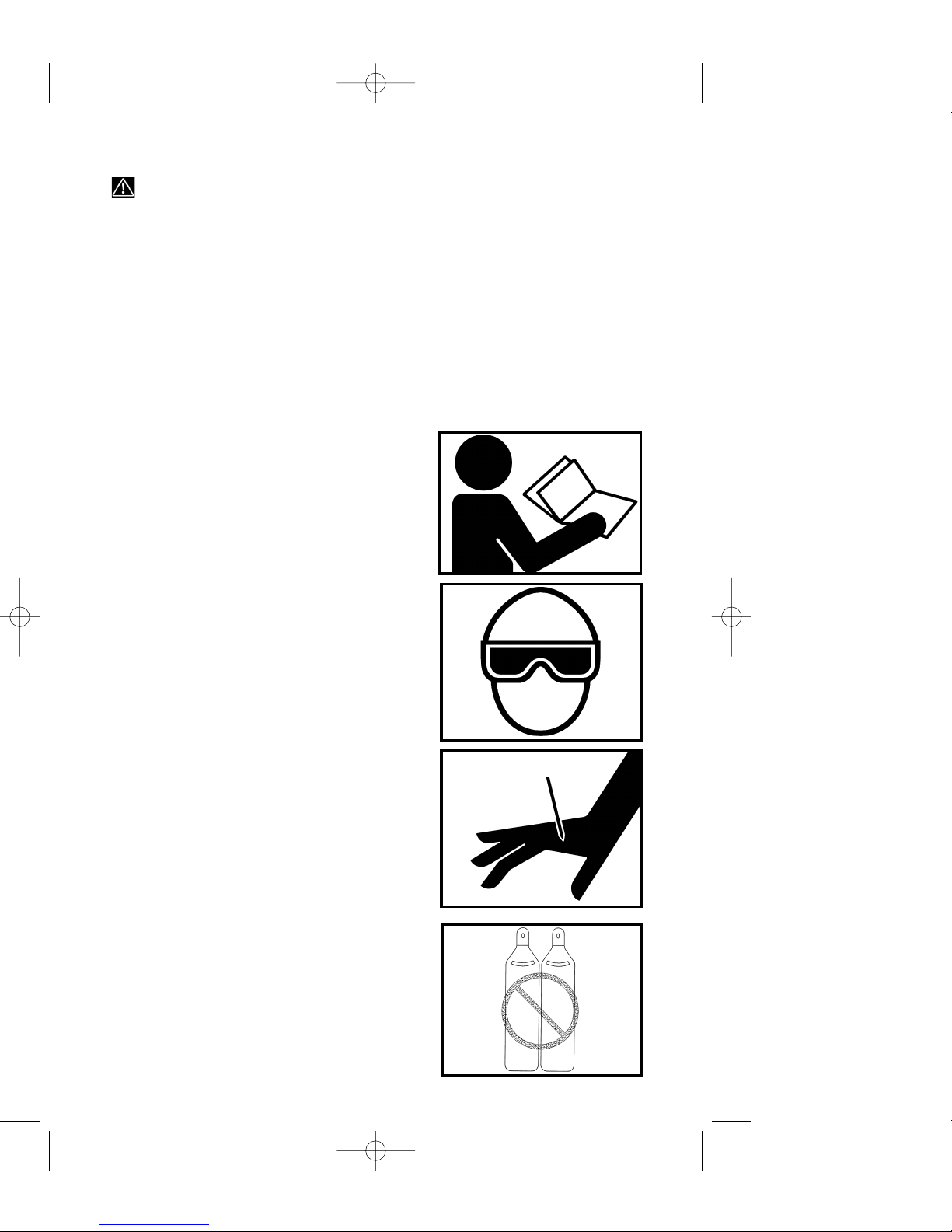

1. Read and understand tool labels and

manual. Failure to follow warnings could

result in DEATH or SERIOUS INJURY. Fig. 1.

2.Operator and others in work area MUST

wear safety glasses with side shields.

These safety glasses must conform to ANSI

Z87.1 requirements (approved glasses have

“Z87” printed or stamped on them). Fig. 2.

3. Keep fingers AWAY from trigger when

not driving fasteners to avoid accidental

firing.

4. Choice of triggering method is

important. Check manual for slectable

triggering instructions. See Using the Tool

with Selectable Triggering Options section

of this manual.

5. Never point tool at yourself or others

in work area. Fig. 3

6. Never use oxygen or other bottled

gasses. Explosion may occur. Never use

combustible gases or any other reactive

gas as a power source for this tool:

explosion and serious personal injury could

result. Fig.3 & Fig. 4.

906388 - 10-28-02.qxd 10/28/02 11:48 AM Page 3

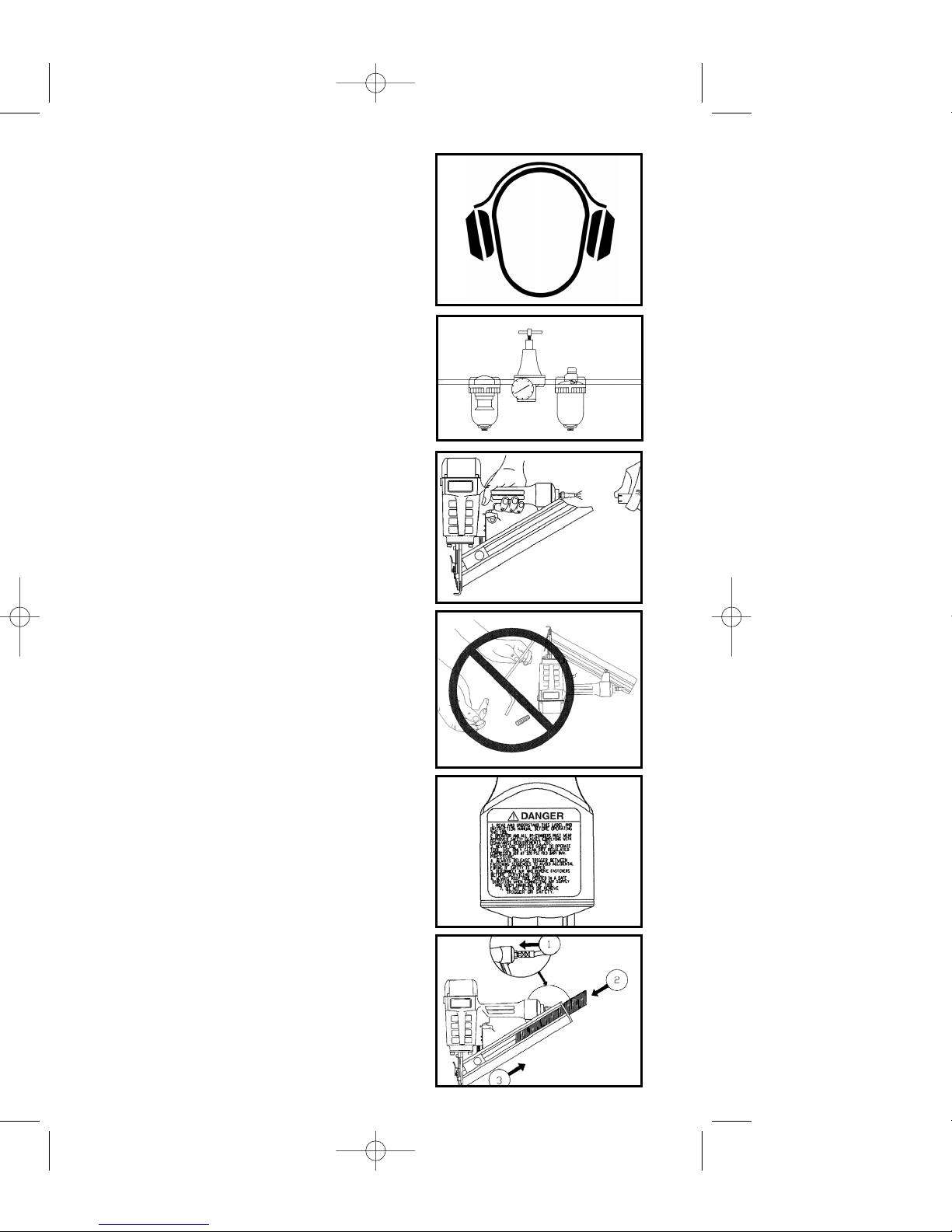

7. Wear ear protection to safe-guard

against possible hearing loss. Fig. 5.

8. Use clean, dry, regulated, com-

pressed air at 80 to 150 PSI, (5.5 to 10.3

BAR). Fig. 6.

9. Do not connect tool to pressure which

potentially exceeds 200 PSI (13.7 BAR).

10. Only use air hose that is rated for a

maximum working pressure of at least 300

PSI (20.7 BAR) or 150% of the maximum

system pressure, which ever is greater.

11. Connect tool to air supply hose with a

coupling that automatically removes all

pressure from the tool when the coupling is

disconnected. Fig. 7.

12. Disconnect tool from air supply hose

before doing tool maintenance, clearing a

jammed fastener, leaving work area, moving

tool to another location, or handing the tool

to another person. Fig. 7.

13. Never use a tool that is leaking air, has

missing or damaged parts, or requires

repair. Make sure all screws and caps are

securely tightened. Fig. 8.

14. Never use tool if safety, trigger or

springs are inoperable, missing or

damaged. Do not alter or remove safety,

trigger, or springs. Make daily inspections

for free movement of trigger and safety

mechanism. Fig. 8.

15. Do not use tool without safety

warning label. If label is missing, damaged

or unreadable, contact your Porter-Cable

Service Center for a replacement. Fig. 9.

16. Only use parts, fasteners and

accessories approved by Porter-Cable.

17. Connect tool to air supply before

loading fasteners, to prevent a fastener

from being fired during connection. The tool

driving mechanism may cycle when tool is

connected to the air supply. Fig. 10.

18. Always assume the tool contains

fasteners. No horseplay. Respect the tool

as a working implement. Fig. 11.

19. Operator and bystanders wear hard hat

to safeguard against possible injuries. Fig.

12.

20. Do not load fasteners with trigger or

safety depressed, to prevent unintentional

firing of a fastener. Fig. 13

21. Remove finger from trigger when not

driving fasteners. Never carry tool with finger

on trigger. In “Contact Actuation Mode” tool

will fire a fastener if safety is bumped while

trigger is depressed. Fig. 14.

Fig. 8

Fig. 9

Fig. 10

Fig. 7

Fig. 6

Fig. 5

906388 - 10-28-02.qxd 10/28/02 11:49 AM Page 4

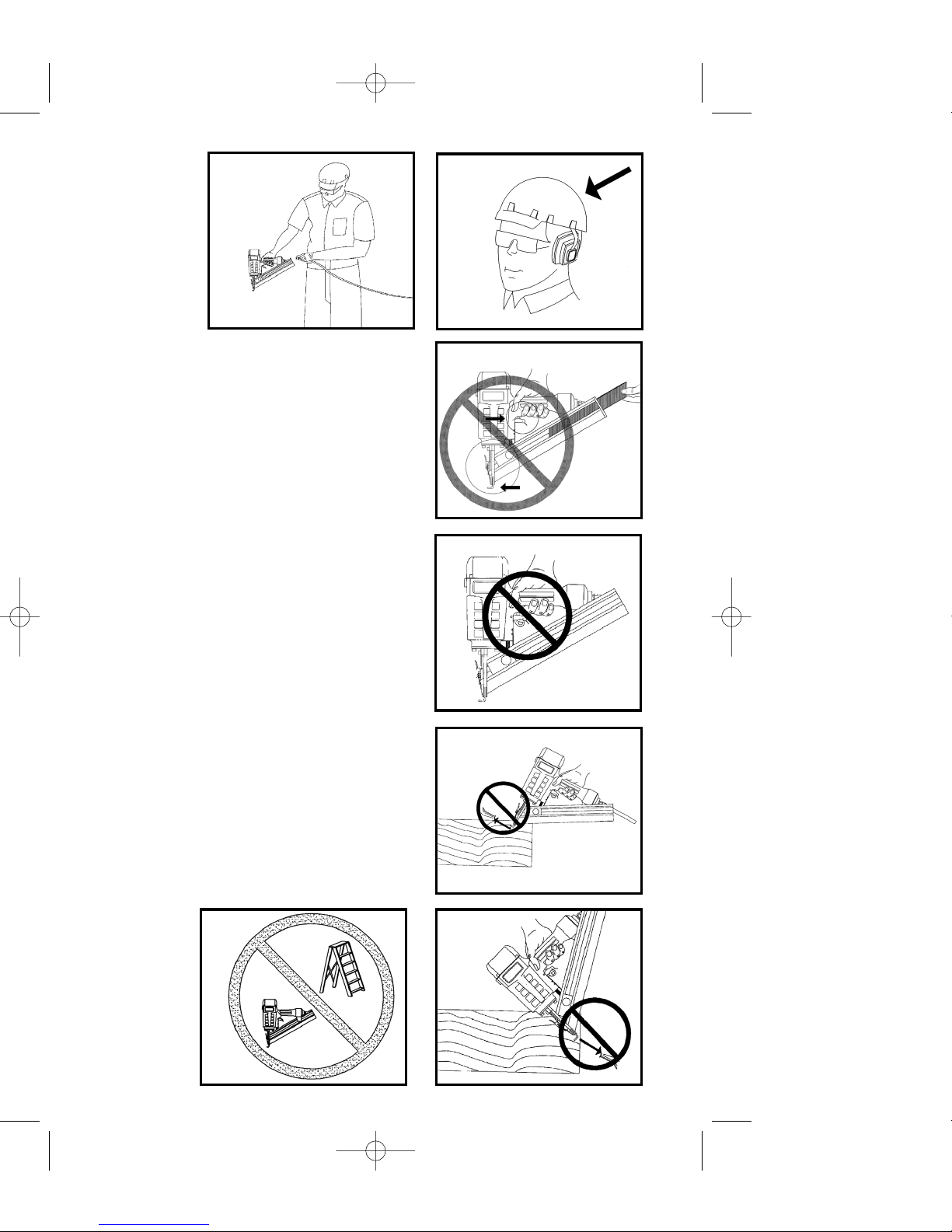

22. Do not overreach. Keep proper footing

and balance at all times when using or

handling the tool.

23. Fire fasteners into work surface only:

never into materials too hard to penetrate.

Fig. 15.

24. Grip tool firmly to maintain control

while allowing tool to recoil away from

work surface as fastener is driven. In

“Contact Actuation Mode” if safety element

is allowed to recontact work surface before

trigger is released an unwanted fastener will

be fired.

25. Do not drive fasteners on top of other

fasteners, or with the tool at too steep an

angle: the fasteners can ricochet causing

personal injury. Fig. 15.

26. Do not drive fasteners close to the

edge of the workpiece. The workpiece is

likely to split allowing the fastener to fly free

or ricochet causing personal injury. Fig. 16.

27. FOR CONTACT ACTUATION MODE

ONLY, Do not use on scaffoldings or

ladders or for tasks in which changing

location involves the use of scaffoldings,

stairs, ladders, and the like. Do not use for

specific tasks such as closing boxes or

crates or fitting transportation safety

systems on vehicles and wagons. Fig. 17.

Fig. 14

Fig. 15

Fig. 16

Fig. 17

Fig. 11

Fig. 13

Fig. 12

906388 - 10-28-02.qxd 10/28/02 11:50 AM Page 5

EMPLOYER’S RESPONSIBILITIES

DANGER: Employer must enforce compliance with the safety warnings

and all other instructions contained in this manual.

Keep this manual available for use by all people assigned to use this tool.

For personal safety and proper operation of this tool, read and understand

tool labels and manual. Failure to follow warnings could result in DEATH or

SERIOUS INJURY. Read and follow all of these instructions carefully.

FUNCTIONAL DESCRIPTION

FOREWORD

Porter-Cable Model FCP350 is a high pressure heavy duty pneumatic

framing nailer. It is designed to install 30 - 34 degree clipped head paper

tape collated framing nails .113" - .131" dia. of various lengths from 2" to

31/2" long.

WARNING: Use approved Porter-Cable fasteners only.

POWER SOURCE

This tool is designed to operate on clean, dry, compressed air at regulated

pressures between 80 and 150 PSI (Pounds per Square Inch)

(5.5 to 10.3

BAR)

. The preferred system would include a filter, a pressure regulator, and an

automatic oiler located as close to the tool as possible, within 15 ft/4.6 m is

ideal.

All compressed air contains moisture and other contaminates that are

detrimental to internal components of the tool. An air line filter will remove

most of these contaminates and significantly prolong the life of the tool. If an

in-line oiler is not available: place five or six drops of Porter-Cable Air Tool Oil

into the tool’s air inlet at the beginning of each workday.

The tool is equipped with a 3

8" male "quick connector”. A 3

8" supply line (and

fittings) are required for maximum tool performance. The tool must always be

connected to the air supply with a coupling such that all pressure is removed

from the tool when the coupling is disconnected.

DANGER: All air line components (hoses, connectors, filters, regulators,

etc.) must have a minimum working pressure rating of at least 300 PSI

(20.7 BAR) or 150% of maximum system potential, whichever is

greater

Do not connect tool to pressure which potentially exceeds 200 PSI

(13.7 BAR).

Only connect tool to air supply hose with a coupling that

automatically removes all pressure from the tool when the coupling

is disconnected.

Disconnect tool from air supply before performing maintenance,

clearing a jammed fastener, leaving work area, moving tool to

another location, or handing the tool to another person.

TECHNICAL SPECIFICATIONS

Noise level . . . . . . . . . . . . . . . . . . Typical Mean

A - Weighted sound impulse . . . effective Acceleration . . . . 4.9 m/s2

power level . . . . . . 105 dBA

P - Emission sound pressure

pressure level . . . . . . 98 dBA

906388 - 10-28-02.qxd 10/28/02 11:50 AM Page 6

Fig. 19

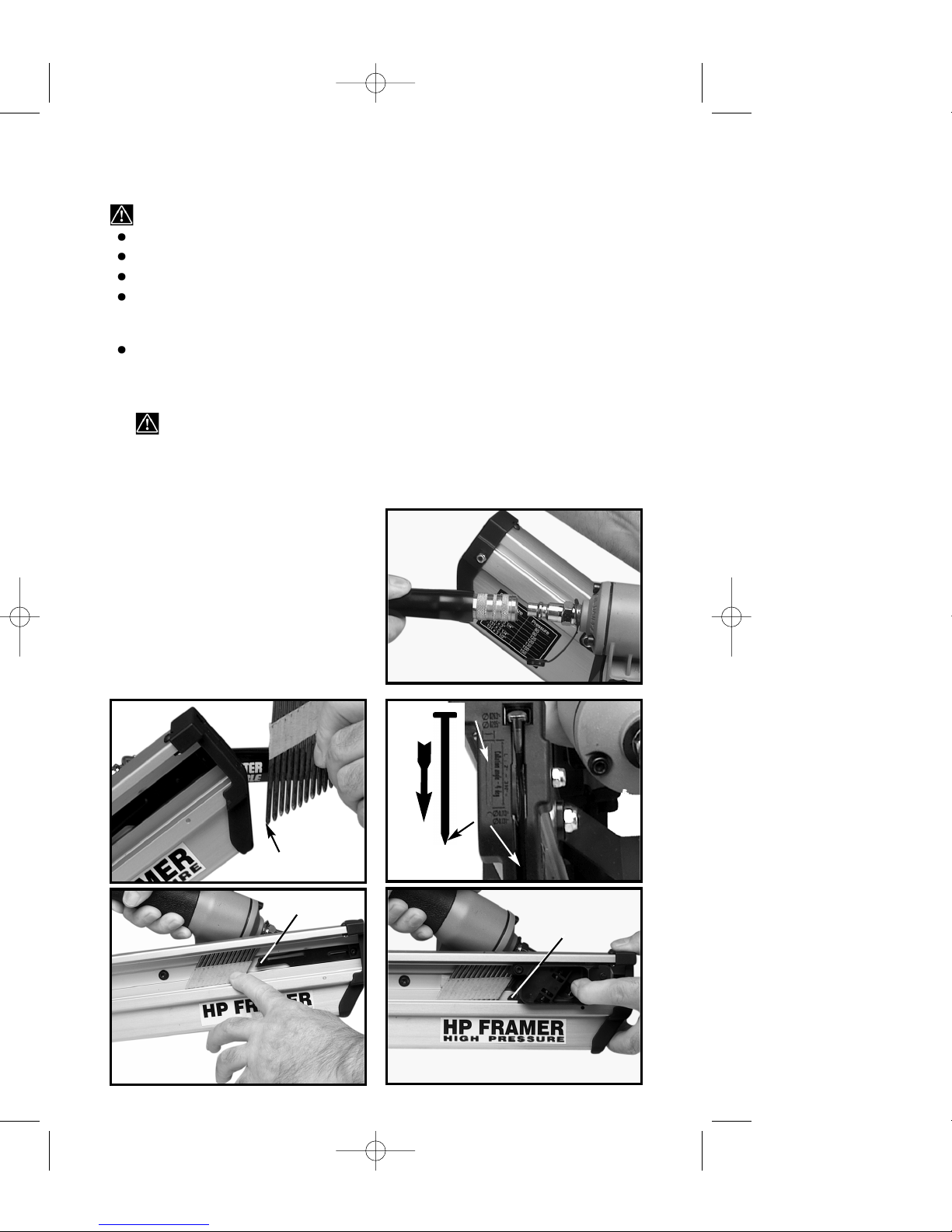

PREPARING THE TOOL

1. After reading and understanding this entire manual, connect tool to

air supply (Fig. 18).

DANGER: Never point tool at yourself or others in work area.

Always connect tool to air supply before loading fasteners (Fig. 18).

Do not load fasteners with trigger or safety depressed.

Only use approved Porter-Cable fasteners.

Operator and others in work area MUST wear safety glasses with side

shields. Always wear ANSI Z87.1 approved safety glasses, and hearing

protection when preparing or operating the tool.

Never use a tool that is leaking air, has missing or damaged parts, or

requires repair.

2. Orient a strip of approved fasteners with points down (A) Fig. 19, align,

and insert into the magazine “T” slot points first.

DANGER: Do not load fastener strip into magazine backwards.

3. Observe fastener icon (A) Fig. 20. Insert fasteners (B) Fig. 20 with points

down (C) Fig. 20. Slide fasteners forward to the front of the magazine. The

magazine will hold two full strips of fasteners.

IMPORTANT: Fasteners must

point in the same direction as

they will be driven.

NOTE: Reload lockout- When 5-7

nails remain in the magazine a

lockout mechanically engages the

contact safety preventing tool

actuation until more nails are added.

4. Feed the strip of fasteners into the

magazine (“T” slot), until they are past

the spring (A) Fig. 21.

Fig. 22

Fig. 20

Fig. 18

Fig. 21

←

906388 - 10-28-02.qxd 10/28/02 11:50 AM Page 7

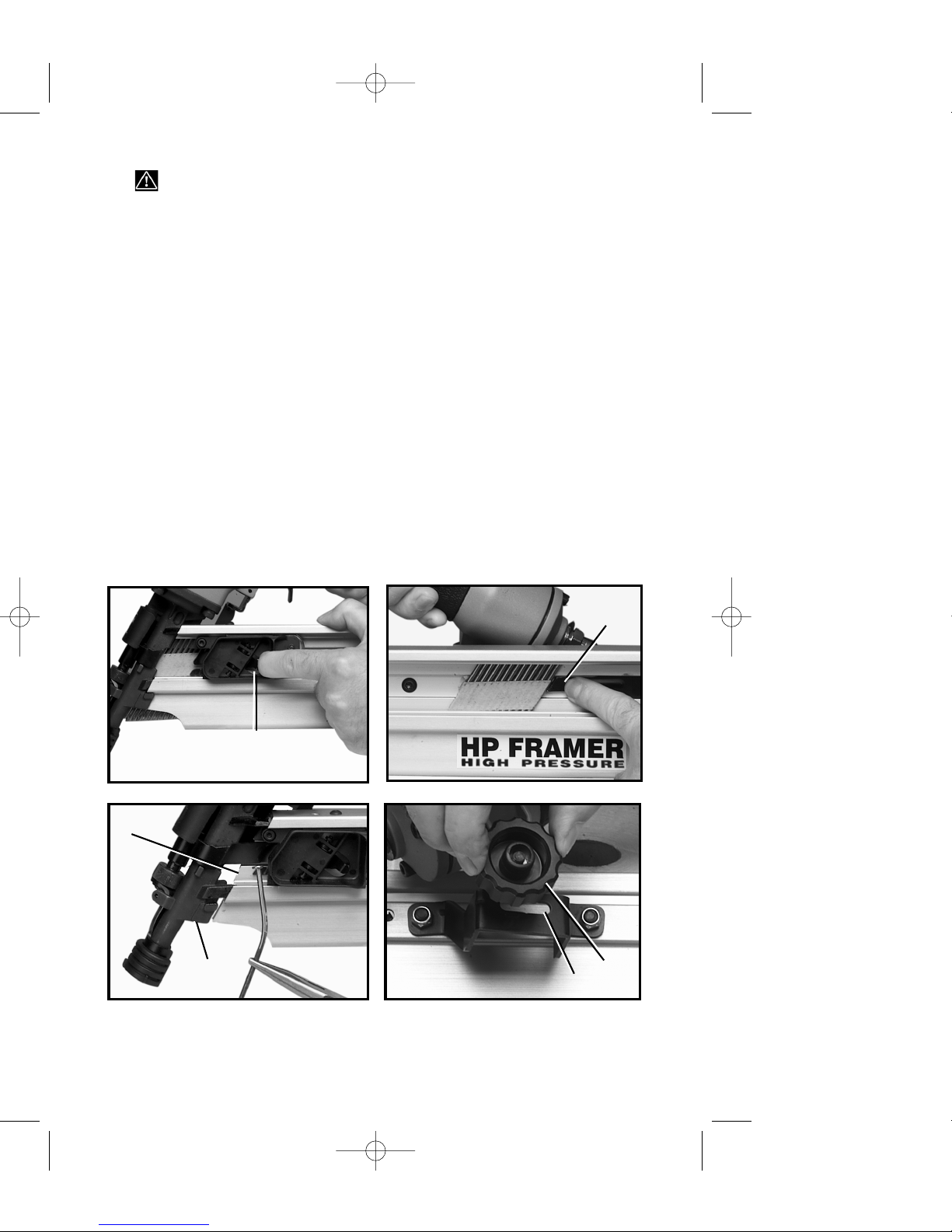

5. Pull the follower (B) Fig. 22, all the way to

the rear of the magazine and release. The

follower will apply pressure to the strip of

nails to feed it into the driving mechanism.

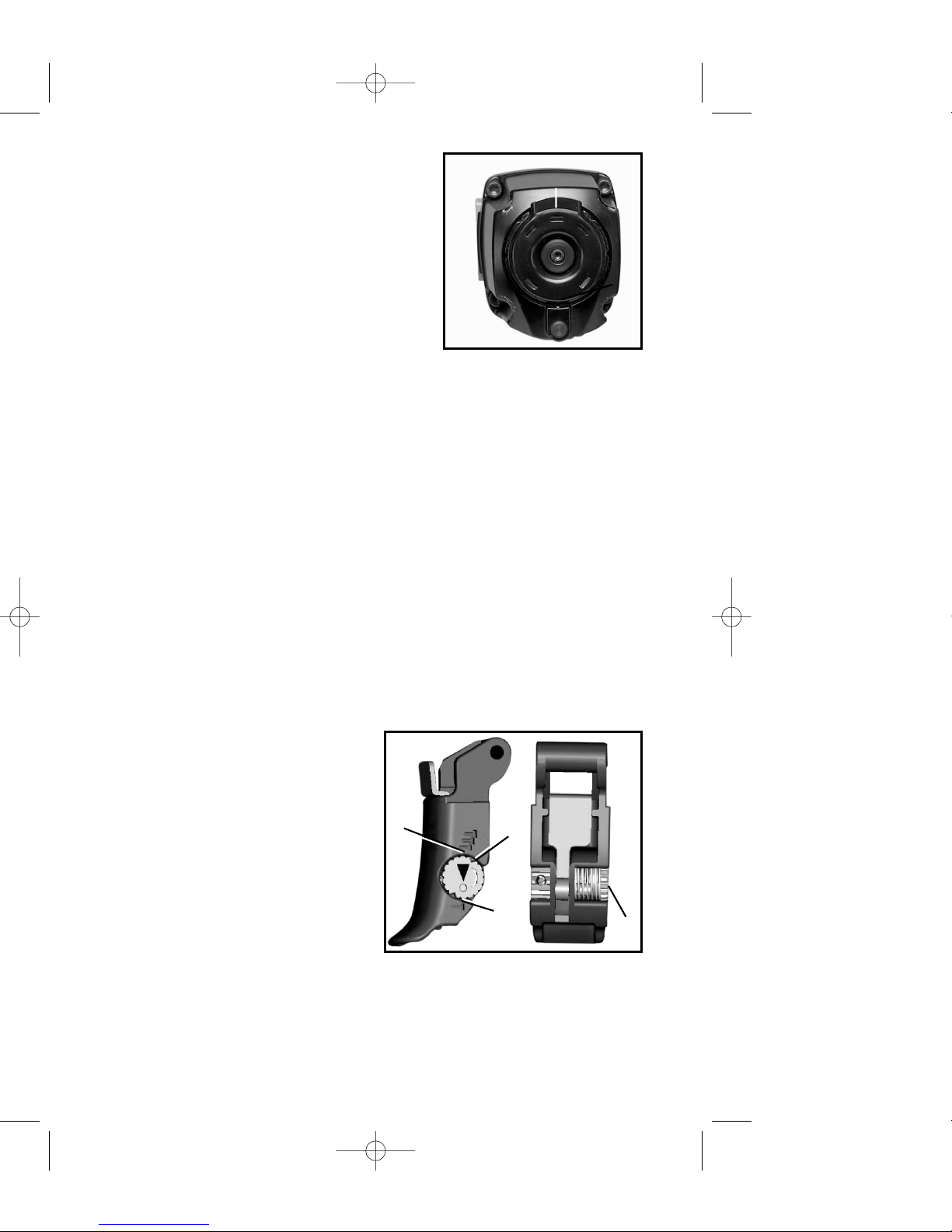

6. Adjust directional exhaust deflector (A) Fig.

23, so that the exhaust air blast will be

directed away from the operator. The exhaust

deflector provides seven detented positions

for directing the exhaust blast away from the

operator. Grasp the deflector and rotate it to

the desired position for the current

application. OPERATING INSTRUCTIONS

USING THE TOOL WITH SELECTABLE TRIGGERING OPTIONS

Complete all steps of PREPARING THE TOOL before using the tool.

This tool is shipped from the factory with a selectable trigger set in the

“SINGLE SEQUENTIAL ACTUATION” firing mode as described in number 1

below. The selectable trigger can be set for the “CONTACT ACTUATION”

firing mode as described in number 2 below;

1. To use the tool in the SINGLE SEQUENTIAL ACTUATION MODE

depress trigger lever pivot pin (A) Fig. 24 and rotate it to position (B) and

release. Note: Trigger lever pivot pin is spring loaded and held in position by

locking tab (D) Fig.24 to prevent movement during operation. To fire, grip

tool firmly to maintain control, position nose of tool onto work surface,

depress safety, and squeeze trigger to fire a fastener. Allow tool to recoil

away from work surface as fastener is driven. This “single sequential

actuation” method provides the most accurate fastener placement.

-OR-

2. To use the tool in the CONTACT ACTUATION MODE depress trigger

lever pivot pin (A) Fig. 24 and rotate it to position (C) and release. Note:

Trigger lever pivot pin is spring loaded and held in position by locking tab (D)

Fig.24 to prevent movement during

operation. To fire, grip tool firmly to

maintain control, squeeze and hold

trigger, push the tool firmly against

work surface. Allow tool to recoil

away from work surface as fastener

is driven. If safety element is

allowed to recontact work surface

before trigger is released an

unwanted fastener will be fired. The

tool will fire a fastener each time the

safety is depressed. This method is

known as “contact actuation” and

allows very fast repetitive fastener

placement.

IMPORTANT: A“single sequential actuation” trigger, which will limit the

tool to method number 1 only, is available free-of-charge by calling 1-800-

321-9443 in the United States and Canada or 001-731-660-9374 outside the

United States and Canada, and providing tool model number, type, serial

number, etc. For identification purposes: the single sequential actuation

trigger is red.

Fig. 23

Fig. 24

906388 - 10-28-02.qxd 10/28/02 11:50 AM Page 8

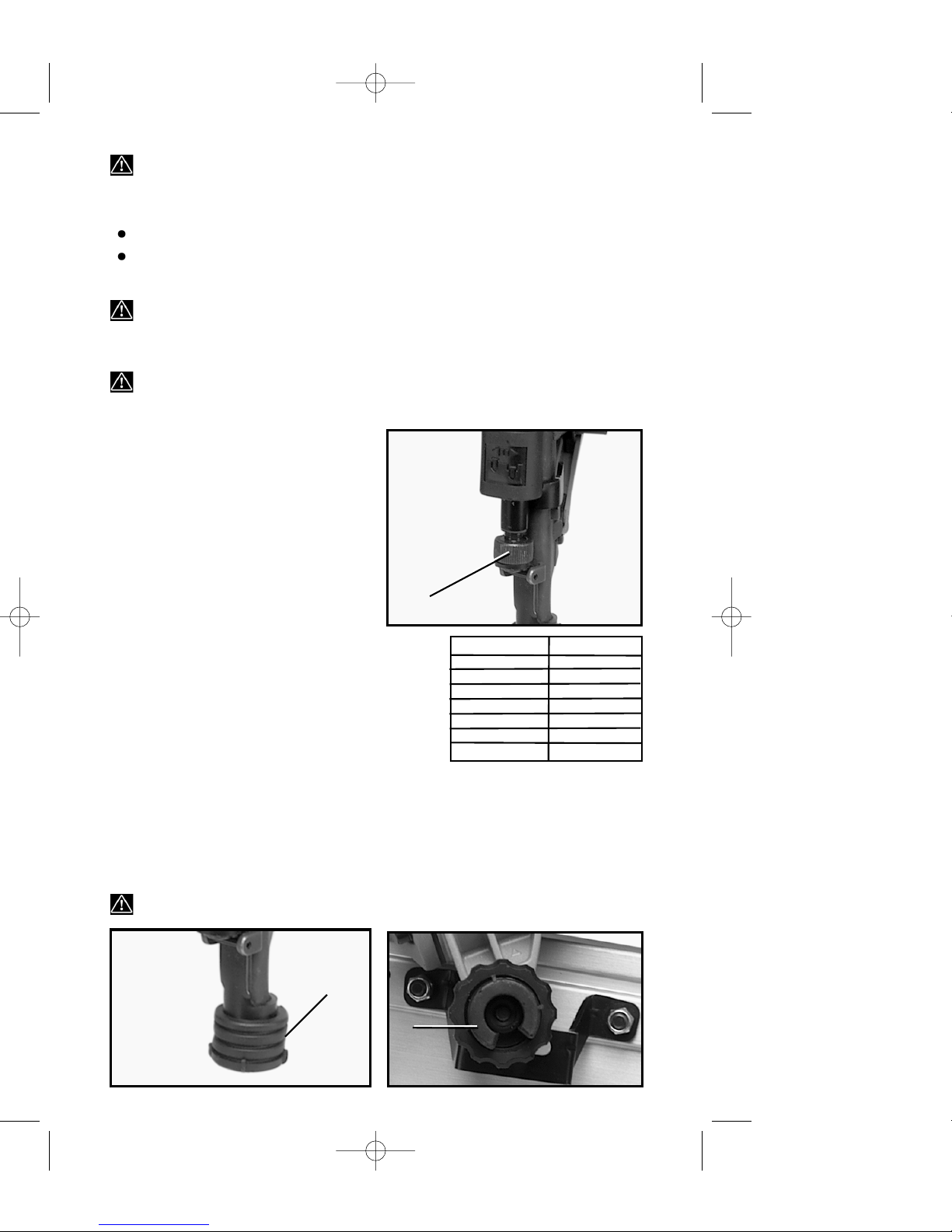

DANGER: Keep fingers AWAY from trigger when not driving fasteners to

avoid accidental firing. Never carry tool with finger on trigger. In “Contact

Actuation Mode” tool will fire a fastener if safety is bumped while trigger is

depressed.

Never point tool at yourself or others in work area.

Never attempt to drive a fastener into material that is too hard, or at

too steep an angle, or near the edge of the workpiece. The fastener

can ricochet causing personal injury.

WARNING: Disconnect tool from air supply before performing

maintenance, clearing a jammed fastener, leaving work area,

moving tool to another location, or handing the tool to another

person.

WARNING: Clean and inspect tool daily. Carefully check for proper

operation of trigger and safety mechanism. Do Not use the tool

unless both the trigger and the safety mechanism are functional, or

if the tool is leaking air or needs

any other repair.

The depth to which a fastener is

driven is controlled by the depth

adjustment knob (A) Fig. 25. The

depth of drive is factory adjusted to

a nominal setting. Test fire a

fastener and check depth. If a

change is desired, rotate the

adjustment knob (A) Fig. 25. The

adjustment knob has detents every

1/4turn. Rotate the knob (A) Fig. 25

clockwise to increase the depth of drive,

rotate the knob counterclockwise to decrease

the depth of drive. Test fire another fastener

and check depth. Repeat as necessary to

achieve desired results. The amount of air

pressure required will vary depending on the

size of the fastener and the material being

fastened. Experiment with the air pressure

setting to determine the lowest setting that will consistently perform the job

at hand (Fig. 25B). Air pressure in excess of that required can cause

premature wear and/or damage to the tool.

A rubber nose cushion (A) Fig. 26 is provided to reduce marring of the work

surface. The rubber cushion can be removed, and stored inside knob (B) Fig.

27, to provide increased depth-of-drive for toe-nailing applications.

WARNING: Disconnect tool from air supply before removing or

installing rubber cushion.

Fig. 27

Fig. 25

Fig. 26

Fig. 25B

Nail Size Pressure

.113 x 2" 80

.113 x 2-

3/8

" 90

.120 x 3" 110

.131 x 3" 110

.120 x 3-1/4" 130

.131 x 3-1/4" 130

.131 x 3-1/2" 150

906388 - 10-28-02.qxd 10/28/02 11:50 AM Page 9

CLEARING A JAMMED FASTENER

1. WARNING: Disconnect tool from air supply.

2. Remove any remaining fasteners from the nailer.

A. Place finger in recess (A) Fig. 28, and depress lever to release follower

mechanism.

B. With follower release button (A) Fig. 28 depressed, slide follower all the

way to the front of the magazine.

C. Depress stop (B) Fig. 29, slide fasteners to the rear, and remove from

magazine (see Fig. 22).

3. Use a pair of needle nose pliers and/or a flat screwdriver to free bent

fastener from back of nosepiece (A) Fig. 30. If fastener cannot be removed as

described, it may be necessary to remove the magazine as follows:

A. Loosen knob (A) Fig. 31 and move magazine into slotted bracket (B).

B. Slide magazine back, off of nosepiece. See (B) Fig. 30.

C. After clearing bent fastener, reverse above steps to reassemble.

Fig. 30

Fig. 31

Fig. 29

Fig. 28

←

906388 - 10-28-02.qxd 10/28/02 11:51 AM Page 10

Indice

Altri manuali Porter-Cable Pistola sparachiodi

Porter-Cable

Porter-Cable PN650 Manuale utente

Porter-Cable

Porter-Cable FC350 Manuale utente

Porter-Cable

Porter-Cable DA250C Manuale utente

Porter-Cable

Porter-Cable FC350A Manuale utente

Porter-Cable

Porter-Cable DA250C Manuale utente

Porter-Cable

Porter-Cable FC350B-CA Manuale utente

Porter-Cable

Porter-Cable 8604 Manuale utente

Porter-Cable

Porter-Cable 893885-007 Manuale utente

Porter-Cable

Porter-Cable PIN138 Manuale utente

Porter-Cable

Porter-Cable FN250A Manuale utente

Porter-Cable

Porter-Cable PCC790B Manuale utente

Porter-Cable

Porter-Cable DA250C Manuale utente

Porter-Cable

Porter-Cable PIN138 Manuale utente

Porter-Cable

Porter-Cable RN175B Manuale utente

Porter-Cable

Porter-Cable BN200B Manuale utente

Porter-Cable

Porter-Cable PIN138-CA Manuale utente

Porter-Cable

Porter-Cable 894884-003 Manuale utente

Porter-Cable

Porter-Cable PIN100 Manuale utente

Porter-Cable

Porter-Cable BAMMER CDA250 Manuale utente

Porter-Cable

Porter-Cable FR350 Manuale utente

Porter-Cable

Porter-Cable FN250 Manuale utente

Porter-Cable

Porter-Cable PCC790LA Manuale utente

Porter-Cable

Porter-Cable BN200C Manuale utente

Porter-Cable

Porter-Cable DA250B Manuale utente

Manuali Pistola sparachiodi popolari di altre marche

Performance Tool

Performance Tool M643 Manuale utente

Hitachi

Hitachi VH650 - Fencing Nailer, Full Head Manuale utente

Parkside

Parkside PET 25 B1 Manuale utente

Senco

Senco Fusion Technology F-35XP Manuale utente

Grizzly

Grizzly G1847 Manuale utente

Ryobi

Ryobi R18N18G Manuale utente

Black & Decker

Black & Decker 492848-00 Manuale utente

HOLZMANN MASCHINEN

HOLZMANN MASCHINEN TN90 Manuale utente

Metabo HPT

Metabo HPT NR 3690DC Manuale di istruzioni

Surtek

Surtek CN650 Dimensioni e guida di installazione

Makita

Makita GF600 Manuale utente

Parkside

Parkside PET 25 B1 Manuale utente

Senco

Senco AirFree 25 Manuale utente

Freeman

Freeman P50LSLW Manuale utente

Aicon PRO

Aicon PRO DAC4507 Manuale utente

DAJ

DAJ XR150A Manuale utente

Makita

Makita AN923 Manuale utente

Grizzly

Grizzly T20644 Manuale utente
