POS-X Manual
More information available at POSMicro.com
XR520
Receipt Printer User’s Manual
5-Year Limited Warranty
POS-X Inc. provides this ve (5)-Year Warranty for this product.
For terms and conditions please go to:
WWW.POS-X.COM
All specications are subject to change without notice
TABLE OF CONTENTS
1. Parts Identications 3
2. Setting up the printer 4
2.1 Unpacking 4
2.2 Connecting the cables 5
2.3 Loading the Paper Roll 9
3. Control panel and other functions 12
4. Self Test 13
5. Hexadecimal Dump 14
6. Specications 15
6.1. General Specications 15
6.2. Auto Cutter Specications 17
6.3. Interface 17
6.4. Electrical Characteristics 17
6.5. Environmental Requirements 18
6.6. Reliability 18
6.7. Certication 18
7. Command List 19
XR520 User’s Manual
3
1. Parts Identications
PRINTER COVER
Open this cover to load or
replace paper.
POWER SWITCH
Used to turn on/off power
to the printer.
COVER OPEN BUTTON
Push down this button to
open the printer cover.
CONTROL PANEL
Features LED indicators
to indicate printer status
and switches to operate
the printer.
INTERFACE CONNECTOR INTERFACE CONNECTOR(USB)
PERIPHERAL DRIVE CONNECTOR
POWER CONNECTOR
XR520 User’s Manual
4
2. Setting Up the Printer

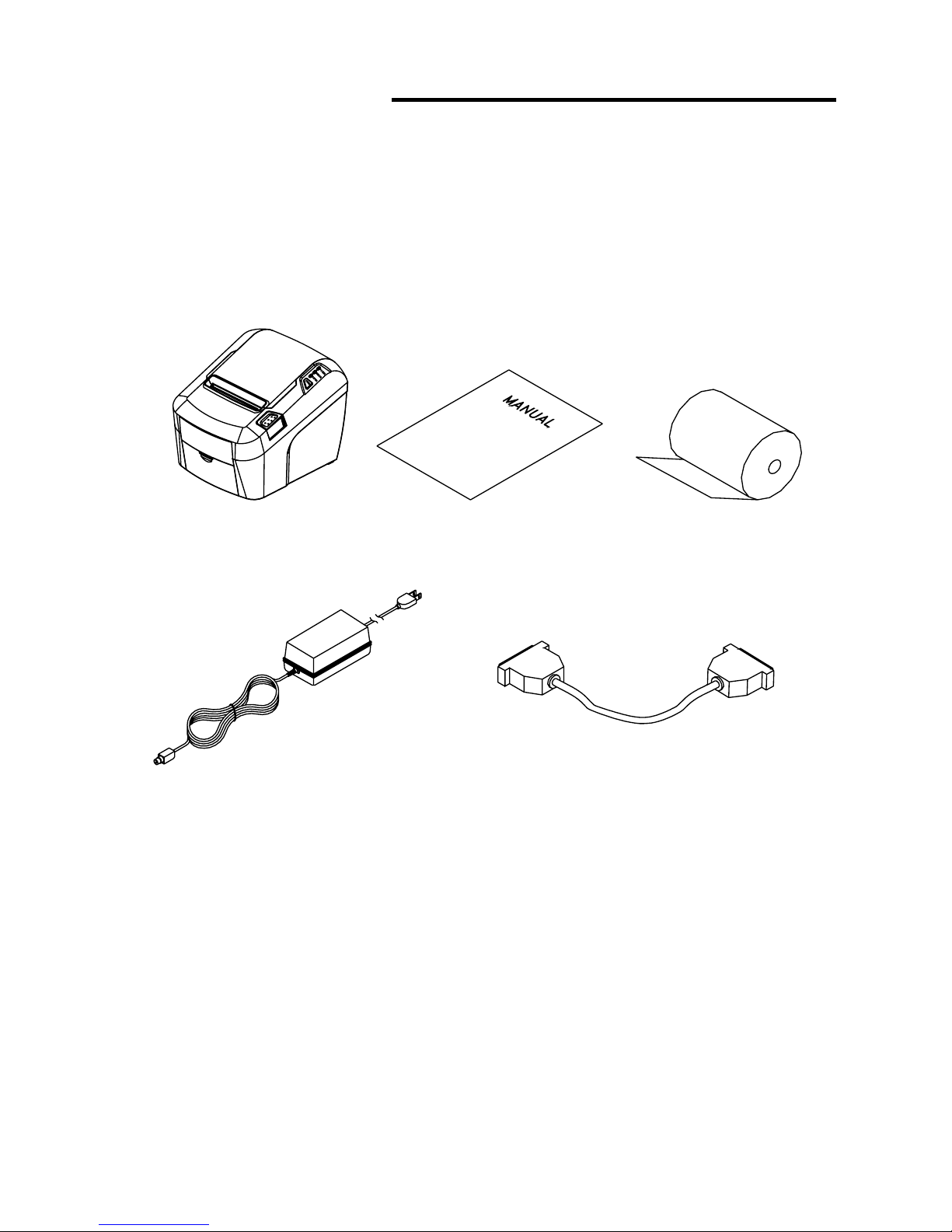

2-1. Unpacking
Your printer box should include these items. If any items are damaged or missing, please contact
your dealer for assistance.
POWER
ERROR
PAPER
FEED
The Printer User's Manual Paper Roll
Power Adapter is included Interface Cable is included
XR520 User’s Manual
5

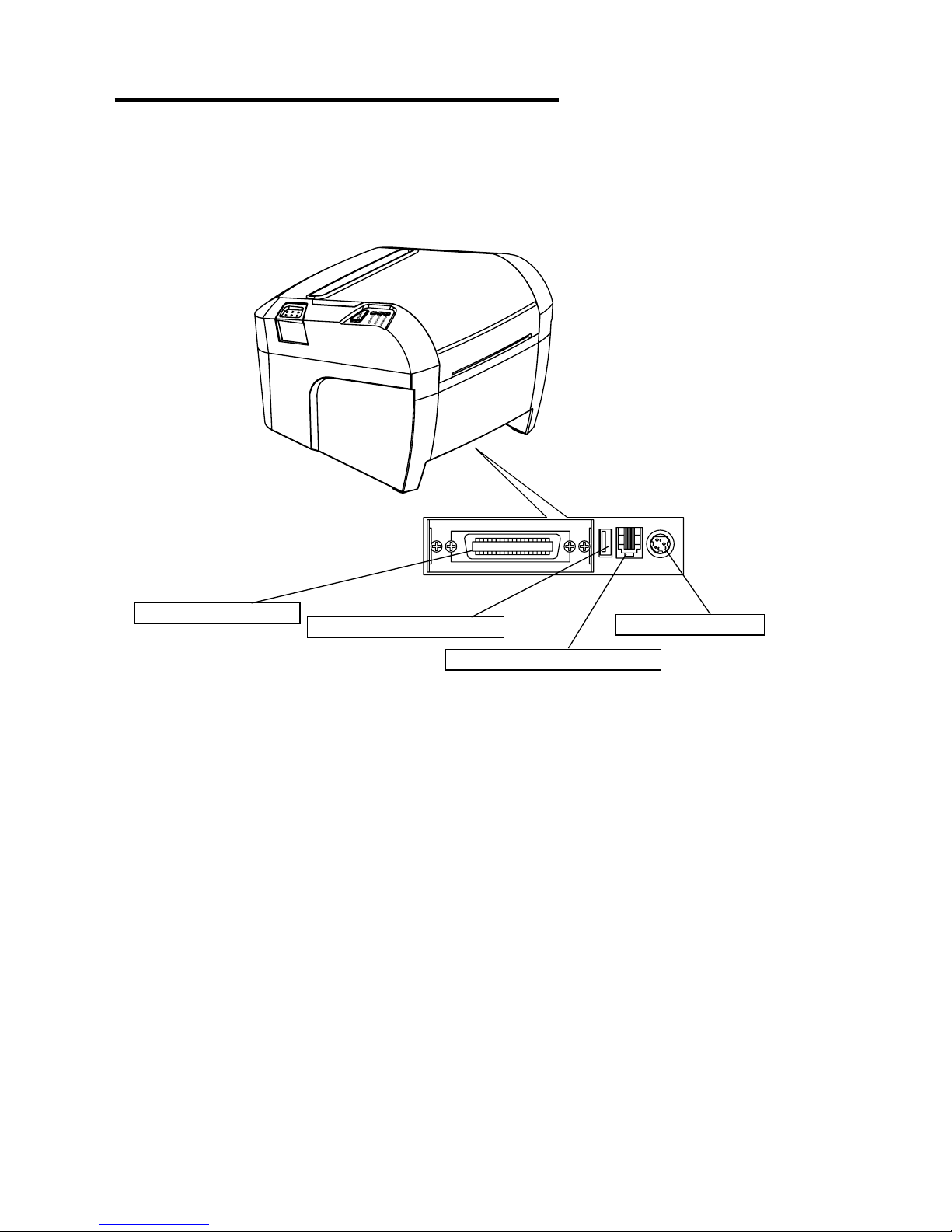

2-2. Connecting the Cables
Please refer to the image below for the proper cable connection location
You can connect up the cables required for printing to the printer.
They all connect to the connector panel on the back of the printer, which is shown below :
Before connecting any of the cables, make sure that both the printer and the computer are turned
off.
For connection to a
host computer.
For connection to a
host computer. For connection of
the AC adapter.
Never unplug the
AC adapter while
the printer is on.
Connects to peripheral units
such as cash drawers, etc.
Do not connect this to
a telephone.
INTERFACE CONNECTOR INTERFACE CONNECTOR(USB)
PERIPHERAL DRIVE CONNECTOR
POWER CONNECTOR
XR520 User’s Manual
6

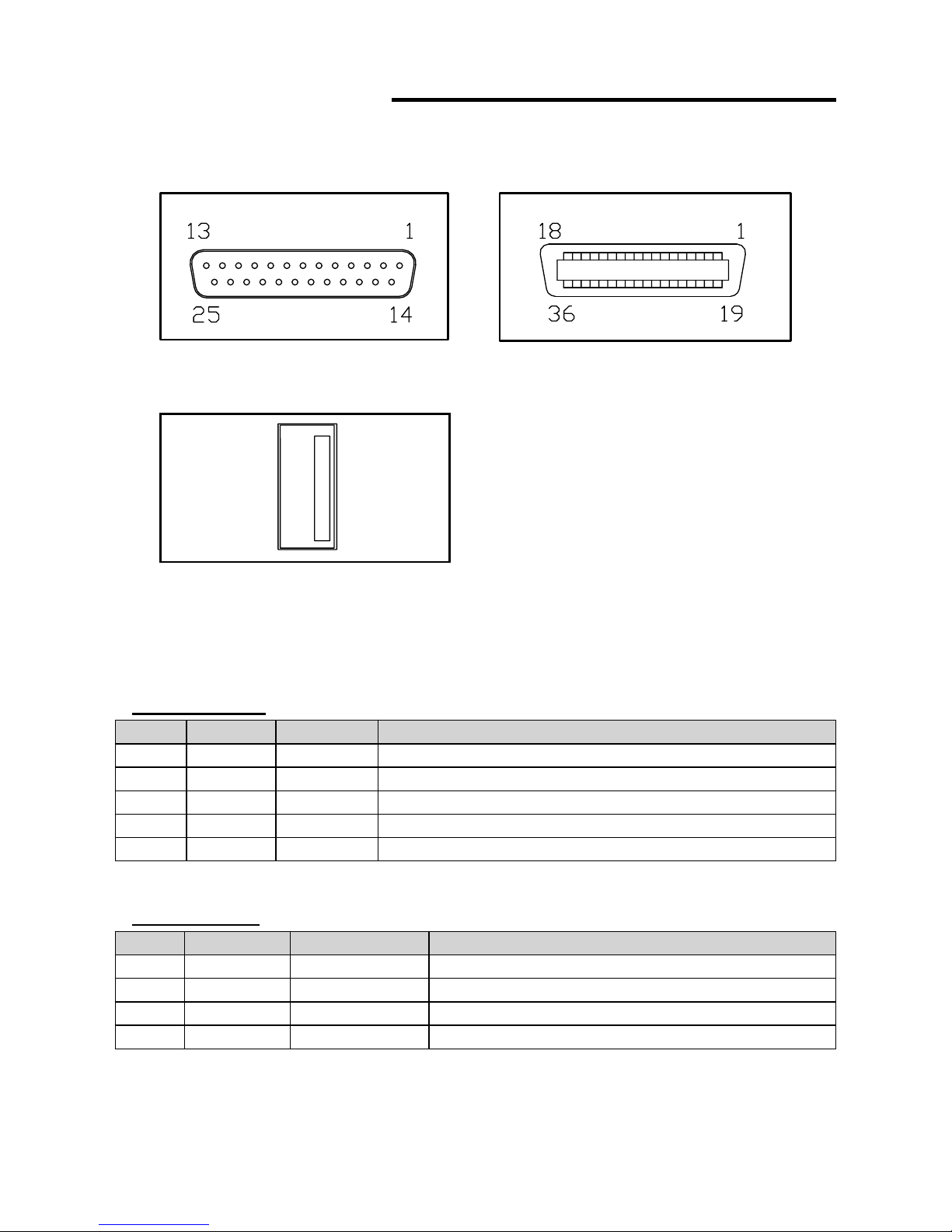

2-2-1. Interface Connector
<D-SUB 25 Female Serial> <Centronics Parallel>
<USB “A” Type>
Serial Interface
PIN SIGNAL I/O DESCRIPTION
2 TXD Output Printer transmit data line RS-232C level
3 RXD Input Printer receive data line RS-232C level
4, 20 DTR Output Printer handshake to host line RS-232C level
6 DSR Input Data Send Ready
1, 7 GND - System Ground
USB Interface
PIN SIGNAL I/O DESCRIPTION
1 +5V - +5V
2 DATA- - Printer transmit data line
3 DATA+ - Printer transmit data line
4 GND - System Ground
XR520 User’s Manual
7
Centronics Parallel Interface
PIN SIGNAL I/O DESCRIPTION
1 STROBE- Input Synchronize signal Data received
2~9 DATA0~7 Input/Output Data bit Transmitted 0~7
10 ACK- Output Data receiving completed.
11 BUSY Output Impossible to print of data receiving.
12 PE Output Paper empty
13 SELECT Output Printer status for ON/OFF line
14 AUTO FEED- Input Paper auto feed signal
15 GROUND - System ground
16 GROUND - System ground
17 NC -
18 LOGIC-H - +3.3V
19~30 GROUND - System ground
31 INIT- Input Initialize
32 ERROR- Output Printer error
33 GROUND - System ground
34 NC -
35 NC -
36 SELLECT IN- Input Printer select signal
XR520 User’s Manual
8
2-2-2. Cash Drawer Connector
The printer can operate two cash drawers with a 6 pin RJ-11 modular connector.
The driver is capable of supplying a maximum current of 1.0A/24VDC for 510ms or less
when not printing.
PIN SIGNAL DESCRIPTION
1 Signal GND -
2 Drawer kick-out drive signal 1 Output
3 Drawer open/close signal Input
4 +24V -
5 Drawer kick-out drive signal 2 Output
6 Signal GND -
Caution : To avoid an overcurrent, the resistance of the drawer kick-out solenoid must be 24 Ω
or more.
