Touchkit Driver Installation Guide forEmbedded Windows XP
Touchkitdriver package allowsusers to buildthe software/driver component
for embedded WindowsXP via MicrosoftComponentDesigner.Then, add
these touchkitsoftware/driver componentsto the componentdatabase, such
that the system designer can select them toadd to system platform image with
Microsoft Target Designer.
1. Buildsoftware/drivercomponent forTouchkittouchscreen
controller.
The Microsoft Component Designer mustbe installed before the designer can
build thesoftware/driver packages for embedded WindowsXP.Then,follow
the steps shown as belowto buildthe components.
1.) Download the touchkitdriver package for embedded Windows XP.
2.) Setup the touchkitdriver on the developing machine.
3.) Copy2files“touchkit.cat",and"xAuto4PtsCal.exe”manuallyto the folder
where the touchkit software installed. For example
,in G:\Program Files\TouchKit
4.) Launch MicrosoftComponent Designer.SelectFile->Import toimport the
device componentsfrom .inf file. Then, choose the INFfile“touchkit.inf”in
the folder under G:\Program Files\TouchKit.After importing touchkit.inf
finished, 5device components will be list as below:
I.SerialTouchscreen Controller(Professional) :
the device component for serialcontroller.
II.USB Touchscreen Controller(Universal) :
the device componentfor USB controller withVID0EEF
and PID 0001.
III.USB Touchscreen Controller(Professional) :
the device componentfor USB controller withVID0EEF
and PID 0002
IV. Touchkit Filter :
the device component for PS2 controller.
V.TouchScreen Enumerator :
the device component for serial controller.
PS: If you wantinstallSerialTouchscreen Controllerdriver , you must set
“Serial Touchscreen Controller(Professional)”and “TouchScreen
Enumerator”both.

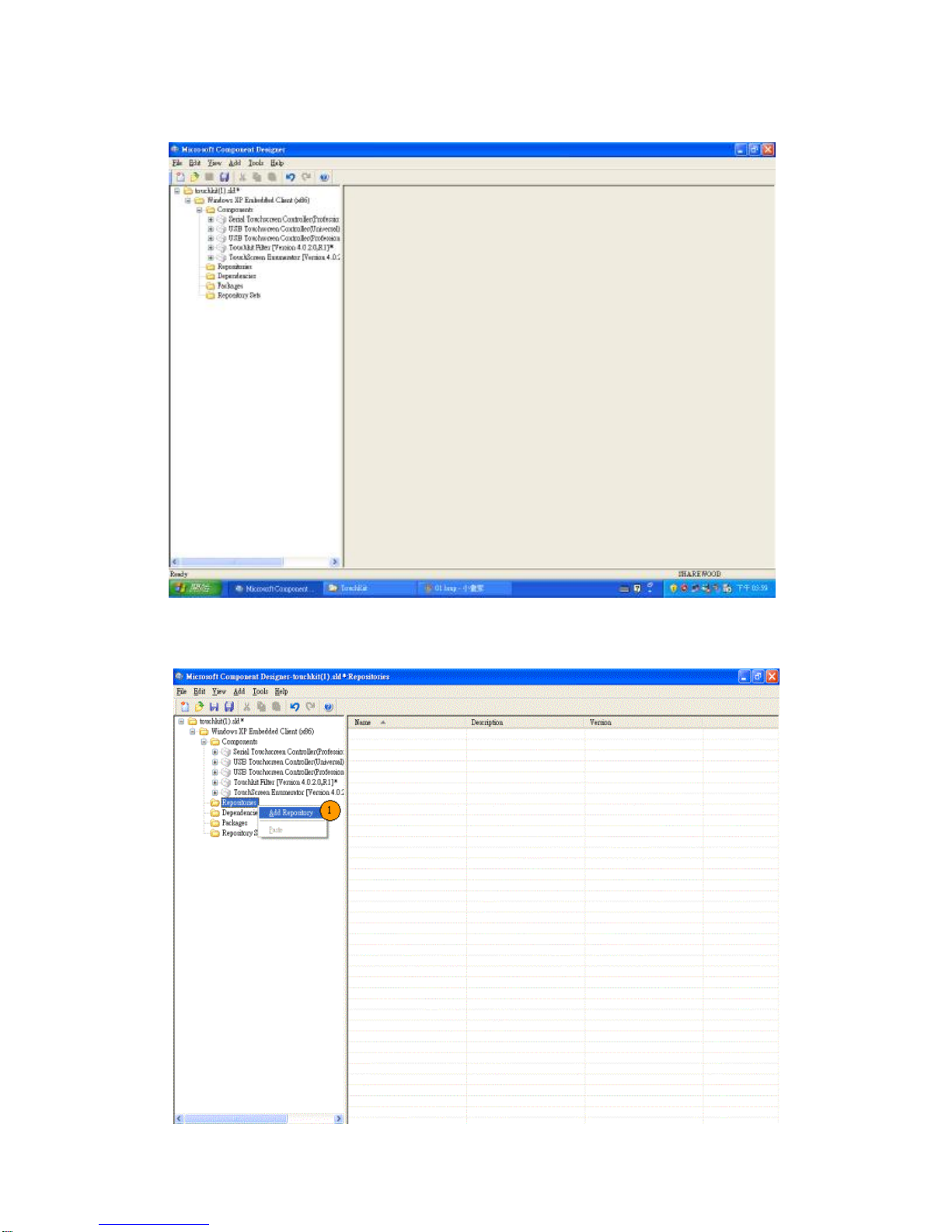

The screen willshowthe Component designer as below:
5.) Create a newrepositoryfor the component.
Next, thesource pathmust beassigned tothe folder where theTouchKit
installed.
For example: G:\Program Files\TouchKit.
6.) Set the device components.
Select the component“USB Touchscreen Controller(Universal)”for USB
controller tosetthe properties of the componentand assign the correct
repository.
(if you wantinstallRS232 Driver, you have toselect “SerialTouchscreen
Controller(Professional)”and “TouchScreen Enumerator”or if you want
installPS2 Driver , you have to select “TouchkitFilter”)
PS: If you set “TouchScreen Enumerator“device component, you must set
“Prototype”to“Device: Ports”.
7.) Add Utilityfiles to the component.
Add the files for touchkitcontroller utilityso that the user can do alignment
or calibration and other enhanced features for touchscreen.
Choose the files from the repositoryfolder
Select allofthe files in the folder to add tothe component.
Modifythe file pathfor some files and make sure these files pathto
a.) xAuto4PtsCal.exe %11
b.) touchkit.inf%17%
c.) touchkit.cat %12%
d.) xTouch.sys %12%
e.) sertouch.sys%12%
f.)XTouch32Ex.dll%11%
g.) egxfilter.sys%12%

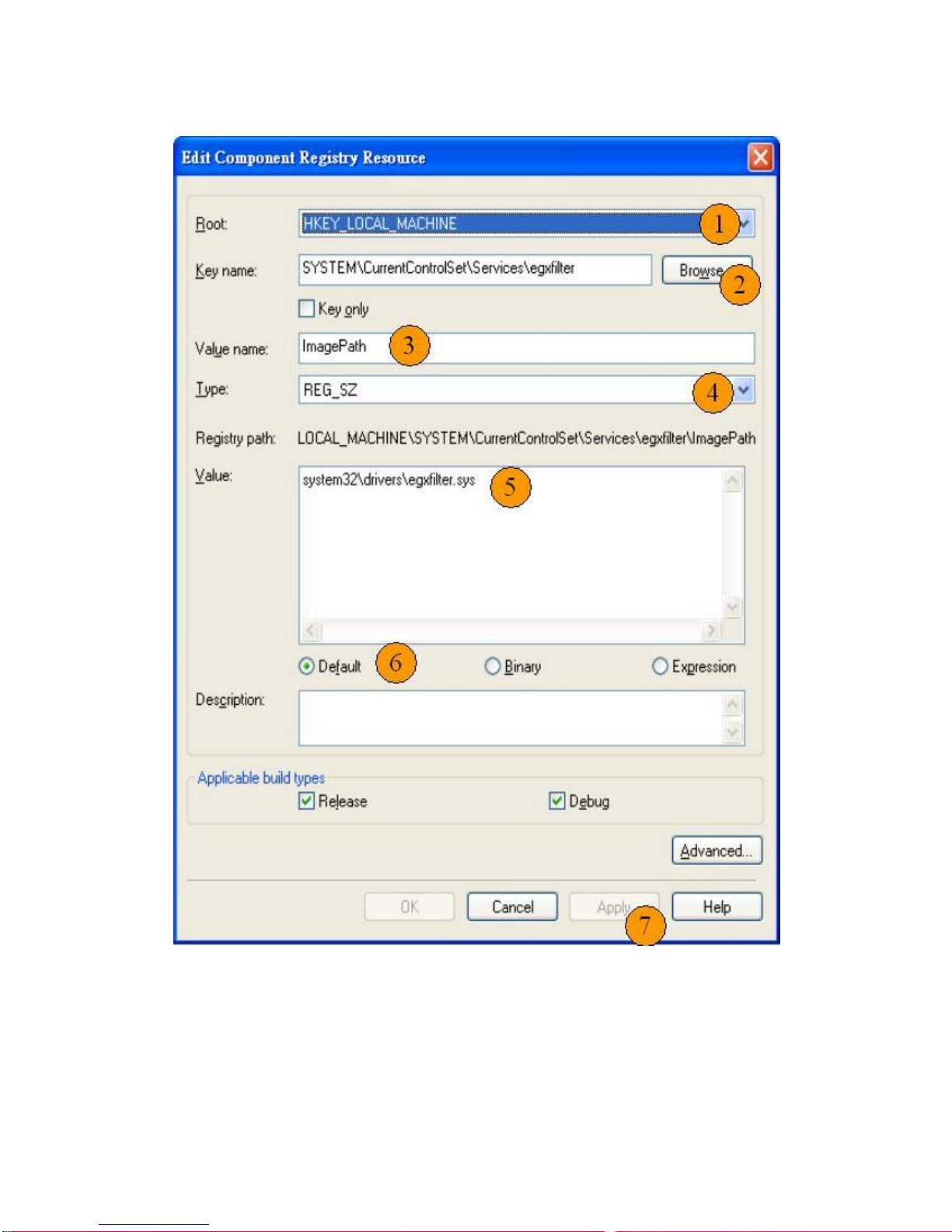

8.) Add the registryresource for the component for some specific setting
Ifyou have set “TouchScreen Enumerator”Component ,please add these
four RegistryDatain “TouchScreen Enumerator”Component.
I.Set Keyvalue “ErrorControl= 0x00000001 “
II.Set Keyvalue “ImagePath =system32\drivers\egxfilter.sys“
