POSIFLEX BB-2000 Manuale utente

Package Contents

BB-2000

BB-2000 Bump Bar with PS/2 cable (x 1)

User Manual (x 1)

BB-2000S

BB-2000S Bump Bar with RS-232 cable(x 1)

User Manual (x 1)

BB-2000U

BB-2000U Bump Bar with USB cable (x 1)

User Manual (x 1)

19180900020 Ver. A0

http://www.posiflex.com

BB-2000/2000S/2000U

Bump Bar User Manual

Views of BB-2000

Top View

Bottom View

Top View

Views of BB-2000S/2000U

Top View

Bottom View

Top View

Buzzer

Rack-mounting hole

Rubber Pad

Wall-mounting hole

Buzzer

Rack-mounting hole

Rubber Pad

Wall-mounting hole

Replaceable keypad overlay

Preprinted keypad overlay

Powering on BB-2000 Series

Before powering on BB-2000 series, the bump bar has to be connected to the

POS terminal using a USB cable or a RS-232 cable to extract electricity.

Please follow two steps below to install cables to POS terminals.

For BB-2000 users

1. Carefully attach PS/2 connector of PS/2 cable to the PS/2 Port of your

POS terminal.

2. After powering on the POS terminal, BB-2000 will be activated.

For BB-2000S users

1. Well insert the RS-232 cable to the POS terminal.

2. Activate power output to COM port via BIOS settings.

2.1. Make sure that BB-2000S is well connected to the Posiflex terminals

using the RS-232 cable.

2.2. Power on the POS terminal. During the boot process, hit F2 key to

access BIOS setting.

2.3. Navigate through BIOS using arrow and Enter keys to access the

setting of the COM port which is used by BB-2000S. If it is set to be

disabled, hit Enter key to enable the power output to the COM port.

2.4. Switch to Exit tab and select Exit Saving Changes option. Choose

Yes in Setup Confirmation message box to save your configurations.

2.5. After rebooting your POS, make sure that BB-2000S is activated.

For BB-2000U users

1. Properly plug Type-A connector of USB cable to the POS terminal.

2. After powering on the POS terminal, BB-2000U will be activated.

Installing Wall-Mount Kits

Please follow the below steps to mount BB-2000/2000U/2000S to the wall.

1. Decide where you wish to mount the bump bar.

2. Drill two holes and each holes has to be at

least

”or 6.25 mm diameter and

”or 35

mm in depth. There also should be 3”or 76

mm between two holes.

3. After inserting two plastic anchors into the

holes you drilled in step 2, slightly tap the

plastic anchors with a hammer until they are

fully inserted into the drilled holes.

4. Plug two screws into two anchors through the

mounting holes of the wall-mount bracket.

Then, tighten the screws, but leave the

screws loose enough to hold the bump bar as

shown in the figure.

Installing Rack-Mount Kits

The rack-mounted kits provided in the package allow you to fix BB-

2000/2000S/2000U to the rack. The steps described are meant to help you to

achieve the purpose.

1. Find two holes, and leave the spacing of about 4.6”or

116mm and 4.75”or 121 mm between them.

2. As the figure suggests, insert two screws into the

holes through the rack-mount bracket and then fasten

them.

3. Make sure that BB-2000/2000S/2000U is well fixed

to the rack.

Installing Posiflex Bump Bar Editor

Posiflex Bump Bar Editor is a tool designed to configure 17 programmable

keys located on the BB-2000 series. You may visit Posiflex official website to

download and install the utility: http://www.posiflex.com/en-

global/Download/download

Regular Cleaning

For regular cleaning of the bump bar, please use only adequate amount of mild

kitchen cleaning detergent for obstinate stains and wipe it off with dry clean

soft clothes. Don’t allow any liquid to seep in through any seam in the metal

enclosure. It could also be a brilliant idea to seal the whole bump bar with thin

transparent wrap foil and replace the foil regularly.

Starting with Posiflex Bump Bar Editor for BB-2000U/2000S

The following description will explain how to customize keys using Posiflex

Bump Bar Edit. Before proceeding to configuration, make sure that BB-2000

series is well connected to the POS system.

1. After downloading the utility, double-click the icon named by

“Posiflex BB2000 Setup Tool” on the Desktop to invoke the

application.

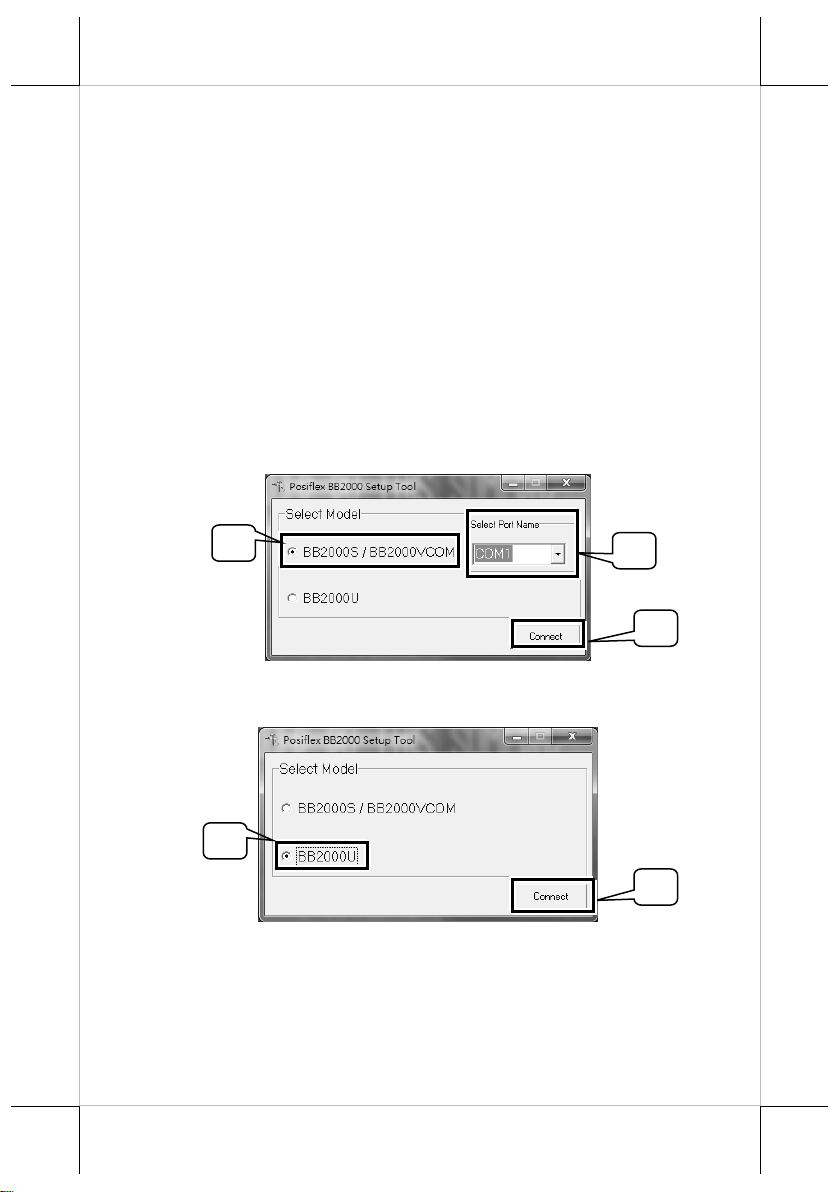

2. In the pop-up dialogue, properly choose the interface you prefer to

establish connection.

2.1. If you attempt to use RS-232 or Virtual COM interfaces to create

connection between the application and your device, click on

BB2000S/BB2000VCOM option, choose the COM port

connected to BB-2000 series, and then click on the Connect

button.

2.2. For those users who intend to establish connection via USB

interface, select BB2000U option and then hit Connect button.

3. Below is the brief user interface introduction.

On-screen keyboard：

Switch among

Alphabet/Symbol/Control tabs

to find the key you need to

input data

Editing area：to define the value of

each programmable keys

The list of programmable keys

Connection：to establish a connection with BB-2000 series via HID or

VCOM interface

File：to open the existing file or save the current settings

Config

/New Project：to new a project

/Read Flash ：to restore the configuration from the flash memory

/Write Flash：to write the current configuration to the flash memory

/Default Key：to reset all the keys to the factory default settings

Test：to check whether the key programming is successful

Help：to access online document and version information

4. Select Config > Read Flash to load the data from the bump bar.

5. At the upper side of the window, click on the key you which to

configure.

6. In the editing area, define the key value using the physical keyboard or

the on-screen keyboard on the bottom of the window.

7. After finishing editing the key values, select Config > Write Flash to

save the configuration to the bump bar.

Specifications

BB-2000

BB-2000S

BB-2000U

General

17-keyBump Bar Programmable Keyboard

Construction

100% true spill-proof structure, state of the art top notch

solid design, 17 programmable keys with 4 x 4 matrix + 1

large key structure.

Key Switch Type

Membrane switch for one big key and membrane switches

with metal dome for 4 x 4 keys.

Key Stroke Travel

0.65 mm

Key Size

11 x 11 mm (4 x 4 keys), 75.83 x 54.67 mm (Big single

key)

Preprinted Keys

1 (Big single key) and 4 x 4 keys as: 1; 2; 3; 4; 6; 7; 8; 4

Screen; 8 screen; Split Screen; Park/Status;

Programmability

Coverage

17 keys

Code Type

ASCII

Language

English or European, software configured

Contents Length

56 bytes/key or 28 2-bytes/key

Power Consumption

Voltage

5VDC +/- 10%

Current

160mA max.

Mechanical

Dimensions

150 mm (W) x 100 mm (D) x 51 mm (H) (5.9" x 3.9" x

2.0")

Weight

510g (with cable)

Environmental

Operating

Temperature

0℃〜50℃

Storage

Temperature

-20℃〜70℃

Relative Humidity

90% non-condensing

Vibration

Shock

40 G

Reliability Information

Push Key Switch

1,000,000 strokes to 3,000,000 strokes

Applicable

Conformity

FCC Class A, CE

Accessory

PS/2 cable for BB-2000 or

RS-232 cable for BB-2000S or

USB (type-A) cable for BB-2000U

<MEMO>
