POSIFLEX HT-4712 Manuale utente
1
HT-4712 PB-4700
Package Contents
HT-4712 POS terminal or PB-4700 POS box x 1
Power adaptor x 1
Power cord x 1
Quick installation guide x 1
Recovery or information CD x 1
Product Features
Standard Features
System
Intel Haswell CPU, LGA 1150 package
Intel H81 or optional Q87 supporting RAID
Dual-channel DDR3 SO-DIMM x2, 1600MT/s, Max 16GB
Mechanical Structure
Gear button to adjust LCD tilt angle from 40° to 75°
Gear button to adjust LCD swivel angle from 0° to 16°
Display (for HT-4712 ONLY)
12" LCD touch panel, 1024x768 resolution
5 wires, touch panel
HT-4712 / PB-4700
POS Terminal / POS Box
Quick Installation Guide
15570900010 Ver. Original
http://www.posiflex.com
2
Optional Items
System
SSD, through SATA interface
POSReady 7, Windows 7,
Windows Embedded 8.1 Industry,
Linux per request
WIFI
802.11 b/g/n, through external USB dongle
Views of the HT-4712/PB-4700

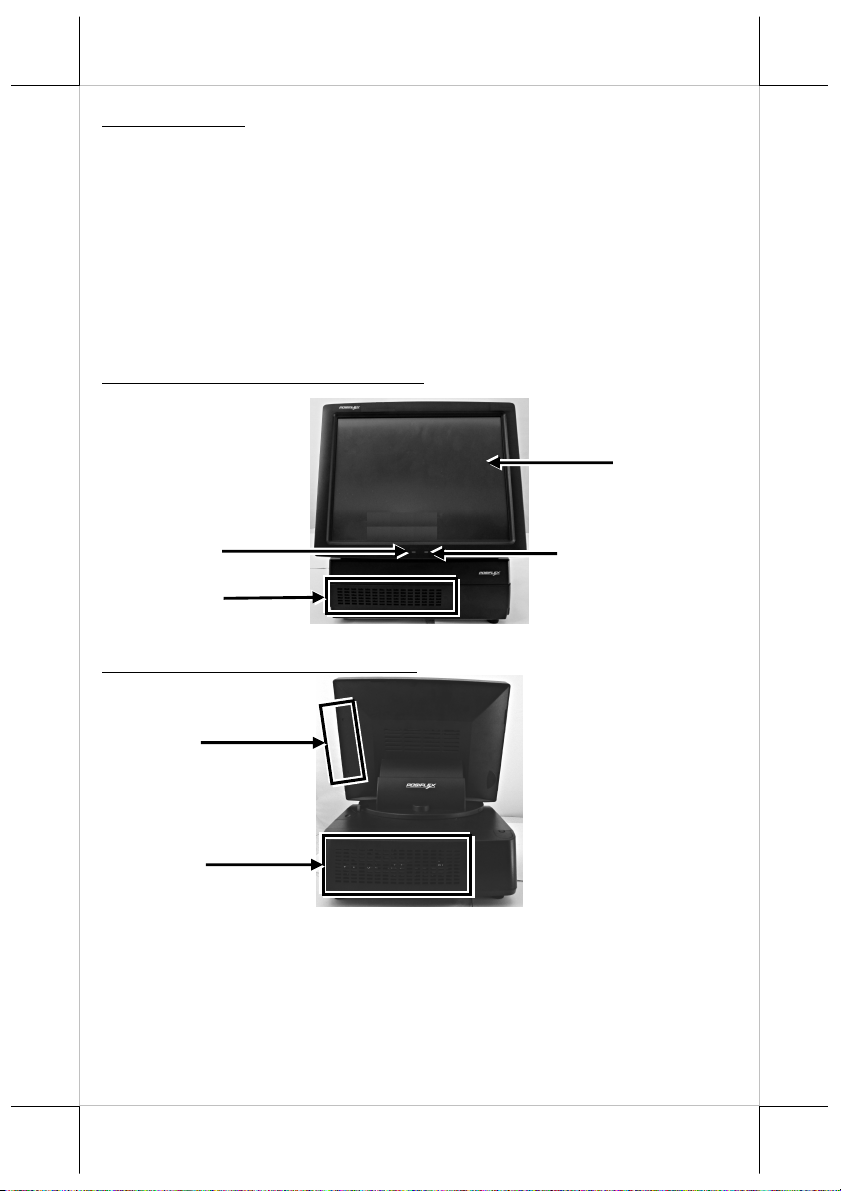

Front View of HT-4712/PB-4700
Rear View of HT-4712/PB-4700
Ventilation Grids
12-inch LCD Touch Panel
LAN LED Indicator
Power LED Indicator
Ventilation Grids
Side Mount Upgrade Kit
Mounting Portion
(Op
tional)
3

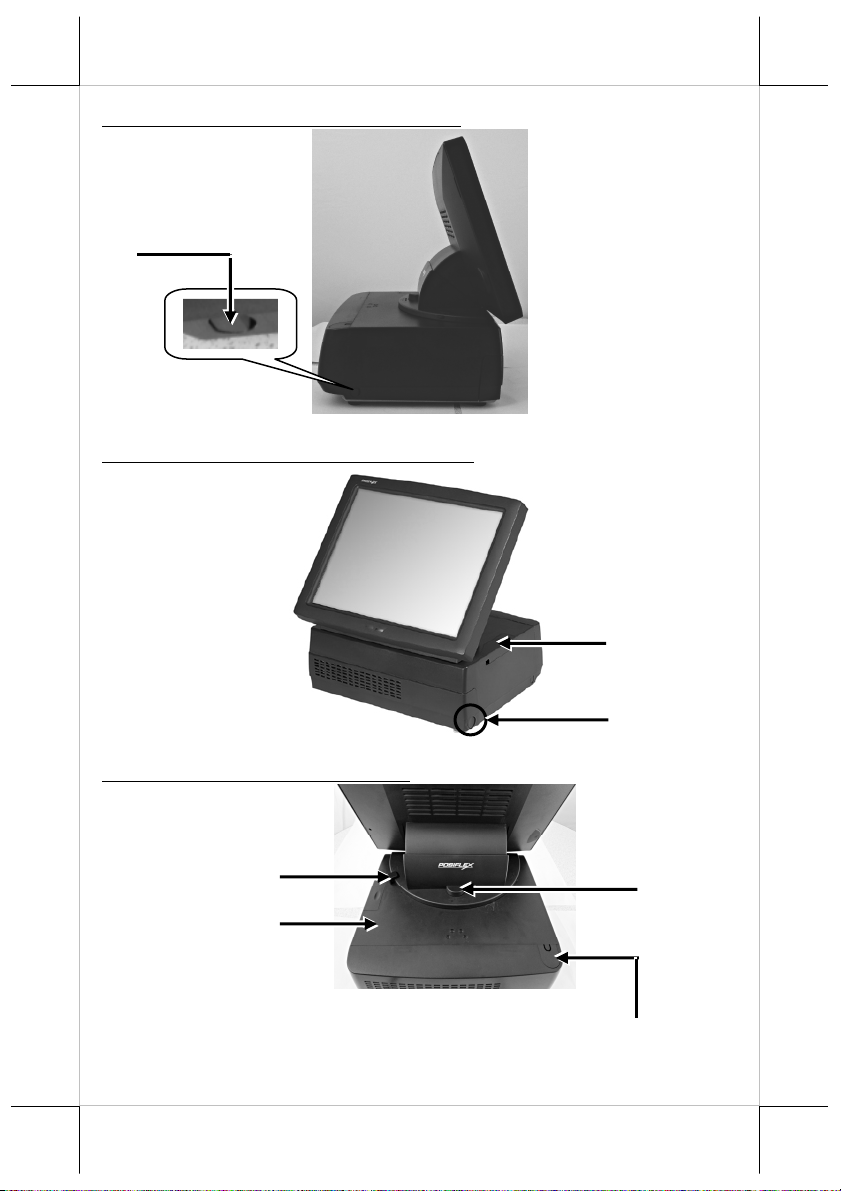

Left Side View of HT-4712/PB-4700
Right Side View of HT-4712/PB-4700
Top View of HT-4712/PB-4700
I/O-Port Protective Cover
Release Button
Power Button
Extended USB Port Cover
Customer Pole Display
Mounting Portion (Optional)
Up-Down Viewing Angle
Adjustment Button
Left-Right Viewing Angle
Adjustment Button
Upper Cover
4

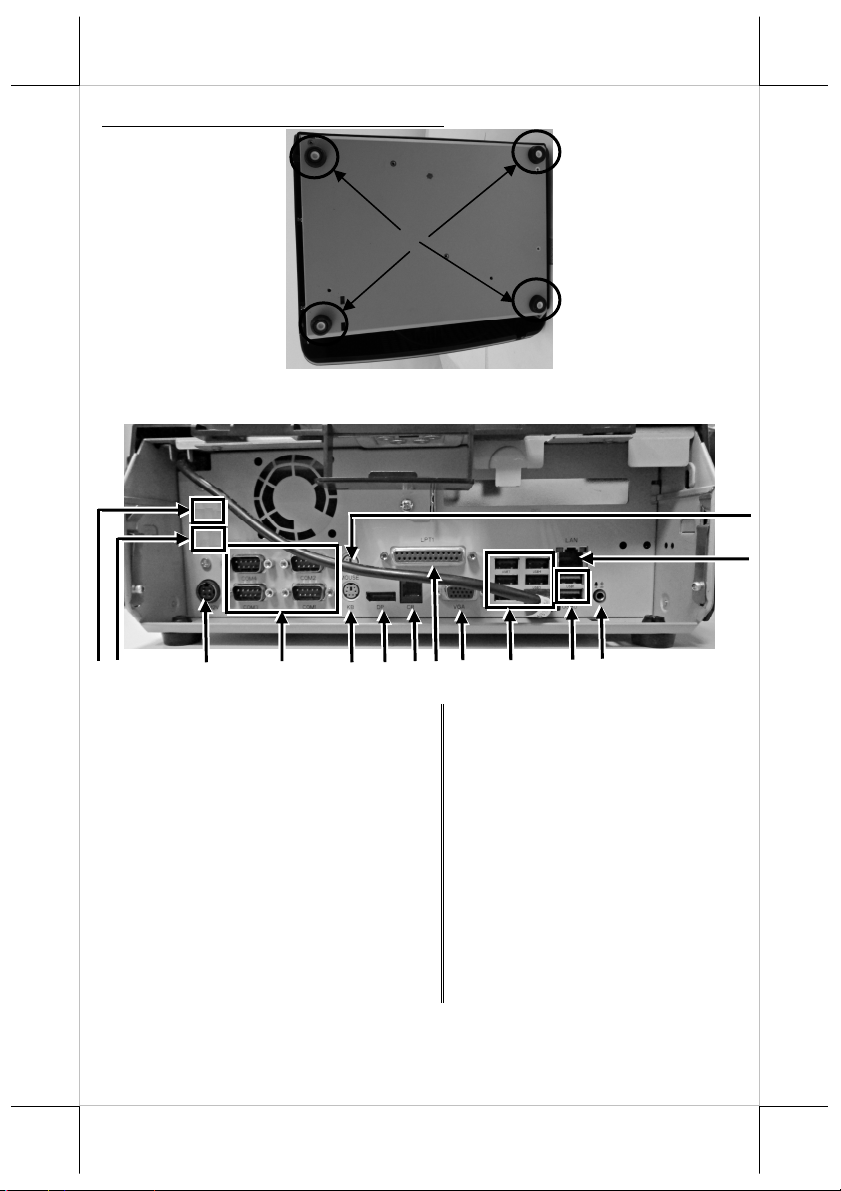

Bottom View of HT-4712/PB-4700
View of I/O Interfaces of HT-4712/PB-4700
1
(Reserved for optional
PoweredUSB Port or COM port) 2
(Reserved for optional
PoweredUSB Port or
COM port)
3
12V DC-IN Power Jack
4
COM1 ~ COM4
5
PS2 Port for Keyboard 6
Display Port
7
Cash Drawer Port 8
Parallel Port
9
VGA Port 10
USB2.0 Port
11
USB3.0 Port 12
MIC-IN / Line-Out for
Combo Jack
13
RJ45 LAN Port 14
PS2 Port for Mouse
Rubber
Cushion
1
2
3
4
5
6
7
8
9
10
11
12
13
14
5
Connecting Power Adapter and I/O Cables
Follow the steps listed below to open the rear I/O-port protective
cover and connect cables.
1. Press the release buttons, with
forefingers, on the left and
right sides of the upper cover
of the POS box.
2. Press and hold the upper right
and upper left sections of rear
I/O-port protective cover with
thumbs, and pull outwards the
cover.
3. Remove the rear I/O-port
protective cover.
4. Connect power adapter and
I/O cables to the I/O interface
of the POS box.
1
2
6
Close the rear I/O-port protective cover
Remember to close the rear I/O-port protective cover after
completing in the power adapter and I/O cable connection.
Follow the steps listed below to close the cover.
1. Align the two wedges of the top
of the rear I/O-port protective
cover with the two wedged
portions of the upper cover of the
POS box.
2. Press and hold the upper right
and upper left sections of rear
I/O-port protective cover with
thumbs, and push the release
button of I/O-port protective
cover into the section between
the upper cover and chassis of
the POS box.
3. When the release button is
wedged to the wedged hole of
the upper cover, you will hear a
click sound, indicating that the
rear I/O-port protective cover is
well closed.
Powering ON the HT/PB-4700
Then press the power button to power on
the main unit. To power it off, press the
button again.
Once powering off the system, if you want
to power it on again, please wait for at
least 3 seconds.
1.
Wedged Hole
7
If the system hangs due to a reason, such as software resource
conflict, please press and hold the power button for 10 seconds
around to forcedly shut down the system.
Status LED Indicator
After powering ON the HT/PB-4700 and connecting to the LAN
port, you can read the system operation status from the power and
LAN LED indicators. The LED status is described below.
LED Status Description
Solid blue System power ON
POWER
Solid orange System standby
Solid green LAN link
LAN Flickering green & yellow
Data transmission
Installing an Operating System
This product is highly professional equipment. Therefore, we do
NOT encourage you to install any operating system into this
machine without professional assistance. Posiflex Technology,
Inc. shall not be responsible for any technical support to
questions on this aspect. We suggest that you contact your dealer
for OS installation.
Operating System Recovery
For the HT/PB-4700 main system preloaded with an operating
system on HDD, Posiflex provides a recovery CD shipped with
the main system for the preloaded operating system. The system
integrator shall take care of software restoration after the OS is
recovered.
If you plan to recover your operating system, we do NOT
encourage you to recover any operating system. Please contact
your service center for operating system recovery.
8
Adjustment of LCD Monitor for A Better Viewing Angle
(For HT-4712 Only)
For an optimal viewing angle, follow the steps listed below to
adjust the LCD monitor of the HT-4712.
Vertical Adjustment
1. Press and hold the up-down
viewing angle adjustment
button.
2. Adjust the LCD monitor up
and down around the
directions A and B.
Horizontal Adjustment (from 0° to 16°)
1. Press and hold the left-right
viewing angle adjustment
button.
A
B
9
2. Horizontally adjust the LCD
monitor left and right around
the directions A and B.
Optional Upgrade Kits
Posiflex HT/PB-4700 can work with multiple optional upgrade
kits, such as 2
nd
LCD monitor, customer pole display, side-mount
MSR, keyboard and the like. For the detailed instruction, refer to
the technical manual of HT/PB-4700 or each of the user manuals
of the optional upgrade kits.
Extended USB Port
The extended USB port is provided for connection of the side
mount upgrade kit to the POS box. To open the extended USB,
follow the steps listed below.
1. Press the extended USB port
with thumb or forefinger.
2. Pull and move the cover in the
direction A.
A
B
A
10

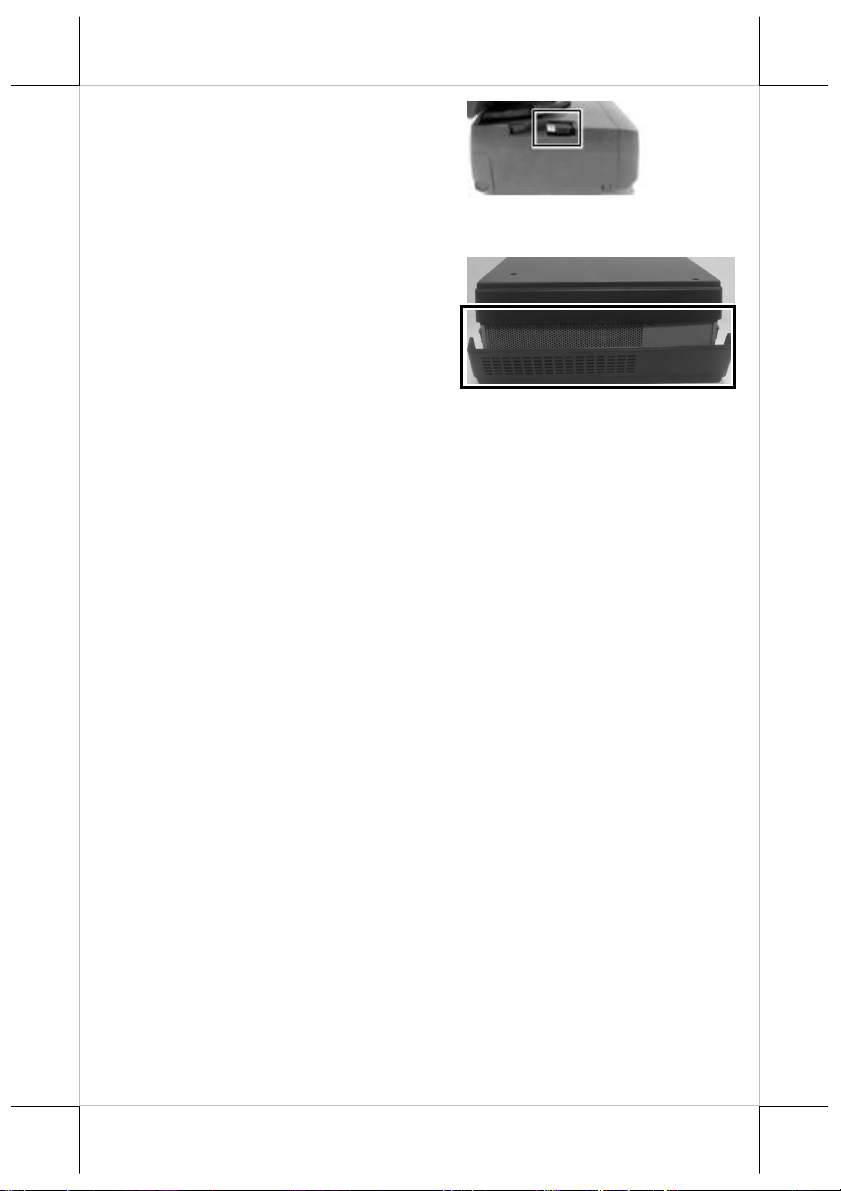

3. You will see the extended
USB port through which the
side mount upgrade kit is
connected to the POS box.
Cleaning the Front Ventilation Holes and Grids
Use vacuum cleaner to remove any
dust away from both the ventilation
holes on the front cover and
ventilation grids on chassis
exposed after removal of the front
cover.
To avoid the POS box from being damaged, we suggest you to
contact your local service center for help.
