Powerware 5119 Manuale utente

Powerware®5119

User’s Guide

1000-3000 VA

www.powerware.com

02/15/01

Requesting a Declaration of Conformity

The EC Declaration of Conformity is available upon request for products with a CE mark. For copies of the EC

Declaration of Conformity, contact:

Powerware Corporation

Koskelontie 13

FIN-02920 Espoo

Finland

Phone: +358-9-452661

Fax: +358-9-452-66395 EMC Statement

Some configurations are classified under EN50091-2 as “Class-A UPS for Unrestricted Sales Distribution.” For these

configurations, the following applies:

WARNING This is a Class A-UPS Product. In a domestic environment, this product may cause radio interference, in which

case, the user may be required to take additional measures.

Powerware is a registered trademark and Advanced Battery Management (ABM) is a trademark of Powerware Corporation.

in any way without the express written approval of Powerware Corporation.

Class A Statement for FCC and ICES

(2000 VA - 3000 VA)

For Users in the United States Only

NOTE This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15

of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when this

equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the

user will be required to correct the interference at his/her own expense.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to

operate the equipment.

For Users in Canada

This Class A Interference Causing Equipment meets all requirements of the Canadian Interference Causing Equipment

Regulations ICES-003.

Cet appareil numérique de la classe A respecte toutes les exigences du Reglement sur le matériel brouilleur du Canada.

Self-Certified Class B Statement for FCC and ICES

(1000 VA - 1500 VA)

For Users in the United States Only

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO

CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST

ACCEPT ANY INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

NOTE This equipment has been tested and found to comply with the limits for a Class B device pursuant to Part 15 of

FCC Rules. These limits are designed to provide reasonable protection against harmful interference when this equipment is

operated in a residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following measures:

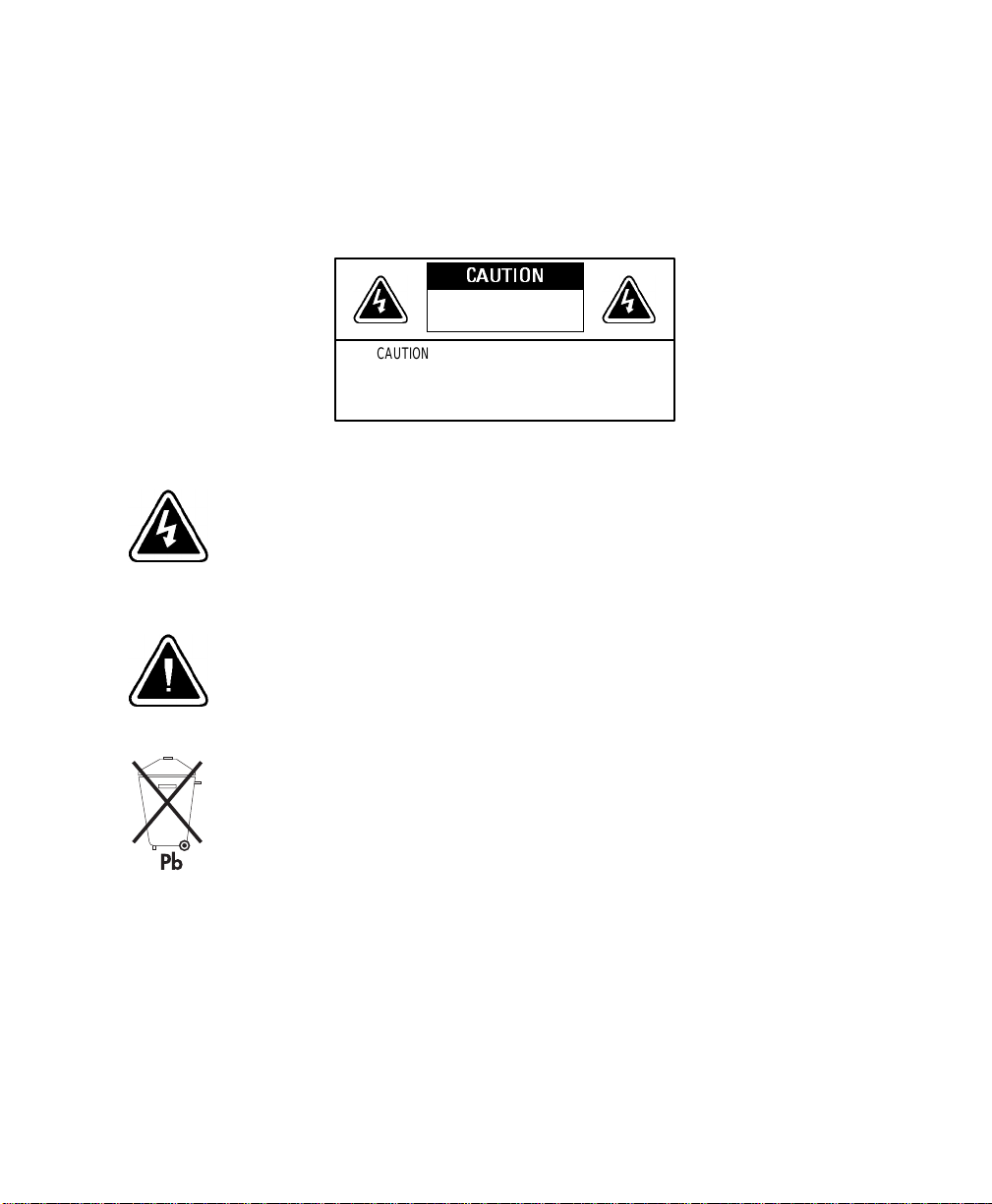

Special Symbols

The following are examples of symbols used on the UPS to alert you to important information:

RiskofElectricShock

DoNotOpenCover

CAUTION

CAUTIONTo reducethe riskof electric shock,

Do not remove cover (or back)

No user-serviceable parts inside

Refer servicing to the factory

RISK OFELECTRIC SHOCK - Indicates that a risk of electric shock is present and the

associated warning should be observed.

CAUTION: REFER TO OPERATOR’S MANUAL - Refer to your operator’s manual for

additional information, such as important operating and maintenance

instructions.

This symbol indicates that you should not discard the UPS or the UPS batteries

in the trash. The UPS may contain sealed, lead-acid batteries. Batteries must be

recycled.

Powerware®5119 User’s Guide

www.powerware.com

TABLE OF CONTENTS

1 Powerware 5119 –One of the Best! 1..................................

2 Installation 3.....................................................

Inspecting the Equipment 3.......................................................

SafetyPrecautions 3............................................................

Installing the UPS 4.............................................................

UPS Rear Panels 7..............................................................

3 Operation 11......................................................

Turning the UPS On 11............................................................

Starting the UPS on Battery 11...................................................

Turning the UPS Off 11...........................................................

StandbyMode 11...............................................................

UPS Front Panel 12..............................................................

AC Input LEDs 13.............................................................

Battery Charge LEDs 13........................................................

Load Level LEDs 14...........................................................

Initiating the Self-Test 14.........................................................

4 Configuration 15...................................................

Why Change Factory Defaults? 15...................................................

NominalInput Voltage 15.......................................................

Other Settings 15.............................................................

Configuration Mode 15...........................................................

5 UPS Maintenance 19...............................................

UPS and Battery Care 19..........................................................

Storing the UPS and Batteries 19..................................................

When to Replace Batteries 19......................................................

Replacing Batteries 20...........................................................

Howto Replace External Batteries 21..............................................

Howto Replace Internal Batteries 22...............................................

Testing New Batteries 23.........................................................

Recycling the Used Battery 24......................................................

Table of Contents

ii Powerware®5119 User’s Guide

www.powerware.com

6 Additional UPS Features 25..........................................

Communication Port Configurations 25................................................

Communication Indicator 25.....................................................

Pin Out 26..................................................................

Network Transient Protector 27.....................................................

Load Segments 27..............................................................

Option Modules 27..............................................................

7 Specifications 29..................................................

8 Troubleshooting 33.................................................

Audible Alarmsand UPS Conditions 33................................................

Silencing an Audible Alarm 33....................................................

Service and Support 35...........................................................

Powerware®5119 User’s Guide

www.powerware.com

CHAPTER 1

POWERWARE 5119 – ONE OF THE BEST!

The Powerware

5119 uninterruptible power system (UPS) protects

your sensitive electronic equipment from basic power problems such as

power failures, power sags, power surges, brownouts, and line noise.

Power outages can occur when you least expect it and power quality

can be erratic. These power problems have the potential to corrupt

critical data, destroy unsaved work sessions, and damage hardware —

causing hours of lost productivity and expensive repairs.

With the Powerware 5119, you can safely eliminate the effects of power

disturbances and guard the integrity of your equipment. The Powerware

5119’s flexibility to handle an array of network devices makes it the

perfect choice to protect your LANs, servers, and workstations.

Figure 1.Powerware 5119 and External Battery Cabinet

Because an integral part of power protection is power management

software, the Powerware 5119 comes fully equipped with a

communication port, serial cable, and a CD containing both LanSafe III

for networked systems and FailSafe III for standalone systems.

Powerware 5119 – One of the Best!

2Powerware®5119 User’s Guide

www.powerware.com

Providing outstanding performance and reliability, the Powerware

5119’s unique benefits include the following:

Advanced Battery Management (ABM

) doubles battery service life,

optimizes recharge time, and provides a warning up to 60 days before

the end of useful battery life.

Buck and Double Boost regulation ensures consistent voltage to your

load by correcting voltage fluctuations without using battery power.

Hot-swappable batteries simplify maintenance by allowing you to

replace batteries safely without powering down the critical load.

Network Transient Protector guards your modem, fax machine, and

other network communications equipment from surges.

Start-on-battery compatibility allows you to power up the UPS even

if utility power is not available.

Optional power communication cards provide enhanced

communication capabilities for increased power protection and

longer battery backup times.

The Powerware 5119 is backed by worldwide agency approvals.

Powerware®5119 User’s Guide

www.powerware.com

CHAPTER 2

INSTALLATION

This section explains:

Equipment inspection

Safety precautions

UPS installation

UPS rear panels

Inspecting the Equipment

If any equipment has been damaged during shipment, keep the

shipping cartons and packing materials for the carrier or place of

purchase and file a claim for shipping damage. If you discover damage

after acceptance, file a claim for concealed damage.

To file a claim for shipping damage or concealed damage: 1) File with

the carrier within 15 days of receipt of the equipment; 2) Send a copy of

the damage claim within 15 days to your service representative.

Safety Precautions

Read the following before you install the UPS.

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS. This manual containsimportant instructions that you

should follow during installation and maintenance of the UPS and batteries.Please

read allinstructionsbefore operating the equipment and save thismanualfor future

reference.

Installation

4Powerware®5119 User’s Guide

www.powerware.com

WARNING

ThisUPScontains itsown energysource (batteries). The output receptacles may

carrylive voltage even when the UPS isnot connected to an AC supply.

Do not remove or unplug the input cord when the UPSisturned on.Thisremoves

the safetyground from the UPS and the equipment connected to the UPS.

To reduce the risk of fire or electric shock,installthisUPS in a temperature and

humidity controlled,indoor environment,free of conductive contaminants.

Ambient temperature must not exceed 40



C(104



F). Do not operate near water

or excessive humidity (95% max).

The sumof earth leakage current from the load connected to the UPS must not

exceed 1.5 mA.

Installing the UPS

The following steps explain how to install the UPS. Figure 3 on page 6

shows a typical installation only. See “UPS Rear Panels” on page 7 for

the rear panel of each model.

CAUTION

A smallamount of arcing may occur when connecting an external batteryto the UPS.

Insert the battery cable into the UPS batteryconnector quicklyand firmly.

NOTE Do not make unauthorized changes to the UPS;otherwise, damage may occur

to your equipment and void your warranty.

1. If the UPS has an external battery, connect it to the UPS as

shown in Figure 3 on page 6.

2. If you are installing power management software, connect your

computer to the UPS communication port using the supplied

communication cable.

Some power management software has a Load Segment feature

that allows you to control UPS output receptacles. If you plan

to use this feature, read the appropriate sections of your power

management software manual before you install the UPS.

Indice

Altri manuali Powerware UPS

Powerware

Powerware Prestige series 9 Manuale utente

Powerware

Powerware 9355 Manuale utente

Powerware

Powerware 5140 Manuale utente

Powerware

Powerware 5125 Manuale utente

Powerware

Powerware 9910 p Series Manuale utente

Powerware

Powerware 3110 Manuale utente

Powerware

Powerware FERRUPS QFER Manuale utente

Powerware

Powerware Ferrups FE/QFE 500VA Manuale utente

Powerware

Powerware PW5110 Manuale utente

Powerware

Powerware 5125 9910 P18 Manuale utente

Powerware

Powerware 300 VA Manuale utente

Powerware

Powerware BPIV 30 kVA Manuale utente

Powerware

Powerware BPIV Manuale utente

Powerware

Powerware 9155 Manuale utente

Powerware

Powerware 9315 Manuale utente

Powerware

Powerware 5125 Tower Manuale utente

Powerware

Powerware 9305 Manuale operativo

Powerware

Powerware 9125 Manuale utente

Powerware

Powerware 5115 Manuale utente

Powerware

Powerware 3110 Manuale utente

Powerware

Powerware Prestige 6000 Guida all'installazione

Powerware

Powerware Ferrups FE/QFE UPS Manuale utente

Powerware

Powerware 8 - 15 kVA Manuale utente

Powerware

Powerware 9330 Manuale utente

Manuali UPS popolari di altre marche

Pylontech

Pylontech Victron & Pylontech US5000 Manuale utente

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuale utente

Mecer

Mecer ME-1000-WTU Manuale utente

Mustek

Mustek PowerMust 530(B) Plus Manuale di installazione e funzionamento

Emerson

Emerson Liebert NXL series Manuale utente

MAKELSAN

MAKELSAN BOXER SERIES Manuale utente

Block

Block PC-0524-400-0 Manuale utente

CyberPower

CyberPower CP585LCD Manuale utente

Eaton

Eaton 3S Istruzioni per il montaggio

CyberPower

CyberPower Office Tower Series UPS 1000 Manuale utente

CyberPower

CyberPower BM100 Manuale utente

Best Power

Best Power 610 Manuale utente

Best Power

Best Power Unity/I UT3K Manuale utente

Mustek

Mustek PowerMust 400 Offline Manuale utente

Xantrex

Xantrex Trace 512 UR-UPS Manuale utente

Forza

Forza SL-1501UL Manuale utente

LEGRAND

LEGRAND keor 310081 Manuale utente

ABB

ABB Conceptpower DPA 500 Manuale utente
