Precision Rated Optics VIP-55 Manuale utente

VIP-55

Video Inspection Probe

Operation Guide

V.9.6.17

888-545-1254 | www.PrecisionRatedOptics.com

VIP-55

Table of Contents

1. VIP-55 Video Inspection Probe.......................................................................................................................3

FB Connect.............................................................................................................................................................4

2. Highlights..........................................................................................................................................................4

3. APP installation and use..................................................................................................................................5

App installation ......................................................................................................................................................5

4. USB Cable Use..................................................................................................................................................8

5. Configuration....................................................................................................................................................9

6. Specification....................................................................................................................................................10

7. Maintenance....................................................................................................................................................11

8. Troubleshoot...................................................................................................................................................11

9. After-sales service...........................................................................................................................................12

www.PrecisionRatedOptics.com | 888-545-1254

VIP-55

1. VIP-55 Video Inspection Probe

Keeping the previous advantages of quick check, the new VIP-55 fiber inspection probe is designed to be smarter

and more power saving. It has both WIFI and USB connections to help get end face images quickly sent and

shown on a smart phone either in Android or Apple system. The user can check the end face anytime anywhere

with ease. The VIP-55 can be used in almost all normal inspection situations, e.g. connectors in panels or

individual patch cords.

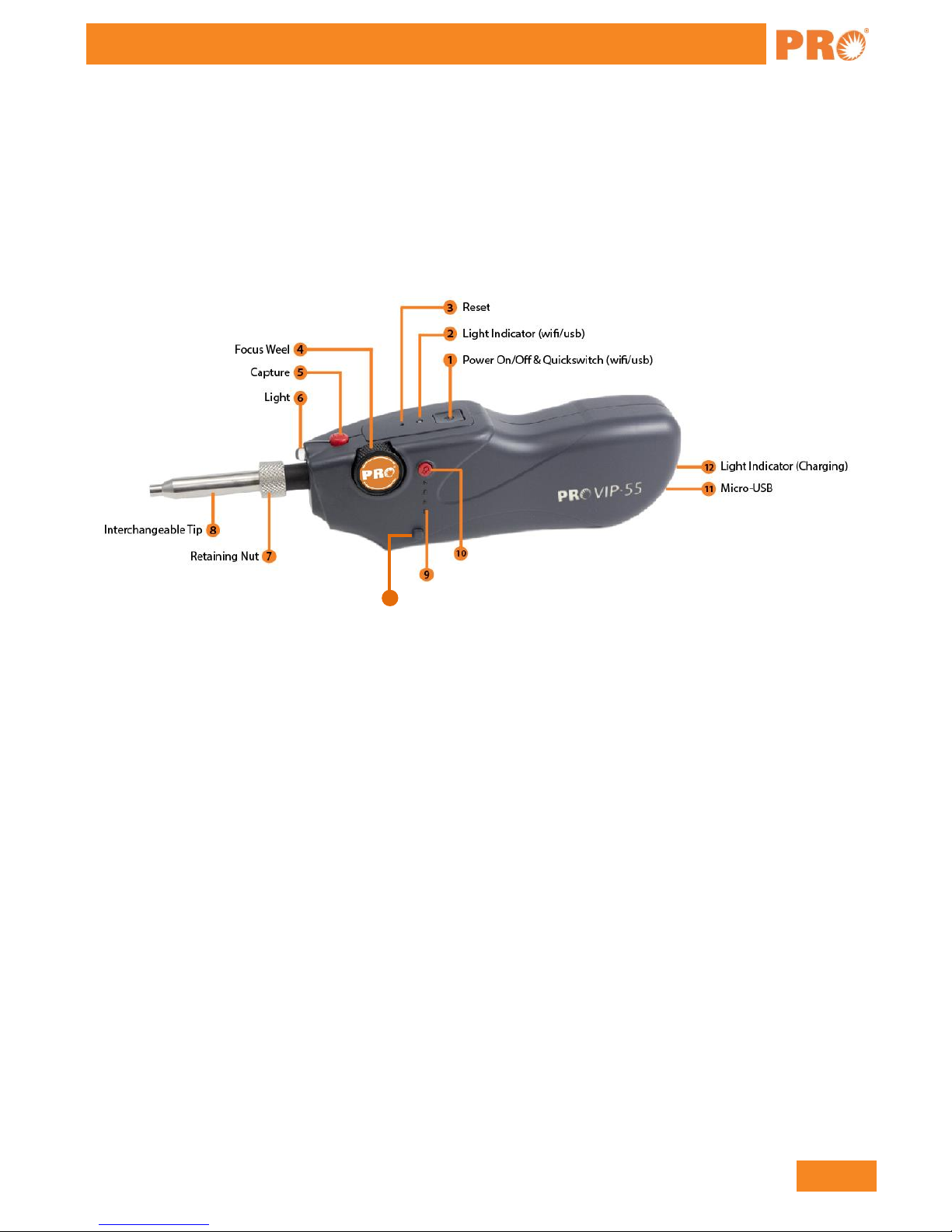

1) Power On/Off & Quickswitch (WIFI/USB) Button: hold the key button for 3 seconds to turn the device

on or off. Double click to switch the mode between WIFI and USB.

2) Light Indicator (WIFI/USB): blue light represents the WIFI mode, green light represents the USB mode.

3) Reset: hold and press the key for 5s or above to restart the device.

4) Focus Wheel: flip the wheel back or forth to adjust the focus.

5) Capture: press the key to take a snapshot of the connector.

6) Illuminator: emergency use in insufficient lighting environment

7) Retaining nut: lock the adaptor to secure the location.

8) Interchangeable tip: various tips are available for inspecting various connectors.

9) Batteries Indicator: light will be on for 5s once illuminator is pressed to show the battery status. When

the battery level is too low, the light will flash

10) Illuminator power: turn on or off the illuminator.

11) Micro-USB Port: to connect to PC or mobile via USB cable; for charging when the power is too low.

12) Light indicator (Charging): red light represents charging status, green light represents the fully-charged

status.

13) Brightness Switch

Illuminator Power

Battery Indicator

Brightness Switch

888-545-1254 | www.PrecisionRatedOptics.com

VIP-55

FB Connect

FB Connect is the mobile software application for Android and IOS system. It can capture, display and record the

fiber end-face image on the phone with ease.

2. Highlights

1) Precise cone-shaped tip to reach 98% alignment consistency.

2) Single way re-cycle focus wheel to have efficient focus

control.

3) Image capture button for operation convenience.

4) 400× Magnification, better than 1um resolution.

5) Suitable for all types of connectors test: APC, UPC, MTP

and more.

6) Clearer imaging to figure out dents/scratches/dots etc.,

within seconds.

7) Compile with types of OS: Windows/Linux/Mac.

8) WIFI and USB mode quick switching with QuickswitchTM.

9) User-friendly design: various light indicators showing

operating mode and status; illuminator to allow work in dim

environment.

10) Compile with CE/CEM and ROHS standards

www.PrecisionRatedOptics.com | 888-545-1254

VIP-55

3. APP installation and use

App installation

Apple: Search for the app “FB Connect” in apple store and download as usual. Supports IOS 8.0 or above.

Android: Search for the app “FB Connect” at app store and download as usual. Supports Android 4.4 or above.

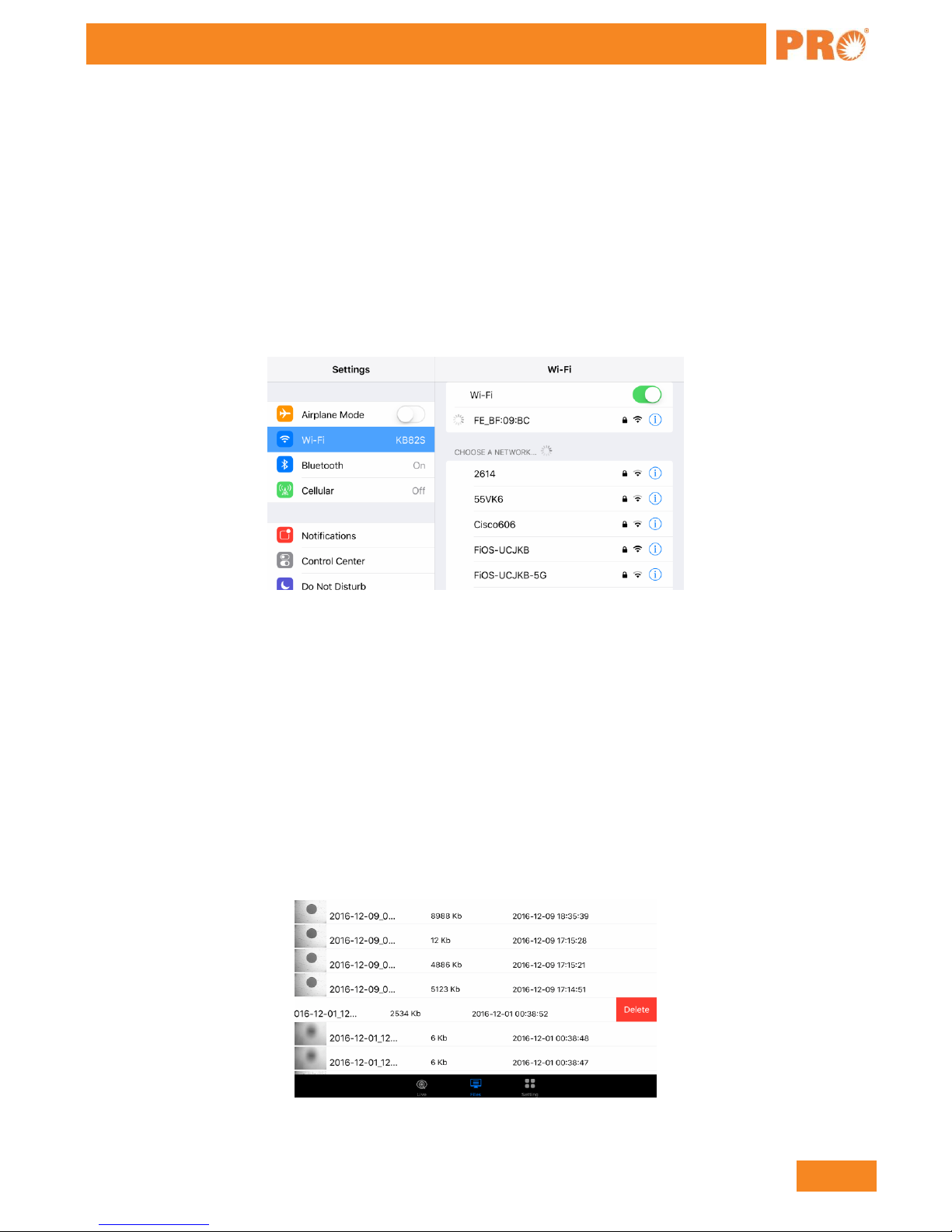

Two different WIFI networks are required for app installation and normal APP usage. During APP download, the

smart phone needs to connect to a WIFI with internet service. During normal usage, it needs to switch to the local

WIFI network furnished by the probe. The probe’s WIFI network site name starts with the initial “FE_” and the

default password is 12345678. If connection fails, an alert message will be shown on the smart phone.

Note

It will take around 6 seconds or more for WIFI connection.

When batteries are too low, please make sure to charge properly. The power level indicators can also help

check the batteries status.

The probe may get slightly heated after WIFI connection, which is normal.

Original 3G/4G network will be closed automatically after the WIFI connection.

Record

The record files, including video and images, can be checked under the files selection.

Click the file can get the details of file size, name and type easily. Slide left can get the record deleted if

necessary. Drag down the refresh operation to update the list.

888-545-1254 | www.PrecisionRatedOptics.com

VIP-55

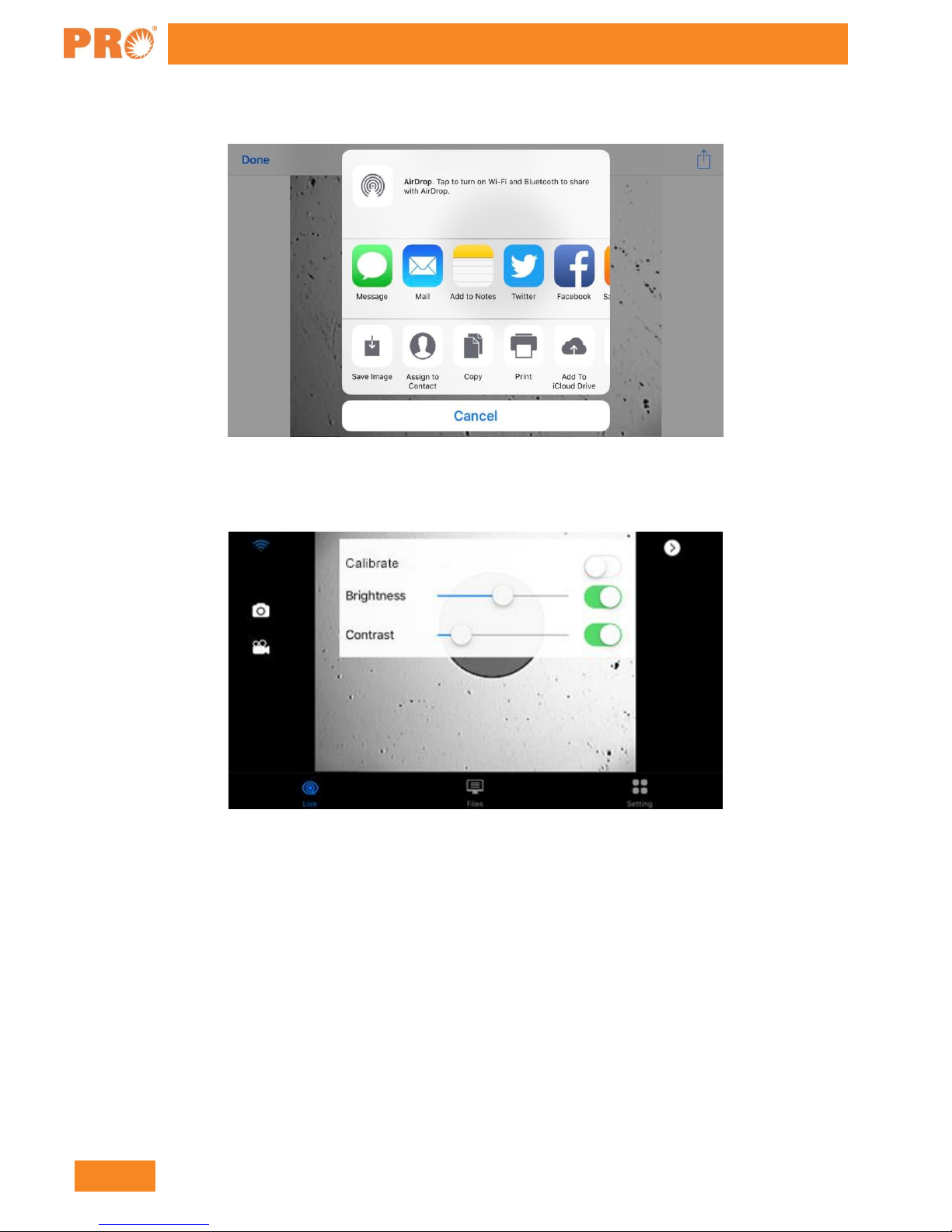

User can also share the file with the third party software to access external network.

Adjustment

Click the upper right corner, three functions will be shown including Brightness adjustment, Contrast adjustment

and Calibrate function.

www.PrecisionRatedOptics.com | 888-545-1254

VIP-55

Calibrate function to help easily delineate the zone areas stipulated in industrial standards.

Brightness to adjust the device brightness automatically or manually.

Contrast to adjust the device contrast automatically or manually.

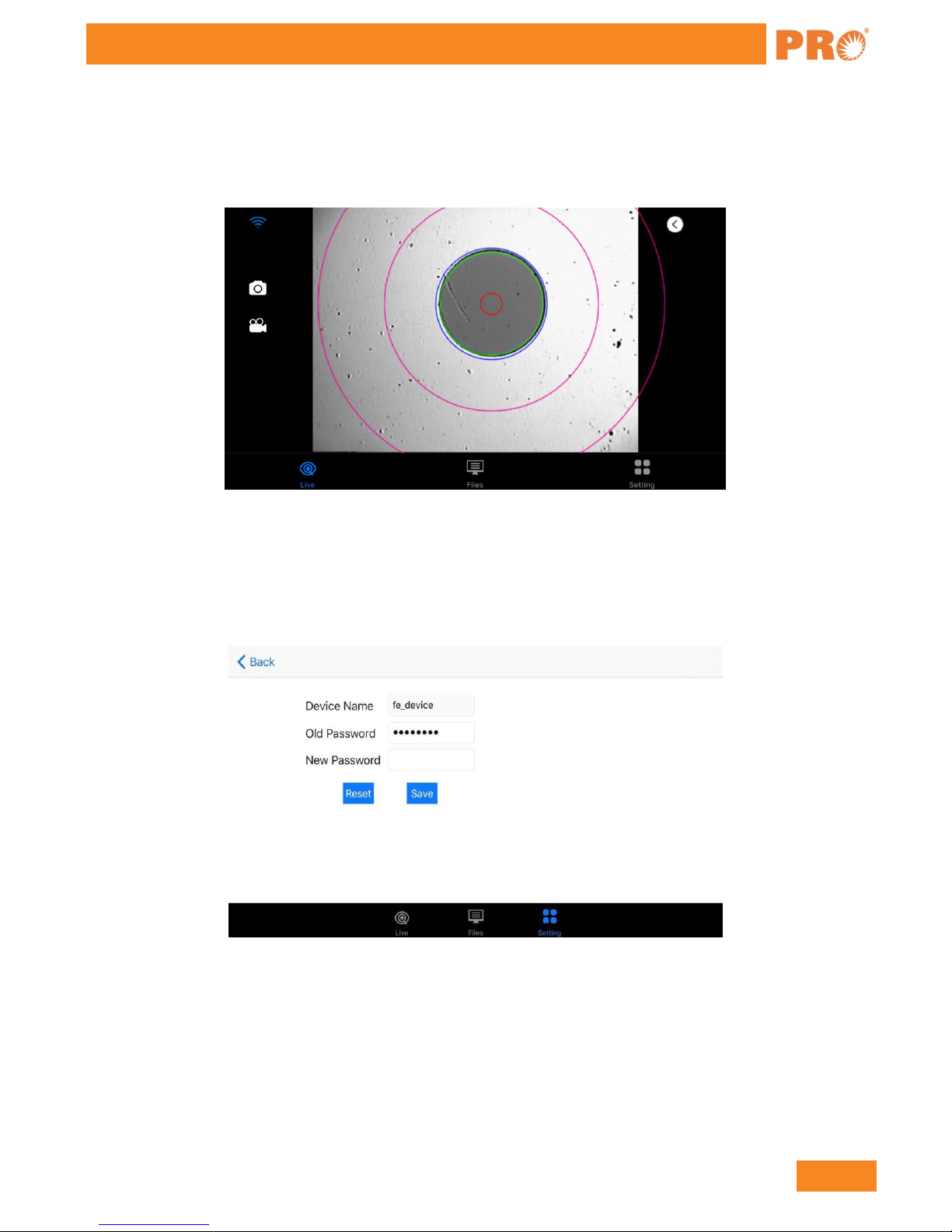

Reset

User can change the WIFI password under setting selection as below image. If the password is forgotten, user can

click the “reset” button to restore the default password 12345678. After resetting, please restart the app to activate

the changes. Same function can also be implemented via the reset key on the probe.

888-545-1254 | www.PrecisionRatedOptics.com

VIP-55

4. USB Cable Use

The VIP-55 can also work with USB cable connection, besides the WIFI connection. User can switch between the

modes through QuickswitchTM.

Double click the power button of the probe to switch between the modes. When the WIF/USB light turns green

from blue, it indicates a normal USB signal output, which afterwards can be connected to mobiles or other PC for

checking. USB cable connection mode supports multiple operating systems, including Windows, Linus and Mac

OS.

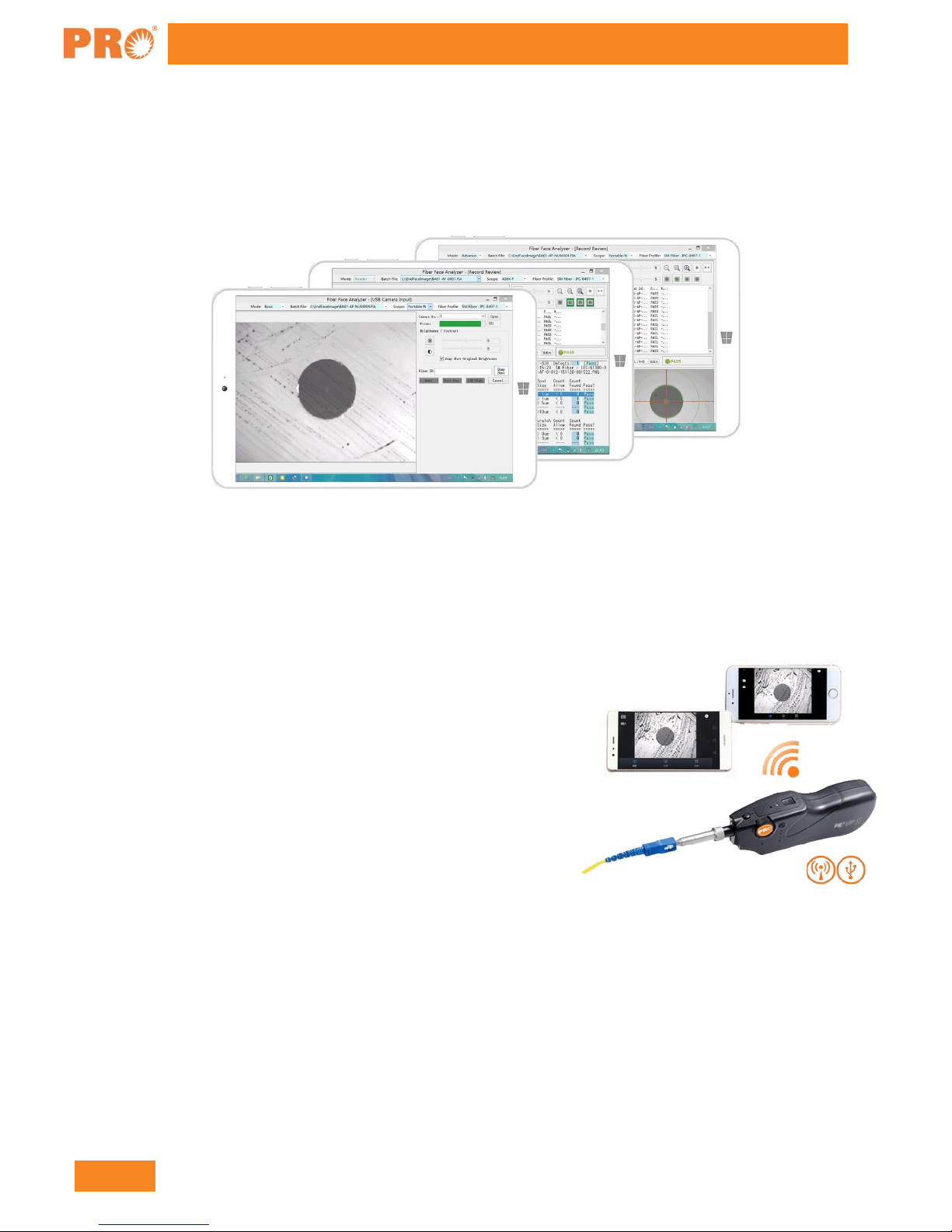

Software

The fiber face viewing software FFV is offered on Windows system as the professional viewing software.

The app named FB Connect is offered on Android system as the professional viewing software, but it’s not

guaranteed to work on all the android models.

FB Connect Analysis

The fiber face analysis software FFA can be used to analyze the fiber end face image on Windows platform, it can

have dirt, defects and scratches on the end face measured and recorded with pass/fail judgement. The latest

version is 5.0, for more details, user can visit the company website for more information.

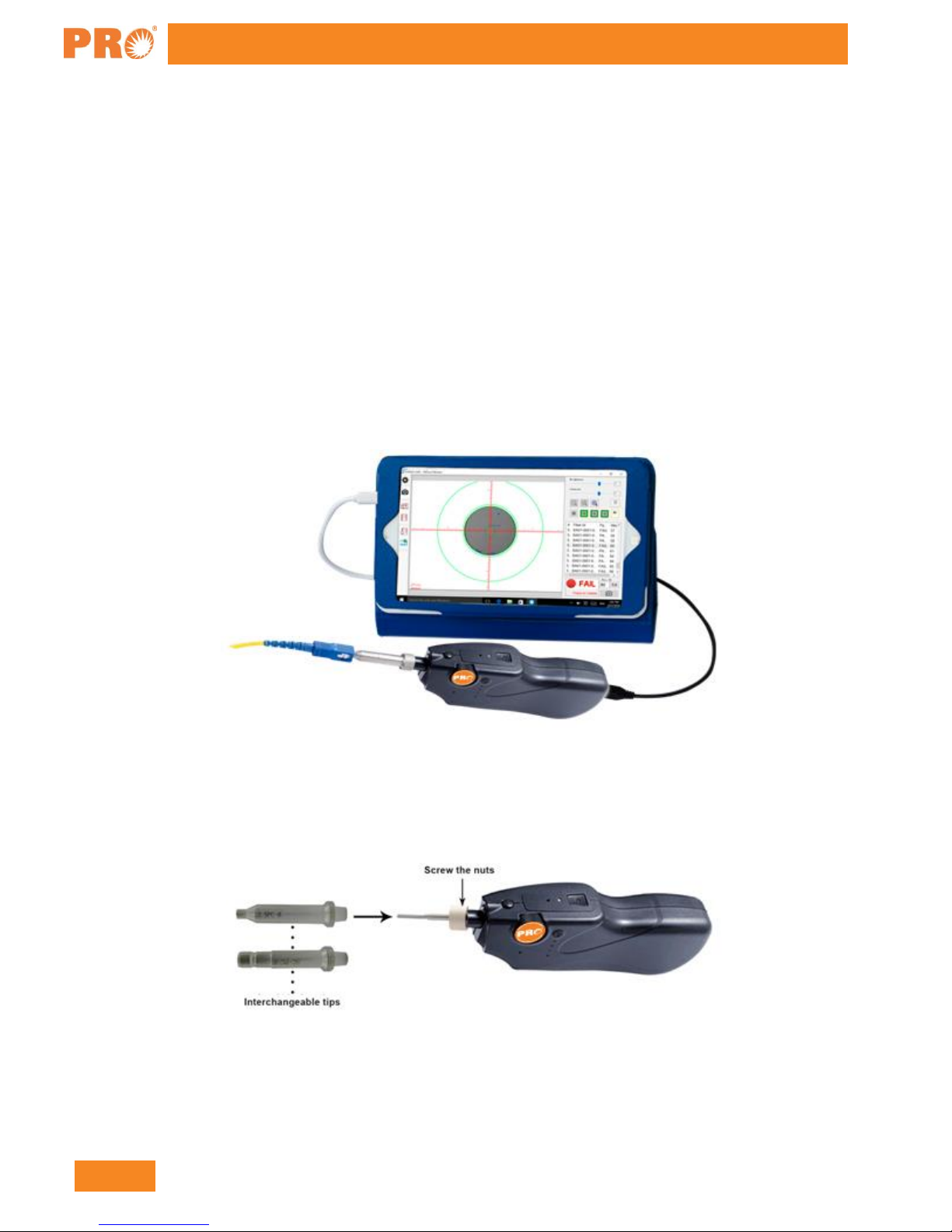

Interchangeable tips

To mate different connectors, various tips are available and interchangeable. First loosen the retaining nut. Then

remove the tips along the lens bar. Lastly make the change and tighten back the retaining nut.

Note: try to avoid impacting the lens bar when making changes to avoid possible damage.

www.PrecisionRatedOptics.com | 888-545-1254

VIP-55

5. Configuration

Items

Description

Quantity

VIP-55

Probe supports 2.4GHz WIFI channel

and USB2.0 wire connection

1pcs

Standard tips

2.5mm Universal (Male)

1.25mm Universal (Male)

LC Bulkhead (Female)

SC/FC Bulkhead (Female)

1pcs

each

USB cable

USB to Micro USB cable, for charging or data translate

1pcs

Soft case

Contain the device and kits

1pcs

Application

Android & IOS Support

USB AC adapter(optional)

5V 1A charger

1pcs

USB adapter(optional)

USB-C to USB-A adapter. Applicable for USB2.0 and USB3.1

OTG smart devices

1pcs

Arm bag(optional)

Outdoor arm strap holding mobile phone

1pcs

Software(optional)

EFD fiber end face analysis software, free upgrade

USB Dongle

Security measure of analysis

1pcs

888-545-1254 | www.PrecisionRatedOptics.com

VIP-55

6. Specification

Items

Values

Magnification

400X

Resolution

<1um

Field of View(mm)

X: 0.3487 Y: 0.2632

Light source

Blue LED

Focus Way

Single-way

Focus time

1~5 s

Alignment

>98%

Capture button

Available

Quick switch

Available, switch between WIFI and USB

Connector

Micro USB

Connectivity

WIFI802.11 & USB2.0

WIFI Frequency

2.4GHz

Smart device OS compatibility

Android 4.4 and above, IOS 8.1 and above

Voltage

Power support

3400mAh Li-ion

Working time

≥ 5h

Recharge time

≤ 5h

Color

Black

Weight

175g(0.4 lb)

Distance range

20m

Dimension

19x 5x 3cm (71/2x 2 x 11/5 inch)

Working/Storage temperature

-10º~ 50 º / -20 º ~ 60º

Humidity

<90% (Non-condensing)
