Premier Mounts Universal Projector Mount PBL-UMS Manuale utente

Features

Fits most projectors under 25 lbs

+/-20° tilt and roll; 360° Rotation

Mounts to walls and traditional,

vaulted/cathedral ceilings

Adjustable-height channel

extends from 9”-12.5”

Low-profile design (2.5”)

Cable management

Lifetime Guarantee

The PBL Series of Universal Projector Mounts

fit most projectors under 25 lbs. They feature

four double-jointed support arms that allow

flexible positioning to reach any mounting

point.

This unique design can mate with our optional

adjustable-height suspension adapter (APL-2647)

to extend the length of the channel up to 47”

from the ceiling. Cables can be routed inside

channel for a neat appearance. Plus, it’s backed

by our industry-leading Lifetime Guarantee.

PBL Series

www.mounts.com • 800.368.9700

Universal Projector Mounts

Model

Max Wt.

Color

UPC

Box

Dimen

Dimens

sion

ions

Retail

PBL-UMP

25 LBS

Silver

829973203160

7.5x15x5

$199.99

PBL-UMS

25 LBS

Dark Gray

829973203023

7.5x15x5

$199.99

PBL-UMW

25 LBS

White

829973203030

7.5x15x5

$199.99

PBL Universal Mounts fit projectors up to 25 lbs

Remove channel

for low profile look

Rotate up to 360°

Other Locations

001.714.632.7100

001.714.632.1044 (Fax)

Europe

44.24.76.614700

44.24.76.614710 (Fax)

Asia

81.27.371.6998

81.27.371.6998 (Fax)

www.mounts.com • 800.368.9700

SPECIFICATIONS

North America

800.368.9700

800.832.4888 (Fax)

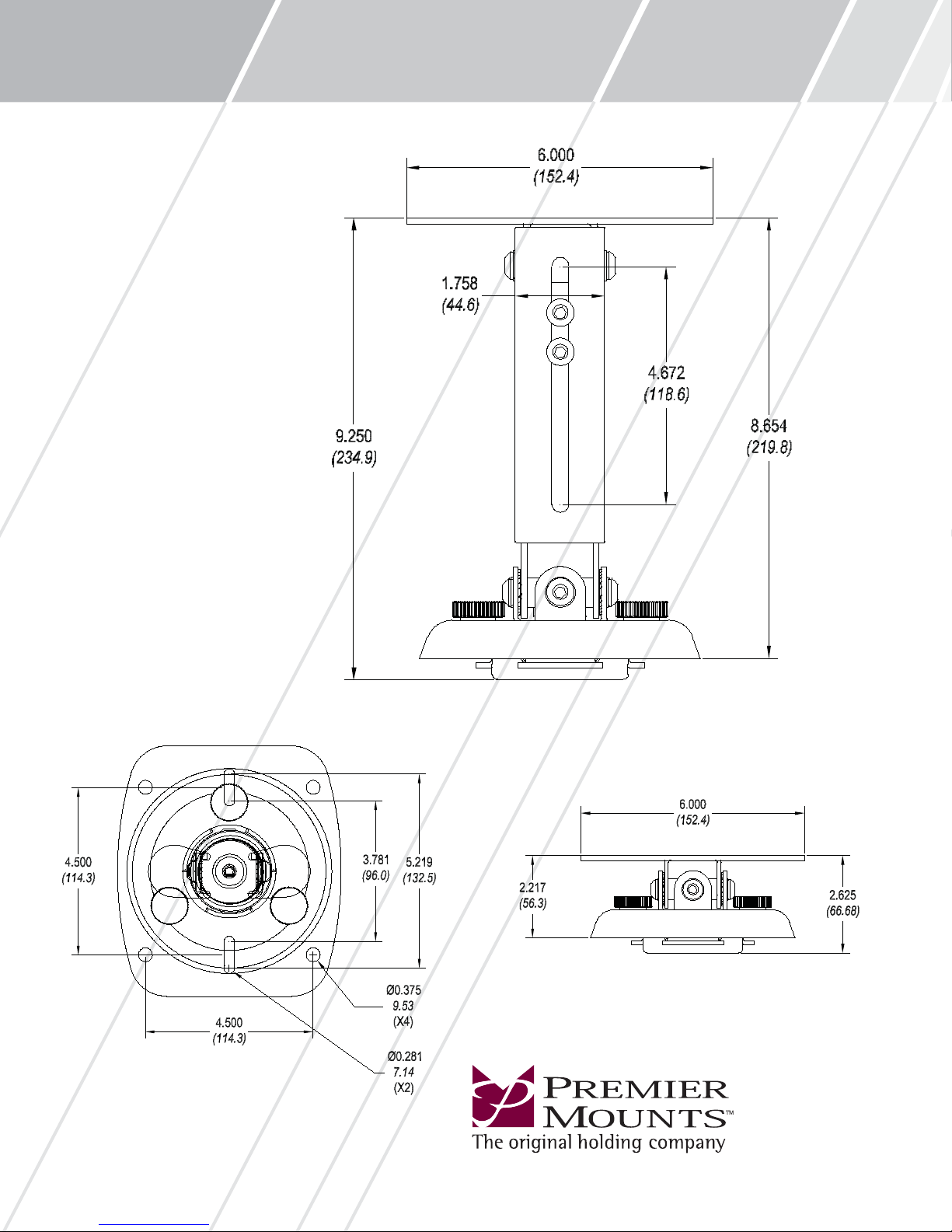

*Measurements are shown in inches and millimeters (mm)

PBL (top view)

PBL w/ channel (side view)

PBL w/out channel (side view)
