R65 and R80

Active AMT Studio Monitors

Owner’s Manual

www.presonus.com

Table of Contents

1.0 Overview — 1

1.1 Introduction — 1

1.2 Summary of R65/R80

Features — 2

1.3 What is in the Box — 2

2 Hookup — 3

2.1 Rear Panel Connections and

Controls — 3

2.1.1 Inputs — 3

2.1.2 Power — 4

2.1.3 Acoustic Tuning

Controls — 4

2.2 Hookup Diagrams — 5

2.2.1 Basic Setup — 5

2.2.2 Advanced Setup with Speaker

Switching — 6

3 Tutorials — 7

3.1 Monitor Placement — 7

3.2 Connections — 8

3.3 Input Level Setting — 8

3.4 Equalizer Setting Suggestions — 9

3.5 Acoustic Space Setting

Suggestions — 10

3.6 Energy Conservation Mode — 11

4 Resources — 12

4.1 Technical Speciﬁcations — 12

4.1 Troubleshooting — 14

4.2. Warranty — 14

R65 and R80 Owner’s Manual

1.0 Overview

1.1 Introduction

Thank you for purchasing the PreSonus®

R65 or R80 active AMT studio monitor.

PreSonus Audio Electronics has designed

the R65 and R80 utilizing high-grade

components to ensure optimum

performance that will last a lifetime.

The R65 and R80 self-powered near-ﬁeld

monitors diﬀer in cabinet and driver

size, crossover frequency, low-frequency

extension, and maximum sound-pressure

level; all other specs are identical. Both

models utilize a custom AMT tweeter.

This design aﬀords an ultra-fast transient response and

consistent high-frequency response. The 6.8-inch AMT

tweeter reproduces subtle ultra-high harmonics, adding

air and sense of space not possible with traditional

dome tweeters. The result is that you hear every nuance

of your mix with astonishing clarity and coherence.

We encourage you to contact us at +1-225-216-7887

(9 a.m. to 5 p.m. Central Time) with questions or

comments regarding your PreSonus R65/R80. PreSonus

Audio Electronics is committed to constant product

improvement, and we value your suggestions highly.

We believe the best way to achieve our goal of constant

product improvement is by listening to the real experts:

our valued customers. We appreciate the support you

have shown us through the purchase of this product

and are conﬁdent that you will enjoy your R65/R80!

ABOUT THIS MANUAL: We suggest that you use this manual

to familiarize yourself with the features, applications, and

correct connection procedures for your R65/R80 before

connecting it to the rest of your studio gear. This will help

you avoid problems during installation and setup.

In addition to all the basic info you’ll need to

connect and operate your R65/R80, this manual

also provides several tutorials that cover monitor

placement and connections, as well as how to set

the Input Level, EQ, and Acoustic Space controls.

1.2 Summary of R65/R80 Features

•2-way active AMT studio monitor with DSP

•6.8-inch AMT Tweeter (equivalent to a 3” diaphragm)

•Class D biamped power conﬁguration: 100W LF, 50W HF

•Power-conservation mode

•Balanced XLR and 1/4”TRS, and Unbalanced RCA inputs

•Input-level control with 10 dB of gain above unity

•High-frequency driver adjust (linear, +1

dB, -1.5 dB, -4 dB) above 2 kHz

•High-pass ﬁlter switch (linear, 60 Hz, 80 Hz,

100 Hz) with -24 dB/octave slope

•Acoustic Space switch (linear, -1.5 dB, -3 dB, -6

dB) to compensate for bass boost near a wall

1.3 What is in the Box

In addition to this manual, your R65/R80

package contains the following:

•(1) PreSonus R65 or R80 active studio monitor

•(1) IEC power cable

•(4) Foam feet to be placed on the bottom of

the speaker to improve isolation

R65 and R80 Owner’s Manual

2Hookup

2.1 Rear Panel Connections and Controls

2.1.1 Inputs

Line-level Inputs. The R65/R80 provides a choice of

three inputs: two balanced (XLR and 1/4”TRS) and one

unbalanced (RCA). These inputs accept a line-level signal

from your audio source and feed that signal to the monitor’s

built-in power ampliﬁers. When both balanced connections

are in use, the TRS input supersedes the XLR input.

Note: Make sure your audio source’s XLR or ¼” TRS

wiring corresponds to that of the R65/R80.

Input Level: Sets the amount of gain applied to the

input signal. This is not a volume control in the traditional

sense; instead, it sets the level of the input signal before

it is ampliﬁed.

-1.5dB

-3dB

-6dB

+1dB

-1.5dB

-4dB

60Hz

80Hz

100Hz

Balanced Unbalanced

INPUT

RCA

TRSXLR

Sleeve:

Ground

Ring:

[-]

Tip:

[+]

12 3Ground

XLR TRS

[-]

[+]

Acousc

Space HF Driver HP Filter

-1.5dB

-3dB

-6dB

Linear

+1dB

-1.5dB

-4dB

Linear

60Hz

80Hz

100Hz

Linear

ACOUSTIC TUNING

Balanced Unbalanced

INPUT

POWER

100-120V~,50-60Hz,T2AL

220-240V~,50-60Hz,T1AL

150W

AC SELECT

RCA

TRS

INPUT

GAIN

MIN

MAX

XLR

R80

2.1 Rear Panel Connections and Controls

2.1.2 Power

IEC Power Connection: Your R65/R80

accepts a standard IEC power cord.

Warning: Do not remove the center grounding prong or use a

ground-lift adapter, as this could result in electric shock.

Power Switch: This is the On/Oﬀ switch. The power status is

indicated by an LED on the front of the cabinet.

Note: The input-power voltage is set internally at the

factory to correspond with the country to which your

monitor was shipped. Do not use your monitor in a country

that uses a diﬀerent standard voltage than is used in

the country where you purchased your R65/R80.

2.1.3 Acoustic Tuning Controls

Acoustic Space: Cuts the level of all frequencies below 250 Hz

by the speciﬁed amount (-1.5, -3, or -6 dB) to compensate for

the bass boost that occurs when the monitor is placed near a

wall or corner. Can be defeated by setting it to Linear.

Repeatedly pushing the corresponding button cycles through

the available settings.

HF Driver: Boosts or cuts all frequencies above 2 kHz by the

speciﬁed amount (+1, -1.5, or -4 dB). Can be defeated by

setting it to Linear. Repeatedly pushing the corresponding

button cycles through the available settings.

HP Filter: Rolls oﬀ the level of all frequencies below the

speciﬁed frequency (60, 80, or 100 Hz), with a slope of -24 dB/

octave. Can be defeated by setting it to Linear, in which case,

the monitor’s natural rolloﬀ takes over (45 Hz for R65,

40 Hz for R80). Repeatedly pushing the corresponding button

cycles through the available settings.

Acousc

Space HF Driver HP Filter

-1.5dB

-3dB

-6dB

Linear

+1dB

-1.5dB

-4dB

Linear

60Hz

80Hz

100Hz

Linear

ACOUSTIC TUNING

Balanced Unbalanced

INPUT

POWER

100-120V~,50-60Hz,T2AL

220-240V~,50-60Hz,T1AL

150W

AC SELECT

RCA

TRS

INPUT

GAIN

MIN

MAX

XLR

R80

Acousc

Space HF Driver HP Filter

-1.5dB

-3dB

-6dB

Linear

+1dB

-1.5dB

-4dB

Linear

60Hz

80Hz

100Hz

Linear

ACOUSTIC TUNING

Balanced Unbalanced

INPUT

POWER

100-120V~,50-60Hz,T2AL

220-240V~,50-60Hz,T1AL

150W

AC SELECT

RCA

TRS

INPUT

GAIN

MIN

MAX

XLR

R80

Acousc

Space HF Driver HP Filter

-1.5dB

-3dB

-6dB

Linear

+1dB

-1.5dB

-4dB

Linear

60Hz

80Hz

100Hz

Linear

ACOUSTIC TUNING

Balanced Unbalanced

INPUT

POWER

100-120V~,50-60Hz,T2AL

220-240V~,50-60Hz,T1AL

150W

AC SELECT

RCA

TRS

INPUT

GAIN

MIN

MAX

XLR

R80

Acousc

Space HF Driver HP Filter

-1.5dB

-3dB

-6dB

Linear

+1dB

-1.5dB

-4dB

Linear

60Hz

80Hz

100Hz

Linear

ACOUSTIC TUNING

Balanced Unbalanced

INPUT

POWER

100-120V~,50-60Hz,T2AL

220-240V~,50-60Hz,T1AL

150W

AC SELECT

RCA

TRS

INPUT

GAIN

MIN

MAX

XLR

R80

Acousc

Space HF Driver HP Filter

-1.5dB

-3dB

-6dB

Linear

+1dB

-1.5dB

-4dB

Linear

60Hz

80Hz

100Hz

Linear

ACOUSTIC TUNING

Balanced Unbalanced

INPUT

POWER

100-120V~,50-60Hz,T2AL

220-240V~,50-60Hz,T1AL

150W

AC SELECT

RCA

TRS

INPUT

GAIN

MIN

MAX

XLR

R80

R65 and R80 Owner’s Manual

2.2 Hookup Diagrams

2.2.1 Basic Setup

R65 R65

345678

OUT

12V

OUT IN

19-26 48kHz 11-18

15-18

96kHz

11-14

25-32 48kHz 17-24

21-24

96kHz

17-20

Main Out Mic/Line Inputs

OUT

Studio 192

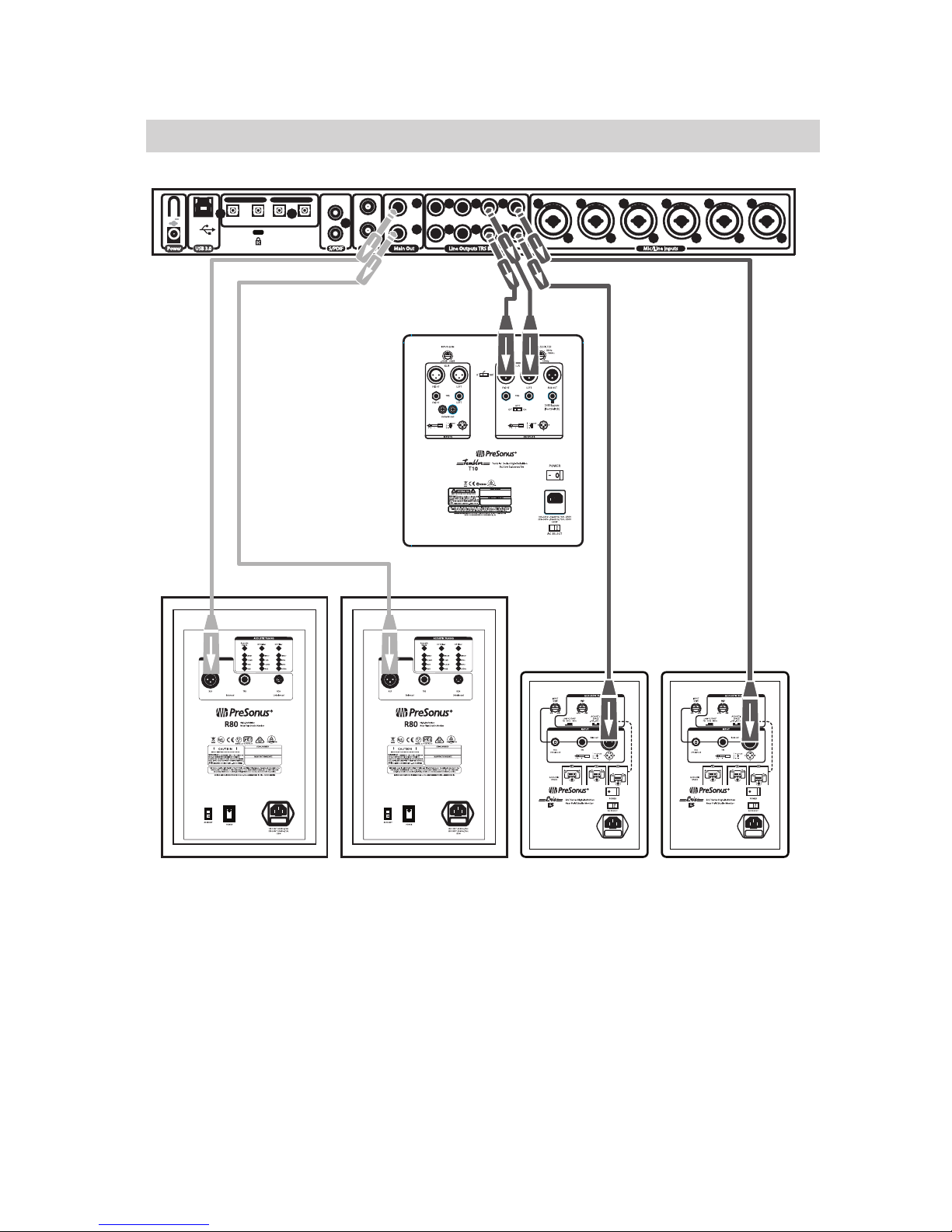

2.2.2 Advanced Setup with Speaker Switching

345678

OUT

12V

OUT IN

19-26 48kHz 11-18

15-18

96kHz

11-14

25-32 48kHz 17-24

21-24

96kHz

17-20

Main Out Mic/Line Inputs

OUT

Studio 192

Temblor T10

R80R80

E5 E5
