Pro-Form PFEL29240 Manuale utente

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manu-

al for future reference.

Model No. PFEL29240

Serial No.

Serial Number

Decal

QUESTIONS?

If you have questions, or if there

are missing parts, we will guar-

antee complete satisfaction

through direct assistance from

our factory.

TO AVOID DELAYS, PLEASE

CALL DIRECT TO OUR TOLL-

FREE CUSTOMER HOT LINE. The

trained technicians on our cus-

tomer hot line will provide imme-

diate assistance, free of charge to

you.

CUSTOMER HOT LINE:

1-888-533-1333

Mon.–Fri., 6 a.m.–6 p.m. MST

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

USER’S MANUAL

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO USE THE ELLIPTICAL CROSSTRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

PROFORM is a registered trademark of ICON IP, Inc.

IMPORTANT PRECAUTIONS

WARNING:To reduce the risk of serious injury, read the following important precau-

tions before using the elliptical crosstrainer.

1. Read all instructions in this manual before

using the elliptical crosstrainer.

2. It is the responsibility of the owner to ensure

that all users of the elliptical crosstrainer

are adequately informed of all precautions.

3. Place the elliptical crosstrainer on a level

surface, with a mat beneath it to protect the

floor or carpet. Keep the elliptical crosstrain-

er indoors, away from moisture and dust.

4. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

5. Keep children under 12 and pets away from

the elliptical crosstrainer at all times.

6. The elliptical crosstrainer should not be used

by persons weighing more than 250 pounds.

7. Wear appropriate exercise clothes when

using the elliptical crosstrainer. Always wear

athletic shoes for foot protection.

8. Always hold the handles on the console or

the handlebars when mounting, dismounting,

or using the elliptical crosstrainer.

9. The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

10. Keep your back straight when using the ellip-

tical crosstrainer; do not arch your back.

11. If you feel pain or dizziness while exercis-

ing, stop immediately and cool down.

12. When you stop exercising, allow the pedals

to slowly come to a stop.

13. The elliptical crosstrainer is intended for

home use only.Do not use the elliptical

crosstrainer in a commercial, rental, or insti-

tutional setting.

14. The warning decal shown on page 4 has

been applied to the elliptical crosstrainer. If

the decal is missing, or if it is not legible,

call our Customer Service Department toll-

free at 1-888-533-1333 and order a free

replacement decal. Apply the decal in the

location shown.

WARNING:Before beginning this or any exercise program, consult your physician.

This is especially important for persons over the age of 35 or persons with pre-existing health prob-

lems. Read all instructions before using. ICON assumes no responsibility for personal injury or

property damage sustained by or through the use of this product.

BEFORE YOU BEGIN

Congratulations for selecting the new PROFORM®

675 CARDIO CROSSTRAINER. The PROFORM 675

is an incredibly smooth exerciser that moves your feet

in a natural elliptical path, minimizing the impact on

your knees and ankles. And the unique PROFORM

675 features adjustable resistance and a simple-to-

use console to help you get the most from your exer-

cise. Welcome to a whole new world of natural, ellipti-

cal-motion exercise from PROFORM.

For your benefit, read this manual carefully before

using the elliptical crosstrainer. If you have ques-

tions after reading this manual, please call our

Customer Service Department toll-free at 1-888-533-

1333, Monday through Friday, 6 a.m. until 6 p.m.

Mountain Time (excluding holidays). To help us assist

you, please note the product model number and serial

number before calling. The model number is

PFEL29240. The serial number is found on a decal

attached to the elliptical crosstrainer (see the front

cover of this manual for the location of the decal).

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Pulse Sensor

Handlebar

FRONT

BACK

LEFT SIDE

Pedal Disk

*No water bottle

is included

Pedal

Console

Water Bottle Holder*

Resistance Knob

Health &

Fitness, Inc.

™

REV–B 2

BPENDING M

* Must be able to apply decal with secure adhesion at a minimum temperature of 50 degrees F.

REVISED 08-29-03

Process

Material

Color

PN 209489

PN 210125

Dimensions

Alt. Process

Printed Vinyl

4 mil clear vinyl backed with adhesive

Black Opaque – WARNING and triangle with “!”

reversed out of PMS 151 Orange

PMS 151 Orange – box behind signal word

White Opaque – body text and borders

Black Opaque – body text and borders

Die cut to 1.35” by 3.40”, corner radius is .125”

Silkscreen upon approval

DRAWINGS PREVIOUS TO LAST REV. DATEARE OBSOLETE

TOLERANCES

RELEASE APPROVALS

DRAWN BY:

CHECKED BY:

DSGN MNG.

ENG. APP.

BIKES

SYSTEMS

BENCHES

TREADMILLS

MISC.

This drawing and all information thereof is the property of ICON Health and Fitness, Inc. and is

CONFIDENTIAL. This drawing is NOT to be made public or copied. This drawing is LOANED,

subject to return upon demand, and is NOT to be used directly or indirectly in any way detrimental

to the interests of ICON Health and Fitness, Inc.

M. Bennett 01/02/04

D. Shaw 01/02/04

R. Evans 01/02/04

B. Ellis 01/02/04

PRODUCTS

DATE

REV ECN DESCRIPTION OF CHANGE

MKT. APP.

BACKGROUND

PART NO.

210125

209489 CLEAR

CLEAR

TEXT/BORDER

WHITE OPAQUE

BLACK OPAQUE

PRODUCT COLOR

DARK

LIGHT

ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical crosstrainer in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the

included allen wrenches, assembly requires a phillips screwdriver , an adjustable

wrench , and a rubber mallet .

As you assemble the elliptical crosstrainer, use the drawings below to identify the small parts used in assembly.

The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on

page 14. The second number refers to the quantity used in assembly. Note: Some small parts may have been

pre-assembled for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.

M10 Split

Washer (45)–2

M10 Nylon

Locknut (33)–6

M10 Bolt Set (25)–2

Pedal Leg

Washer (35)–2

M8 Nylon

Locknut (38)–4

M8 x 45mm Button Bolt (50)–4

M10 x 27mm

Patch Screw (40)–2

M10 x 75mm Carriage Bolt (34)–4M10 x 74mm Button Bolt (7)–2

M8 Split

Washer (28)–4 Handlebar

Washer (55)–2

M8 x 25mm Patch

Screw (56)–2

Washer (71)–4

M4 x 22mm

Screw (63)–2

M8 x 52mm Button

Screw (27)–4

Wave

Washer (69)–2 Large Wave

Washer (72)–2

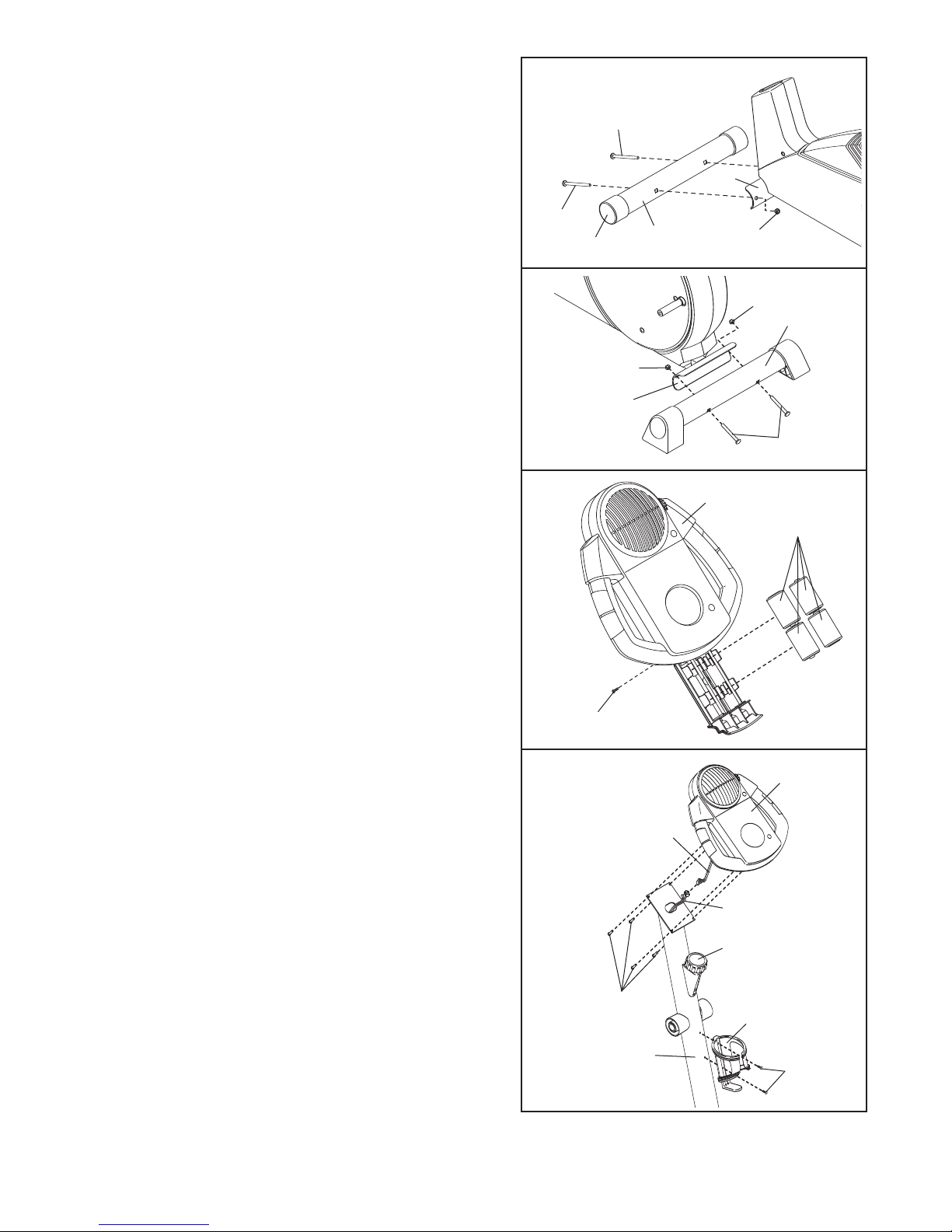

2. While another person lifts the back of the Frame (1),

attach the Rear Stabilizer (9) to the Frame with two

M10 x 75mm Carriage Bolts (34) and two M10 Nylon

Locknuts (33).

233

3. The Console (23) requires four 1.5V “D” batteries; alka-

line batteries are recommended. Remove the indicated

screw from the battery drawer, and pull the battery

drawer open. Insert four batteries into the battery

drawer; make sure that the batteries are oriented as

shown by the markings inside of the battery draw-

er. Close the battery drawer and reattach the screw.

Note: When the batteries are installed correctly, the fan

will turn on for a moment.

Batteries

Screw

4. While another person holds the Console (23) in the

position shown, connect the console wire to the

Extension Wire (68).

Attach the Console (23) to the Upright (2) with the four

Console Screws (59) included with the Console. Be

careful to avoid pinching the wires.

Attach the Water Bottle Holder (29) to the Upright (2)

with two M4 x 22mm Screws (63).

Turn the Resistance Control (42) counterclockwise

to the lowest setting before continuing.

423

Console Wire

1. Identify the Front Stabilizer (10), which has round

Endcaps (21) on its ends. While another person lifts

the front of the Frame (1), attach the Front Stabilizer to

the Frame with two M10 x 75mm Carriage Bolts (34)

and two M10 Nylon Locknuts (33).

10 33

6. Identify the Left Handlebar (6), which is marked with a

sticker. Insert the Left Handlebar into one of the

Handlebar Legs (5); make sure that the Handlebar

Leg is turned so the hexagonal holes are on the

indicated side. Attach the Left Handlebar to the

Handlebar Leg with two M8 x 45mm Button Bolts (50)

and two M8 Nylon Locknuts (38). Make sure that the

Nylon Locknuts are inside of the hexagonal holes.

Do not fully tighten the Button Bolts yet.

Insert the Pivot Axle (26) into the Upright (2), and cen-

ter the Pivot Axle. Apply a generous amount of the

included grease to both ends of the Pivot Axle.

Turn a Handlebar Spacer (47) so that the small arrow on

the Handlebar Spacer is pointing toward the floor, and

slide the Handlebar Spacer onto the post on the Left

Handlebar (6). Next, slide the Left Handlebar onto the

Pivot Axle (26).

Slide a Handlebar Washer (55) and a Wave Washer (69)

onto an M8 x 25mm Patch Screw (56), and tighten the

Patch Screw into the Pivot Axle (26). Then, press the

tabs on a Handlebar Cap (46) into the Handlebar

Spacer (47).

Assemble the Right Handlebar (8) and the other

Handlebar Leg (5) in the same way.

Grease

Hexagonal

Holes

Make sure the

wires and cables

do not get

pinched and

damaged during

this step.

5. While another person holds the Upright (2) in the posi-

tion shown, connect the Extension Wire (68) to the

Reed Switch Wire (53). Next, connect the Resistance

Cable (42) to the Lower Resistance Cable (43) in the

following way:

•See drawing A. Pull up on the metal bracket, and

insert the tip of the Resistance Cable (42) into the

wire clip on the Lower Resistance Cable (43) as

shown.

•See drawing B. Firmly pull the Resistance Cable

(42) and slide it into the metal bracket on the Lower

Resistance Cable (43) as shown.

•See drawing C. Using pliers, squeeze the prongs on

the upper end of the metal bracket together.

Push the excess cable and wires down into the Frame

(1). Slide the Upright (2) onto the Frame. Do not

pinch the wires or cables. Attach the Upright to the

Frame with two M10 x 74mm Button Bolts (7), two M10

Split Washers (45), and two M10 Nylon Locknuts (33).

Do not tighten the Bolts yet. 43 43

Metal

Bracket

Control

Cable

Control

Cable

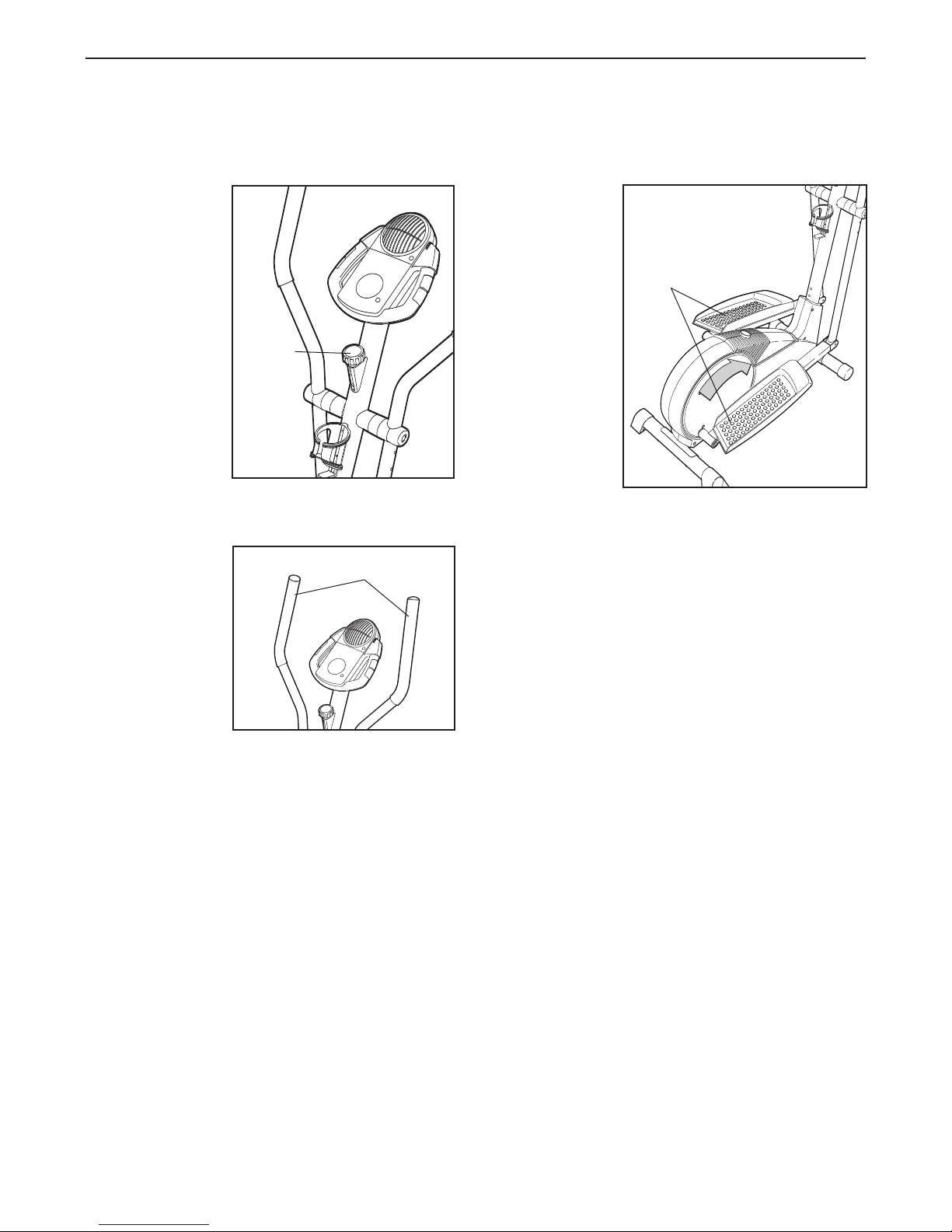

9. Make sure that all parts of the elliptical crosstrainer are properly tightened. Note: Some hardware may

be left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the

elliptical crosstrainer.

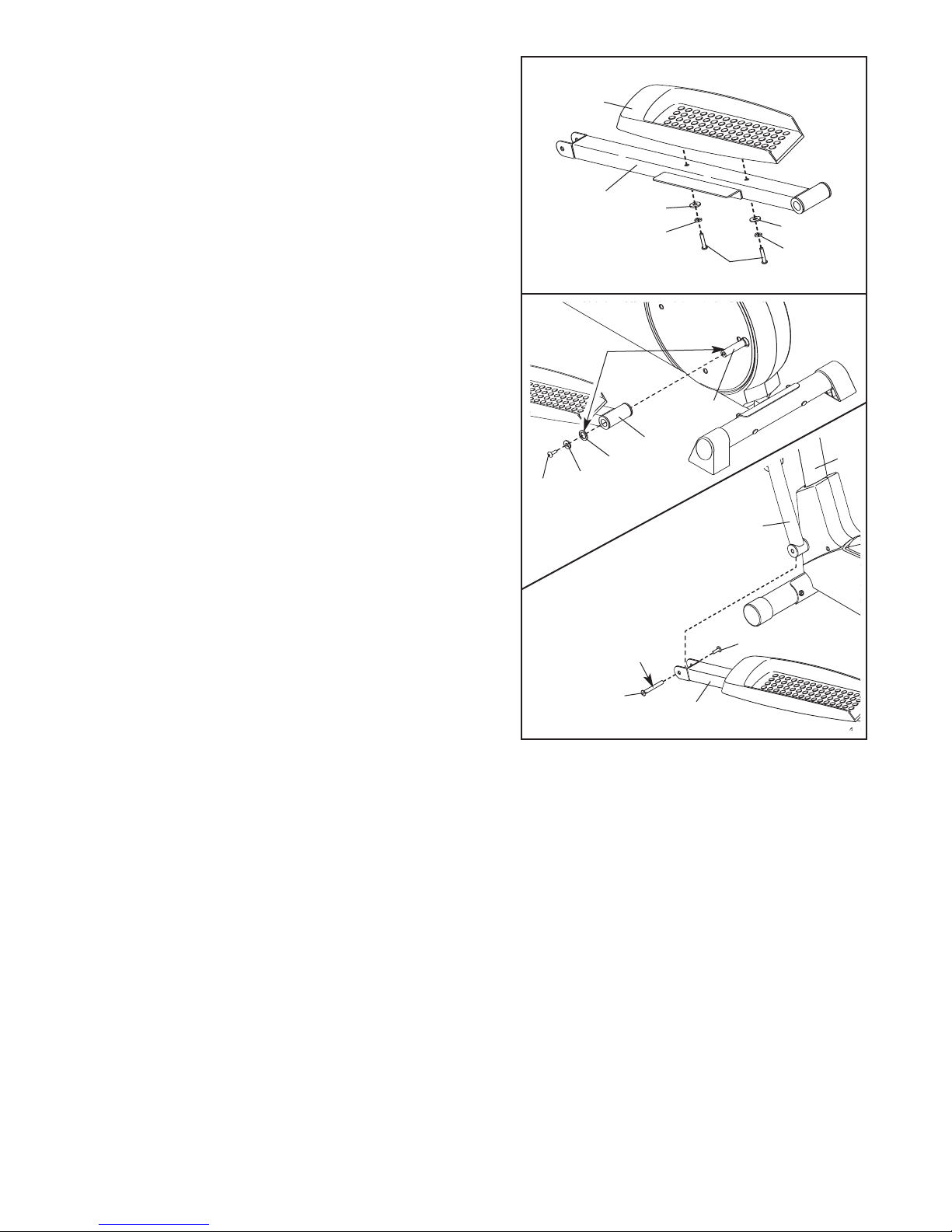

8. Apply a small amount of grease to the axle on the left

Disc Crossbar (16). Slide the Left Pedal Leg (11) onto

the axle. Apply a small amount of grease to a Large

Wave Washer (72) and press it onto the end of the Left

Pedal Leg. Slide a Pedal Leg Washer (35) onto an M10

x27mm Patch Screw (40), and tighten the Patch Screw

into the axle.

Next, hold the lower end of the left Handlebar Leg (5)

inside of the bracket on the front of the Left Pedal Leg

(11). Apply grease to an M10 Bolt Set (25). Attach the

Handlebar Leg to the Left Pedal Leg with the Bolt Set.

Do not overtighten the Bolt Set; the Handlebar Leg

must pivot freely.

Attach the Right Pedal Leg (not shown) to the right side

of the elliptical crosstrainer in the same way.

See step 5. Tighten the M10 x 74mm Button Bolts (7)

in the Upright (2).

See step 6. Tighten the M8 x 45mm Button Bolts (50)

in the Handlebar Legs (5).

Grease

25 11

40 35 72 11

28 28

7. Identify the Left Pedal Leg (11), which is marked with a

sticker. Attach the Left Pedal (13) to the Left Pedal Leg

with two M8 x 52mm Button Screws (27), two M8 Split

Washers (28), and two M8 Washers (71).

Attach the Right Pedal (not shown) in the same way.

HOW TO USE THE ELLIPTICAL CROSSTRAINER

HOW TO ADJUST THE RESISTANCE OF THE

PEDALS

As you exercise,

you can adjust

the resistance of

the pedals with

the resistance

knob on the

upright. To

increase the

resistance,

turn the knob

clockwise; to

decrease the

resistance, turn

the knob counter-

clockwise.

HOW TOUSE THE HANDLEBARS

The handlebars

are designed to

add upper-body

exercise to your

workouts. As you

exercise, push

and pull the han-

dlebars to work

your arms, shoul-

ders, and back.

HOW TO EXERCISE ON THE ELLIPTICAL

CROSSTRAINER

To mount the

elliptical cross-

trainer, hold the

handles on the

console or the

handlebars and

step onto the

pedal that is in

the lowest posi-

tion. Then, step

onto the other

pedal. Push the

pedals until they

begin to move

with a continu-

ous motion.

Note: The

pedal disks

can turn in either direction. It is recommended that

you move the pedal disks in the direction shown

by the arrow; however,for variety, you may turn

the pedal disks in the opposite direction.

To dismount the elliptical crosstrainer, wait until the

pedals come to a complete stop. Note: The elliptical

crosstrainer does not have a free wheel; the ped-

als will continue to move until the flywheel stops.

When the pedals are stationary, step off the highest

pedal first. Then, step off the lowest pedal.

Pedals

Handlebars

Knob

On/Reset Button

Note: If there is a sheet of clear plastic on

the face of the console, remove the plastic.

HOW TO USE THE CONSOLE

Turn on the console.

Note: The console requires four 1.5V “D” batteries

(see assembly step 3 on page 6).

To turn on the console, press the On/Reset button

or begin pedaling. (See the drawing above to

identify the On/Reset button.)

Follow your progress with the display.

The upper sec-

tion of the dis-

play will show

the total number

of revolutions you

have pedaled

and the numbers of

calories

and

fat calories

you

have burned (see FATBURNING on page 13 for

an explanation of fat calories). The display will

change from one number to the next every few

seconds. If you use the handgrip pulse sensor,

the display will also show your heart rate (see

step 3 on page 11).

The center of

the display will

show the elapsed

time you have

pedaled.

The lower sec-

tion of the dis-

play will show

your pedaling

pace, in revolu-

tions per minute

(RPM).

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Pro-Form Ellittica

Pro-Form

Pro-Form 850 Elliptical Manuale utente

Pro-Form

Pro-Form 762 Ekg Bike Guida utente

Pro-Form

Pro-Form 220 Zle Elliptical Manuale utente

Pro-Form

Pro-Form 500 Ekg Elliptical Manuale del sistema

Pro-Form

Pro-Form 890 E Elliptical Manuale utente

Pro-Form

Pro-Form PFEL53911.1 Manuale utente

Pro-Form

Pro-Form 325 CSE Manuale utente

Pro-Form

Pro-Form 6.0 Ce Elliptical Manuale utente

Pro-Form

Pro-Form 595 HR Manuale utente

Pro-Form

Pro-Form 420 Zle Elliptical Guida utente

Pro-Form

Pro-Form 675 Manuale utente

Pro-Form

Pro-Form PFEL85607.0 Manuale utente

Pro-Form

Pro-Form 650 Cardio Cross Trainer Elliptical Guida utente

Pro-Form

Pro-Form 545 Ekg Elliptical Manuale utente

Pro-Form

Pro-Form PFEL71031 Manuale utente

Pro-Form

Pro-Form PFEL55911.6 Manuale utente

Pro-Form

Pro-Form 480 Spacesaver Elliptical Manuale del sistema

Pro-Form

Pro-Form 700 CARDIOTRAINER Manuale utente

Pro-Form

Pro-Form Pro 16.9 Manuale utente

Pro-Form

Pro-Form 640s Guida rapida

Pro-Form

Pro-Form 600 LE Manuale utente

Pro-Form

Pro-Form 380 Razor Elliptical Guida all'installazione

Pro-Form

Pro-Form 420 Ce Elliptical Manuale utente

Pro-Form

Pro-Form 831.28543.0 Manuale utente

Manuali Ellittica popolari di altre marche

Weslo

Weslo Momentum 4.0 Elliptical Manuale operativo e di manutenzione

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manuale utente

Torque Fitness

Torque Fitness XPLLP Manuale utente

Octane Fitness

Octane Fitness PRO3700C Manuale utente

Xterra

Xterra FS5.8e Manuale utente

Bodyguard

Bodyguard E-40 Manuale utente

Bonn Germany

Bonn Germany Concept 2.2 Manuale utente

Precor

Precor Resolute RSL 620 Manuale utente

NordicTrack

NordicTrack E 9.2 Elliptical Manuale utente

Vision Fitness

Vision Fitness X6600iNetTV Manuale utente

Matrix

Matrix MX-A5x Manuale utente

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manuale utente

Sears

Sears FREE SPIRIT C249 30737 0 Manuale utente

True

True FS-64 Manuale utente

Sport-thieme

Sport-thieme ST 310 Manuale utente

VIRTUFIT

VIRTUFIT CTR 1.1 Manuale utente

Kettler

Kettler GIRO C 1 Manuale utente

CIRCLE FITNESS

CIRCLE FITNESS E7 Manuale utente
