INSTRUCTIONS FOR USE

Pro-Ject 2 Xperience Primary

· Revision 2020.13.07

©Pro-Ject Audio Systems · Pro-Ject 2Xperience Primary· Revision 2020.13.07

Pro-Ject 2 Xperience Primary

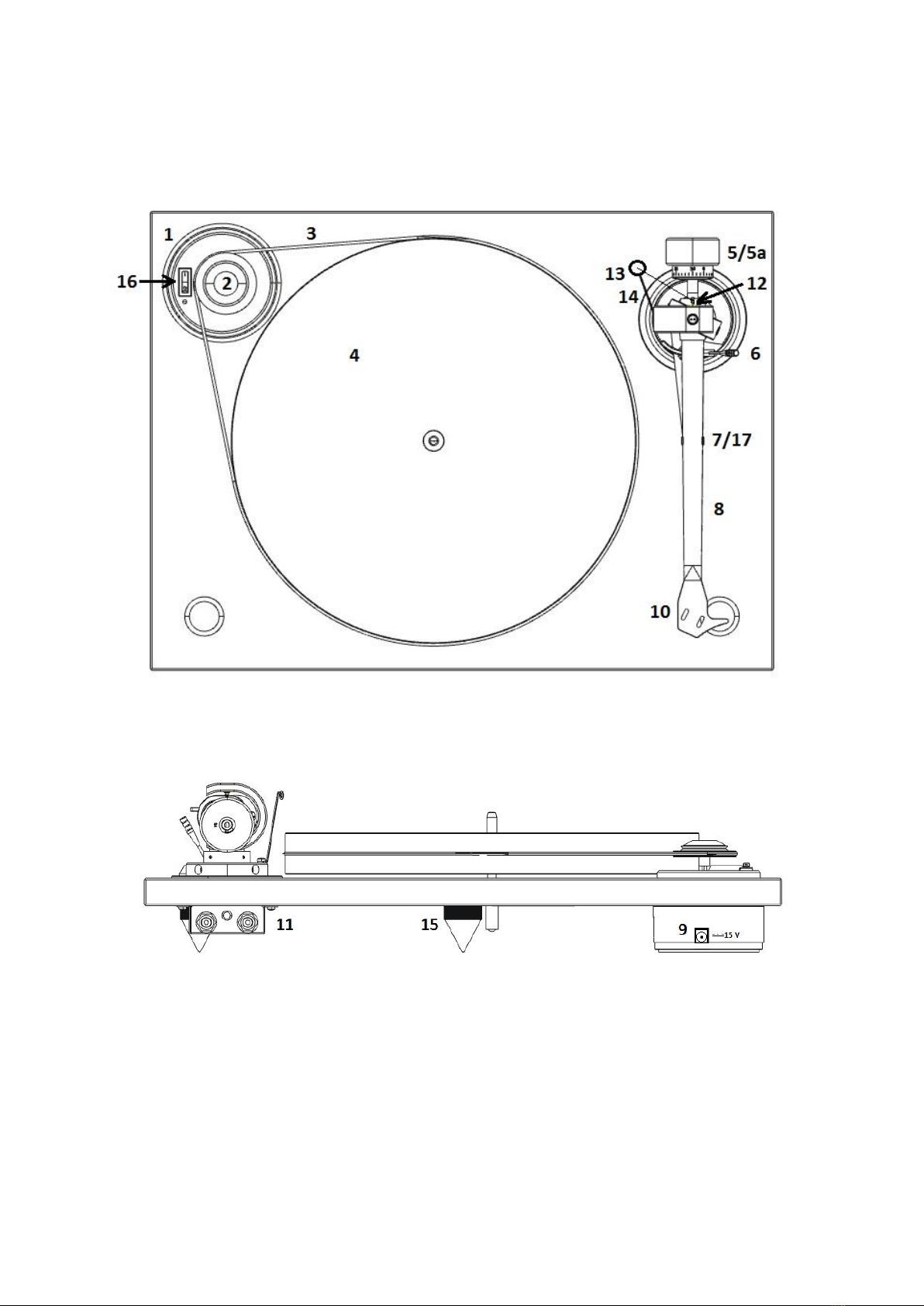

Controls, features and connections

7/17

Motor unit

Stepped drive pulley

Drive belt * 3a Hook *

Platter & felt mat *

Tonearm counterweight * 5a Downforce scale

Tonearm lift lever

Tonearm rest and removable transport lock

Tonearm tube 8a Tonearm base

Power supply socket

Headshell with finger lift

Phono output sockets and earth connection

Anti-skating stub with anti-skating weight adjustment scale

Anti-skating weight *

Anti-skating weight support hoop

Adjustable tip-toe feet anti-scratch cups *

Power switch

Connection cable (not shown) *

Universal power supply (not shown) *

Single adapter (not shown) *

Turntable lid (not shown, only included in clear-acryl colour option)

Dear music lover,

Thank you for purchasing a Pro-Ject Audio System´s record player.

In order to achieve maximum performance and reliability, please study these instructions carefully.

Warning of a hazard for the user, the unit or possible misuse

Important notice

The following instructions for adjusting the cartridge are provided in case the cartridge is replaced by a

different model at a later date.

During assembling and adjustment small parts could be lost if they are not carefully placed in a suitable

receptacle. Before starting assembly make yourself acquainted with the parts listed above which are

correspondingly numbered in the technical drawings above. Separately packed items are marked with an

asterisk *.

· Revision 2020.13.07

Safety instructions

The power supply is used to connect and disconnect the unit from the mains. Make sure that the plug

is easily accessible at all times. Hold the plug when unplugging the power cord. Never handle the

power cord while your hands are wet or damp.

Avoid letting liquids enter the device. Never place any item containing liquid, like a flower vase, on

or near the device. Never spill any liquid on the device. Never place any naked flame sources, like

lighted candles, on or near the device. The product shall not be used in damp or wet locations, next to

a bathtub, sink, swimming pool or any other similar conditions.

Keep plastic bags away from children to prevent any risk of suffocation.

Set-up

The deck is supplied partially disassembled and carefully packed for a safe transport. Remove all parts from

the transport packaging carefully.

Screw the three tip-toe feet (15) onto the threaded bolts located on the underside of the plinth Make sure the

surface you wish to use the turntable on is levelled (use a spirit level) before placing the turntable on it.

After putting the motor unit in the place, carefully insert the platter axle into the bearing housing. Put felt mat

on the platter and level the plinth using the spirit level and the adjustable feet (15).

Fit the drive belt (3) around the platter (4) and the smaller diameter part of the motor pulley (2). Avoid

getting sweat or grease on the belt as these will deteriorate the performance and reduce the belt's lifespan. Use

absorbent kitchen paper to remove any oil or grease from the outer edge of the hub and the belt.

Remove the transport lock (17) from the tonearm. Store it in the original packaging so they are available for

any future transportation.

Cartridge downforce adjustment

The supplied counterweight (5) is suitable for cartridges weighing between 6 - 10g (counterweight no. 16).

Alternative counterweights for cartridges weighing between 11 - 15g (counterweight no. 3), 8 - 11g

(counterweight no. 2) or 5 - 8g (counterweight no. 9) are available as accessory parts. Adjust the

downforce before installing the anti-skating weight.

Following adjustments have to be done very carefully. Remove cartridge protection cap. Push and turn the

counterweight (5) carefully on the rear end of the tonearm tube (8), so that the downforce scale (5a) shows

towards the front of the player. Lower the arm lift and position the cartridge in the space between arm rest and

platter. Rotate the counterweight (5) until the arm tube is balanced. The arm should return to the balanced

position if it is moved up or down.

Once the arm is balanced correctly return it to the rest. Hold the counterweight (5) without moving it and gently

revolve the downforce scale ring (5a) until the zero is in line with the anti-skating stub (12). Check whether the

arm still balances out.

Rotate the counterweight counter clockwise (seen from the front) to adjust the downforce according to the

cartridge manufacturer's recommendations. One mark on the scale represents 1 mN (= 0,1g / 0,1 Pond) of

downforce.

Adjusting the vertical tracking angle (vta)

Put a record and the record weight on the platter. When the

needle is lowered into the record groove and the tonearm is not

resting on the lift arm, the tube of the tonearm should be

parallel to the surface of the record.

If it is not, loosen both hexagon screws in the tonearm base

just enough to allow vertical movement of the arm pillar

without force and slide the arm up or down until it is parallel.

Retighten the hexagon screws without applying excessive force (which would deform the arm pillar) –finger

tight is quite sufficient.

©Pro-Ject Audio Systems · Pro-Ject 2Xperience Primary· Revision 2020.13.07

Adjusting the azimuth

The cartridge needle must be vertical in the record groove in

order to trace the groove wall modulations correctly.

A small screw at the bearing end of the arm allows incorrect

azimuth to be corrected.

Slacken off the screw just enough to be able to revolve the

arm tube without applying force. Note! Do not remove this

screw completely!

With the aid of a good magnifying glass adjust the needle until it is vertical in the groove (i.e. perpendicular

to the record's surface). Ideally this should correspond to the top surface of the cartridge body being parallel

to the record surface.

When the needle is vertical, retighten the screw carefully.

Under no circumstances should the arm tube be adjusted with the needle still in the record groove!

Irreparable damage may be caused to the cantilever suspension! The arm must be lifted to make

each adjustment and lowered afterwards to check it.

Anti-skating force adjustment

The anti-skating force must be adjusted corresponding to the downforce as follows:

Downforce Groove in the stub (12)

10 - 14mN 1st from bearing rings

15 - 19mN 2nd " " "

20mN and bigger 3rd " " "

Hang the loop of the thread of the anti-skating weight into the groove of the anti-skating stub (12)

corresponding to the downforce applied to your cartridge and hang the thread in the groove of the wire

support (14).

Connection to the amplifier

The record player has gold plated female RCA phono sockets (11) so you can substitute the supplied

interconnect cables with higher quality cables such as the Pro-Ject Connect it interconnect cables for

connection to the amplifier if you wish. Use the Phono input (sometimes labelled gram, disc or RIAA) on your

amplifier. Make sure that the phono input offers correct matching and amplification for the type of cartridge

used. Line inputs (like CD, Tuner, Tape or Video) are not suitable.

Take care about connecting the left and right channel correctly. The right channel is usually marked red, the

left channel black or white. Check the manual of your amplifier for relevant information. An earthing wire

may be connected to the screw terminal between the sockets if you encounter humming problems.

If your amplifier does not have an input suitable for phono cartridges, a separate phono amplifier stage for

MM or MC cartridges is required. It has to be connected between record player and a free line level input of

the amplifier.

For detailed product information regarding Pro-Ject Audio Systems interconnect cables and phono amplifiers

please visit our website: www.project-audio.com

Mains power connection

A universal power supply with 3 exchangeable sockets adapters suitable for all countries is supplied. Select

the correct adapter for your country and insert the adapter to the exchangeable part of the power supply.

Connect the low voltage plug from the power supply to the socket (9) on the rear side of the record player

before connecting the power supply to the mains.

Switching on and off

Pressing the power switch (16) alternately starts and stops the motor.

· Revision 2020.13.07

Changing replay speed

Use the accessory tool provided (3a), hook the belt (3) over the larger diameter part of the motor pulley (2). To

revert to 33 r.p.m. repeat the proceedings using the smaller step on the pulley.

Maintenance and cleaning

Your record player requires little or no regular maintenance. Remove dust with a slightly moistened antistatic

cloth. Never use a dry cloth because this will create static electricity which attract more dust! Antistatic

cleaning fluids are available at specialist stores but must be applied sparingly to avoid damage to rubber

parts. It is recommended to fit the needle cover before cleaning or maintenance is carried out to avoid damage.

If the player is not used over a long period of time the drive belt can be removed to prevent unequal stretching.

Always disconnect the record player from the mains power supply as a precaution before maintenance!

Mounting and connecting the cartridge

All cartridges with half inch mounting holes can be mounted. Leave the needle's protection cover on, fit the

cartridge to the headshell by using the supplied screws by passing one screw through each slot in the

headshell (10). Do not tighten the nuts yet.

Connect the tonearm wires with the cartridge pins as follows:

white left channel positive (L+)

red right channel positive (R+)

green right channel return (R -)

blue left channel return (L -)

The full sound quality of the record player can only be achieved if the cartridge is adjusted correctly. Particular

tools like the Pro-Ject Audio Systems alignment tool are required to accomplish this job properly. If you are not

well acquainted with the adjustment of cartridges, please call for the willing help of your Pro-Ject Audio Systems

dealer.

Please note: adjusting a cartridge and tonearm calls for the greatest care in order to avoid damaging

the cartridge or tonearm bearings. Ask your local dealer for help if you are unsure in any of the

necessary steps and precautions which must be taken.

Technical specifications PRO-JECT 2 Xperience Primary/ Pro-Ject 9cc tonearm

Nominal speeds

33/45 r.p.m.

Speed variance

±0,6 %

Wow and flutter

±0,13 %

Signal to noise

-65dB

Effective tonearm mass

15g

Effective tonearm length

9 " (230mm)

Overhang

18mm

Power consumption

5W max/ >0,5W standby mode

Outboard power supply

15V DC / 800m A, 90-264V AC, 47 –63Hz

Dimensions (W x H x D)

465 x 130 x 340mm

Weight

6,5 kg

©Pro-Ject Audio Systems · Pro-Ject 2Xperience Primary· Revision 2020.13.07

Potential incorrect use and fault conditions

Pro-Ject Audio Systems turntables are manufactured to the highest standards and undergo strict quality

controls before leaving the factory. Faults that may possibly occur are not necessarily due to material or

production faults but can sometimes be caused by incorrect use or unfortunate circumstances. Therefore the

following list of common fault symptoms is included.

The platter does not turn although the unit is switched on:

•The unit is not connected to the mains power supply.

•No mains at the socket.

•Drive belt is not fitted or has slipped off.

No signal through one or other channel or both channels:

•No signal contact from the cartridge to the internal tonearm wiring or from that to the arm lead or

from that to the phono box or between that and the amplifier. This could be due to a faulty plug,

broken wire or solder joint or simply loose plug/socket connection.

•Phono input not selected at amplifier.

•Amplifier not switched on.

•Amplifier or speakers defective or muted.

•No connection to the loudspeakers.

Strong hum on phono input:

•No earth connection from cartridge or arm or arm cable to amplifier, or earth loop.

Distorted or inconsistent sound from one or both channels:

•Record player is connected to wrong input of amplifier, or MM/MC switch incorrectly set.

•Needle or cantilever damaged.

•Wrong r.p.m., drive belt overstretched or dirty, platter bearing without oil, dirty or damaged.

Service

Should you encounter a problem which you are not able to alleviate or identify despite the above information,

please contact your dealer for further advice. Only if the problem cannot be solved there the unit should be

sent to the responsible distributor in your country.

Guarantee repairs will be accepted only if the unit is returned correctly packed in the original package. Therefore

we strongly recommend keeping the original packaging.

Never return a record player without making sure that it is safely disassembled and correctly packed in the

original packaging according to the diagrams on the last page of this user guide. Please remove the following

parts from the turntable and pack them separately: power supply socket (9), counterweight (5), anti-skating

weight (13) platter (4) and belt (3). Mount the cartridge protection cap. Insert the transport lock for the

tonearm (17).

Warranty

The manufacturer accepts no responsibility for damage caused by not adhering to these instructions

for use and/or by transportation without the original packaging. Modification or change to any part

of the product by unauthorized persons releases the manufacturer from any liability over and above

the lawful rights of the customer.

Pro-Ject Audio Systems is a Registered Trademark of

H. Lichtenegger.

This guide was produced by: Pro-Ject Audio Systems

The information was correct at the time of going to

press. The manufacturer reserves the right to make

changes to the technical specification without prior

notice as deemed necessary to uphold the ongoing

process of technical development.

· Revision 2020.13.07

Altri manuali per 2 Xperience Basic +

Indice

Altri manuali Pro-Ject Audio Systems Giradischi

Pro-Ject Audio Systems

Pro-Ject Audio Systems RPM 1.3 Genie Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems T1 Phono SB Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems RPM 9.2 Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems 2Xperience Primary Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems THE CLASSIC Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems 1 Xpression Carbon Classic Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems RPM 6.1 SB SuperPack Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Juke Box E1 Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject RPM 5 SuperPack Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Juke Box E Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject DEBUT III PHONO SB Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems RPM 6.1 SB SuperPack Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Essential Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Speed Box MK II Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Debut Carbon EVO Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Juke Box Series Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems 1 Xpression III Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject 6 PerspeX SuperPack Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject 2 Xperience Comfort Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Xtensions 9 S-Shape Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems 1 Xpression Carbon Classic Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject VC-S Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Debut III/Phono USB Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems RPM 9.1 Acryl Manuale utente

Manuali Giradischi popolari di altre marche

Gemini

Gemini CDT-05 MKII Manuale utente

Rotel

Rotel RP-820 Manuale utente

Shuman

Shuman MC-250BT Manuale utente

Stanton

Stanton STR8-150 Manuale utente

Audio Technica

Audio Technica AT-LPW40WN Manuale utente

Crosley

Crosley McQueen CR7011-GY Manuale utente

Reloop

Reloop SMP-1 Manuale utente

auna

auna TT-Classic Plus Manuale utente

COMO AUDIO

COMO AUDIO Turntable Analog Manuale utente

Dual

Dual 1009 F Manuale utente

REED

REED Muse3C Manuale utente

AXIOMTEK

AXIOMTEK OPS883-H Series Manuale utente

Pioneer

Pioneer PL-71 Manuale utente

Vestax

Vestax PDX-a1 Manuale utente

Denon

Denon DP-400 Manuale utente

Dual

Dual 504 Manuale utente

Audio-Techica

Audio-Techica AT-LP60XBT Manuale utente

Goldring

Goldring G99 Manuale utente
