INSTRUCTIONS FOR USE

Pro-Ject Essential/Phono USB

14 14

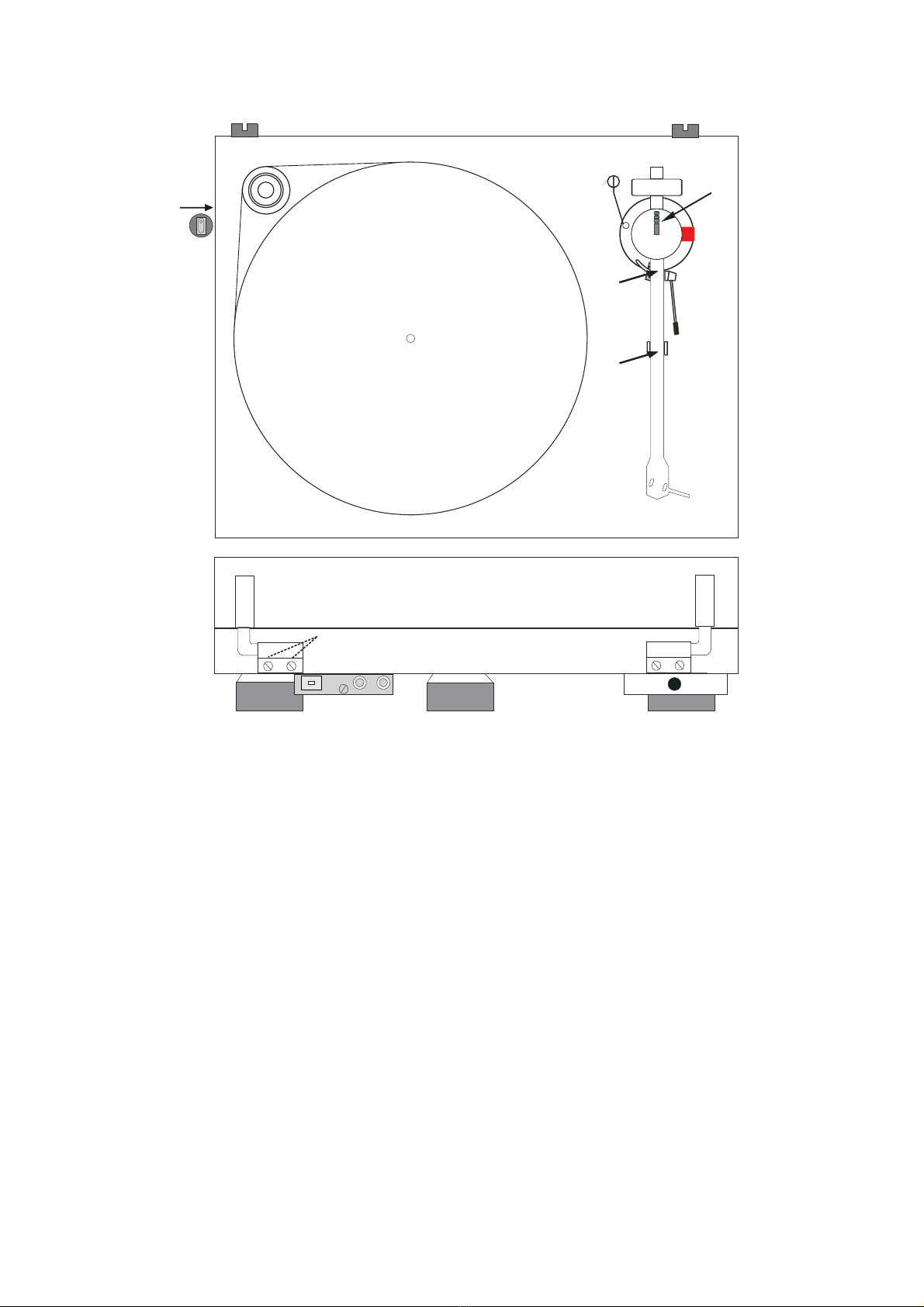

Controls, features and connections

1 Power switch

2/22 Stepped drive pulley and drive belt *

3 Platter with felt mat *

4/44 Tonearm counterweight * and counterweight support rod

5 Tonearm lift lever

6/66 Tonearm rest and removable transport locks

7/77 Tonearm tube with tonearm bearing housing and red coloured transport lock

8 Anti-skating weight adjustment scale

9 Anti-skating weight support hoop

10 Anti-skating weight with wire *

11 Headshell with finger lift and fitted Ortofon OM 5E cartridge

12 Phono output sockets, earth connection and USB-out

13 Power supply socket

14 Hinge with hinge fasteners

Signal output and USB-cable

Power supply (not shown) *

Stylus pressure gauge - white plastic instrument with mN scale (not shown) *

Two hexagonal keys (not shown) *

Pro-Ject Essential/Phono USB

Dear music lover,

thank you for purchasing a PRO-JECT AUDIO record player.

In order to achieve maximum performance and reliability with this record player you should study these instructions

for use carefully.

Warning of a hazard for the user, the unit or possible misuse.

Important notice.

The record player is supplied with a factory fitted and adjusted cartridge.

** The following instructions for adjusting the cartridge are provided in case the cartridge is replaced by a

different model at a later date.

During assembly and adjustment of the deck small parts could be lost if not carefully placed in a suitable

receptacle. Before starting assembly make yourself acquainted with the parts listed above and correspondingly

numbered in the technical drawings above. Separately packed items are marked with an asterisk *.

Set-up

The deck is supplied partially disassembled and carefully packaged for safe transport. Carefully remove all

parts from the transport packaging.

Make sure the surface you wish to use the turntable on is level (use a spirit level) before placing the turntable

on it.

Fit the drive belt (22) around the platter (3) and the smaller diameter part of the motor pulley (2). Avoid

getting sweat or grease on the belt as these will deteriorate the performance and reduce the belt's lifespan. Use

absorbent kitchen paper to remove any oil or grease from the outer edge of the platter and the belt.

Fit the felt mat over the spindle of the platter (3). Remove both transport locks (66) from the tonearm tube.

To remove the transport lock for the arm bearing, lift up the tonearm by the tonearm bearing housing (77)

and pull out the red coloured transport lock (7) towards the right hand side. Put the tonearm back into place.

Take special care not to strain or damage the delicate 4-colour wire!

Store the transport locks in the original packaging so they are available for any future transportation.

Cartridge downforce adjustment

The counterweight (4) supplied is suitable for cartridges weighing between 4 - 9g (counterweight no. 37). An

alternative counterweight for cartridges weighing between 8 - 15g (counterweight no. 59) is available as an

accessory part.

Place counterweight (4) halfway along the counterweight support rod (44) at rear of arm, being sure to have

the securing screw uppermost.

Remove the felt matt. With the power off, and the platter static, place the stylus pressure gauge onto the

platter. To set the recommended 17,5mN downforce (1mN = 0,1g / 0,1 Pond), place the tip of the stylus

exactly in-between the two points marked 15mN and 20mN.

If the stylus gauge becomes level, then the correct pressure has been achieved. However if the there is

insufficient or excessive pressure the gauge will either not move or tilt down.

To adjust the amount of pressure, carefully move the counterweight (4) along the support rod (44), until the

stylus pressure is sufficient to raise the pressure gauge to the level position. Moving the counterweight (4)

towards the cartridge will reduce pressure and away will increase pressure.

Finally secure the counterweight (4) using hexagonal key provided.

Please note: Adjust the downforce prior to installing the anti-skating weight.

It is advised to remove stylus tip from gauge whilst making adjustments to avoid damage to stylus.

Anti-skating force adjustment

Hang the loop of the thread of the anti-skating weight in the groove of the anti-skating stub (8) corresponding

to the downforce applied to your cartridge and feed the thread through the loop of the wire support (9).

The anti-skating force must be adjusted corresponding to the downforce as follows:

Downforce Groove in the stub (8)

10 - 14mN 1st from bearing rings

15 - 19mN 2nd " " "

20mN and bigger 3rd " " "

Fitting the lid

Fit the lid (dust cover 10) carefully over the hinge prongs and adjust the screws (12) until the lid stays open where

you want it to without being too stiff to open or close.

Connection to the amplifier

The record player has gold plated female RCA phono sockets (14) so you can substitute the interconnect cables

supplied with those of your choice for connection to the amplifier if you wish. Your dealer can advise you on

alternative cables. Use a line input (such as AUX, CD, Tuner, Tape or Video) on your amplifier.

Due to the built in phono pre-amplifier, a phono input (sometimes labelled gram, disc or RIAA) is not

suitable.

Take care to connect the left and right channels correctly. The right channel is usually marked red, the left

channel black or white. Check the manual supplied with your amplifier for relevant information. The earthing

wire of the tonearm lead should be connected to the earth terminal on your amplifier (if provided).

The 3,5 mm connector (supplied) can be used to connect your Pro-Ject record player to any line level/auxiliary

input (Computer, Midi System, Mixer etc.).

Connect the socket end to the phono plugs at the end of the audio trailing lead from your turntable and

insert the 3,5 mm plug into the relevant socket on your audio component.

Connecting to a Computer

Connect the USB-output of the unit to a free USB-socket on your computer and turn it on/make sure it is

powered on.

The “new hardware found assistant“ will automatically detect the unit and announces it as a Microphone USB

audio codec. There is no need to install a driver manually.

After installation, one setting has to be done. For example - Windows 7®operating system:

Control Panel Sound Recording Microphone USB Audio CODEC Properties 

Advanced: set to 2 channel, 16 bit, 48000 Hz (DVD Quality)

Please note: Connection should be made to an USB-socket of your computer directly. Connecting to

USB-hubs or switches can cause problems.

Recording Programme

In case you do not have a recording programme installed on your computer, you may download one free from

the Internet. Recording programmes may be found by searching Google or Yahoo.

In the menu of the recording programme, source or input may have to be set to Microphone USB audio codec.

Please be aware that downloads from the Internet are made entirely at your own risk. Under no

circumstances can we carry responsibility or provide support for third-party software products sourced

from the internet or for any damage or problems arising from the use thereof. All downloads should

be checked with an up-to-date anti-virus programme. License fees may be applicable.

Mains power connection

The turntable is supplied with a power supply suitable for your country's mains supply. Check the label before

connecting to ensure compliance with the mains rating in your house.

Connect the low voltage plug from the power supply to the socket (8) on the rear of the record player before

connecting the power supply to the mains.

Useful tips

The record player should be positioned on a low-resonance surface such as wood or multiple layer ply board

to avoid structural vibrations disturbing replay.

Switching on and off

Pressing the power switch (1) alternately starts or stops the motor.

Changing replay speed

Put the belt (22) over the larger diameter part of the motor pulley (2). To revert to 33 r.p.m. repeat the

proceedings using the smaller step on the pulley.

When the Pro-Ject Speed Box is used speed change between 33 and 45 r.p.m. is electronic. There is

no need to move the belt manually.

For detailed product information please refer to the Pro-Ject web site www.project-audio.com.

Maintenance and cleaning

Your record player requires little or no regular maintenance. Remove dust with a slightly moistened antistatic

cloth. Never use a dry cloth because this will create static electricity which attract more dust! Antistatic

cleaning fluids are available at specialist stores but must be applied sparingly to avoid damage to rubber

parts. It is recommended to fit the needle cover before cleaning or maintenance is carried out to avoid damage.

If the player is not used over a long period of time the drive belt can be removed to prevent unequal stretching.

Always disconnect the record player from the mains power supply as a precaution before maintenance!

Fitting and connecting the cartridge

** All cartridges with half inch mounting holes can be fitted. Leaving the needle's protection cover on, fit the

cartridge to the headshell (11) using the screws supplied with the cartridge by passing one screw through

each slot in the headshell (11). Do not tighten the nuts yet.

Connect the tonearm wires to the cartridge pins as follows:

white left channel positive (L+)

red right channel pos. (R+)

green right channel return (R -)

blue left channel return (L -)

The full sound quality of the record player can only be achieved if the cartridge is correctly adjusted. Particular

tools like the Pro-Ject alignment tool “Align it” are required to accomplish this job properly.

If you are not well acquainted with the adjustment of cartridges you are advised to call upon the willing help of

your Pro-Ject dealer to accomplish this task for you.

Please note: adjusting a cartridge and tonearm calls for the greatest care in order to avoid damaging

the cartridge or tonearm bearings. Leave this work to your dealer if you are in any way unsure of the

necessary steps and precautions to be taken.

Technical specifications Pro-Ject Essential/Phono USB / Pro-Ject 8.6 UniPivot

Nominal speeds 33/45 r.p.m.

Speed variance ±1,5%

Wow and flutter ±0,25%

Signal to noise 65dB

Effective tonearm mass 8,9g

Effective tonearm length 8,6" (218,5mm)

Overhang 18,5mm

Power consumption 2W

Outboard power supply 16V/500mA AC, suitable for your country's mains supply

Dimensions (W x H x D) 415 x 112 x 335mm

Weight 3,9kg

Technical specifications MM-Cartridge Ortofon OM 5E

Frequency range 20-25.000Hz

Channel separation 22dB/1kHz

Output voltage 4mV

Recommended load impedance 47kohms/ amplifier connection – MM-input

Compliance/stylus type 20μm/mN – elliptical

Recommended tracking force 17,5mN

Weight 5g

Technical specifications moving magnet phono pre-amplifier

Gain 32dB

Output voltage typically 160mV/1kHz at 4mV/1kHz input

Input impedance 47kohms/100pF

Noise floor -88dB

RIAA-equalisation curve accuracy 20Hz-20kHz / max. 0,5dB

USB output: digital serial data protocol USB 1.1

Operating systems: Windows XP®, Windows VISTA®, Windows 7®, Windows 8®, Mac OS

Potential incorrect use and fault conditions

Pro-Ject turntables are manufactured to the highest standards and undergo strict quality controls before

leaving the factory. Faults that may possibly occur are not necessarily due to material or production faults but

can sometimes be caused by incorrect use or unfortunate circumstances. Therefore the following list of common

fault symptoms is included.

The platter doesn't turn although the unit is switched on:

The unit is not connected to the mains power supply.

No mains at the socket.

Drive belt is not fitted or has slipped off.

No signal through one or other channel or both channels:

No signal contact from the cartridge to the internal tonearm wiring or from that to the arm lead or

from that to the phono box or between that and the amplifier. This could be due to a faulty plug,

broken wire or solder joint or simply loose plug/socket connection.

Phono input not selected at amplifier.

Amplifier not switched on.

Amplifier or speakers defective or muted.

No connection to the loudspeakers.

Strong hum on phono input:

No earth connection from cartridge or arm or arm cable to amplifier, or earth loop.

Distorted or inconsistent sound from one or both channels:

Record player is connected to wrong input of amplifier, or MM/MC switch incorrectly set.

Needle or cantilever damaged.

Wrong r.p.m., drive belt overstretched or dirty, platter bearing without oil, dirty or damaged.

Service

Should you encounter a problem which you are not able to alleviate or identify despite the above information,

please contact your dealer for further advice. Only when the problem cannot be resolved there should the

unit be sent to the responsible distributor in your country.

Guarantee repairs will only be effected if the unit is returned correctly packaged. For this reason we recommend

keeping the original packaging.

Never return a record player without making sure that is it safely disassembled and correctly packaged in the

original packaging according to the diagrams on the last page of this user guide.

Fit the cartridge protection cap. Insert the transport locks for the tonearm tube (66) and the red coloured

transport lock (77) for the tonearm bearing housing, prior to carefully packaging the record player.

Warranty

The manufacturer accepts no responsibility for damage caused by not adhering to these instructions

for use. Modification or change to any part of the product by unauthorized persons release the

manufacturer from any liability over and above the lawful rights of the customer.

PRO-JECT is a Registered Trademark of H. Lichtenegger.

This guide was produced by: Audio Trade GmbH

The information was correct at the time of going to

press. The manufacturer reserves the right to make

changes to the technical specification without prior

notice as deemed necessary to uphold the ongoing

process of technical development.

Windows XP®, Windows Vista®and Windows 7®are trademarks of the Microsoft group of companies.

Mac and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries.

Accessories

Lid

Tonearm

counterweight Power supply

Two tonearme

transport locks

Red coloured

transport lock

Indice

Altri manuali Pro-Ject Audio Systems Giradischi

Pro-Ject Audio Systems

Pro-Ject Audio Systems 1 Xpression III Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Remote Box S2 Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject RPM 10 Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject 1 Xpression III Comfort Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Debut Carbon EVO Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems VTA it Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Align it Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Xtension Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems 1 Xpression Carbon Classic Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Jukebox E Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems RPM 10.1 Evolution Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Debut Carbon Phono/USB Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems 1 Xpression Carbon Classic Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Debut Carbon RecordMaster HiRes Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems RPM 1.3 Genie Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject 2 Xperience Comfort Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems RPM 9.1 Acryl Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Debut Carbon DC Esprit SB Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems 6 PerspeX Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Debut III/Phono USB Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems VC-S Aggiornamento firmware

Pro-Ject Audio Systems

Pro-Ject Audio Systems 2 Xperience Basic + Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject RPM 5 SuperPack Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems A2 Manuale utente

Manuali Giradischi popolari di altre marche

Gemini

Gemini CDT-05 MKII Manuale utente

Rotel

Rotel RP-820 Manuale utente

Shuman

Shuman MC-250BT Manuale utente

Stanton

Stanton STR8-150 Manuale utente

Audio Technica

Audio Technica AT-LPW40WN Manuale utente

Crosley

Crosley McQueen CR7011-GY Manuale utente

Reloop

Reloop SMP-1 Manuale utente

auna

auna TT-Classic Plus Manuale utente

COMO AUDIO

COMO AUDIO Turntable Analog Manuale utente

Dual

Dual 1009 F Manuale utente

REED

REED Muse3C Manuale utente

AXIOMTEK

AXIOMTEK OPS883-H Series Manuale utente

Pioneer

Pioneer PL-71 Manuale utente

Vestax

Vestax PDX-a1 Manuale utente

Denon

Denon DP-400 Manuale utente

Dual

Dual 504 Manuale utente

Audio-Techica

Audio-Techica AT-LP60XBT Manuale utente

Goldring

Goldring G99 Manuale utente
