Thermostat Operation

Thermostat Quick Reference

Programming

Features

Warranty Information

Page

2-3

4-7

8-14

Una version en español de este

manual se puede descargar en la

pagina web de la compañia.

Equipment damage hazard.

Do not operate the cooling

system if the outdoor

temperature is below 50 ˚F

(10 ˚C) to prevent possible

compressor damage.

Caution

Rev. 1803

15-16

P.O. Box 3377

Springeld, MO 65808-3377

Thermostat OperationThermostat Operation

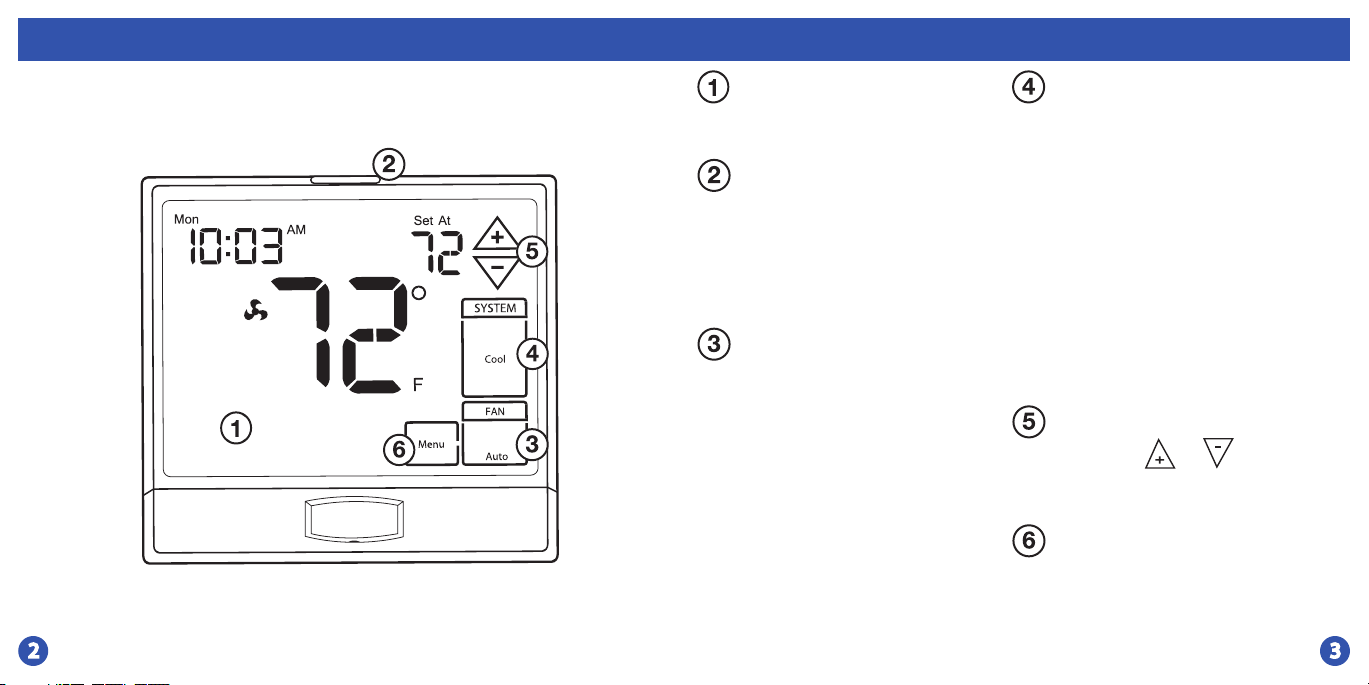

LCD Display

Glow in the dark light button

Fan Button

System Button

Temperature Setpoint Buttons

See page 6 for details about

this display read out.

The glow in the dark light

button will self illuminate

for several hours after

exposure to ambient light.

This button turns on the

display light when pressed.

Select ON or AUTO or IAQ.

The ON key will run the fan

continuously. The AUTO key

will cycle the fan on only

when the heating or cooling

system is on. IAQ will enable

IAQ FAN MODE, if

programmed. A Note About

Programmable Fan: The

programmable fan feature will run the

fan continuously during any time

period it is programmed to be on. This

is the best way to keep the air

circulated and to eliminate hot & cold

spots in your building.

Press the or

buttons to select the

desired room temperature.

Menu Button

Use this key to set up your

programming options.

Refer to page 8-12 for

instructions.

Selects the operation mode

on your HVAC system.

Selecting HEAT turns on

the heat mode. Selecting

COOL turns on the cool

mode. Selecting OFF turns

both heating and cooling o.

Selecting AUTO will turn the

HEAT or COOL on as needed.

(EM HEAT will appear as an

option if operating a heat

pump. EM HEAT setting will

turn on emergency heat)

Thermostat Quick Reference

The low battery indicator is displayed when the AA battery

power is low. If the user fails to replace the battery within 21

days, the screen will only show the low battery indicator but

maintain all functionality. If the user fails to replace the batteries

after an additional 21 days (days 22-42 since rst “low battery”

display) the setpoints will change to 55˚F (Heating) and 85˚F

(Cooling). If the user adjusts the setpoint away from either of

these, it will hold for 4 hours then return to either 55˚F or 85˚F.

After day 63 the batteries must be replaced immediately to

avoid freezing or overheating because the thermostat will shut

the unit o until the batteries are changed.

Important:

Battery Information

When the battery icon appears replace your AA

batteries immediately. Failure to do so may result in your

heating & cooling system becoming inoperable.

Freezing or overheating can occur.

Caution:

Thermostat Quick Reference

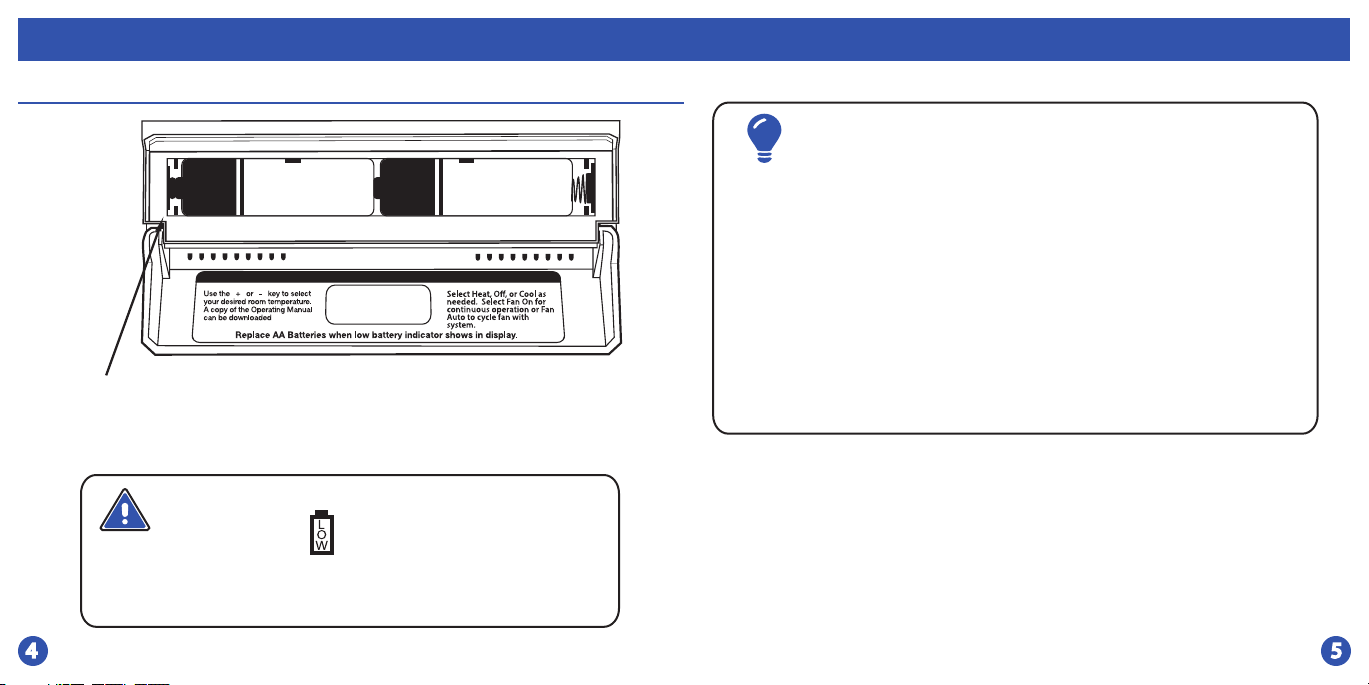

Insert 2 AA Alkaline batteries

(included). High quality alkaline

batteries are recommended.

Thermostat Quick Reference Thermostat Quick Reference

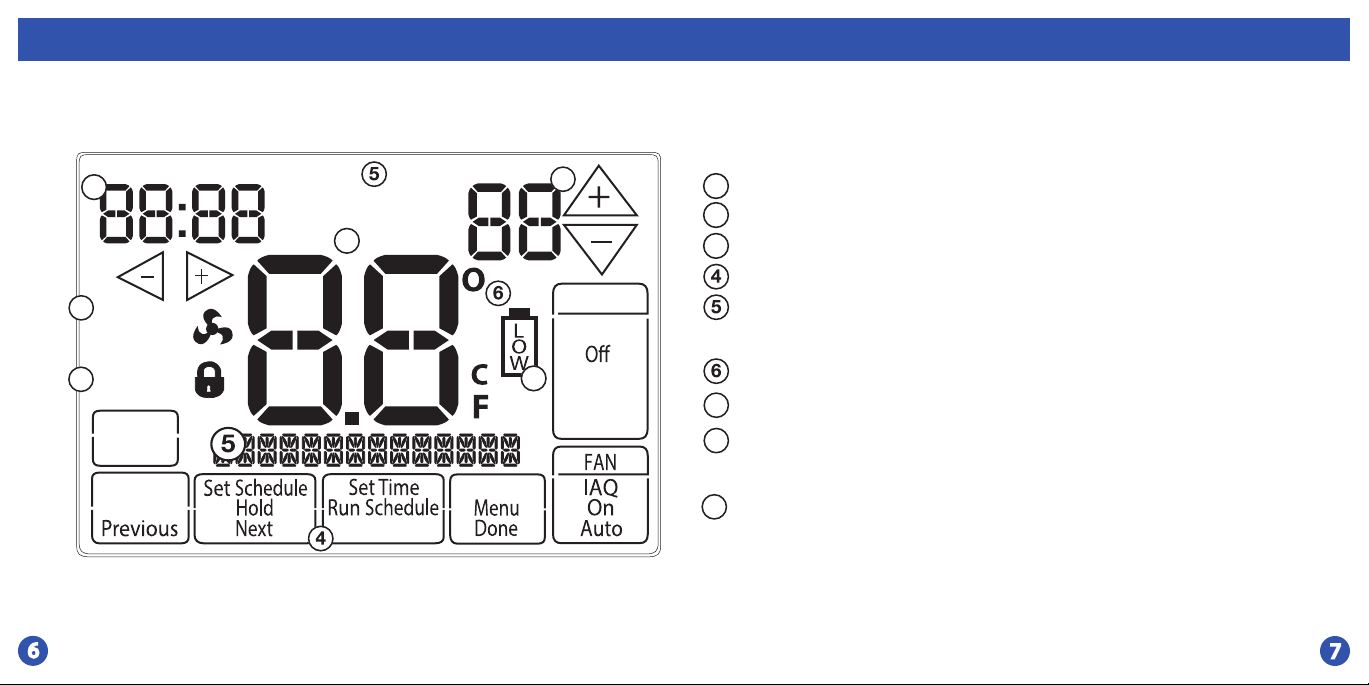

Indicates the current room temperature

Time and day of the week

Setpoint: Displays the user selectable setpoint temperature.

Hold: Is displayed when the thermostat program is permanently overridden.

Low Battery Indicator: Replace batteries when this indicator is shown.

Program Menu Options: Show dierent options during programming.

Period Icons - This thermostat can have 2 or 4 programmable time periods

per day. Icons are displayed for 4 time periods. Occupied and Unoccupied

will display in the text eld for 2C and 4C time periods.

Clean

Display

Technician

Setup

Em. Heat

Cool

Heat

Auto

SYSTEM

HEAT ON

STAGE

1 2 3 4

COOL ON

Mon Tue Wed Thu Fri Sat Sun

Set At

WAKE

LEAVE

RETURN

SLEEP

HOLD

Staging Indicators: +1 will appear in the display when second stage of

heat or cool is on. +2 will appear for third stage of heat.

System Operation Indicators:

If these or the Fan indicator are ashing, it means that they are in a delay of

some type (compressor delay, cooling fan delay, staging delay).

Programming Programming

Set Time Set Program Schedule For Four Time Periods

(WAKE, LEAVE, RETURN, SLEEP or OCCUPIED 1, UNOCCUPIED1, OCCUPIED 2, UNOCCUPIED 2)

You will see a Technician Setup option after the Menu key is

pressed. This Technician Setup key is for installer conguration

and should NOT be changed unless you consult your professional

heating and air conditioning technician.

Important:

To customize your 5+1+1 Program schedule, follow these steps:

Weekday:

Follow the steps below to set the day of the week and current time:

1. Press the Menu button.

2. Press Set time.

3. Day of the week is ashing. Use the or key to

select the current day of the week.

4. Press Next.

5. The current hour is ashing. Use the or key to

select the current hour. When using 12-hour time, make sure

the correct a.m. or p.m. choice is selected.

6. Press Next.

7. Minutes are now ashing. Use the or key to

select current minutes.

8. Press Done when completed.

1. Select HEAT or COOL with the system key.

Note: You have to program heat and cool each separately.

2. Press the Menu button (If menu does not appear rst press

Run Schedule).

3. Press Set Schedule. Note: Monday-Friday is displayed and the

WAKE/OCC1 icon is shown. You are now programming the

WAKE/OCC1 time period for the weekday setting.

4. Use the or key to make your time

selection for the weekday WAKE/OCC1 time period.

Note: If you want the fan to run continuously during this time

period, select On with the FAN key. If you want to use IAQ

mode during this time period, select IAQ with the fan key.

5. Then use the or key to make your setpoint selection for

the weekday WAKE/OCC1period.

6. Press Next.

7. Repeat steps 4 through 6 for the weekday LEAVE/UNOCC1

time period, for the weekday RETURN/OCC2 time period,

and for the weekday SLEEP/UNOCC2 time period.

To customize your 7 day Program schedule, follow these steps:

Programming Programming

A Note About Auto Changeover:

When in Auto you have the ability to switch between auto heat or auto

cool by pressing the system key. This can be done once the current

mode has reached its setpoint. For example: if in auto heat, the heat

setpoint must be satised before the thermostat will allow you to switch

to auto cool. You can switch out of auto by holding down the system

key. To get back into auto, you must toggle the system key to auto.

Repeat steps 4 through 7 for the Saturday WAKE/OCC1 time period,

LEAVE/UNOCC1 time period, RETURN/OCC2 time period, and for

the Saturday SLEEP/UNOCC2 time period.

Saturday:

Repeat steps 4 through 7 for the Sunday WAKE/OCC1 time period,

LEAVE/UNOCC1 time period, RETURN/OCC2 time period, and for

the Sunday SLEEP/UNOCC2 time period.

Sunday:

Monday:

Repeat steps 4 through 6 for the remaining days of the week.

1. Select HEAT or COOL with the SYSTEM key.

Note: You have to program heat and cool each separately.

2. Press the Menu button (If menu does not appear rst, press

Run Schedule).

3. Press Set Schedule. Note: Monday is displayed and the

WAKE/OCC1 icon is shown. You are now programming the

WAKE/OCC1 time period for that day.

4. Use the or key to make your time

selection for that day’s WAKE/OCC1 time period.

Note: If you want the fan to run continuously during this time

period, select On with the FAN key. If you want to use IAQ

mode during this time period, select IAQ with the fan key.

5. Then use the or key to make your setpoint selection for

that day’s WAKE/OCC1 period.

6. Press Next.

7. Repeat steps 4 through 6 for that day’s LEAVE/UNOCC1

time period, for that day’s RETURN/OCC2 time period,

and for that day’s SLEEP/UNOCC2 time period.

To customize your 7 day Program Schedule, repeat

steps 4 through 8 for the Tuesday, Wednesday, Thursday,

Friday, Saturday and Sunday time periods.

Set Program Schedule For Two Time Periods

To customize your 5+1+1 Program schedule, follow these steps:

Weekday:

(OCCUPIED, UNOCCUPIED)

Continued on next page...

Programming Programming

Repeat steps 4 through 6 for the Saturday OCCUPIED time period

and for the Saturday UNOCCUPIED time period.

Saturday:

Repeat steps 4 through 6 for the Sunday OCCUPIED time period, and

for the Sunday UNOCCUPIED time period.

Sunday:

1. Select HEAT or COOL with the SYSTEM key.

Note: You have to program heat and cool each seperately.

2. Press the Menu button (If menu does not appear rst press

Run Schedule).

3. Press Set Schedule. Note: Monday is displayed and the

OCCUPIED text is shown. You are now programming the

OCCUPIED time period for that day.

4. Use the or key to make your time

selection for that day’s OCCUPIED time period.

Note: If you want the fan to run continuously during this time

period, select On with the FAN key. If you want to use IAQ

mode during this time period, select IAQ with the fan key.

Monday:

To customize your 7 day program schedule, follow these steps:

Continued on next page...

1. Select HEAT or COOL with the SYSTEM key.

Note: You have to program heat and cool each separately.

2. Press the Menu button (If menu does not appear rst, press

Run Schedule).

3. Press Set Schedule. Note: Monday-Friday is displayed and the

OCCUPIED text is shown. You are now programming the

OCCUPIED time period for the weekday setting.

4. Use the or key to make your time

selection for the weekday OCCUPIED time period.

Note: If you want the fan to run continuously during this time

period, select On with the FAN key. If you want to use IAQ

mode during this time period, select IAQ with the fan key.

5. Then use the or key to make your setpoint selection for

the weekday OCCUPIED period.

6. Press Next.

7. Repeat steps 4 through 6 for the weekday UNOCCUPIED

time period.

Programming Features

If appears in the display, then the keypad is locked. All or some

of the keys will not work. Hold the and keys for 3 seconds to

remove the lock. Use the same procedure to lock the display

Keypad Lockout Note:

Temporary & Permanent Hold Feature

Repeat steps 4 through 6 for the remaining days of the week.

5. Then use the or key to make your setpoint selection

for that day’s OCCUPIED period.

6. Press Next.

7. Repeat steps 4 through 6 for that day’s UNOCCUPIED

time period.

Temporary Hold: The thermostat will display HOLD and Run Sched-

ule on the bottom of the screen when you press the or

key. If you do nothing, the temperature will remain at this setpoint

temporarily for 4 hours. The program setpoint will then replace the

temporary setpoint.

Permanent Hold: With a temporary hold set, If you press the Hold

key at the bottom of your screen, you will see Hold appear next to

the setpoint temperature in the display. The thermostat will now

permanently stay at this setpoint and can be adjusted using the

or keys.

To Return To Program: Press the Run Schedule key at the bottom of

the screen to exit temporary and permanent holds.

A Note About Programmable Fan:

The programmable fan feature will run the fan continuously during

during any time period when it is programmed to be on. This is the best

way to keep the air circulated and to eliminate hot and cold spots in your

building. If using IAQ mode, set fan to IAQ for any time period.

Warranty Information

Warranty Registration

Your new thermostat has a 5 year limited warranty. You must register

your thermostat within 60 days of installation. Without this

registration the warranty period will begin on the date of manufacture.

For warranty issues please contact the HVAC professional that

installed this product. You can register your new thermostat in 2 ways:

Go to the company website, select warranty registration and

ll out a short registration form.

Complete the form below and mail it to the address shown.

Warranty Registration

Online

Mail

If your HVAC contractor has congured the thermostat to remind

you when the air lter needs changed, you will see a reminder in the

display when your air lter needs to be changed.

Resetting the lter change reminder: When the reminder is

displayed, you should change your air lter and reset the reminder by

holding down the “Clean” key on the left side of the thermostat for 3

seconds.

This thermostat also has other maintenance reminders ( Humidity

Pad, UV Lamp, and IAQ Cell ), that are reset with the same procedure.

Filter Change & Other Reminders

Features

Warranty Registration

Name:

Address:

City:

State:

Zip:

Thermostat Model:

Date Installed:

Complete form and mail to:

Thermostat Warranty Registration

Pro1IAQ

P.O. Box 3377

Springeld, MO 65808-3377

Indice

Altri manuali Pro1 Technologies Termostato

Pro1 Technologies

Pro1 Technologies T755 Manuale utente

Pro1 Technologies

Pro1 Technologies T631W-2 Manuale utente

Pro1 Technologies

Pro1 Technologies T621-2 Manuale utente

Pro1 Technologies

Pro1 Technologies T805 Manuale utente

Pro1 Technologies

Pro1 Technologies T701i Manuale utente

Pro1 Technologies

Pro1 Technologies T621-2 Manuale utente

Pro1 Technologies

Pro1 Technologies T721i Manuale utente

Pro1 Technologies

Pro1 Technologies T771 Manuale utente

Pro1 Technologies

Pro1 Technologies RZ251W Manuale utente

Pro1 Technologies

Pro1 Technologies T601-2 Manuale utente

Pro1 Technologies

Pro1 Technologies T855SH Manuale utente

Pro1 Technologies

Pro1 Technologies T855 Istruzioni per l’uso

Pro1 Technologies

Pro1 Technologies T625-2 Manuale utente

Pro1 Technologies

Pro1 Technologies T605-2 Manuale utente

Pro1 Technologies

Pro1 Technologies T621-2 Manuale utente

Pro1 Technologies

Pro1 Technologies T955 Manuale utente

Pro1 Technologies

Pro1 Technologies T755WHO Manuale utente

Pro1 Technologies

Pro1 Technologies RZ251W Manuale utente

Pro1 Technologies

Pro1 Technologies T631W-2 Manuale utente

Pro1 Technologies

Pro1 Technologies ZDA250W Manuale utente

Pro1 Technologies

Pro1 Technologies T731W Manuale utente

Pro1 Technologies

Pro1 Technologies T725 Manuale utente

Pro1 Technologies

Pro1 Technologies T955WH Manuale utente

Pro1 Technologies

Pro1 Technologies T855iSH Manuale utente

Manuali Termostato popolari di altre marche

EWELLY

EWELLY EW-181 Manuale utente

Prolon

Prolon T1100 Istruzioni per l'installazione

Computherm

Computherm Q20 Manuale utente

Heatmiser

Heatmiser neoStat Manuale utente

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuale utente

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuale utente

Saswell

Saswell SAS920XWHB-7-S-RF Guida

Aircalo

Aircalo TFP1-ET85P2 Manuale utente

Honeywell

Honeywell CM721 Manuale utente

Carrier

Carrier DEBONAIR 33CS Manuale utente

Lennox

Lennox iHarmony Zone Thermostat Istruzioni per il montaggio

Gemtech

Gemtech GT7000 Manuale di istruzioni

Rollei

Rollei Smartes 45000 Manuale utente

Sinope

Sinope TH1300RF Manuale utente

Honeywell

Honeywell RLV4305 Manuale utente

Honeywell

Honeywell Prestige 2.0 THX9421 Manuale utente

NuTone

NuTone NTBZ48 Istruzioni operative originali

Stelpro

Stelpro MAESTRO ASMT402AD Manuale utente
