PROAIM QR-ELMG-01 Manuale utente
1
Electro Magnet Quick Release Mitchel
Mount (QR-ELMG-01 )
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Assembly Manua l
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright
statutes or in wring by the Publisher.
What’s In The Box
Mounng Plate
(Top Mount & Boom Mount)
Wrench D-Type Cable Baery Plate with
Clamp (Front Side
& Back Side)
2

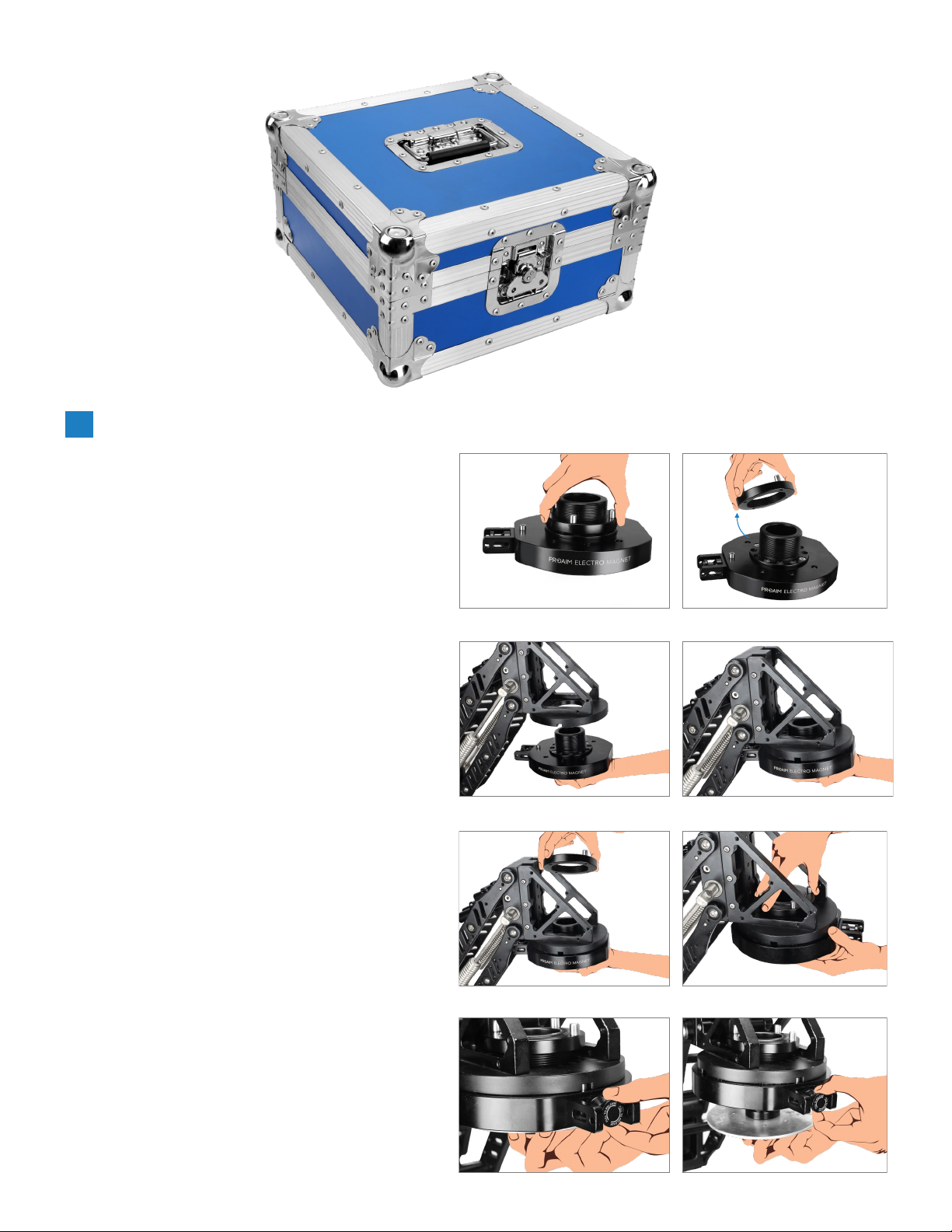

Electro Magnet Setup
• Loosen castle nut from the top mount.
• Remove the bottom mounting plate by
pulling the button off the mounting plate.
Hard Case
• Secure it by tightening the castle nut.
• Now attach it to the airwave (Not Included).
3
• Mount the Gimbal connector (Not Included)
on the bottom mounting plate.
• Unlock the connector holder (Not Included)
and press the button on the gimbal connector
(Not Included).
• After unlocking, the gimbal connector
(Not Included) and connector holder
(Not Included) will look like this.
• Now secure it using a screw and Allen Key.
• Pull the button to attach the bottom
mounting plate after flipping it to the top
mounting plate.
• Use the provided pin to secure the release
button.
NOTE: so that whenever your rigs are
positioned beneath the magnet, nobody can
touch the button release, making it highly
secure keeps the gadget in place even when the
batteries run out or lose power.
4
• Now Mount the connector holder
(Not Included) on the gimbal (Not Included).
• Screw it using the Allen Key.
• Release the quick-release plate from
Gimbal (Not Included) by unlocking the knob.
• Now, secure the gimbal (Not Included) to the
mounting plate by pushing the connection
holder's buttons and closing the knob.
• Unscrew the connector holder (Not Included)
to detach the quick-release plate
(Not Included).
• Attach the quick-release plate to the camera
(Not Included) and secure it with an Allen key
(Not Included).
5
• Slide the camera (Not Included) with
the plate onto the gimbal (Not Included) and
then close the knob.
• The Gimbal (Not Included) is now attached.
• Mount the battery plate on the airwave
(Not Included) and tighten the clamp to
secure it.
• Now loosen the lever lock to open the clamp
of the battery plate.
• Connect the D-Type Cable to the battery plate
at one end.
• Attach the other end of the D-type cable to
the mounting plate.
6
• Slide the battery (Not Included) onto the
battery plate.
• Turn on the switch on the side of the baery
plate.
YOUR PROAIM AIRWAVE ULTRA VIBRATION ISOLATOR ARM
ALL DRESSED UP AND READY TO GO!
(SHOWN WITH OPTIONAL ACCESSORIES)
Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,
we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it
cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon and
evaluaon by us.
Liability: We are not liable for damage caused by products that we do not supply or from mishandling in
transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.
Contact Us: In case of any kind of dissasfacon, please Contact us immediately and we promise our utmost
support and care unl you use our product.
