1 Product Description

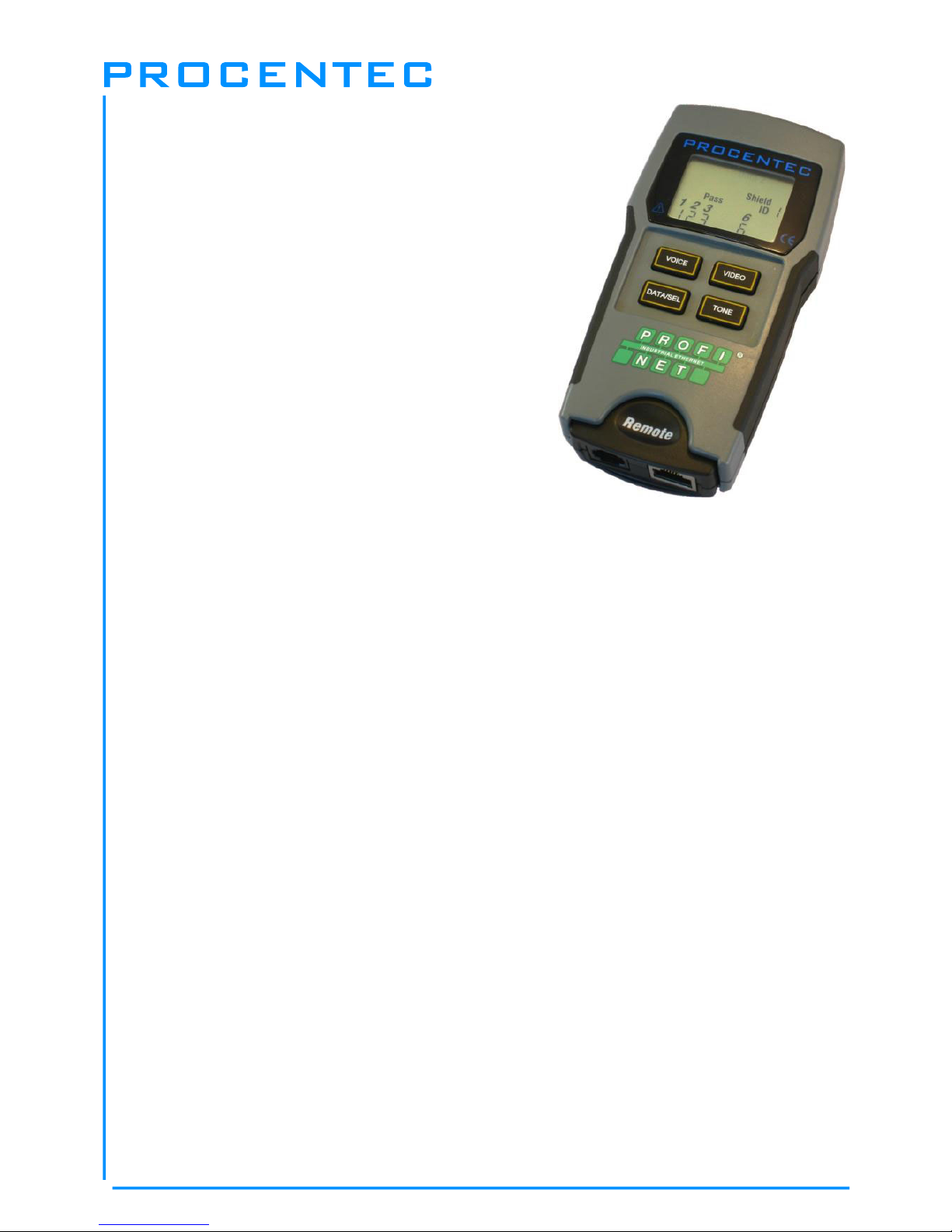

PN1, the first handheld PROFINET cable tester is an

essential tool to verify the condition of the PROFINET

cable after assembly and installation.

It is a robust tester which has been especially designed for

PROFINET and suitable for industrial environments. With just

1 key-press the test result is directly displayed and

continuously updated.

If a cable did not pass the test, it will clearly indicate what the

problem is and which wires/pins are affected. This product

does not require special skills. It is easy to use and gives the

technician quick and understandable feedback about the

quality of the wiring. It can also be utilized on all other

Ethernet networks with 4-wire and 8-wire shielded cables.

This outstanding tool that fits in your pocket will boost the

efficiency of installers and maintenance technicians.

1.1 Features

9Suitable for 4- and 8-wire PROFINET and regular

Ethernet cables (CAT6, CAT-5E, CAT-5, CAT-4 and CAT-3).

9Suitable for straight and 90° metal or plastic PROFINET plugs.

9Tests cable shielding!

9Detects short circuits, wire breaks, swaps, miswiring and split pairs.

9Large LCD clearly indicates the test results.

9150 hours on one 9 V battery.

9Operating temperature: 0 to 50 °C.

9Just 1-key-press to start continuous testing.

9It can also test telephone and coax cable.

1.2 Application areas

9Cable testing during installation phase.

9Commissioning.

9Education.

PROFINET Cable Tester – User Manual

_______________________________________________

Version 1.2 – 27 April 2009 Page 8 / 32

2 Operating modes

The PROFINET Cable Tester runs in 4-modes. The mode is selected with 4 buttons.

)The cable tester is switched ON by pressing any of these buttons and it immediately starts testing in

the mode which is pressed. An LCD icon for the currently selected mode will be blinking.

)Press any button except the selected mode button to switch the cable tester OFF.

Fig. 1 - Location of the buttons and Remote Unit

Coax

Tone generator

Telephone

PROFINETand

regular Ethernet

REMOTE UNIT
