Profichip VPC3+S Manuale utente

VPC3+S

Evaluation Kit

Revision 1.00

Liability Exclusion

We have tested the contents of this document regarding

agreement with the hardware and software described.

Nevertheless, there may be deviations and we do not

guarantee complete agreement. The data in the

document is tested periodically, however. Required

corrections are included in subsequent versions.

We gratefully accept suggestions for improvements.

Unless permission has been expressly granted, passing

on this document or copying it, or using and sharing its

content are not allowed. Offenders will be held liable. All

rights reserved, in the event a patent is granted or a

utility model or design is registered.

This document is subject to technical changes without

prior notice.

2 Revision 1.00

VPC3+S Evaluation Kit

Table of Contents

1Introduction .................................................................5

1.1 Overview ......................................................................................5

1.2 Document Conventions ................................................................7

1.3 Handling the Boards.....................................................................7

2Controller Board (AT89C5132)...................................9

2.1 Overview ......................................................................................9

2.2 Board Diagrams .........................................................................10

2.3 AT89C5132 ................................................................................12

2.4 In System Programming ( S2 ) ...................................................12

2.5 Address Mapping .......................................................................12

2.6 Internal/External Clock (Jumper X6) ..........................................13

2.7 Display Elements........................................................................13

2.8 I/O Area ......................................................................................13

2.9 Reset Button ( S4 ).....................................................................13

2.10 RS232 Interface ( X13 )..............................................................14

2.11 LCD ............................................................................................14

2.12 RTC ............................................................................................14

2.13 MMC...........................................................................................14

2.14 Connectors.................................................................................15

2.14.1 User Board Connector ( X4 ) ..........................................15

2.14.2 Main Connector ( X5 )..................................................... 16

2.14.3 Extension Connector ( X15 )........................................... 17

2.15 I2C Testpins ( X3 ) .....................................................................18

2.16 SPI Testpins ( X16 ) ...................................................................18

2.17 Power Supply ( X14 ) .................................................................18

2.18 Technical Data ...........................................................................19

3VPC3+ PROFIBUS Board..........................................21

3.1 Overview ....................................................................................21

3.2 Board Diagrams .........................................................................22

3.3 Connectors.................................................................................24

3.3.1 Main Connector ( X9 )..................................................... 24

3.3.2 Extension Connector ( X14 )........................................... 25

3.3.3 PROFIBUS Testpins ( X7 ) .............................................26

3.3.4 IsoM Testpins ( X10 )...................................................... 26

3.3.5 SPI Connector ( X17 )..................................................... 26

3.3.6 I2C Connector ( X18 )..................................................... 26

3.4 DIP-Switches..............................................................................27

3.4.1 ASIC Interface Configuration ( S1 ) ................................27

3.4.2 SPI Mode Configuration ( S1 )........................................ 28

3.4.3 VPC3+ Clock Divider Configuration ( S1 )...................... 28

3.4.4 I2C Slave Address Configuration ( S2 ).......................... 29

3.5 Jumpers......................................................................................30

3.5.1 PROFIBUS Interface Selection ( X6 )............................. 30

3.5.2 CLK_OUT Selection ( X8 ).............................................. 30

VPC3+S Evaluation Kit Revision 1.00 3

Table of Contents

4 Revision 1.00

VPC3+S Evaluation Kit

3.6 Display Elements........................................................................31

3.7 PROFIBUS Interfaces ................................................................31

3.7.1 RS485 Interface..............................................................31

3.7.2 Fiber Optic Interface .......................................................32

3.8 Technical Data ...........................................................................34

4Schematics ................................................................35

4.1 AT89C5132 Controller Board .....................................................35

4.2 VPC3+ PROFIBUS Board..........................................................40

5ISP (InSystem Proramming).....................................47

5.1 Atmel FLIP 2.4.4.........................................................................47

5.2 How to use FLIP.........................................................................48

Bibliography....................................................................50

Revision History .............................................................51

Introduction 1

1 Introduction

1.1 Overview

Profichip's VPC3+S Evaluation Kit contains all the necessary hardware and

software to easily connect to PROFIBUS-DP.

It consists of:

Controller board with Atmel 89C5132 microcontroller

8-bit MCU C51 Core-based (FMAX = 20 MHz)

2304 Bytes of Internal RAM

64K Bytes of Code Memory (Flash)

USB Rev 1.1 Device Controller

32kByte external RAM

RS232 interface

LCD-display

Real Time Clock

wide range of power supply (DC 7-24V)

all relevant signals are applied to multi-pin connectors

DIP-switches and LEDs

VPC3+ PROFIBUS board

PROFIBUS link via RS485

PROFIBUS link via fiber optic interface

VPC3+ configurations are done with DIP-switches and jumpers

all relevant signals are applied to multi-pin connectors

PROFIBUS software driver

DPV0 software driver

DPV1 software driver

PROFIBUS demo program

DPV1AFFE: demo program for DPV1

DPV0AFFE: demo program for DPV0

Documentation

VPC3+S Evaluation Kit Revision 1.00 5

1 Introduction

Figure 1-1: Evaluation-Kit Hardware

6 Revision 1.00

VPC3+S Evaluation Kit

Introduction 1

1.2 Document Conventions

In this User Description signal names appear in italic.

Low active signals are denoted by a "#" after the signal name (i.e.: RD#).

A '0' indicates a logic-zero or low-level signal, while a '1' represents a logic-

one or high-level signal.

Jumpers and connectors are marked with an ‘X’ followed by a number

which is unique for each board. A certain pin of such an element is denoted

by the number of the element and the pin numer separated by a dot (e.g.

X9.27 means “connector X9, pin 27”).

Keys and switches are marked with an ‘S’ followed by a number which is

unique for each board. A certain pin of such an element is denoted by the

number of the element and the pin numer separated by a dot (e.g. S2.2

means “switch S2, pin 2”).

1.3 Handling the Boards

Handle the VPC3+ evaluation boards with care in respect to ESD require-

ments. Take precautions to use the boards only at an ESD-safe work-

place.

VPC3+S Evaluation Kit Revision 1.00 7

1 Introduction

8 Revision 1.00

VPC3+S Evaluation Kit

Notes:

Controller Board (AT89C5132) 2

2 Controller Board (AT89C5132)

2.1 Overview

The AT89C5132 controller board consist of:

Atmel 89C5132 microcontroller (USB C51-based Microcontroller with

64K Bytes Flash, 2304 bytes RAM, 4 USB Endpoints, SPI, UART, IDE,

TWI, MultiMediaCard, DataFlash, I2S, 10-bit ADC)

32kByte external RAM

RS232 interface

LCD-display

Real Time Clock

wide range of power supply (DC 7-24V)

all relevant signals are applied to multi-pin connectors

DIP-switches and LEDs

VPC3+S Evaluation Kit Revision 1.00 9

2 Controller Board (AT89C5132)

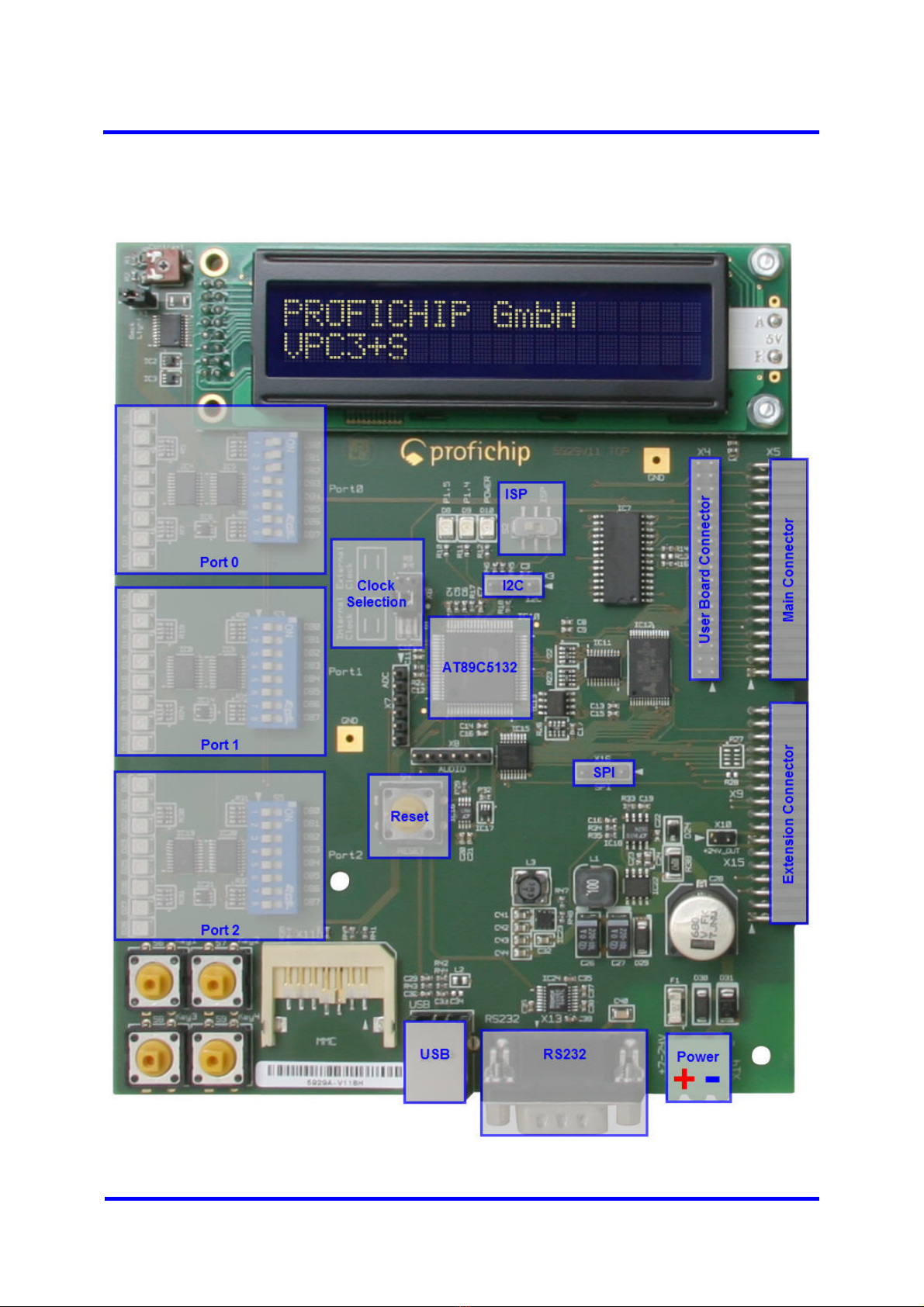

2.2 Board Diagrams

Figure 2-1: Controller Board (AT89C5132)

10 Revision 1.00

VPC3+S Evaluation Kit
