43ASC Extensions

43ASC EXTENSIONS

REVISION 01-10-27-2022

43ASC Extensions

INTRODUCTION

Thank you for purchasing this set of Profile Design Aerobar Extensions. These instructions apply to the 43ASC.

Please read these instructions thoroughly before attempting to install this item. Proper installation is required for compliance with Profile Design's

warranty policy. If you are not familiar with installation of Aerobars or their accessories, please seek the assistance of your local Profile design dealer

by logging on to www.profile-design.com and using "dealer search" or by calling Profile Design's customer service number p.# 888.800.5999.

Note to Dealers: If you install this product for the consumer, please provide him/her with this owner’s manual after installation.

Tools and materials required:

• Assembly compound such as Finish Line Fiber Grip™

• Cutting guide

• Hacksaw with a 32T blade for Carbon Extensions

• Half round file

• Electrical/Insulation tape

• Clean, lint free cloth

43ASC Extensions

Your Extension kit should contain:

Optional accessories compatible with these extensions:

WARNING: Periodically check the extension for damage, particularly for scratches through the clearcoat (carbon parts) that could lead to

degradation and weakening of the base material. Replace your extension if you notice any damage from use or accident.

• Two (2) extensions (Carbon)

• Two (2) grip end bar plugs

• Two (2) cable exit bar plugs

• Aeria II Series Brackets

• Sonic Series Brackets

If anything is missing from the extension kit please contact your dealer.

43ASC Extensions

01 02

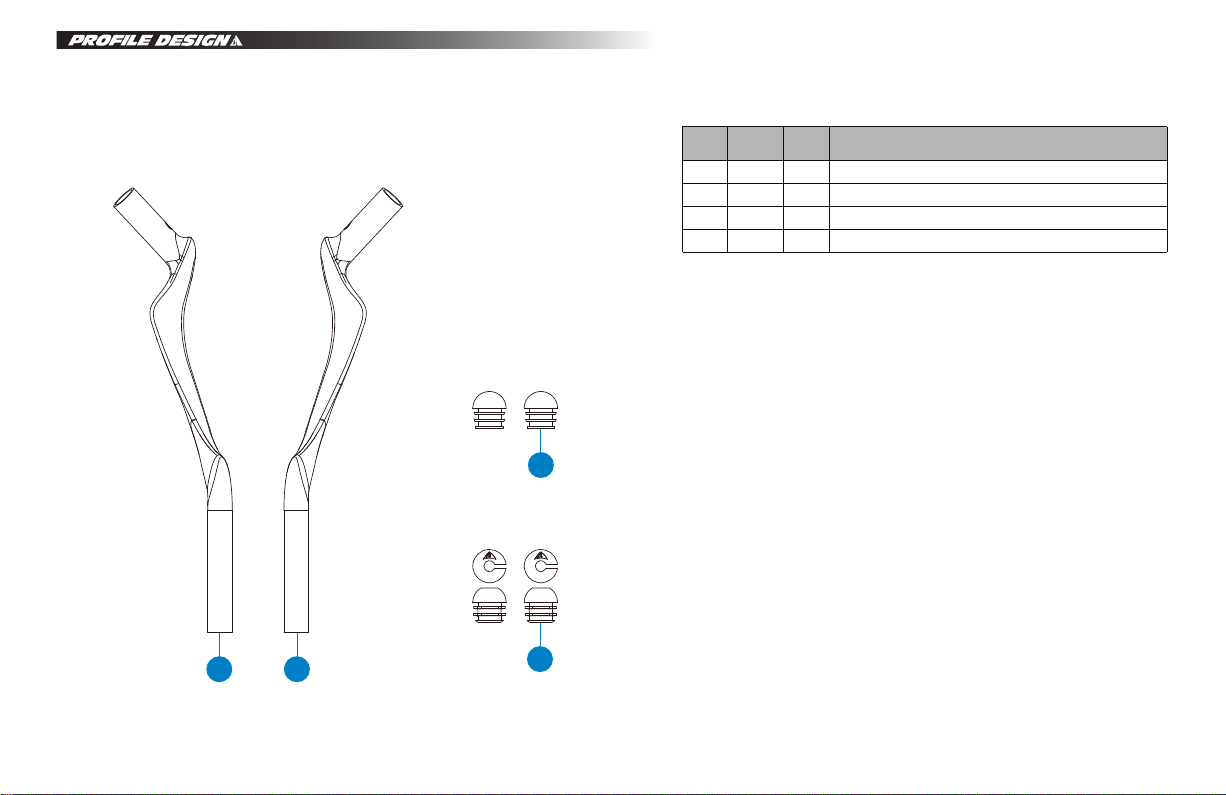

COMPONENT LIST

QTY.

Req.

Part.#Ref.# Part Description

1852289 43ASC 400mm Carbon UD Matte Black W/Black Logo Left(A) V2

2852290 43ASC 400mm Carbon UD Matte Black W/Black Logo Right(B) V2

716669 End Plug - Round Carbon (Front)

716667 End Plug - With Slot Hole / Logo (Rear)

43ASC 400mm

43ASC Extensions

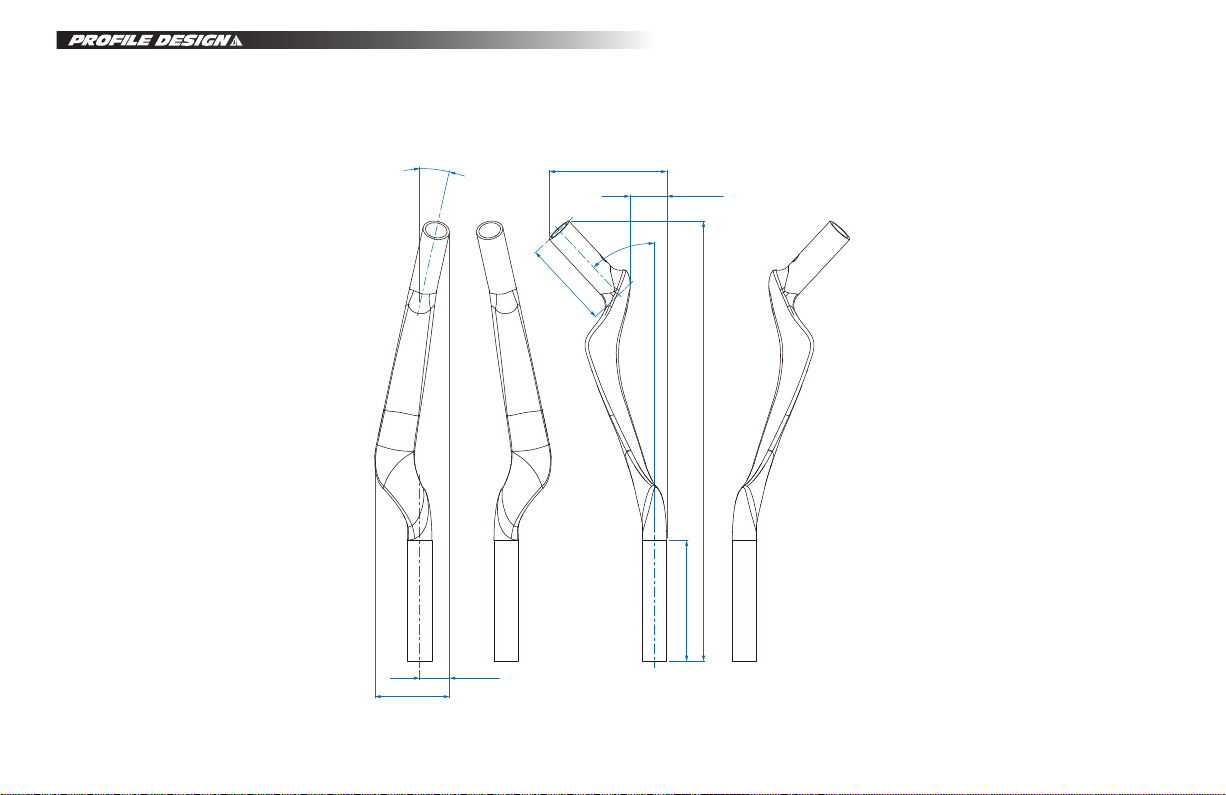

PART DRAWINGS

L R L R

400 mm

110 mm

68 mm

33 mm

107 mm

43°

12.5°

80 mm

27 mm

43ASC Extensions

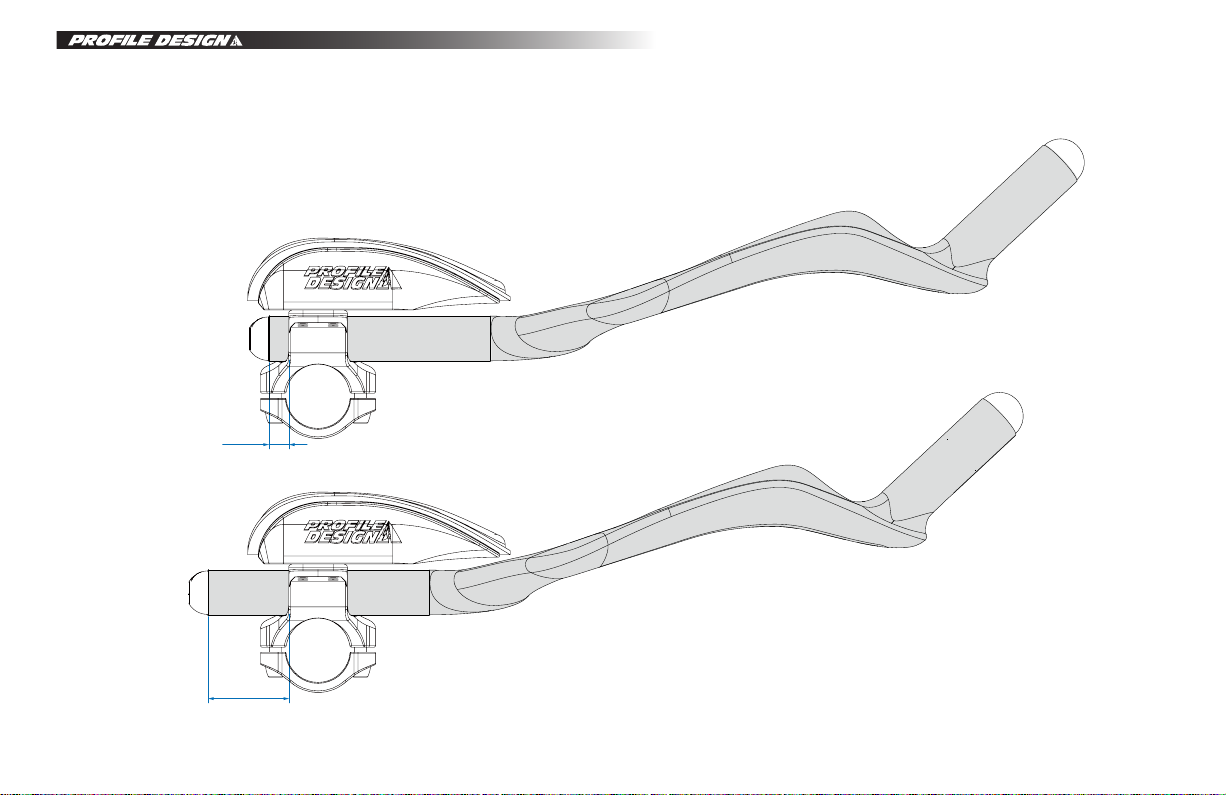

PRODUCT SPECIFIC SETUP LIMITATIONS

40 mm

10 mm

43ASC Extensions

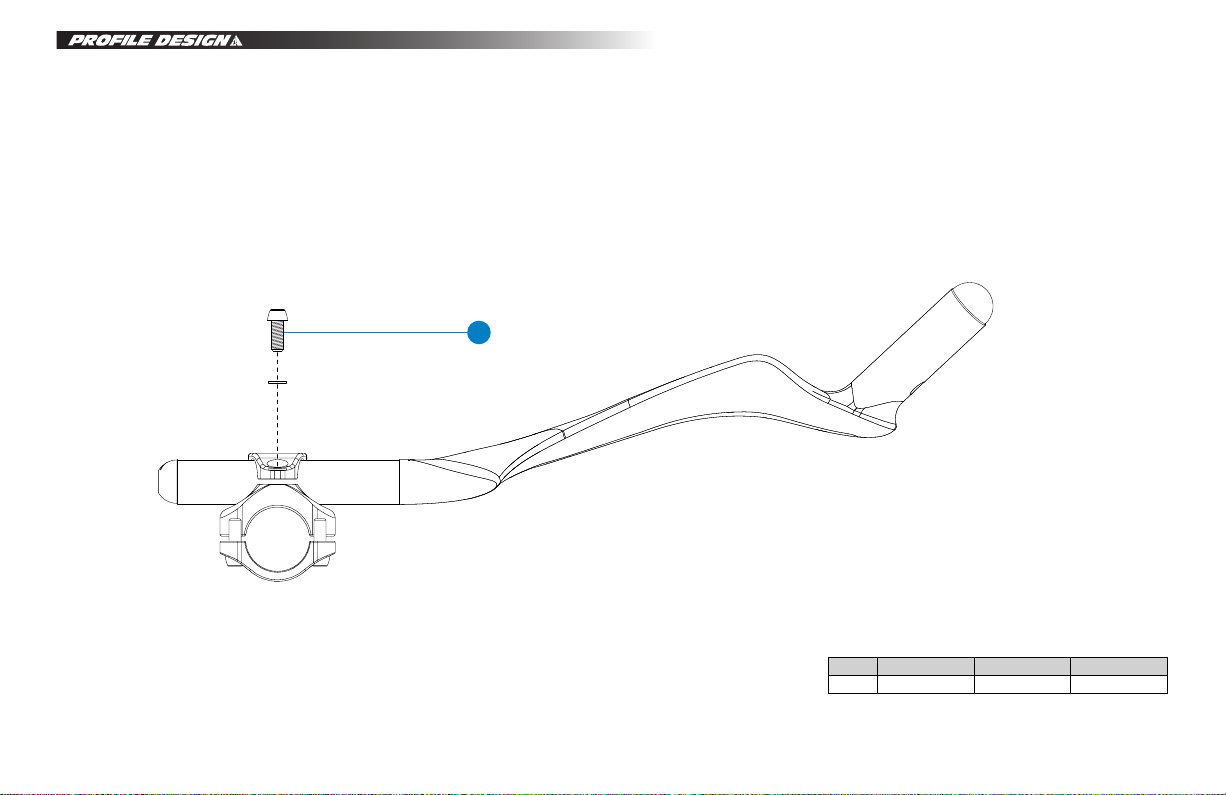

TORQUE SETTINGS

1Extension clamp M6x15mm 6Nm (53 inlbf)

Ref.# Location Bolt Size Torque

43ASC Extensions

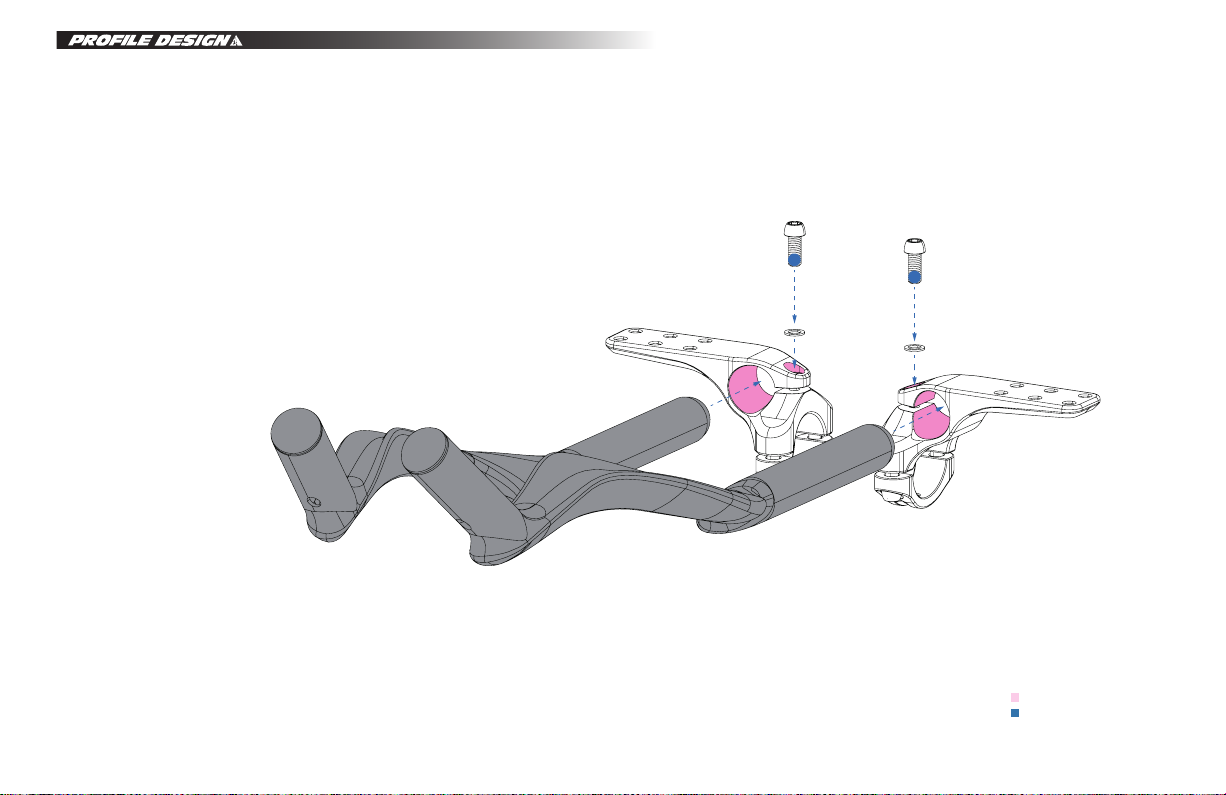

INSTALLATION INSTRUCTIONS

1. Install the extensions in the desired position and tighten the extension fixing bolt

so they are held snugly.

2. Install the shifters as per the shifter manufacturer’s instructions. We recommend

a light coating of assembly compound on the inside of the extension prior to

installing the shifter.

3. Install the cables as per instructions from the shifter manufacturer.

4. Check the placement of the brackets and extensions then use a torque wrench to

tighten the extension clamp.

Assembly compound

Threadlocker

43ASC Extensions

1. Carefully determine the required extension length by performing a bike fit or measuring the

existing extensions.

2. Mark the point at which you wish to make a cut.

3. We recommend checking your measurements after first marking the cut line to ensure that you do

not inadvertently cut the extensions too short.

4.Mount the cutting guide securely in a vice. Then place the extension in the guide and line up the

marked cut line with the slot in the cutting guide.

5. Using the hacksaw, make firm strokes of the blade through the guide, allowing the blade to do

the work. Do not apply excessive force to the hacksaw as you risk snapping the blade and the

possibility of injury.

6. Repeat the process for the second extension.

7. Once you have cut both extensions, use the half round file to remove any sharp edges from both

the interior and exterior faces of the extension.

a. For carbon a 32T or carbon specific blade is recommended. Wrap the extension with insulation

tape at the cut line to limit the risk of splintering the carbon at the blade exit point.

b. When cutting carbon, wear a breathing mask, gloves and eye protection then dispose of the dust

residue carefully. Airborne dust particles are a respiratory hazard.

HOW TO CUT THE EXTENSIONS

43ASC Extensions

• Profile Design Worldwide Two Year Limited Warranty.

• Profile Design, LLC (distributor) warrants to the original retail purchaser ("you") that the Profile Design product for which you received

this warranty is free from defects in material and workmanship for (2) two years from the date of original retail purchase. For more

details on this warranty, its exclusions and/or how to make a claim under the warranty please call +1 310.747.0085 extension 161 or visit

www.profile-design.com/pages/warranty

WARRANTY POLICY
