Zonecheck®
Instruction Booklet
ZC-YP-IB-6/20-1
060a
with key-switch (50-100mm)
Test guide.
Before initiating a flow-switch test contact appropriate fire safety personnel
and isolate any alarms. Once test is complete return to ‘standby’ position.
220V AC~
50Hz
ZCKYSE
+44 (0)1889 271271 info@projectfire.co.uk Project Fire Products Ltd
Pump
Running
Flow-switch
Activated
Valve
Fault
Self
test
Group
test
Standby
Key-switch
*
Copyright
This instruction booklet is property of Project Fire Products Ltd and must not be used or
copied without its written permission.
Information
While every eort has been made to ensure that the information contained within this
document is correct, Project Fire makes no guarantee for completeness or accuracy. Project
Fire Products Ltd reserves the right to change product specifications, designs and standard
equipment without notice and without incurring obligation.
Zonecheck is a registered product name of Project Fire Products Ltd. European patent No.
0907833.
Contents
1 Pre-checks
2 Installation
3 Commissioning
4 Testing
5 Orientation
6 Typical connection
7 Stand Alone Test Wiring
8 Group Testing
9 Flow-switch Wiring
10 Dimensions
11 Specifications
12 Troubleshooting
13 Important Information
14 Standards & Approvals
15 Warranty
Pre-checks
Before you install Zonecheck follow these simple steps.
1 Open the box and remove all packaging.
2 Check you have the correct size manifold.
3 Check that you have the correct model for your site (right or left handed).
4 Check that there is a key-switch and key in the box.
5 Inspect the product to make sure it hasn’t been tampered with. If you have any queries
please contact your supplier.
1

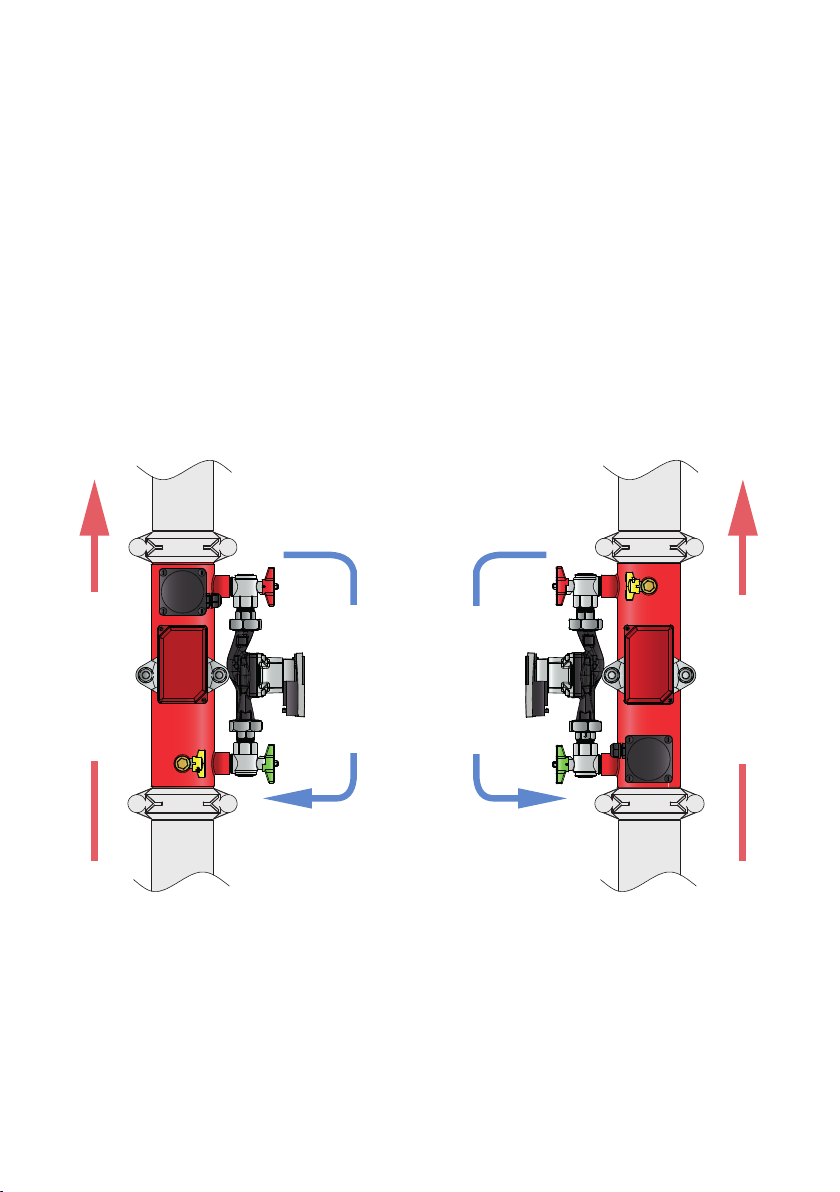

LEFT HANDED RIGHT HANDED
(View from above)
Pump Flow
System Flow
System Flow
Pump Flow
2
Installation
Zonecheck should be installed by a competent fire sprinkler installer and wired up by a
qualified electrician.
1 Contact building management to inform them of the proposed works.
2 Isolate and drain down selected zone.
3 Orientate the Zonecheck in accordance with the diagrams in this booklet.
4 Install the Zonecheck with two approved grooved couplings (not supplied).
5 Double check that the sprinkler flow arrows on Zonecheck are facing the correct
direction (see diagrams included in this booklet).
6 Fit the key-switch to the wall in a suitable location that is easy to reach from floor level.
7 Wire the Zonecheck pump and flow-switch to the key-switch in accordance with the
diagrams in this booklet.
8 Wire the flow-switch to the appropriate fire-detection panel in accordance with the
diagrams in this booklet.
9 If required, wire monitoring cables from zone valve to key-switch.
10 Wire the appropriate power supply to the key-switch.
11 Proceed to Commissioning instructions.
DO NOT ATTEMPT TO MODIFY ZONECHECK,
TAMPERING WILL VOID THE WARRANTY.
3
Commissioning
1 Contact the responsible person to authorise a flow-switch test.
2 Ensure the Zonecheck red and green valves are both open.
3 Attach a barrel nipple and hosepipe to yellow vent valve on the Zonecheck.
4 Turn the key-switch to SELF TEST.
5 Carefully open the vent valve on the Zonecheck unit until only water is being expelled
(this can take up to 10 minutes).
6 Turn the key-switch to STANDBY.
7 Close vent valve, remove the barrel nipple and hose and replace plug.
8 Now connect the barrel nipple and hose pipe to the test valve at the furthest point on
the zone or use the test/drain valve provided on the Zonecheck unit.
9 Discharge water through the hose (this is a once only commissioning test).
10 Wait for the FLOW-SWITCH ACTIVATED to illuminate on the key-switch (this could
take up to 30 seconds).
11 Close the test/drain valve.
12 Turn the Zonecheck Key-switch to SELF TEST and check the PUMP RUNNING and
FLOW-SWITCH ACTIVATED LEDs are illuminated (this could take up to 30 seconds).
13 Confirm the test signal has been received at the fire alarm panel.
14 Turn the Key-switch key to STANDBY.
15 If the zone valve is wired to key-switch, check function of VALVE FAULT LED on the
key-switch, which should illuminate when valve is not in the fully open position.
16 Ensure that the end user is instructed on how to carry out a routine test and explain
procedure for when VALVE FAULT LED is illuminated (if connected).
17 Fix operating instructions to wall, preferably next to the key-switch. Also place the
Zonecheck Isolation valve location sticker in a suitable position to let others know
where the unit is.
18 Fill in & hand over a completion certificate. Make sure that the responsible person has
been made aware that the system is back online.
TE ST/
DRAIN VALVE
VENT VALVE
PUMP ISOLATION VALVES
4
Testing
Test one Zonecheck
1 Insert the key into the key-switch and turn to SELF TEST (the pump light will activate).
2 When the flow-switch operates, the FLOWSWITCH ACTIVATED light will illuminate
(please wait for up to 30 seconds for the flow-switch to operate).
3 Return to STANDBY position and remove the key.
Test a group of Zonechecks
1 To test all the Zonechecks in the group, insert the key into the key-switch and turn to
GROUP TEST.
2 Look at the central fire control panel to confirm simultaneous activation of all the flow-
switches within the group.
3 Return to STANDBY position and remove the key.
FLOW-SWITCH
ACTIVATED
GROUP
TEST
SELF
TEST
STANDBY
PUMP
RUNNING
VALVE
FAULT
Orientation
5
• The pump direction-of-flow arrow faces the opposite direction to the system flow.
• The pump cartridge is always horizontal.
• Do not position the flow-switch on the underside of the pipe.
• For vertical flow applications, only mount flow-switch where up-flow conditions exist.
FLOW-SWITCH ON UNDERSIDE OF PIPEPUMP NOT HORIZONTAL
6
Typical Connection
A typical multi-occupancy Zonecheck Installation. For an example of a typical riser
installation visit our website at www.projectfire.co.uk.
System Flow
Pump Flow
ZONE VALVE
(View from above)
Please note Zonecheck should be installed by a competent fire sprinkler installer and wired
up by a qualified electrician.

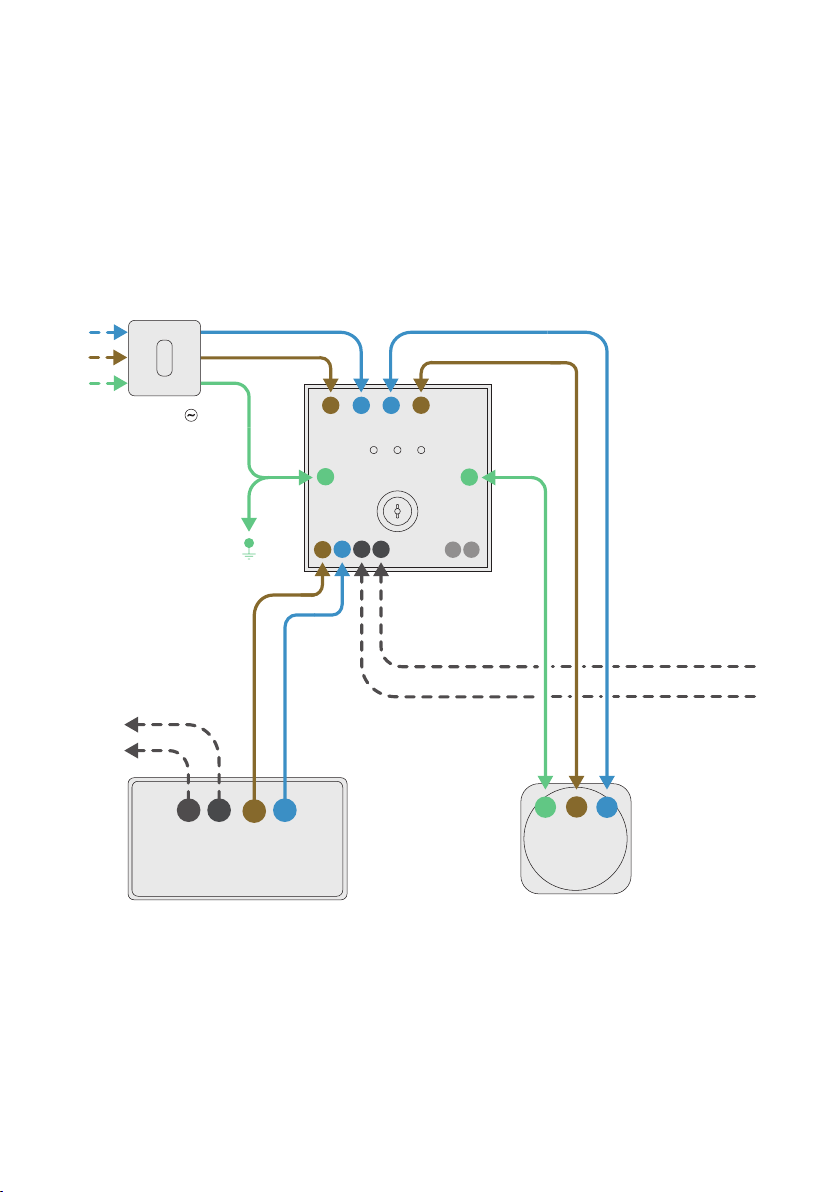

Stand Alone Test Wiring
7
KEY-SWITCH
2
2
1
FIRE ALARM/
INTERFACE
DEVICE
+-
COM N/O
COM
FLOW-SWITCH
12
N/O GN
L
MANIFOLD
JUNCTION
BOX
1
G
NL
N
L
3A
SWITCHED
FUSED SPUR
POWER
SUPPLY
G
MONITORED ZONE/
ISOLATION VALVE
(OPTIONAL)
